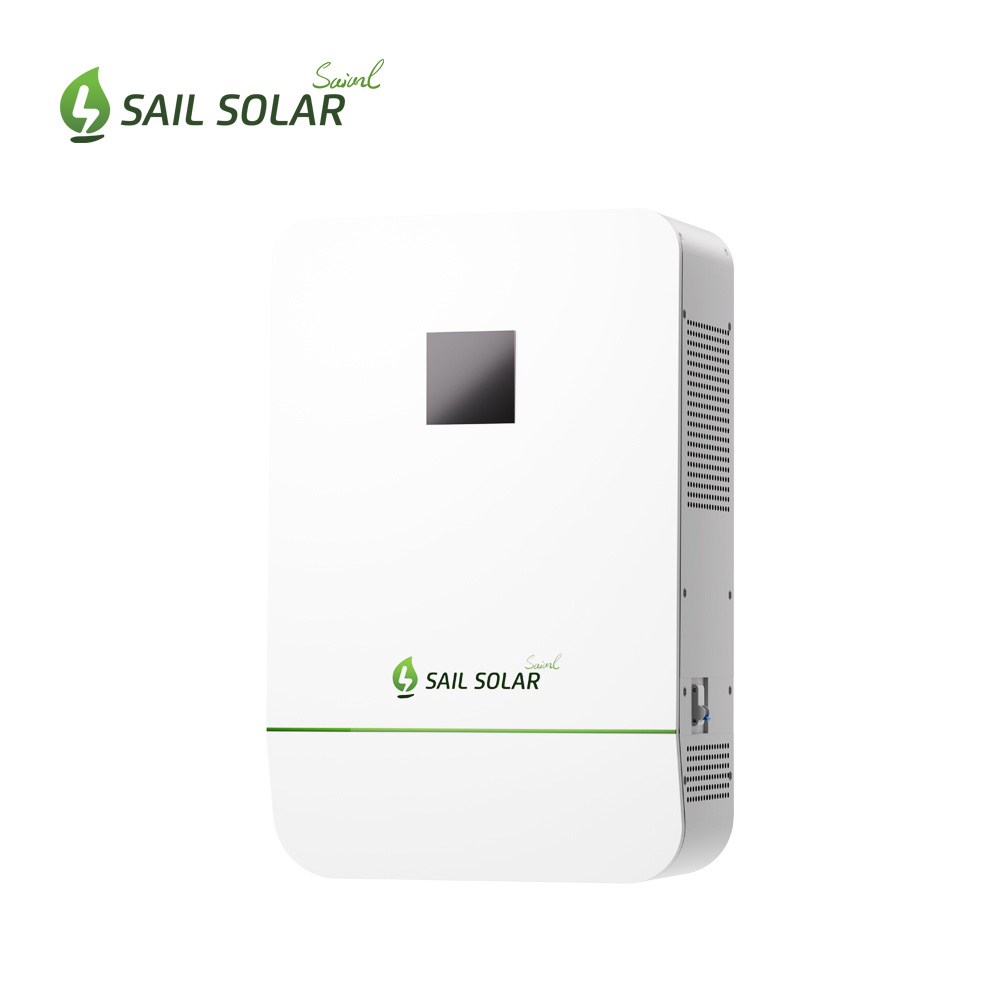

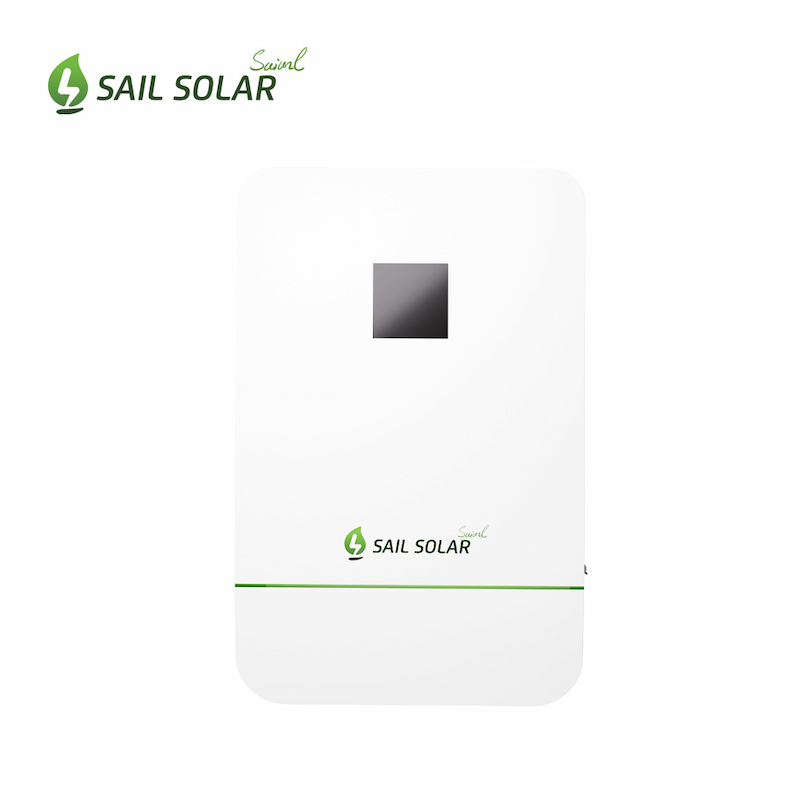

All-in-one Solar Charge Inverter 8Kw Single Phase PV Power Energy Hybrid Inverters With Wifi
The Xihe-8KLP1-EU is a high-quality pure sine wave inverter system, ensuring reliable long-term operation at rated capacity. It features an industrial-grade design for easy installation and use, and incorporates advanced MPPT technology with up to 99.9% efficiency.
Item No :
Xihe-8KLP1-EUParallel :
6 UnitsMax Power :
8000WOutput Voltage :
220V,230VWarranty :
5 YearsCertificate :
CECommunication :
BMS (RS485)Protection :
IP20Type :
Hybrid AC/DC InverterThe inverter supports exclusive Li-ion BMS dual activation and communication with various battery types, while enabling remote monitoring of operating parameters. Comprehensive hardware and software protections are included, backed by multiple safety certifications.
|
MODEL |
Xihe-8KLP1-EU
|
|
INVERTER
|
|
|
Rated Output Power
|
8,000W
|
|
Max.Peak Power
|
16,000W
|
|
Rated Output Voltage
|
230Vac, single-phase / three-phase, be paralleled
|
|
Load Capacity of Motors
|
5HP
|
|
Rated AC Frequency
|
50Hz/60Hz
|
|
Waveform
|
Pure Sine Wave
|
|
Switch Time
|
10ms（typical）
|
|
Parallel Capacity
|
1~6 units
|
|
Output Mode
|
O-grid (default)/Hybrid
|
|
BATTERY
|
|
|
Battery Type
|
Lead-acid/Li-ion/User defined
|
|
Rated Battery Voltage
|
48V
|
|
Voltage Range
|
40～60Vdc
|
|
Max.MPPT Charging Current
|
180A
|
|
Max.Mains/Generator Charging Current
|
100A
|
|
Max.Hybrid Charging Current
|
180A
|
|
PV INPUT
|
|
|
Num. of MPPT Trackers
|
2
|
|
Max.PV Array Power
|
5,500W + 5,500W
|
|
Max.Input Current
|
22A + 22A
|
|
MPPT Voltage Range
MAINS / GENERATOR INPUT
|
125～425Vdc |
|
Max.Voltage of Open Circuit
|
500Vdc + 500Vdc
|
|
MPPT Voltage Range
|
90～275Vac
|
|
Frequency Range
|
50/60Hz
|
|
Bypass Overload Current
|
63A
|
|
EFFICIENCY
|
|
|
MPPT Tracking Efficiency
|
99.9%
|
|
Max. Battery Inverter Efficiency
|
92%
|
|
GENERAL
|
|
|
Dimensions
|
620*445*130mm
|
|
Weight
|
27kg
|
|
Protection Grade
|
IP20, indoor onIy
|
|
Operating Temperature Range
|
-10~55℃, >45℃ derated
|
|
Noise
|
≤60dB
|
|
Cooling Method
|
Internal Fan
|
|
COMMUNICATION
|
|
|
Embedded Interfaces
|
RS485 / USB / Dry contact
|
|
External Modules (Optional)
|
Wi-Fi / GPRS
|
|
CERTIFICATION
|
|
|
Safety
|
IEC62109-1, IEC62109-2
|
|
EMC
|
EN61000-6-1, EN61000-6-3, FCC 15 class B
|
|
RoHS
|
Yes
|
Xihe-8KLP1-EU All-in-One Inverter: Power Simplicity

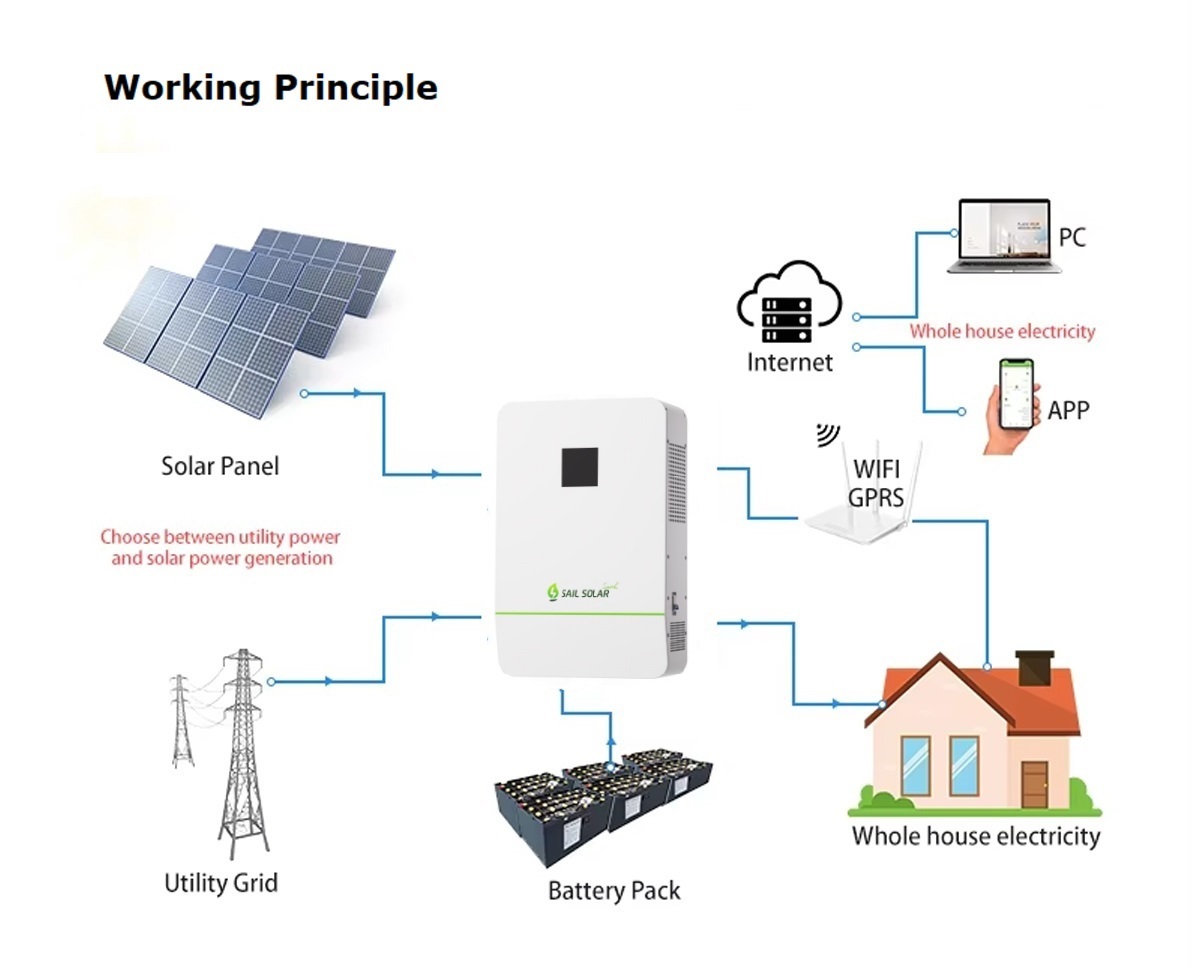

Our 48V all-in-one inverter is the ultimate three-in-one solution for modern solar installations, merging a high-efficiency MPPT solar charge controller, an AC battery charger, and a pure sine wave inverter.
Unified Design: A compact unit that simplifies installation and system integration.
Intelligent Control: Programmable settings let you customize power source priority for both charging and output.
Flexible & Reliable: Seamlessly manage energy between solar, grid, and batteries for uninterrupted power.
Unlock Energy Independence with the Xihe-8KLP1-EU
>Meet the future of industrial energy management. Our all-in-one solar storage inverter unifies PV, grid charging, and energy storage to provide a dependable pure sine wave AC output. At its heart is an intelligent DSP control system that guarantees rapid response and rock-solid reliability.
>Maximize your solar harvest with dual high-efficiency MPPT inputs, and enjoy ultimate flexibility with support for all battery types—including an exclusive Li-ion wake-up function. Simplify your powerful, programmable energy solution.
