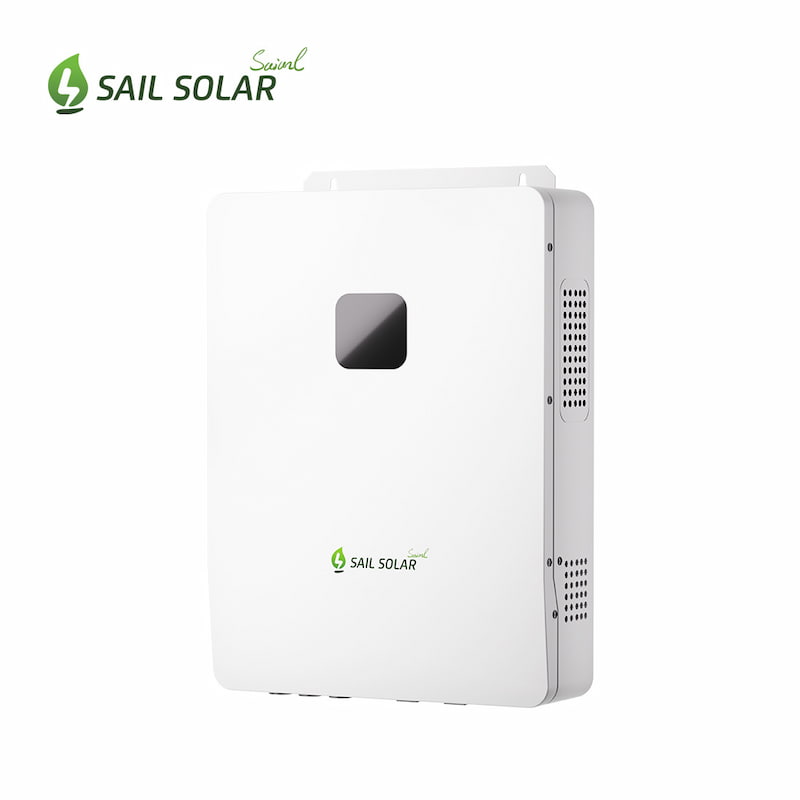

Pure Sine Wave 10Kw 48VDC Split Phase Hybrid Solar Inverters for Home
This SAIL SOLAR 10kW inverter is compatible with various solar power systems with 120V/240V voltage and is compatible with 48V/51.2V lithium batteries and GEL/AGM lead-acid batteries. Customization services for appearance and LOGO are available. Minimum order quantity: 2 pieces.
Item No :
Xihe-10KLV-USParallel :
6 UnitsMax Power :
10000WOutput Voltage :
120V/240VWarranty :
5 YearsProtection :
IP20Type :
Hybrid AC/DC InverterThe Xihe-10KLV-US boasts 99.9% MPPT technology efficiency, supports PV input currents up to 44A, and can output high-quality pure sine wave AC power. Up to six units can be connected in parallel. It also supports charging currents up to 200A and includes lithium-ion battery BMS communication, unique dual activation, and time-of-day functionality.
Specification
|
MODEL |
Xihe-10KLV-US
|
|
INVERTER
|
|
|
Rated Output Power
|
10,000W
|
|
Max.Peak Power
|
20,000W
|
|
Rated Output Voltage
|
120Vac，single-phase / 240Vac，split-phase/three-phase, be paralleled
|
|
Load Capacity of Motors
|
6HP
|
|
Rated AC Frequency
|
50Hz/60Hz
|
|
Waveform
|
Pure Sine Wave
|
|
Switch Time
|
10ms（typical）
|
|
Parallel Capacity
|
1-6 units
|
|
Output Mode
|
Off-grid (default) / Hybrid
|
|
BATTERY
|
|
|
Battery Type
|
Li-ion / Lead-acid / User-define
|
|
Rated Battery Voltage
|
48Vdc
|
|
Voltage Range
|
40～60Vdc
|
|
Max.MPPT Charging Current
|
180A
|
|
Max.Mains/Generator Charging Current
|
100A
|
|
Max.Hybrid Charging Current
|
180A
|
|
PV INPUT
|
|
|
Num. of MPPT Trackers
|
2
|
|
Max.PV Array Power
|
5,500W+5,500W
|
|
Max.Input Current
|
22A+22A
|
|
Max. Open Circuit Voltage
|
500Vdc+500Vdc
|
|
MPPT Voltage Range
|
125～425Vdc
|
|
MAINS / GENERATOR INPUT
|
|
|
Input Voltage Range
|
90～140Vac
|
|
Frequency Range
|
50/60Hz
|
|
Bypass Overload Current
|
63A
|
|
EFFICIENCY
|
|
|
MPPT Tracking Efficiency
|
99.9%
|
|
Max. Battery Inverter Efficiency
|
92%
|
|
GENERAL
|
|
|
Dimensions
|
620*445*130mm
|
|
Weight
|
27kg
|
|
Protection Grade
|
IP20，indoor only
|
|
Operating Temperature Range
|
-10~55℃, >45℃ derated
|
|
Noise
|
≤60dB
|
|
Cooling Method
|
Forced air cooling with adjustable air speed
|
|
COMMUNICATION
|
Internal Fan
|
|
Embedded Interfaces
|
RS485 / USB / Dry contact
|
|
External Modules (Optional)
|
Wi-Fi / GPRS
|
|
CERTIFICATION
|
|
|
Safety
|
IEC62109-1, IEC62109-2, UL1741
|
|
EMC
|
EN61000-6-1, EN61000-6-3, FCC 15 class B
|
|
RoHS
|
Yes
|

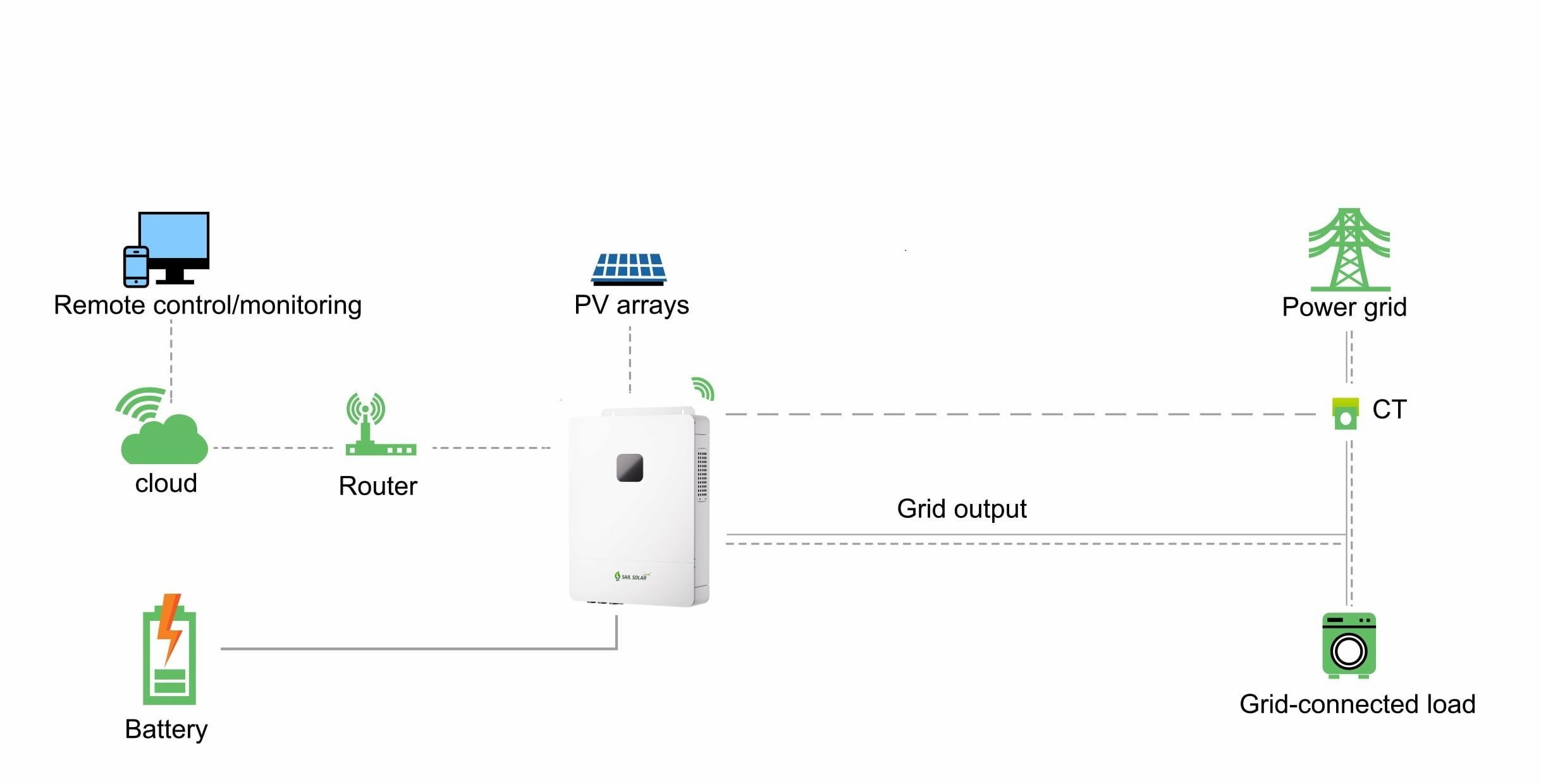

Xihe-10KLV-US is a solar hybrid inverter integrating solar energy storage, mains charging energy storage, and AC sine wave output. It adopts DSP control and state-of-art control algorithm, ensuring high response speed, high reliability, and high industrialization standards. With dual MPPT, the efficiency is up to 99.9%. A maximum PV input current of 22A is perfect for high power modules.
Xihe-10KLV-US hybrid inverter offers an impressive inverter efficiency of 99.9%, ensuring maximum energy conversion from DC to AC power for your home or business. It is compatible with a variety of battery types, including lithium-ion, lead-acid, and user-defined batteries, allowing users to choose the best option for their specific needs.The inverter's MPPT voltage range of 120~450VDC ensures seamless integration with a wide range of solar panels, making it an ideal choice for users in different geographical locations.

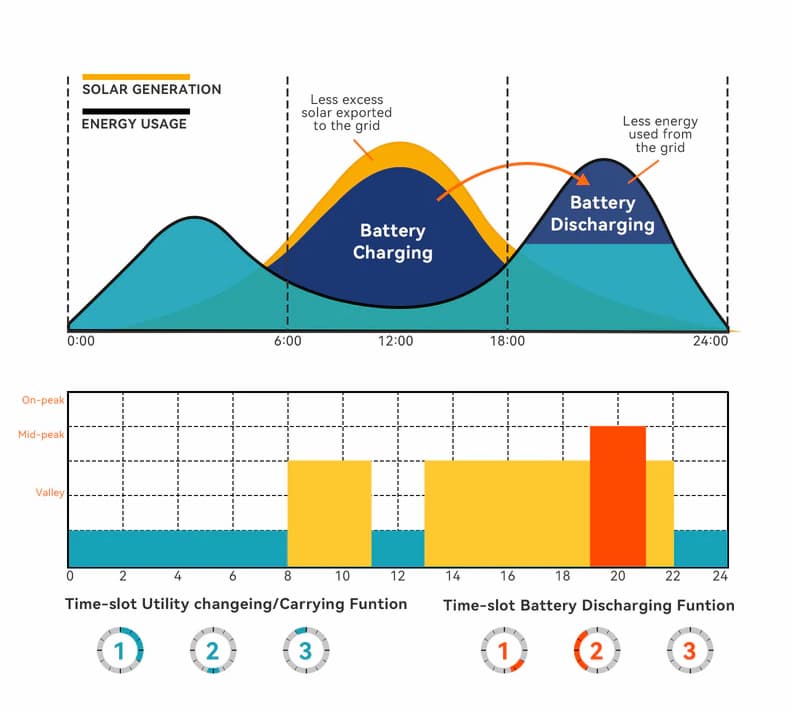

This solar inverter has the timed power charge/discharge function. Users can set different charge and discharge periods according to the local time-of-use price, thus reasonably using mains and PV power. When mains is expensive, the battery inverter is used to supply power to the load; when mains is cheap, it can be used to supply power to and charge the load, thus helping users reduce electricity expenses to the full extent.
