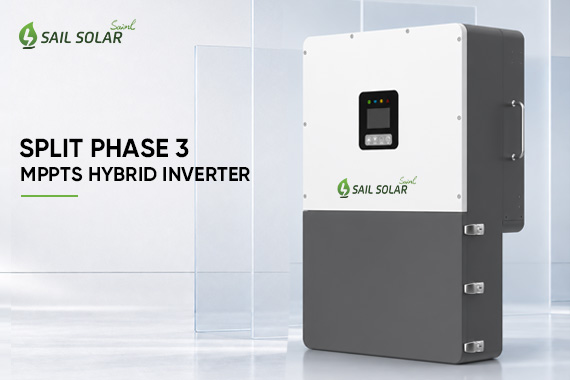

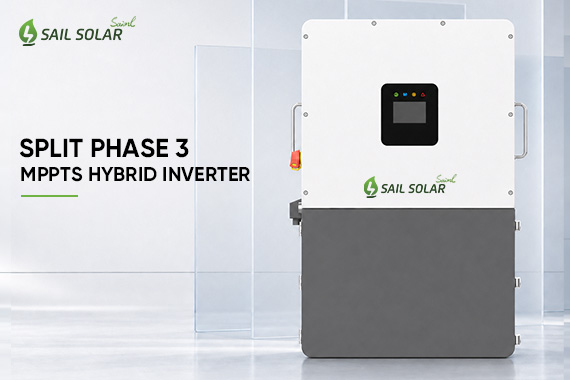

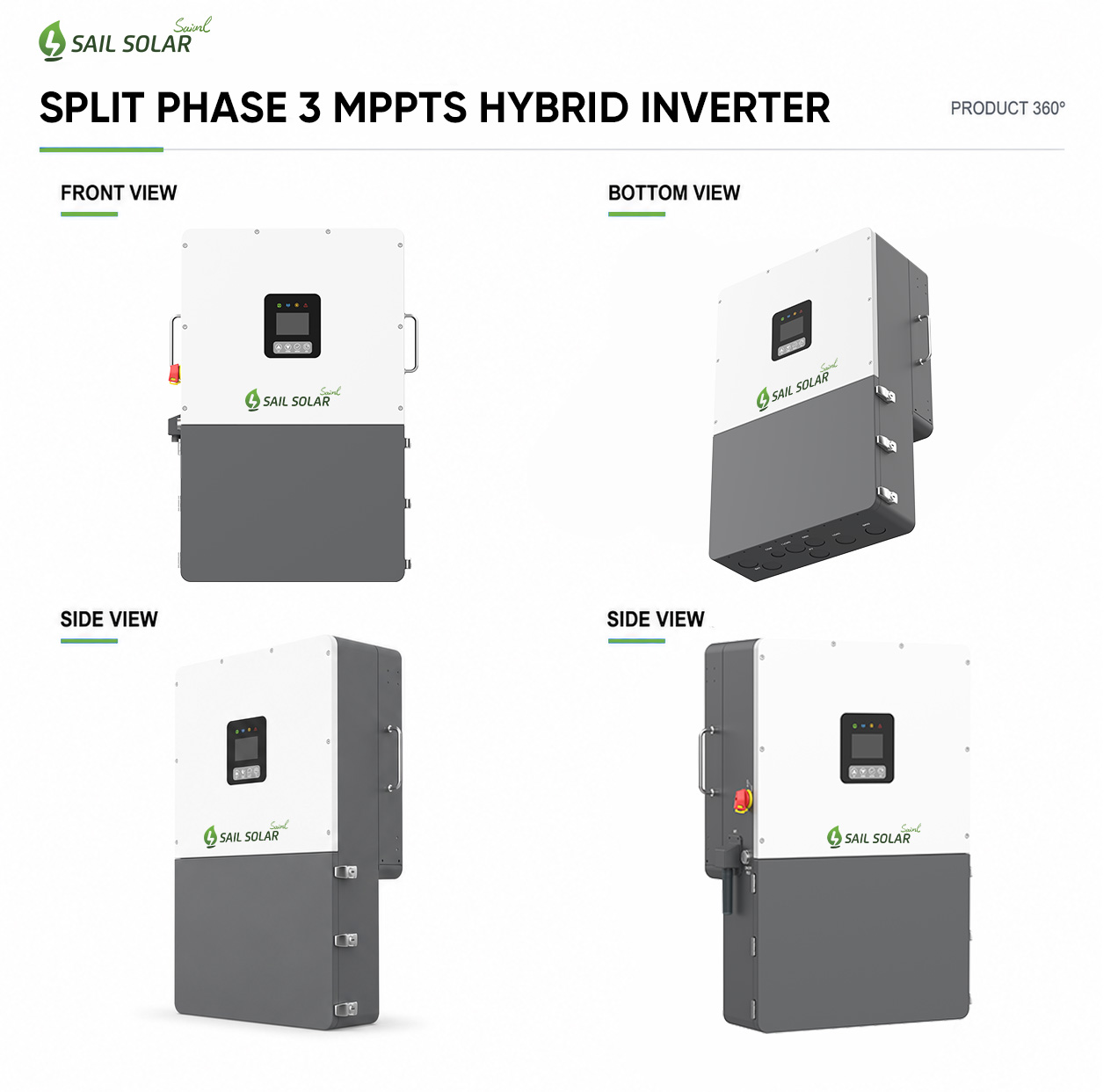

SAIL SOLAR Split Phase 3 MPPTs 8-15kw Hybrid Inverter For Residential Use
SailSolar 8–15kW split-phase and low-voltage solar hybrid inverter is designed for North American residential solar storage systems. It enables solar power generation, battery storage, and provides reliable home backup power.
Equipped with programmable smart load, 200A bypass current for stable peak load management, rugged NEMA 4X enclosure and 150% PV over-paneling, perfectly suited for whole-home backup power and system expansion.
Brand :
SAIL SOLARMPPT Voltage Range :
100~500vParallel :
Support Parallel up to 6 UnitsBattery :
Lithium /Lead-acidOperating temperature :
-25C-+60C(-13°F-+140°F),>+45C(+11°F)Deratingto 60%Safety and Certification :
UL1741, FCC Part 15B, UL1547, UL1998, UL1699B, HECO SRD 2.0, CEC efficiencyOutput Voltage :
120Vac/240Vac (SplitPhase) 208Vac (2/3Phase)Protection :
NEMA4XProduct Introduction
Core Performance & Energy Management
This is a split-phase, low-voltage hybrid inverter designed for residential applications.
Load Control & Hardware Advantages

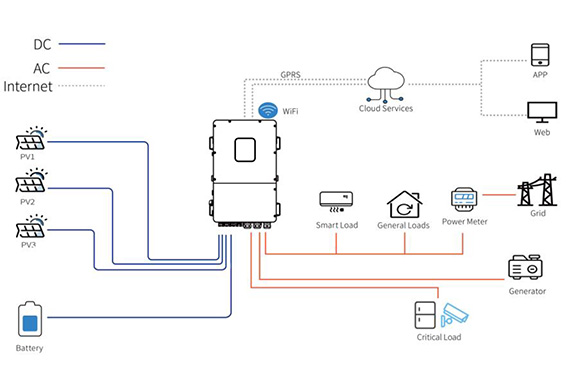

System Diagram
This diagram demonstrates the 8kW~15kW inverter system.
DC power from batteries, diesel generator and PV array flows through safety fuses, relays, DC isolation switch and capacitors. The inverter converts DC to AC; after filtering and stabilization, purified AC power is delivered to the grid and loads.
What Makes Our Hybrid Solar Inverter Stand Out
| Rated Power (kW) | 8-15 |
| Rated Frequency (Hz) | 60 |
| Switch Time (ms) | <10 |
| MPPT Efficiency | 99.5% |
| Other Protection | Overload, Over temperature, Short circuit, Anti-islanding |
| Noise (dB) | ＜45 |
| Interface | RS485 / WiFi/ CAN (Optional: Bluetooth /LAN/4G / Meter) |
| Display | App+ LED/ LCD (-S version) |
| Insulation Monitoring | Yes |
| Residual Current Monitoring | Yes |
Our Certifications
To ensure the highest levels of product safety, system reliability, and international market compliance, our solutions have undergone rigorous testing and certification processes. We are proud to hold a comprehensive portfolio of globally recognized certifications, including IEC62619 (for industrial battery safety), IEC/EN60730 (for automatic electrical controls), UL1973 (for energy storage and backup power systems), and CE-EMC (for electromagnetic compatibility within the European market). These credentials not only validate our commitment to engineering excellence and quality assurance but also provide our customers with the confidence that every product meets the strictest regulatory requirements worldwide. Whether for industrial energy storage, automation systems, or electronic control units, our certified solutions deliver reliable, safe, and compliant performance you can trust.
Our Exhibitions
Sail Solar is proud to have participated in numerous energy storage exhibitions around the world. From leading industry events across China to internationally renowned shows in Europ, America, Africa, and beyond, our team has been consistently present on the global stage. These exhibitions serve as critical platforms for us to unveil our latest energy storage solutions, connect with potential clients and partners, and benchmark against the world's best. Through active engagement in both domestic and international events, Sail Solar continues to demonstrate its technical expertise, expand its global network, and reinforce its dedication to advancing the energy storage industry.
FAQ
A: It is a residential split-phase low-voltage hybrid inverter, specially designed for whole-home energy backup and system expansion. It fits American split-phase 120/240V and 208V 2/3-phase grid environments, and supports AC-coupled retrofit projects without rebuilding existing solar systems.
A: It supports three power inputs: PV solar panels, grid power and diesel generators. Equipped with dual AC ports for grid and generator, it realizes direct diesel-to-battery charging. It also has 3 independent MPPT trackers to connect solar arrays.
A: The UPS-level switching time is less than 10ms, which can realize seamless power supply without blackout during grid failure. It supports 200A bypass current to safely bear household peak loads, and the max battery charge/discharge current reaches 275A for heavy load operation.
A: It works with both lithium batteries and lead-acid batteries. The applicable battery voltage range is 40–60V DC, with a rated battery voltage of 51.2V DC. Reverse connection protection is built in to avoid damage from wrong wiring.
A: 1. Rugged NEMA 4X enclosure, suitable for outdoor complex environments;
2. Supports 150% PV over-paneling to maximize solar power utilization;
3. Parallel connection available, up to 6 units for capacity expansion;
4. Multiple safety protections: overload, over-temperature, short circuit, anti-islanding and insulation monitoring.
