product detals
Home Products

Ess Solution

Sail Solar All In One ESS Solution 5KW Inverter 10KWH 51.2V 200ah Lithium Battery Home Energy Storage System

Sail Solar All In One ESS Solution 5KW Inverter 10KWH 51.2V 200ah Lithium Battery Home Energy Storage System

SAIL Solar's all-in-one energy storage system (ESS) is an advanced home energy solution. The all-in-one unit combines a single-phase hybrid inverter with a low-voltage lithium-ion battery, with a battery capacity ranging from 5.12-20.48kWh, to provide reliable power and maximum efficiency.

  • MPPT Voltage Range :

    120V~450V
  • AC Maximum Output Current :

    30A
  • Frequency :

    50Hz
  • Cycle Life(+25°C 0.5C) :

    DOD 80%,10+ years design life
  • Communication mode :

    RS232/RS485/CAN/BLUETOOTH/WIFI
  • Rated Output Power :

    5000W
  • Output Voltage :

    220/230Vac
  • Type :

    All-in-one

SAIL SOLAR All in One Home Use Solar Power Energy Storage System is a multi-function solar inverter/solar charger, combining functions of inverter, MPPT solar charger and battery charger to offer uninterruptible power support. It is perfect backup power supply for off-grid system like household appliances, power tools, industrial equipment, and electronic audio and video equipment.

Specification



MODEL

AIO-5.12

AIO-10.24

AIO-15.36

AIO-20.48

Battery Type
LiFePO4 battery
No.of Moudle

1

2

3

4

Normal Capacity(25°c,0.2C)

5.12kwh

10.24kwh

15.36kwh

20.48kwh

Normal Voltage(dc)

51.2V

51.2V

51.2V

51.2V

Voltage Window(dc)
44.8~57.6V
Size(W/D/H)
1190x600x184mm
1800x600x184mm
1800x600x184mm
690x600x184mm
1800x600x184mm
1300x600x184mm
Weight(Nw Kg)

80

130

190

250

Normal charge/discharge current

50A

50A

50A

50A

Max.charge/discharge current

100A

100A

100A

100A

Cycle Life(+25°C 0.5C)
DOD 80%,10+ years design life
Storage Temperature
-20℃~+60°C
Safety Standard
CE/IEC/UL/UN38.3/MSDS
Protection Grade
IP20
Protocol (optional)
RS232/RS485/CAN/BLUETOOTH/WIFI
Protection
Overchange protection、Overdischange protection、 Overcurrent protection
Shortcircuit protection、Overtemperature protection
Working Temperature
Charge:0~45°c; Discharge:-10~45°C
Humidity
5%~85%
PV Charge



Solar Charge Type
MPPT
Maximum Output Power
5000W
PV Charging Current Range
0~80A
PV Operating Voltage Range
120~500V
MPPT Voltage Range
120~450V
AC Charge



Maximum Charge Power
3150W
AC Charging Current Range
0~60A
Rated input Voltage
220/230Vac
Input Voltage Range
90~280Vac
AC Output



Rated Output Power
5000W
Maximum Output Current
30A
Frequency
50Hz
Overload Current
35A
Battery Inverter Output



Rated Output Power
5000W
Maximum Peak Power
10KVA
Power Factor

1

Rated Output Voltage (Vac)
230Vac
Frequency
50Hz
Auto Switch Period
<15ms
THD
<3%
Product Description


SAIL Solar’s 5.12~20.48kWh All-In-One Energy Storage System (ESS) is an advanced, versatile solution for home energy needs. Integrating a single-phase hybrid solar inverter and a low-voltage lithium battery pack, this all-in-one unit is designed to deliver reliable power and maximize efficiency.

The ESS boasts a sleek, compact design that fits seamlessly into any home setup, making installation simple and hassle-free. With customizable capacity options, it allows homeowners to choose the power storage that best suits their energy needs.

Additionally, the system ensures an uninterrupted power supply, maintaining essential household functions during grid outages. Built with eco-friendly materials and optimized for solar energy, it helps reduce carbon footprints while offering a cost-efficient solution for reducing electricity bills.

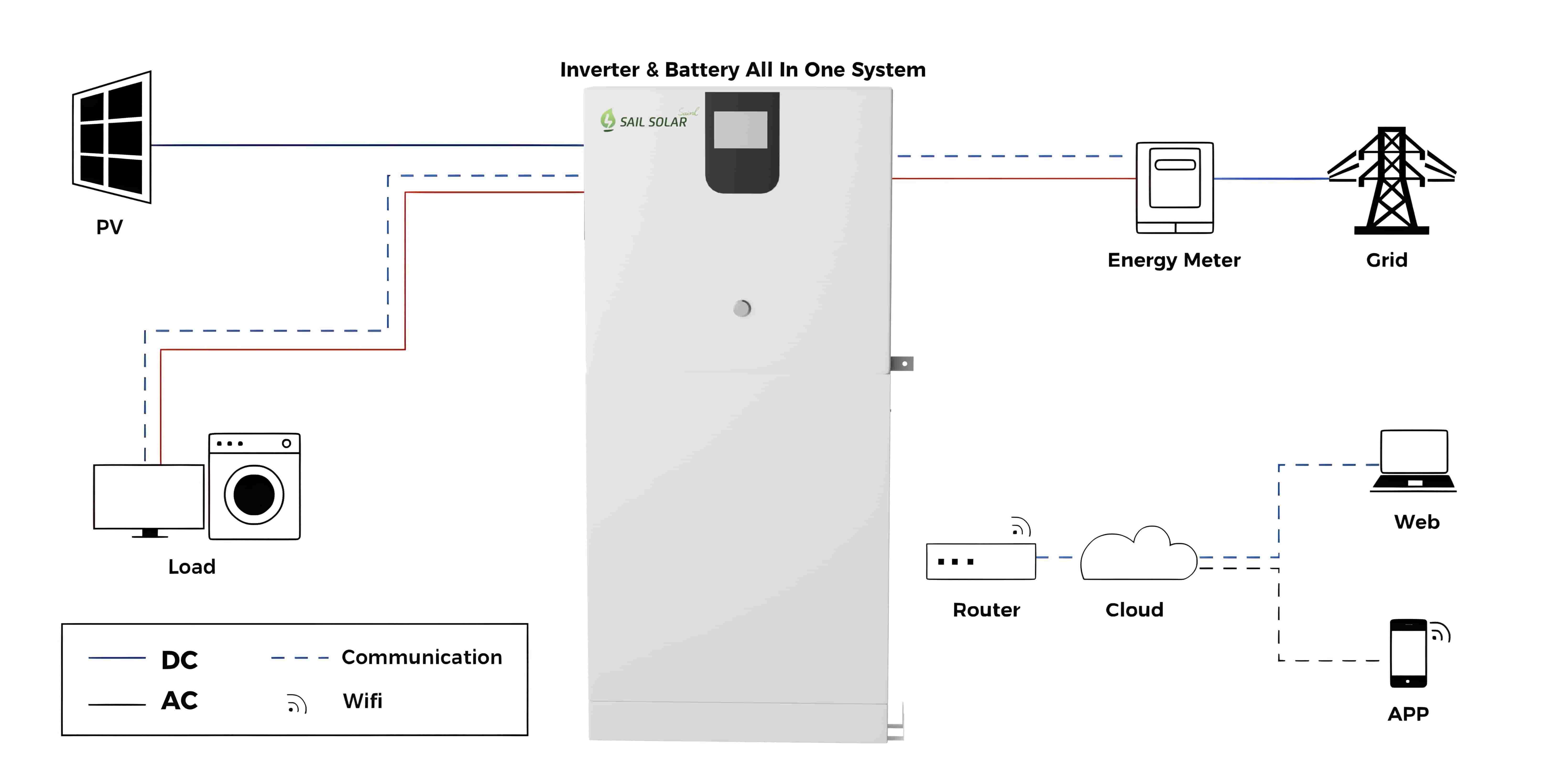

This all-in-one stackable solar energy system is designed for both residential and commercial applications, combining a 5kW inverter and a 5.12kWh battery for efficient hybrid home use. During the day, solar energy powers the home, and any surplus production is stored in the battery to provide electricity at night, maximizing energy savings. The smart system also offers real-time monitoring via a convenient mobile app, allowing users to track energy production, consumption, and battery status from anywhere.

Beyond residential use, this versatile system is ideal for industrial energy storage applications and can serve as an uninterruptible power supply (UPS) for offices and small businesses, ensuring continuous power in the event of outages. Its stackable design allows for easy scalability, making it suitable for various energy demands. This comprehensive solution brings reliability, energy independence, and smart control to both home and business environments.

Certificate



Our inverter and battery systems have successfully passed a comprehensive range of certifications, ensuring quality, safety, and compliance with international standards. These include VDE certification, which guarantees adherence to rigorous German safety standards; IEC 62133 and IEC 62219, which ensure safe design and testing for lithium-ion batteries; and CE marking, affirming conformity with EU health, safety, and environmental protection standards. Additionally, they meet UN38.3 transportation standards for lithium batteries, confirming their safety during shipping and handling, as well as the MSDS (Material Safety Data Sheet) requirements, which provide critical information on chemical properties and safety protocols. Together, these certifications highlight our commitment to delivering reliable, high-quality energy storage solutions that meet the strictest global standards.

wholesale All In One ESS Solution   in stock



After-Sales Service

" 7/24 " After-Sales Support

7 days a week, 24 hours a day: Ready to respond and solve problems immediately—Sail Solar's commitment to worry-free after-sales service.

Service Email: info@sailsolaress.com


Service Process

01

Submit Service Requests

Submit your service requests at any time via email, online customer service, or mobile app.

02

Rapid Response

Our service team will immediately respond to your requests and communicate the details of the issue with you.

03

On-Site Service or Remote Support

Depending on the nature of the problem, provide on-site service or remote technical support.

04

Problem Resolution

Our goal is to completely resolve your issue within 24 hours.

05

Follow-Up

After the problem is resolved, our team will continue to follow up to ensure your satisfaction with the service results.
