100Kw C&I Hybrid Energy Storage Solar System with 100Kwh 200Kwh Backup Battery
Meet your complete energy solution with Sail Solar. Our end-to-end solar storage systems for residential, commercial, and industrial use combine a high-performance 100kW hybrid inverter with your choice of 100kWh or 200kWh battery storage. This setup delivers simplified integration, high efficiency, and a seamless on/off-grid transition for zero interruption. With programmable modes for self-consumption, backup, or peak shaving, it is the ultimate energy solution designed specifically for industry and commerce
Payment :
T/T, L/C, Western UnionShipping Port :
ShanghaiRated Output Power :
100kWCommunication Port :
CAN, RS485Grid Connection :
HybridCapacity :
100kWh-200kWhOutput Voltage :
380V / 400V, Other Voltages CustomizedProtection Class :
IP65Battery Type :
LiFePO4Certificate :
CEItem No. :
SAS100KW-HYSail Solar delivers end-to-end solar storage solutions for residential, commercial, and industrial applications, featuring a high-performance 100kW hybrid solar system with scalable 100kWh or 200kWh battery storage, the hybrid inverter for simplified integration and high efficiency, seamless on/off-grid transition for zero interruption during outages, and programmable operation modes to optimize for self-consumption, backup, or peak shaving—making it the perfect energy solution for industry and commerce

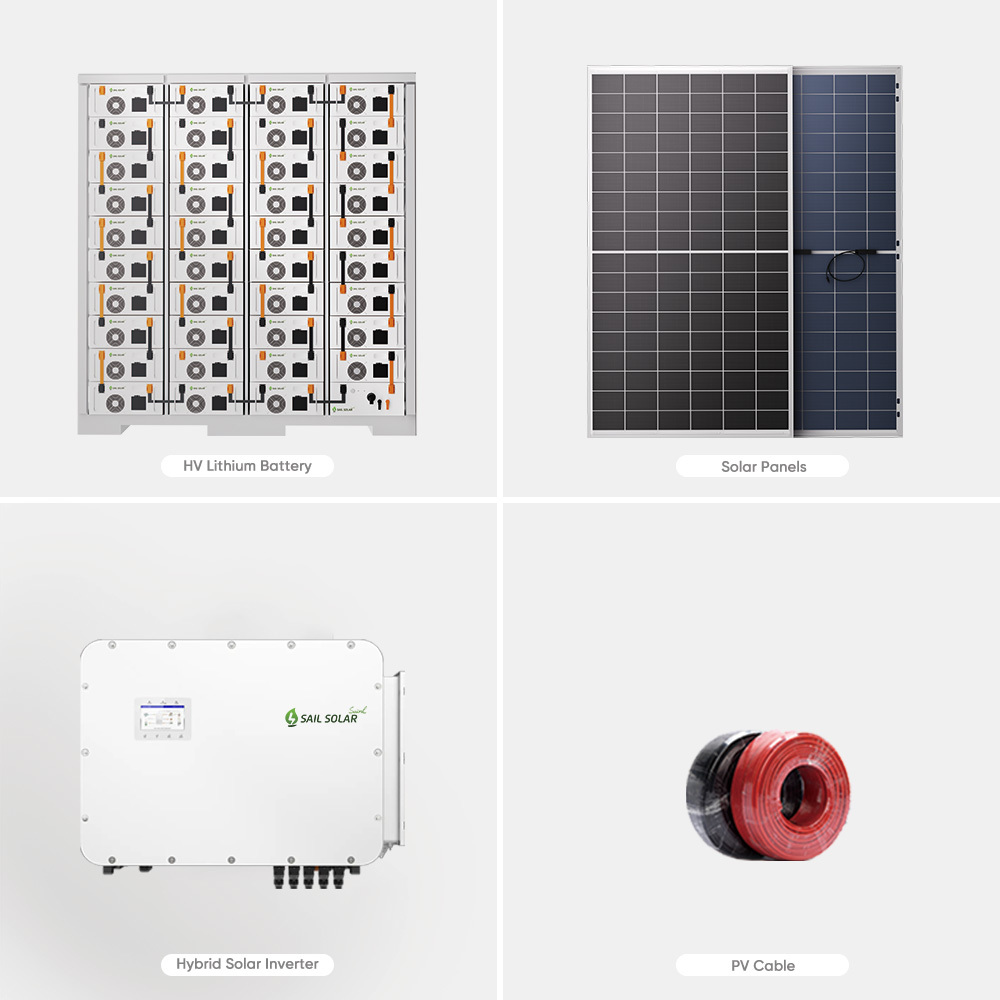

Specification
|
MODEL
|
SAS-100kW-HY |
| 720W Solar Panel |
143 pieces |
| Hybrid Inverter |
100KW |
| Lithium Battery |
Customized Lithium (Lifepo4) Battery Storage System with BMS Monitoring |
| DC Cable 4mm2 |
800 Meters |
| MC4 Connector |
80 Pairs
|
| Mounting System |
Customized for Rooftop or Ground |
|
Optional Accessories
|
Lightning protection/grounding device
AC/DC Combiner box
AC Cable
Smart Meter
|
Product Description

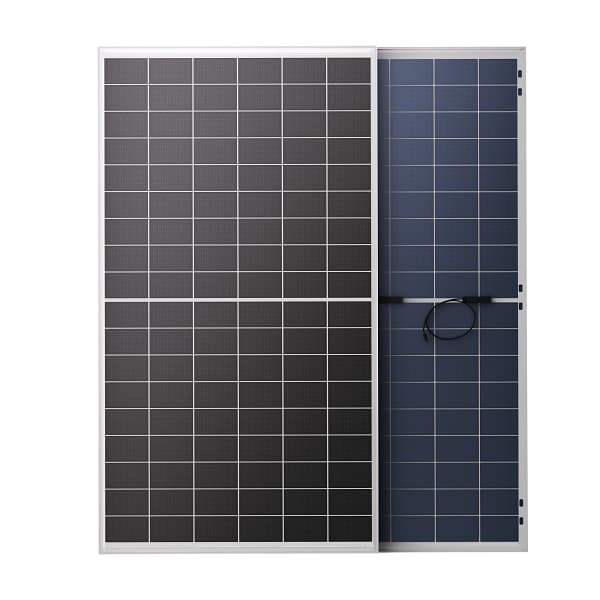

Mono N-type High Efficiency Half Cell/Bifacial Solar Modules
N-type bifacial double-glass solar modules offer significant advantages in PV systems, delivering higher energy yields compared to traditional modules. Their N-type cells provide superior efficiency, lower degradation rates, and better performance in low-light conditions. The bifacial design captures sunlight on both sides, increasing power generation by up to 30% when combined with reflective surfaces. Additionally, the dual-glass construction enhances durability, weather resistance, and long-term reliability, making them ideal for harsh environments. With a longer lifespan and improved temperature coefficient, these modules ensure higher ROI and lower LCOE over the system's lifetime

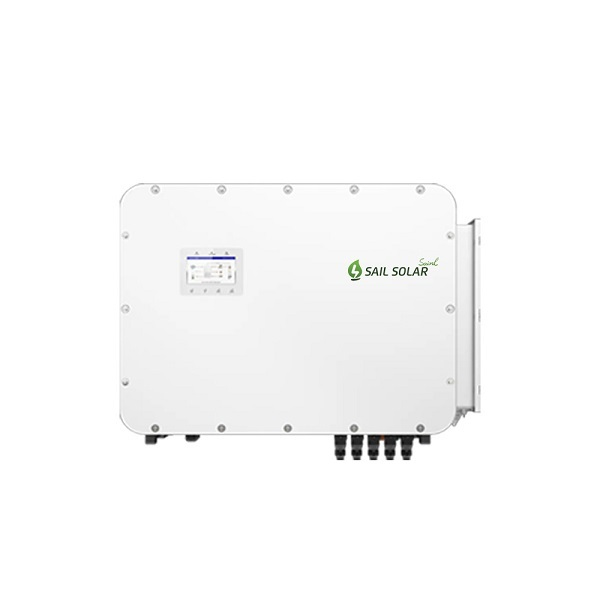

Hybrid Inverter
This is a hybrid solar inverter with high voltage, three-phase energy storage for commercial applications. The inverter series, which boasts a maximum charge/discharge current of 100A+100A across two independently controlled battery ports, has 10 integrated MPPTs with a string current capacity of up to 20A – ensuring unmatched power delivery. Whether for on or off-grid applications, this solar inverter supports parallel operation of up to six units, with a backup port capable of supporting 2.0 times overload for short durations. This latest range is compatible with an array of batteries, thanks to its wide voltage range, and offers peak shaving control in both self-use and generator modes

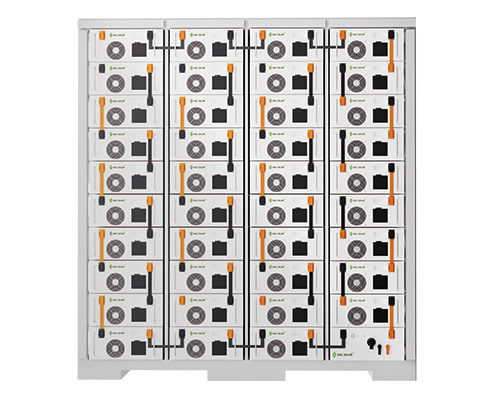

Lithium Battery
This high-voltage lithium battery pack provides customizable module configurations, with standard options offering a nominal voltage of 716V and a capacity of 280Ah for a total energy output of approximately 200 kWh. Engineered for large-scale energy storage, it delivers three key advantages: high energy density, a long cycle life, and excellent safety performance. It is an ideal solution for demanding commercial and industrial applications, including solar-plus-storage integration, peak shaving, and backup power

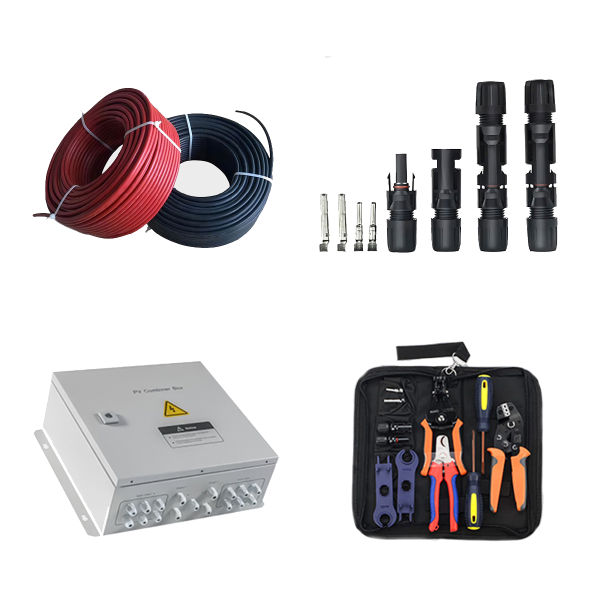

Accessories
Our comprehensive range of solar accessories includes PV DC cables (4mm², 6mm², 10mm²), AC cables, and MC4 connectors. Central to this offering is a customized PV combiner box, engineered for robust solar panel connectivity. It is equipped with critical safety components—including anti-reverse diodes, DC circuit breakers, fuses, and surge/lightning protection—all housed within an IP65-rated waterproof enclosure for demanding outdoor environments. Essential installation tools complete the package

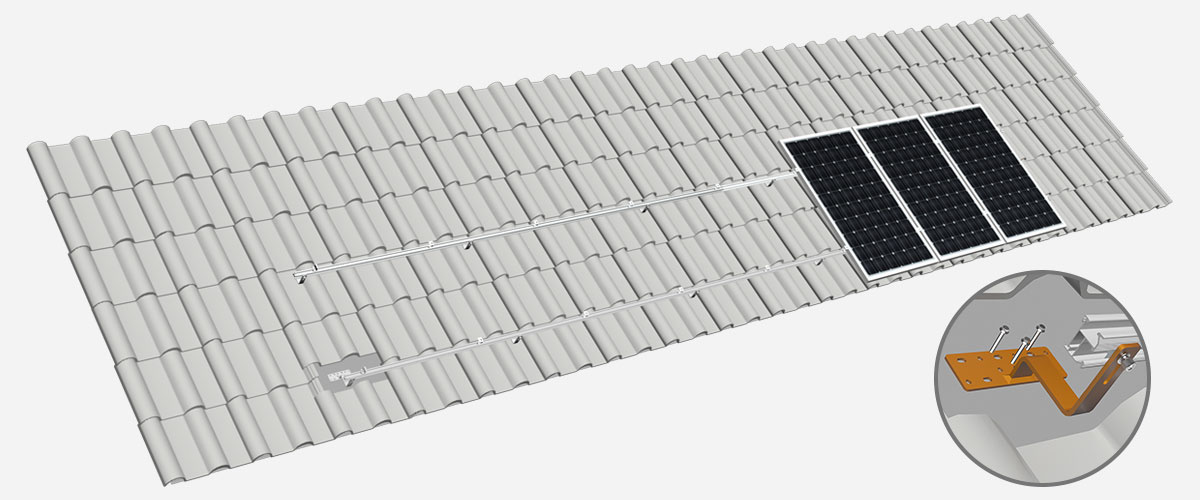

Mounting Rackets
Our solar mounting structures are precision-engineered for a wide array of roof materials. Each configuration is meticulously tailored to the specific profile of your roof—be it tile, metal, concrete, or asphalt—guaranteeing a secure fit and optimal compatibility. This custom approach ensures unwavering durability, superior weather resistance, and peak energy efficiency for your photovoltaic array
At its core, this advanced energy solution features a high-efficiency 100kW hybrid inverter and a scalable 100-200kWh high-voltage LiFePO4 battery, engineered for robust commercial performance. It masterfully unifies solar, storage, and grid power, enabling intelligent energy management and a guaranteed uninterrupted supply. The inclusion of CAN/RS485 communication ports allows for comprehensive real-time monitoring and control, not only optimizing self-consumption but also significantly reducing grid dependence.
Designed for both durability and adaptability, the system supports flexible capacity expansion to meet future energy demands. Its high-voltage architecture is key to achieving higher efficiency, a longer lifespan, and reduced energy loss. For peak shaving, backup, or off-grid applications, this solution stands as a future-proof and cost-effective gateway to true energy autonomy.
After-Sales Service
● " 7/24 " After-Sales Support
● 7 days a week, 24 hours a day: Ready to respond and solve problems immediately—Sail Solar's commitment to worry-free after-sales service.
● Service Email: info@sailsolaress.com
Service Process
01
Submit Service Requests
Submit your service requests at any time via email, online customer service, or mobile app.
02
Rapid Response
Our service team will immediately respond to your requests and communicate the details of the issue with you.
03
On-Site Service or Remote Support
Depending on the nature of the problem, provide on-site service or remote technical support.
04
Problem Resolution
Our goal is to completely resolve your issue within 24 hours.
05
Follow-Up
After the problem is resolved, our team will continue to follow up to ensure your satisfaction with the service results.
