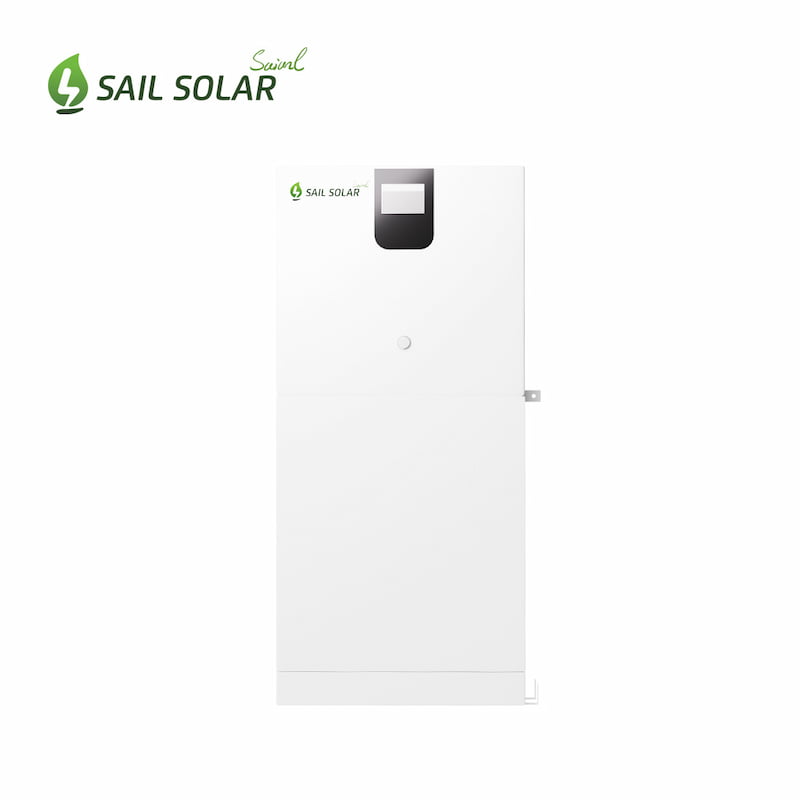

Sail Solar All In One ESS 5KW Inverter and 5KWH Lithium Battery Energy Storage System

Sail Solar All In One ESS 5KW Inverter and 5KWH Lithium Battery Energy Storage System

The all-in-one solar energy storage system is designed for superior home energy management. It is an integrated system that seamlessly integrates a single-phase 5kW hybrid solar inverter and a low-voltage lithium battery pack (5.12-20.48kWh). It optimizes overall energy efficiency while ensuring a stable power supply.

  • MPPT Voltage Range :

    120V~450V
  • Frequency :

    50Hz
  • Maximum Output Current :

    30A
  • Cycle Life(+25°C 0.5C) :

    DOD 80%,10+ years design life
  • Protocol (optional) :

    RS232/RS485/CAN/BLUETOOTH/WIFI
  • Solar Charge Type :

    MPPT
  • Rated Output Power :

    5000W
  • Communication Port :

    CAN, RS485
  • Protection Class :

    IP20
  • Type :

    All-in-one

The SAIL SOLAR all-in-one ESS features IP20 protection and multiple communication ports, including CAN and RS485, for seamless integration into a variety of environments. With a rated output power of 5000W and a maximum AC output current of 30A, it ensures robust performance for residential and small commercial applications.

Specification



MODEL

AIO-5.12

AIO-10.24

AIO-15.36

AIO-20.48

Battery Type
LiFePO4 battery
No.of Moudle

1

2

3

4

Normal Capacity(25°c,0.2C)

5.12kwh

10.24kwh

15.36kwh

20.48kwh

Normal Voltage(dc)

51.2V

51.2V

51.2V

51.2V

Voltage Window(dc)
44.8~57.6V
Size(W/D/H)
1190x600x184mm
1800x600x184mm
1800x600x184mm
690x600x184mm
1800x600x184mm
1300x600x184mm
Weight(Nw Kg)

80

130

190

250

Normal charge/discharge current

50A

50A

50A

50A

Max.charge/discharge current

100A

100A

100A

100A

Cycle Life(+25°C 0.5C)
DOD 80%,10+ years design life
Storage Temperature
-20℃~+60°C
Safety Standard
CE/IEC/UL/UN38.3/MSDS
Protection Grade
IP20
Protocol (optional)
RS232/RS485/CAN/BLUETOOTH/WIFI
Protection
Overchange protection、Overdischange protection、 Overcurrent protection
Shortcircuit protection、Overtemperature protection
Working Temperature
Charge:0~45°c; Discharge:-10~45°C
Humidity
5%~85%
PV Charge



Solar Charge Type
MPPT
Maximum Output Power
5000W
PV Charging Current Range
0~80A
PV Operating Voltage Range
120~500V
MPPT Voltage Range
120~450V
AC Charge



Maximum Charge Power
3150W
AC Charging Current Range
0~60A
Rated input Voltage
220/230Vac
Input Voltage Range
90~280Vac
AC Output



Rated Output Power
5000W
Maximum Output Current
30A
Frequency
50Hz
Overload Current
35A
Battery Inverter Output



Rated Output Power
5000W
Maximum Peak Power
10KVA
Power Factor

1

Rated Output Voltage (Vac)
230Vac
Frequency
50Hz
Auto Switch Period
<15ms
THD
<3%

Product Description



SAIL Solar's 5.12~20.48kWh All-In-One ESS is an advanced, integrated solution that combines a single-phase hybrid solar inverter with a high-performance, low-voltage lithium battery pack, making it an ideal choice for residential use.

With a sleek and compact design, this system is not only visually appealing but also space-saving, fitting seamlessly into home environments.

Engineered for reliability, it ensures an uninterrupted power supply to keep essential devices running, even during power outages. This system also champions sustainability by storing clean, renewable energy, thus promoting an eco-friendly lifestyle while helping users reduce their carbon footprint. Additionally, it is a cost-efficient solution, enabling households to save on energy bills by optimizing solar energy use and reducing dependency on the grid. Whether for energy independence, backup power, or lowering electricity expenses, SAIL Solar's All-In-One ESS provides a powerful and efficient home energy solution.

Sail Solar 5kWh Energy Storage System (ESS) is designed to help you maximize the value of your solar energy production, with the potential to earn credits or reduce your electricity bills. The integrated lithium-ion battery pack captures any excess solar energy generated during the day, storing it for later use when it’s most needed. This stored energy is especially valuable during power outages, providing a reliable backup power source to keep essential appliances and devices running seamlessly.

Combining the capabilities of a solar inverter and an energy storage unit, this innovative system offers an all-in-one solution for both residential and small commercial applications. It's engineered for efficiency, convenience, and energy independence, allowing users to harness solar power to its fullest potential.



Certificate

Our products have been awarded various international certifications, including UN38.3, CE, IEC, UL, MSDS, and ISO, reflecting our commitment to meeting global safety and quality requirements. These certifications provide assurance that our lithium batteries are suitable for a wide range of applications and meet strict compliance guidelines. If you have any questions or specific needs regarding our products, please don’t hesitate to contact Sail Solar. We are here to help and provide the best energy solutions for your projects.



After-Sales Service

" 7/24 " After-Sales Support

7 days a week, 24 hours a day: Ready to respond and solve problems immediately—Sail Solar's commitment to worry-free after-sales service.

Service Email: info@sailsolaress.com


Service Process

01

Submit Service Requests

Submit your service requests at any time via email, online customer service, or mobile app.

02

Rapid Response

Our service team will immediately respond to your requests and communicate the details of the issue with you.

03

On-Site Service or Remote Support

Depending on the nature of the problem, provide on-site service or remote technical support.

04

Problem Resolution

Our goal is to completely resolve your issue within 24 hours.

05

Follow-Up

After the problem is resolved, our team will continue to follow up to ensure your satisfaction with the service results.
