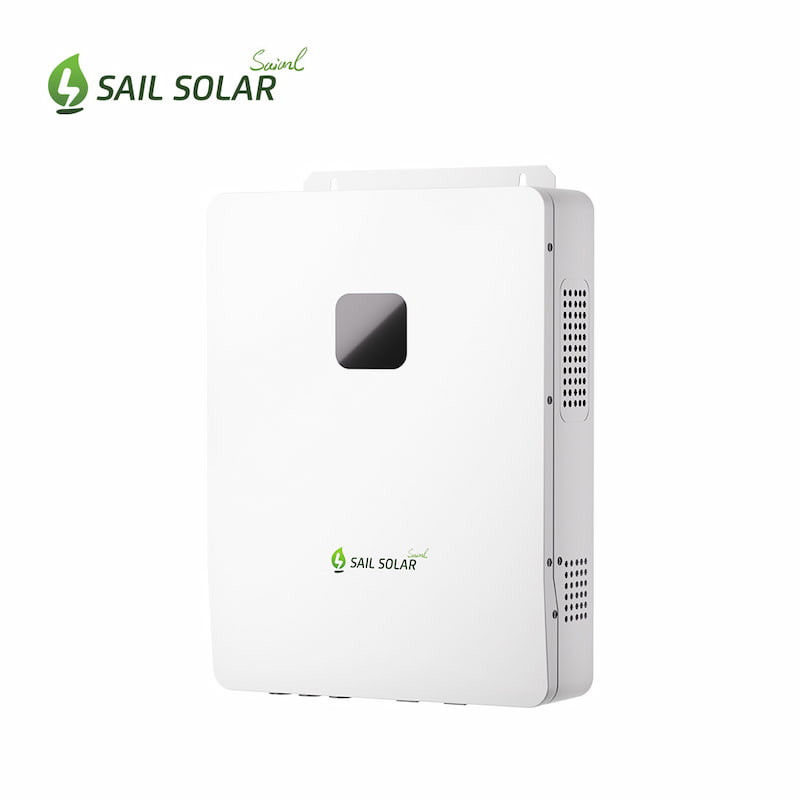

SAIL SOLAR 120V/240V Split Phase 10KW Hybrid Solar Power Inverter for Solar System
The SAIL SOLAR Xihe-10KLV-US hybrid solar inverter is a 120/240V split-phase inverter that can be stacked for expansion and is compatible with 48V DC battery energy storage systems. OEM support. MOQ: 2
Item No :
Xihe-10KLV-USParallel :
6 UnitsMonitoring :
WifiMax Power :
10000WOutput Voltage :
120V/240VWarranty :
5 YearsCommunication :
BMS (RS485)Type :
Hybrid AC/DC InverterMPPT technology with up to 99.9% efficiency and support for up to 44A of PV input current, capable of outputting high-quality pure sine wave AC power and allowing up to 6 units in parallel connection, offers comprehensive security from hardware to software with multiple safety approvals, features an industrial design with a modern aesthetic look, is easy to install and simple to use, supports up to 200A charging current, includes Li-ion battery BMS communication, exclusive Li-ion battery BMS dual activation, and a time-slot function to save cost with peak-valley pricing.
Specification
|
MODEL |
Xihe-10KLV-US
|
|
INVERTER
|
|
|
Rated Output Power
|
10,000W
|
|
Max.Peak Power
|
20,000W
|
|
Rated Output Voltage
|
120Vac，single-phase / 240Vac，split-phase/three-phase, be paralleled
|
|
Load Capacity of Motors
|
6HP
|
|
Rated AC Frequency
|
50Hz/60Hz
|
|
Waveform
|
Pure Sine Wave
|
|
Switch Time
|
10ms（typical）
|
|
Parallel Capacity
|
1-6 units
|
|
Output Mode
|
Off-grid (default) / Hybrid
|
|
BATTERY
|
|
|
Battery Type
|
Li-ion / Lead-acid / User-define
|
|
Rated Battery Voltage
|
48Vdc
|
|
Voltage Range
|
40～60Vdc
|
|
Max.MPPT Charging Current
|
180A
|
|
Max.Mains/Generator Charging Current
|
100A
|
|
Max.Hybrid Charging Current
|
180A
|
|
PV INPUT
|
|
|
Num. of MPPT Trackers
|
2
|
|
Max.PV Array Power
|
5,500W+5,500W
|
|
Max.Input Current
|
22A+22A
|
|
Max. Open Circuit Voltage
|
500Vdc+500Vdc
|
|
MPPT Voltage Range
|
125～425Vdc
|
|
MAINS / GENERATOR INPUT
|
|
|
Input Voltage Range
|
90～140Vac
|
|
Frequency Range
|
50/60Hz
|
|
Bypass Overload Current
|
63A
|
|
EFFICIENCY
|
|
|
MPPT Tracking Efficiency
|
99.9%
|
|
Max. Battery Inverter Efficiency
|
92%
|
|
GENERAL
|
|
|
Dimensions
|
620*445*130mm
|
|
Weight
|
27kg
|
|
Protection Grade
|
IP20，indoor only
|
|
Operating Temperature Range
|
-10~55℃, >45℃ derated
|
|
Noise
|
≤60dB
|
|
Cooling Method
|
Forced air cooling with adjustable air speed
|
|
COMMUNICATION
|
Internal Fan
|
|
Embedded Interfaces
|
RS485 / USB / Dry contact
|
|
External Modules (Optional)
|
Wi-Fi / GPRS
|
|
CERTIFICATION
|
|
|
Safety
|
IEC62109-1, IEC62109-2, UL1741
|
|
EMC
|
EN61000-6-1, EN61000-6-3, FCC 15 class B
|
|
RoHS
|
Yes
|
Xihe-10KLV-US hybrid solar inverters are 120/240V split phase units and are stackable and expandable. 10 kw split phase inverter provide 120vac or 240vac for home user. It compatible with any 48v DC battery storage system.
We will retrofit to any solar system in the USA. Our intelligent energy software keeps grid-tied solar PV on and working at grid failure. Our solutions have an integrated generator (240V) auto-start feature for low battery conditions. This hybrid inverter is suitable for 48v or 51.2v lithium batteries and flooded and sealed GEL/AGM lead-acid battery banks with pre-defined charging programs. A user-defined battery type with numerous customisable settings is also available for charging other lead acid batteries.
Our solar inverters are equipped with advanced technology to convert the direct current (DC) generated by your solar panels into alternating current (AC) to power your home or business. With their high conversion efficiency and smart power management features, our solar inverters ensure you get the most out of your solar system.

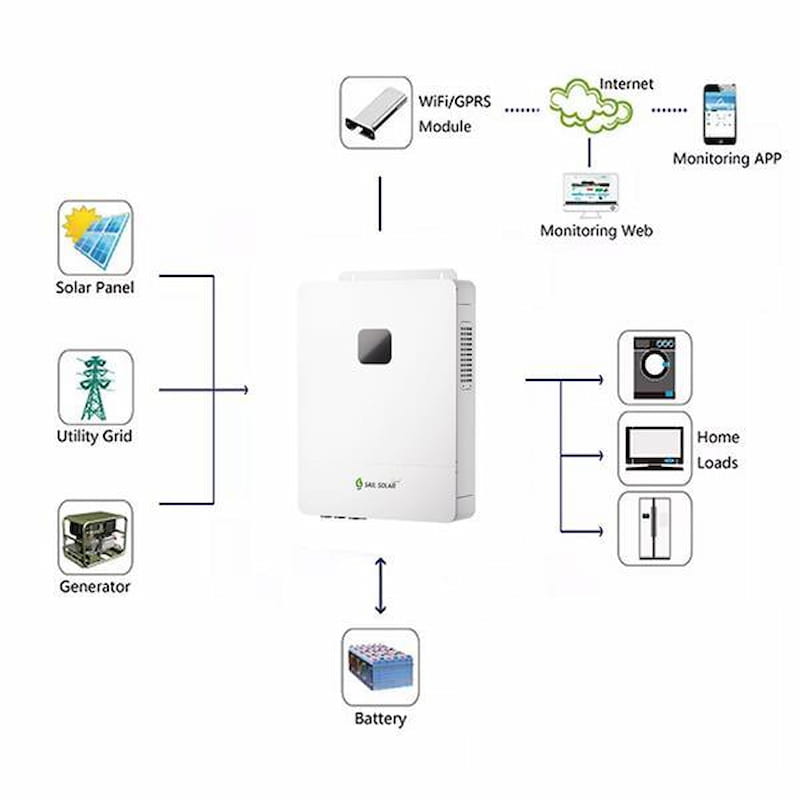

One of the key features of our solar inverters is their seamless integration with solar panels, batteries and grid, giving you a reliable and flexible energy solution. Whether you want to reduce your electricity bill, minimize your carbon footprint, or become energy independent, our solar inverters are the perfect choice for your solar energy needs.
In addition, it features multiple communication protocols (RS485, CAN, and USB), ensuring easy connection and monitoring of the inverter. Durable and c ompact d esign providing a reliable and space-saving solution for solar energy systems.
