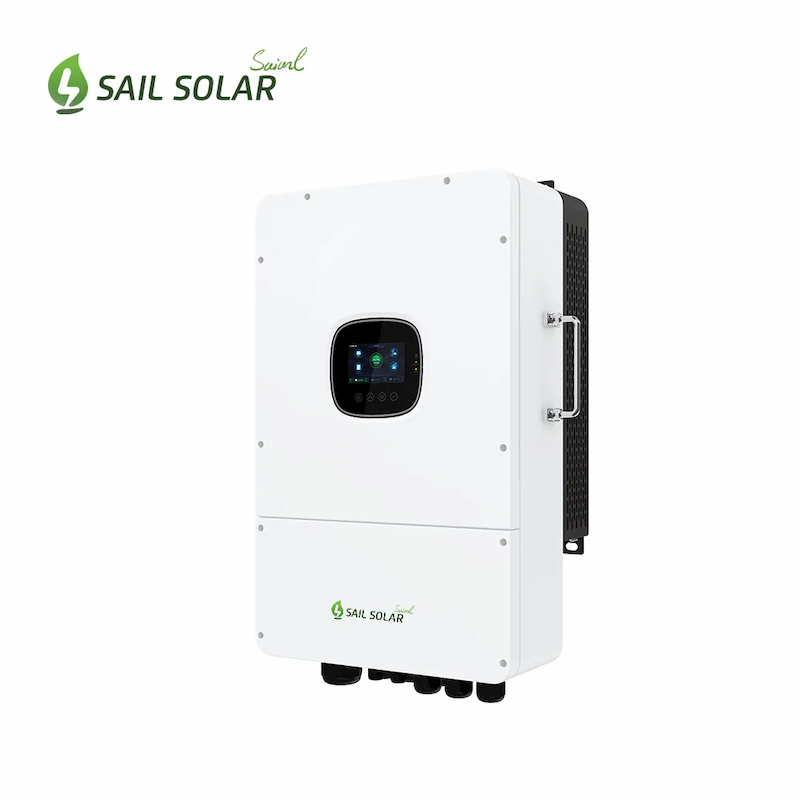

High Efficiency 12KW Three Phase Residential Hybrid Solar Storage Inverters for Home Storage
The THOR Series hybrid solar inverter leverages advanced MPPT technology to achieve an exceptional efficiency of up to 99.9%, maximizing energy harvest from its dual 22A PV input channels.
Item No :
THOR-12KLP3-EUShipping Port :
ShanghaiParallel :
6 UnitsMax Power :
12000WOutput Voltage :
380V/400VWarranty :
5 YearsCertificate :
CECommunication :
BMS (RS485)Protection :
IP65Type :
Hybrid AC/DC InverterEngineered for performance and resilience, it supports a powerful 260A charging current and delivers high-quality pure sine wave AC output, all housed in an IP65-rated enclosure that guarantees industrial-grade durability and weather resistance.
Specification
|
MODEL |
THOR-8KLP3-EU
|
THOR-10KLP3-EU
|
THOR-12KLP3-EU
|
|
INVERTER OUTPUT
|
|
||
|
Rated Output Power
|
8,000W
|
10,000W
|
12,000W
|
|
Max.Peak Power
|
16,000VA
|
20,000VA
|
24,000VA
|
|
Rated Output Voltage
|
230/400Vac , Three-phase
|
||
|
Load Capacity of Motors
|
5HP
|
6HP
|
|
|
Output Frequency
|
50/60Hz
|
||
|
Number of Parallel
|
1 ～ 6 units
|
||
|
AC OUTPUT（ON-GRID）
|
|
||
|
Rated Output Power
|
8,000W
|
10,000W
|
12,000W
|
|
Max. Apparent Power
|
8,000VA
|
10,000VA
|
12,000VA
|
|
Rated AC output phase current
|
11.6Aac
|
14.5Aac
|
17.4Aac
|
|
Rated Output Voltage
|
230/400Vac
|
||
|
THDI
|
< 3%
|
||
|
Power Factor
|
0.8 leading to 0.8 lagging
|
||
|
Frequency
|
50/60HZ
|
||
|
BATTERY
|
|
||
|
Battery Type
|
Lead-acid / Li-ion / User Defined |
||
|
Rated Battery Voltage
|
48V
|
||
|
Battery Voltage Range
|
40 ～ 60Vdc
|
||
|
Max. Generator Charging Current
|
100A
|
120A
|
|
|
Max. Grid Charging Current
|
100A
|
120A
|
|
|
Max.Hybrid Charging Current
|
180A
|
220A
|
260A
|
|
PV INPUT
|
|
||
|
Num. of MPPT Trackers
|
2
|
||
|
Max.PV Array Power
|
6,000W+6,000W
|
7,500W+7,500W
|
9,000W+9,000W
|
|
Max. Input Current
|
22A+22A
|
||
|
Max.PV Isc
|
37A+37A
|
||
|
Max.Voltage of Open Circuit
|
800Vdc+800Vdc
|
||
|
MPPT Voltage Range
|
200-650Vdc
|
||
|
MAINS/GENERATOR INPUT
|
|
||
|
Input Voltage Range
|
|
||
|
Frequency Range
|
Phase voltage 170~280Vac ， line voltage 305~485Vac
|
||
|
Frequency Range
|
50/60Hz
|
||
|
Bypass Overload Current
|
23.2A
|
29A
|
35A
|
|
EFFICIENCY
|
|||
|
MPPT Tracking Efficiency
|
99.9%
|
||
|
Max. Efficiency
|
97.5%
|
||
|
European Efficiency
|
97.2%
|
97.5%
|
|
|
GENERAL
|
|
||
|
Dimensions
|
700*440*260mm
|
||
|
Weight
|
39.2kg
|
||
|
Protection Degree
|
IP65
|
||
|
Operating Temperature Range
|
-25~60℃,>45℃ derated
|
||
|
Humidity Range
|
0～100%
|
||
|
Cooling Method
|
Forced air cooling
|
||
|
COMMUNICATION
|
|||
|
Embedded Interfaces
|
RS485/CAN/USB/Dry contact
|
||
|
External Modules（Optional）
|
Wi-Fi / GPRS
|
||
|
CERTIFICATION
|
|||
|
Safety
|
IEC62109-1, IEC62109-2
|
||
|
EMC
|
EN61000-6-1, EN61000-6-3, FCC 15 class B
|
||
|
Rohs
|
Yes
|
||
Residential energy storage solutions encompass a range of off-grid and hybrid systems designed to meet the electricity needs of homes. Off-grid solutions provide power to homes that are not connected to the traditional electrical grid, while hybrid solutions combine renewable energy generation and energy storage with grid connectivity for added flexibility and backup power. These systems typically incorporate solar panels to generate electricity, which is stored in batteries for later use. Off-grid solutions operate independently, ensuring a reliable power supply even in remote locations, while hybrid systems provide the benefits of renewable energy and backup power while maintaining grid connectivity for additional reliability.
-
This hybrid solar inverter is a DSP-controlled solar energy storage inverter integrating hybrid charging (solar/mains), dual MPPT tracking, lithium/lead-acid battery support with dual activation, multi-voltage compatibility (200-240Vac), time-scheduled operation, energy-saving mode, uninterrupted power supply, LCD monitoring, 360° protection, and CAN/USB/RS485 communication.
With IP65 protection degree, it can offer offer unmatched durability and reliability, with full dust protection and water jet resistance to thrive in harsh outdoor environments. Their robust sealing prevents dust, rain, and moisture damage, ensuring longevity and low maintenance while safeguarding against electrical hazards. Ideal for rooftops, patios, or industrial settings, IP65 inverters combine versatile installation flexibility with enhanced safety, making them a future-proof choice for residential and commercial energy systems.
After-Sales Service
● " 7/24 " After-Sales Support
● 7 days a week, 24 hours a day: Ready to respond and solve problems immediately—Sail Solar's commitment to worry-free after-sales service.
● Service Email: info@sailsolaress.com
Service Process
01
Submit Service Requests
Submit your service requests at any time via email, online customer service, or mobile app.
02
Rapid Response
Our service team will immediately respond to your requests and communicate the details of the issue with you.
03
On-Site Service or Remote Support
Depending on the nature of the problem, provide on-site service or remote technical support.
04
Problem Resolution
Our goal is to completely resolve your issue within 24 hours.
05
Follow-Up
After the problem is resolved, our team will continue to follow up to ensure your satisfaction with the service results.
The THOR Series hybrid solar inverter leverages advanced MPPT technology to achieve an exceptional efficiency of up to 99.9%, maximizing energy harvest from its dual 22A PV input channels.
Read More
The SAIL SOLAR Xihe-10KLV-US hybrid solar inverter is a 120/240V split-phase inverter that can be stacked for expansion and is compatible with 48V DC battery energy storage systems. OEM support. MOQ: 2
Read More
This SAIL SOLAR 10kW inverter is compatible with various solar power systems with 120V/240V voltage and is compatible with 48V/51.2V lithium batteries and GEL/AGM lead-acid batteries. Customization services for appearance and LOGO are available. Minimum order quantity: 2 pieces.
Read More
The SAIL SOLAR Xihe-8KLV-US is a 120V/240V split-phase high-quality inverter system that provides reliable, pure sine wave AC power. It is designed for long-term full-load operation and features a modern industrial design for easy installation.
Read More
The Xihe-5KLV-US 120V single-phase solar charge inverter supports parallel operation of up to 6 devices, enables intelligent load control, and automatically connects and switches to independent AC power sources.
Read More
The SAIL SOLAR Helios-12KLV-US split phase hybrid inverter can be connected in parallel up to 6 units, and the system can be expanded to 72kW. The device is equipped with a Wi-Fi transmitter, enabling wireless communication between the inverter and the monitoring platform.
Read More
The Helios-12KLV-US 120V/240V split-phase hybrid solar inverter has an IP65 protection rating, is equipped with two MPPT controllers, and delivers a continuous output power of 10,000 watts. The inverter employs a gate-style cable compartment design for easy wiring and simple installation.
Read More

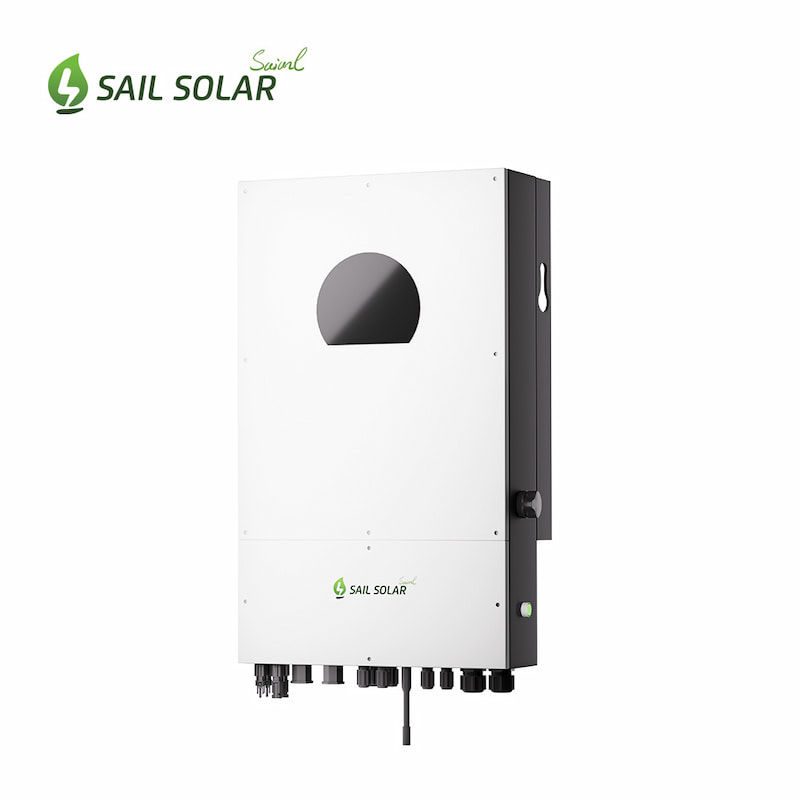

The SAIL SOLAR Helios-6KLV-US hybrid inverter extends battery life through communication with a battery management system (BMS), enhances reliability through grid integration, and maximizes solar energy utilization. Flexible to meet your energy needs, while optimizing cost savings and efficiency.
