48V MPPT Solar Charge Hybrid Inveters 10Kw Three Phase All In One Solar Inverter For Residential System

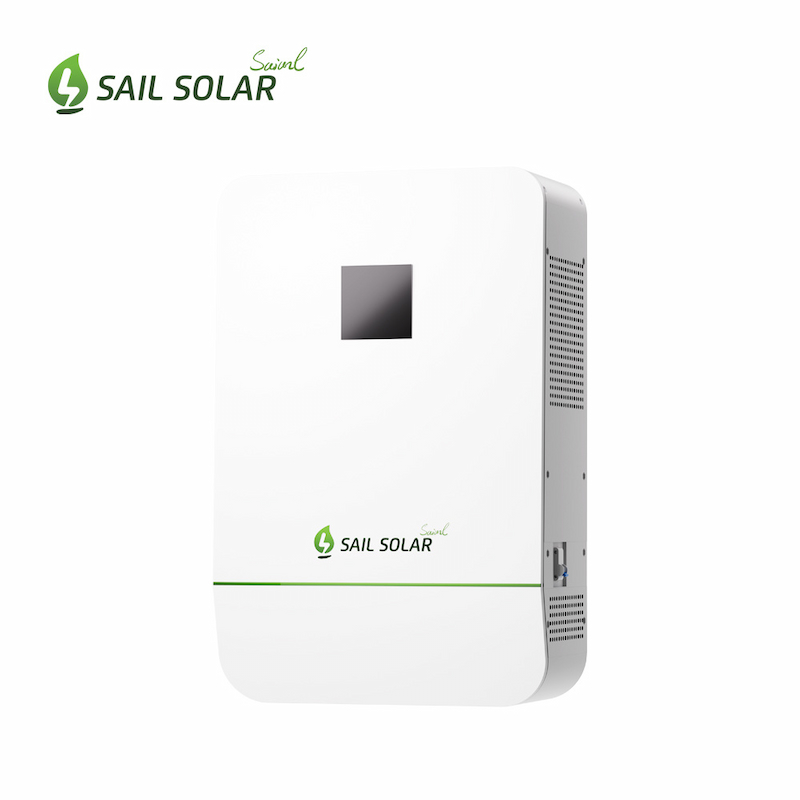

The Xihe-10KLP3-EU inverter delivers pure sine wave AC power with industrial-grade reliability, engineered for consistent performance at full rated capacity and featuring a modern, sleek design for easy integration.
Item No :
Xihe-10KLP3-EUParallel :
6 UnitsMax Power :
10000WOutput Voltage :
380VWarranty :
5 YearsCertificate :
CECommunication :
BMS (RS485)Protection :
IP20Type :
Hybrid AC/DC InverterXihe-10KLP3-EU inverter Built with safety as a cornerstone, the system offers end-to-end protection from hardware to software, carries major safety approvals, and features exclusive BMS dual activation for superior Li-ion battery management and compatibility.
|
MODLE
|
Xihe-10KLP3-EU |
|
Rated Output Power
|
10,000W
|
|
Max.Peak Power
|
20,000W
|
|
Rated Output Voltage
|
230Vac, single-phase / three-phase, be paralleled
|
|
Load Capacity of Motors
|
6HP
|
|
Rated AC Frequency
|
50Hz/60Hz
|
|
Waveform
|
Pure Sine Wave
|
|
Switch Time
|
10ms（typical）
|
|
Parallel Capacity
|
1~6 units
|
|
Output Mode
|
O-grid (default)/Hybrid
|
|
BATTERY
|
|
|
Battery Type
|
Lead-acid/Li-ion/User defined
|
|
Rated Battery Voltage
|
48V
|
|
Voltage Range
|
40～60Vdc
|
|
Max.MPPT Charging Current
|
200A
|
|
Max.Mains/Generator Charging Current
|
120A
|
|
Max.Hybrid Charging Current
|
200A
|
|
PV INPUT
|
|
|
Num. of MPPT Trackers
|
2
|
|
Max.PV Array Power
|
5,500W + 5,500W
|
|
Max.Input Current
|
22A + 22A
|
|
MPPT Voltage Range
MAINS / GENERATOR INPUT
|
125～425Vdc |
|
Max.Voltage of Open Circuit
|
500Vdc + 500Vdc
|
|
MPPT Voltage Range
|
90～275Vac
|
|
Frequency Range
|
50/60Hz
|
|
Bypass Overload Current
|
63A
|
|
EFFICIENCY
|
|
|
MPPT Tracking Efficiency
|
99.9%
|
|
Max. Battery Inverter Efficiency
|
92%
|
|
GENERAL
|
|
|
Dimensions
|
620*445*130mm
|
|
Weight
|
27kg
|
|
Protection Grade
|
IP20, indoor onIy
|
|
Operating Temperature Range
|
-10~55℃, >45℃ derated
|
|
Noise
|
≤60dB
|
|
Cooling Method
|
Internal Fan
|
|
COMMUNICATION
|
|
|
Embedded Interfaces
|
RS485 / USB / Dry contact
|
|
External Modules (Optional)
|
Wi-Fi / GPRS
|
|
CERTIFICATION
|
|
|
Safety
|
IEC62109-1, IEC62109-2
|
|
EMC
|
EN61000-6-1, EN61000-6-3, FCC 15 class B
|
|
RoHS
|
Yes
|
The Xihe-10KLP3-EU is a high-performance 10kW solar inverter engineered for both residential and commercial applications. It efficiently converts DC power from solar panels into grid-compatible AC power, supporting a maximum DC input voltage of 500Vdc+500Vdc for broad compatibility with mainstream PV modules.
Equipped with an intuitive LCD interface, the inverter provides real-time insights into key operational data such as input voltage, output power, and current. For seamless connectivity and monitoring, it offers multiple communication ports including RS485, CAN, USB, and Dry Contact.
The Xihe-10KLP3-EU inverter offers unparalleled operational flexibility with four intelligent charging modes—Solar Only, Mains Priority, Solar Priority, and Mains & Solar—along with two seamless output modes for uninterrupted power supply.

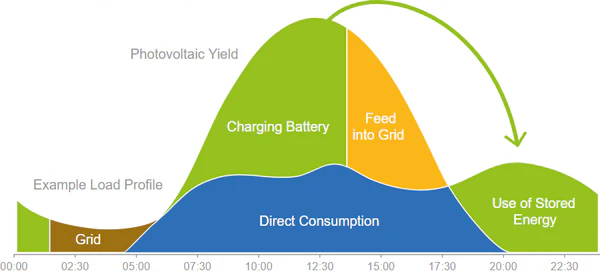

>Maximize your energy savings with its programmable time-slot charging and discharging function, allowing you to automate power flow based on utility rates and solar availability.

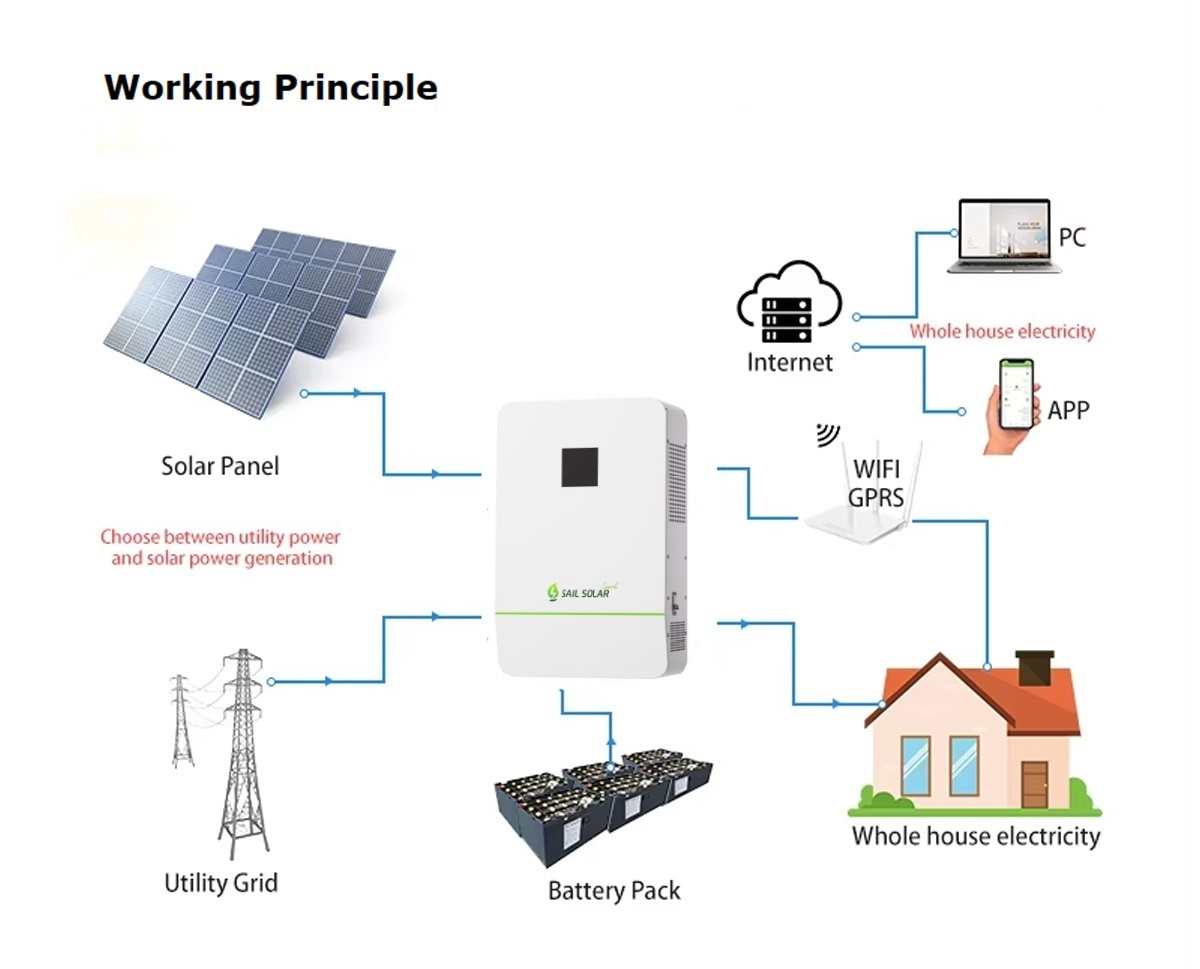

>Engineered for versatile integration, it features multiple connection ports for AC, DC, and solar inputs, enabling a streamlined and efficient hybrid energy system.
>Its compact, user-centric design ensures quick installation and minimal long-term maintenance, guaranteeing reliable performance with maximum uptime.
