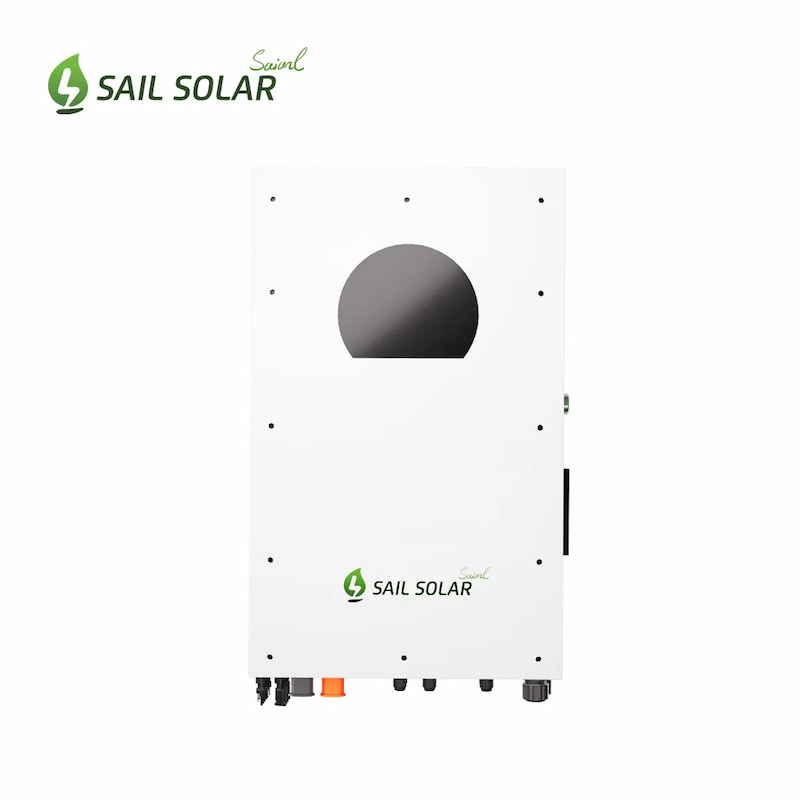

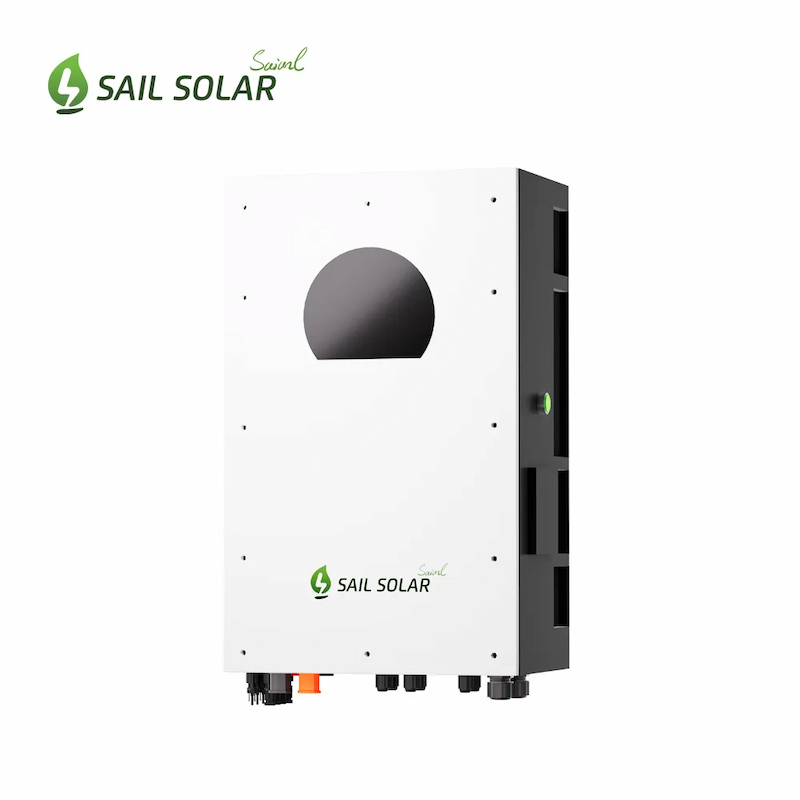

Home Energy Storage Battery Inverter 10KW Good Quality Hybrid Solar Inverter With Two MPPT Trackers
The Helios-10KLP3-EU hybrid inverter supports parallel operation of up to six units, enhancing system scalability for both residential and commercial applications. It features dual independent AC power sources with automatic switching, ensuring uninterrupted power supply and improved energy management.
Item No :
Helios-10KLP3-EUParallel :
6 UnitsMax Power :
10000WOutput Voltage :
380VWarranty :
5 YearsCertificate :
CECommunication :
BMS (RS485)Protection :
IP65Type :
Hybrid AC/DC InverterWith built-in WiFi connectivity, users can monitor and control the system remotely via a dedicated mobile app, while the 150% unbalanced load support allows flexible distribution across phases.
|
MODEL |
Helios-10KLP3-EU
|
|
Maximum Pv Input Power |
15000 W
|
|
Rated Output Power |
10000 W
|
|
Maximum Charging Power |
10000 W
|
|
PV INPUT (DC)
|
|
|
Maximum DC Voltage
|
900 VDC
|
|
Start-up Voltage / Initial Feeding Voltage
|
150 VDC / 150 VDC
|
|
MPP Voltage Range
|
150 VDC ~ 850 VDC
|
|
Full MPP Voltage Range
|
400 VDC ~ 850 VDC
|
|
Number of MPP Trackers / Maximum Input Current
|
2 / A: 26A, B: 26A
|
|
GRID OUTPUT (AC)
|
|
|
Nominal Output Voltage
|
230 VAC (P-N) / 400 VAC (P-P)
|
|
Output Voltage Range
|
184 - 265 VAC* per phase
|
|
Nominal Output Current
|
14.5 A per phase
|
|
AC INPUT
|
|
|
AC Start-up Voltage / Auto Restart Voltage
|
120 - 140 VAC per phase / 180 VAC per phase
|
|
Acceptable Input Voltage Range
|
170 - 290 VAC per phase
|
|
Maximum AC Input Current
|
40 A
|
|
BATTERY MODE OUTPUT (AC)
|
|
|
Nominal Output Voltage
|
230 VAC (P-N) / 400 VAC (P-P)
|
|
Efficiency (DC to AC)
|
>93%
|
|
BATTERY & CHARGER
|
|
|
Battery Voltage Range
|
40 ~ 60 VDC
|
|
Maximum Charging Current
|
220 A
|
|
Maximum Charging Current
|
200 A
|
|
PHYSICAL
|
|
|
Size, D x W x H (mm)
|
247 x 500 x 650
|
|
Net Weight (kgs)
|
50
|
|
INTERFACE
|
|
|
Communication Port
|
RS-232, RS-485, USB, CAN and Wi-Fi
|
| Intelligent Slot |
Optional for SNMP and Modbus cards
|
|
ENVIRONMENT
|
|
|
Humidity
|
0 ~ 100% RH (Non-condensing)
|
|
Operating Temperature
|
-25 to 60°C, > 45°C power derating
|
|
Altitude
|
0 ~ 1000 m**
|
|
PROTECTION & CERTIFICATE
|
|
|
Safety
|
IEC 62116, IEC 62727, IEC 61683, IEC 62109, IEC 61000-6-2:2019, IEC 61000-6-4:2019,
IEC 61000-3-11:2019, EN 61000-3-12: 2011
|
|
Protection Grade
|
IP65
|
|
Grid Connection Standard
|
NRS097-2-1:2017, VDE-AR-N4105
|
The Helios-10KLP3-EU inverter delivers intelligent energy control for any application. For homeowners, it maximizes self-consumption with high-efficiency conversion and provides peace of mind through real-time monitoring via its built-in Wi-Fi and dedicated mobile app.
For commercial enterprises, its robust three-phase power output seamlessly supports higher energy demands, enabling businesses to significantly cut operational costs and achieve sustainability targets. The system’s design ensures reliable performance for shopping centers, offices, and agricultural facilities.
In demanding industrial environments, the inverter truly proves its strength. Engineered with a durable, IP65-rated enclosure and built to handle rigorous three-phase loads, it guarantees unwavering stability and uptime, even in the most challenging conditions.
Engineered for Maximum Solar Harvest
Achieving an exceptional 98.5% conversion efficiency, the Helios-10KLP3-EU ensures minimal energy loss—empowering users to extract the fullest value from every ray of sunlight.
Unmatched Flexibility in System Design
With an ultra-wide DC input voltage range of 150-850V, this hybrid inverter adapts seamlessly to diverse solar panel configurations, offering unparalleled installation freedom and compatibility.

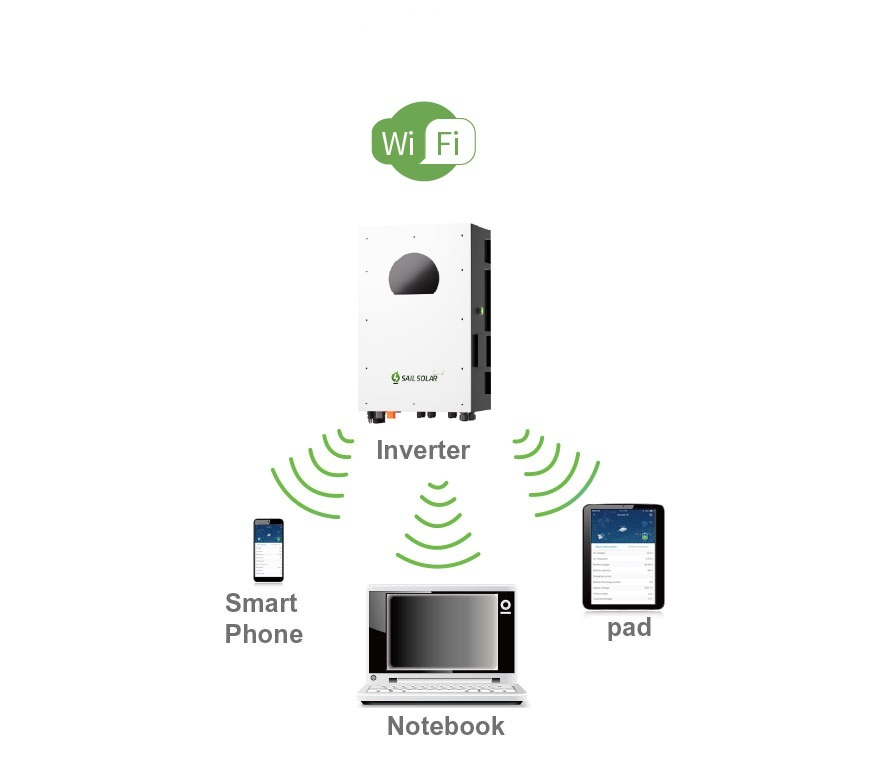

Intelligent Monitoring at Your Command
Stay fully connected to your energy ecosystem through an advanced real-time monitoring system. Track operational status, power generation, and grid conditions effortlessly via our user-friendly mobile and desktop platforms.
Power, Precision, and Peace of Mind
From peak efficiency to flexible design and smart control, the Helios-8KLP3-EU delivers a seamlessly optimized solar experience for homeowners and installers alike.
