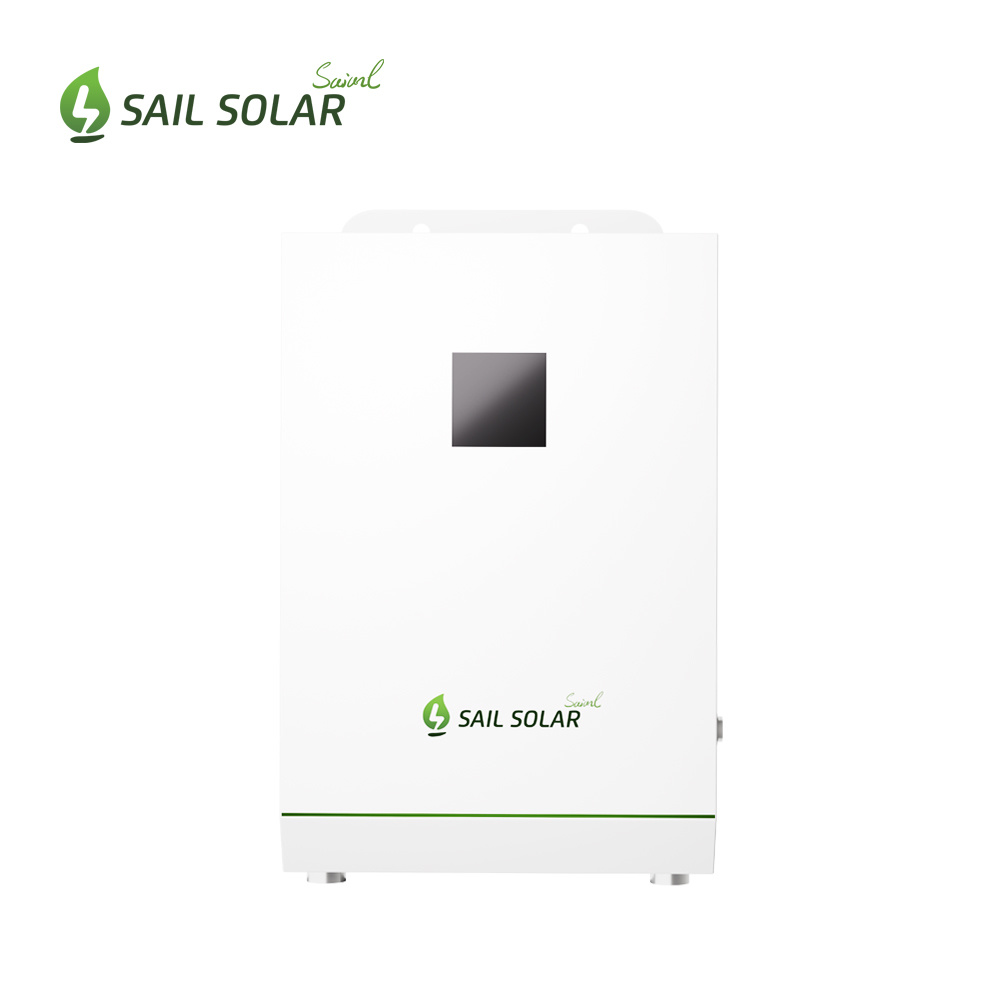

Single Phase MPPT Controller Inverter 5.5 Kw 220V Pure Sine Wave Home Hybrid Solar Inverters
Xihe-5.5KLP1-EU high-quality inverter system outputs pure sine wave AC power, ensures reliable long-term operation at rated capacity, features an industrial design with a modern aesthetic, is easy to install and use.
Item No :
Xihe-5.5KLP1-EUMonitoring :
WifiMax Power :
5500WOutput Voltage :
220V,230VWarranty :
5 YearsCertificate :
CECommunication :
BMS (RS485)Protection :
IP20Type :
Hybrid AC/DC InverterXihe-5.5KLP1-EU hybrid inverter incorporates exclusive Li-ion battery BMS dual activation, offers remote monitoring of operating parameters, boasts advanced MPPT with up to 99.9% efficiency, provides comprehensive security from hardware to software, has multiple safety approvals, supports various types of batteries, and includes support for Li-ion battery BMS communication.
Specification
|
MODEL |
Xihe-5.5KLP1-EU
|
|
INVERTER
|
|
|
Rated Output Power
|
5,500W
|
|
Max.Peak Power
|
11,000VA
|
|
Rated Output Voltage
|
230Vac（L/N/PE single phase）
|
|
Load Capacity of Motors
|
4HP
|
|
Rated AC Frequency
|
50Hz/60Hz
|
|
Waveform
|
Pure Sine Wave
|
|
Switch Time
|
10ms（typical）
|
|
BATTERY
|
|
|
Battery Type
|
Lead-acid/Li-ion/User defined
|
|
Rated Battery Voltage
|
48V
|
|
Voltage Range
|
20～33Vdc
|
|
Max.MPPT Charging Current
|
100A
|
|
Max.Mains/Generator Charging Current
|
60A
|
|
Max.Hybrid Charging Current
|
100A
|
|
PV INPUT
|
|
|
Num. of MPPT Trackers
|
1 |
|
Max.PV Array Power
|
6,000W
|
|
Max.Input Current
|
22A
|
|
Max.Voltage of Open Circuit
|
500Vdc
|
|
MPPT Voltage Range
|
120-450Vdc
|
|
UTILITY / GENERATOR INPUT
|
|
|
Input Voltage Range
|
UPS mode：170～280Vac； APL mode：90～280Vac |
|
Frequency Range
|
50/60Hz
|
|
Bypass Overload Current
|
40A
|
|
EFFICIENCY
|
|
|
MPPT Tracking Efficiency
|
99.9%
|
|
Max. Battery Inverter Efficiency
|
92%
|
|
GENERAL
|
|
|
Dimensions
|
426*322*126mm (1.40*1.06*0.41ft)
|
|
Weight
|
10.5kg
|
|
Protection Grade
|
IP20, indoor onIy
|
|
Operating Temperature Range
|
-10℃~55℃
|
|
Noise
|
≤60dB
|
|
Cooling Method
|
Forced air cooling with adjustable air speed
|
|
COMMUNICATION
|
|
|
Embedded Interfaces
|
RS485 / USB / Dry contact
|
|
External Modules (Optional)
|
Wi-Fi / GPRS
|
|
CERTIFICATION
|
|
|
Safety
|
CE(IEC 62109-1)/FCC/SAA/CETL(UL1741 C22.2 NO.107.1)
|
|
EMC
|
EN61000
|
|
RoHS
|
Yes
|
Features:
>The Xihe-5.5KLP1-EU is an advanced solar storage inverter that combines solar energy storage, grid charging, and pure sine wave AC output. Utilizing DSP control technology and sophisticated algorithms, it delivers rapid response, exceptional reliability, and complies with high industrial standards.

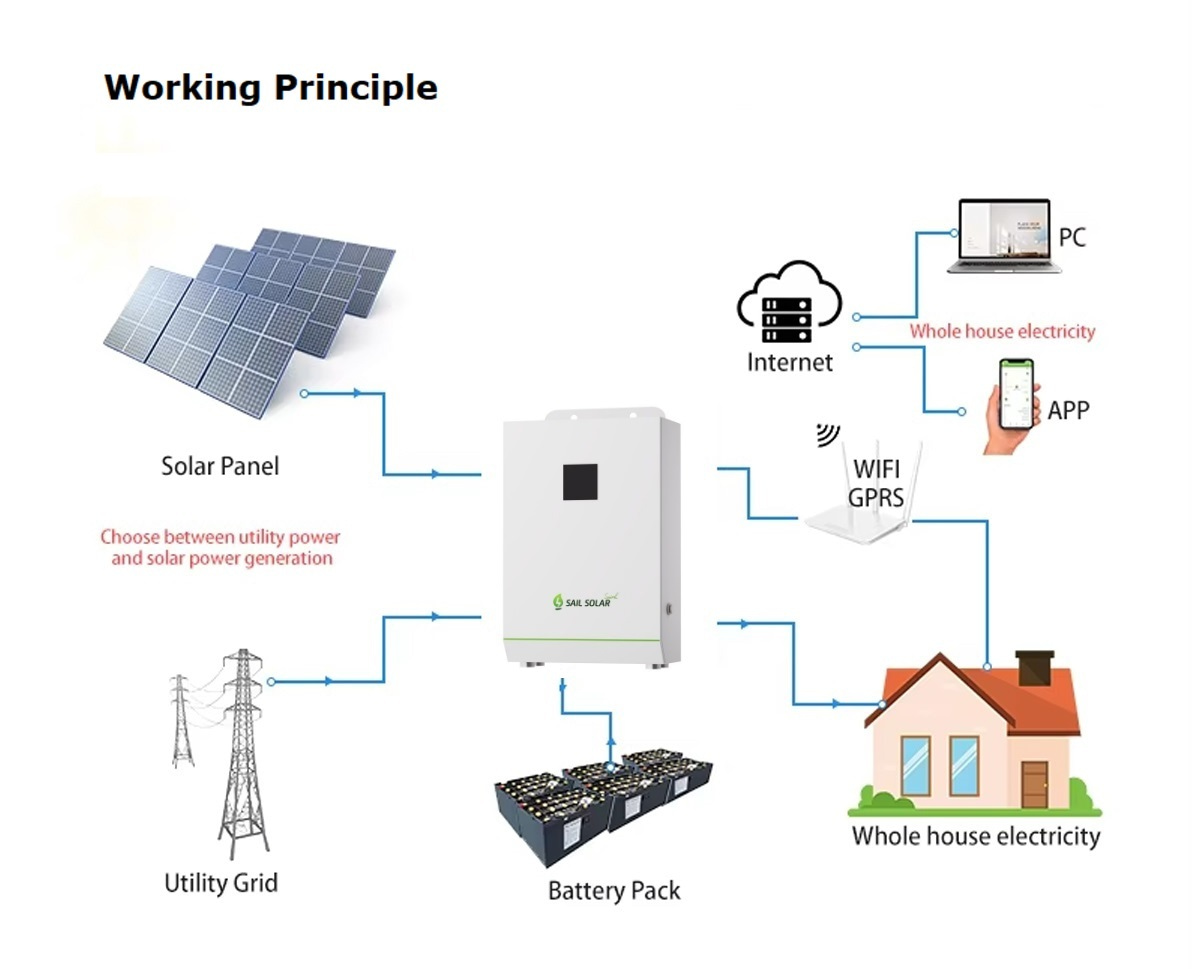

>Users can choose from four charging modes—Solar Only, Grid Priority, Solar Priority, and Hybrid Charging (Grid + Solar)—along with two output modes (Inverter and Grid) to suit diverse application needs.
>Equipped with the latest optimized MPPT technology, the solar storage module efficiently tracks the maximum power point of the PV array under varying environmental conditions, ensuring real-time harvesting of maximum available solar energy.

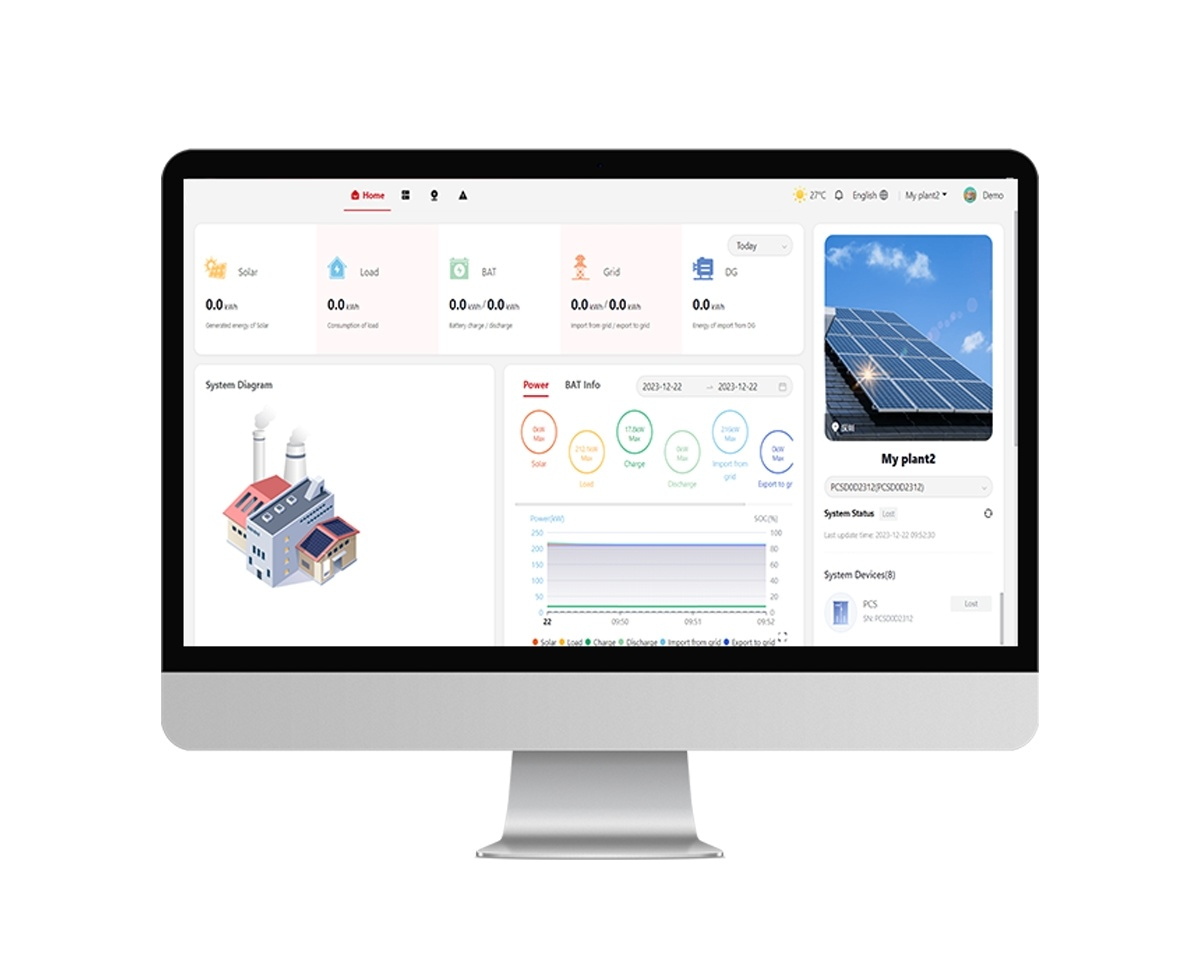

Empower Your Inverter with Smart Wireless Connectivity
Our advanced Wi-Fi module seamlessly bridges your hybrid solar inverter with powerful cloud-based monitoring platforms. Paired with our dedicated app—compatible with both iOS and Android—you gain complete remote control and real-time insights into your system’s performance. All key data logs and operational parameters are securely stored in the cloud, ensuring effortless access anytime, anywhere.
Take Command of Your Solar Energy
With our intuitive solar monitoring app, track exactly how much energy your panels generate—and optimize its distribution where it’s needed most. Maximize efficiency and take charge of your energy usage like never before.
Simple Integration, Smarter Control
Easily connect your solar power system to your home Wi-Fi network. Within minutes, you’ll be monitoring live production data, customizing settings, and managing energy flow right from your smartphone or tablet.
After-Sales Service
● " 7/24 " After-Sales Support
● 7 days a week, 24 hours a day: Ready to respond and solve problems immediately—Sail Solar's commitment to worry-free after-sales service.
● Service Email: info@sailsolaress.com
Service Process
01
Submit Service Requests
Submit your service requests at any time via email, online customer service, or mobile app.
02
Rapid Response
Our service team will immediately respond to your requests and communicate the details of the issue with you.
03
On-Site Service or Remote Support
Depending on the nature of the problem, provide on-site service or remote technical support.
04
Problem Resolution
Our goal is to completely resolve your issue within 24 hours.
05
Follow-Up
After the problem is resolved, our team will continue to follow up to ensure your satisfaction with the service results.
