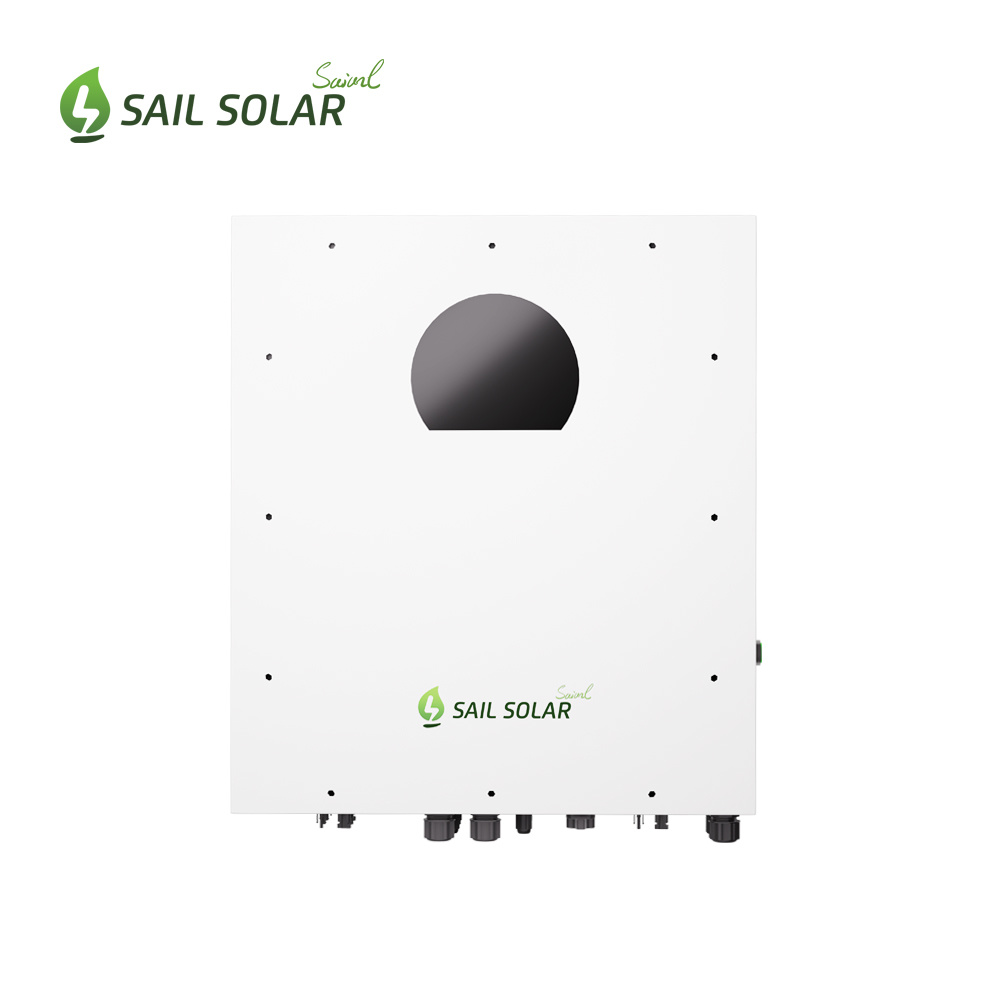

Sail Solar Three Phase Solar Power Inverter 12KW PV Energy Storage Hybrid Inverters For Home
Helios-12KLP3-EU hybrid inverter supports parallel operation of up to 6 units, offers 150% unbalanced load support, handles a maximum PV input current of 26A, features dual outputs for smart load management.
Item No :
Helios-12KLP3-EUParallel :
6 UnitsMax Power :
12000WOutput Voltage :
380VWarranty :
5 YearsCertificate :
CECommunication :
BMS (RS485)Protection :
IP65Type :
Hybrid AC/DC InverterHelios-12KLP3-EU hybrid inverter is IP65 waterproof and dustproof, and includes a reserved communication port for BMS (RS485).
|
MODEL |
Helios-12KLP3-EU
|
|
Maximum Pv Input Power |
16000 W
|
| Rated Output Power |
12000W |
| Maximum Charging Power |
12000W |
|
PV INPUT (DC)
|
|
|
Maximum DC Voltage
|
1000 VDC
|
|
Start-up Voltage / Initial Feeding Voltage
|
320 VDC / 350 VDC
|
|
MPP Voltage Range
|
350 VDC ~ 950 VDC
|
|
Number of MPP Trackers / Maximum Input Current
|
2 / A: 26A, B: 26A
|
|
Number of Strings Per MPP Tracker
|
A: 2, B: 2
|
|
GRID OUTPUT (AC)
|
|
|
Nominal Output Voltage
|
230 VAC (P-N) / 400 VAC (P-P)
|
|
Output Voltage Range
|
184 - 265 VAC per phase
|
|
Nominal Output Current
|
17.4 A per phase
|
|
AC INPUT
|
|
|
AC Start-up Voltage / Auto Restart Voltage
|
120 - 140 VAC / 180 VAC
|
|
Acceptable Input Voltage Range
|
170 - 290 VAC per phase
|
|
Maximum AC Input Current
|
40 A
|
|
BATTERY MODE OUTPUT (AC)
|
|
|
Nominal Output Voltage
|
230 VAC (P-N) / 400 VAC (P-P)
|
|
Efficiency (DC to AC)
|
91%
|
|
BATTERY & CHARGER
|
|
|
Battery Voltage Range
|
40 ~ 62 VDC
|
|
Maximum Charging Current
|
250 A
|
|
PHYSICAL
|
|
|
Size, D x W x H (mm)
|
255 x 660 x 750
|
|
Net Weight (kgs)
|
75
|
|
INTERFACE
|
|
|
Communication Port
|
RS-232, RS-485, USB, CAN and Wi-Fi
|
| Intelligent Slot |
Optional for SNMP and Modbus cards
|
|
ENVIRONMENT
|
|
|
Humidity
|
0 ~ 100% RH (Non-condensing)
|
|
Operating Temperature
|
-25 to 60°C, > 45°C power derating
|
|
Altitude
|
0 ~ 1000 m**
|
|
PROTECTION & CERTIFICATE
|
|
|
Safety
|
IEC 62109, IEC 62116, IEC 61727, IEC 61683
|
|
Protection Grade
|
IP65
|
|
Grid Connection Standard
|
NRS097-2-1:2017, VDE-AR-N4105
|
Helios-12KLP3-EU Hybrid Inverter: Reliable Power, Maximum Savings

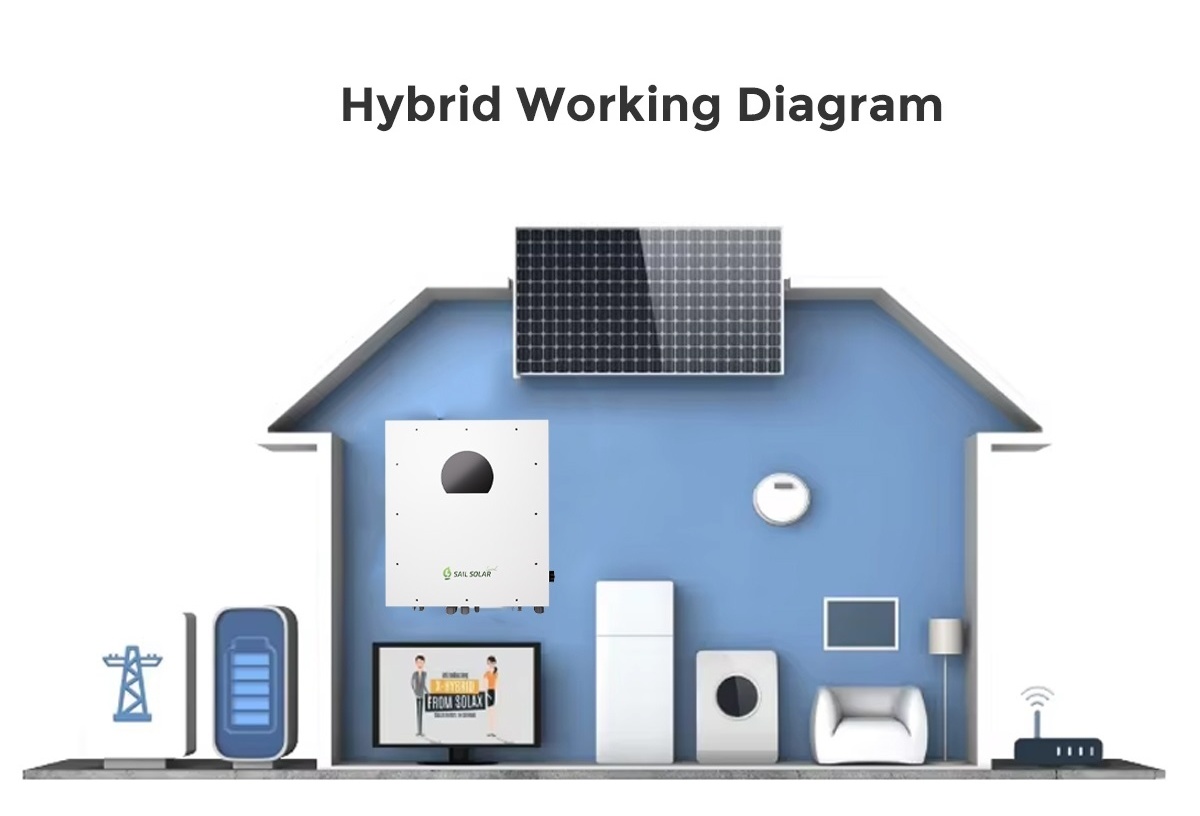

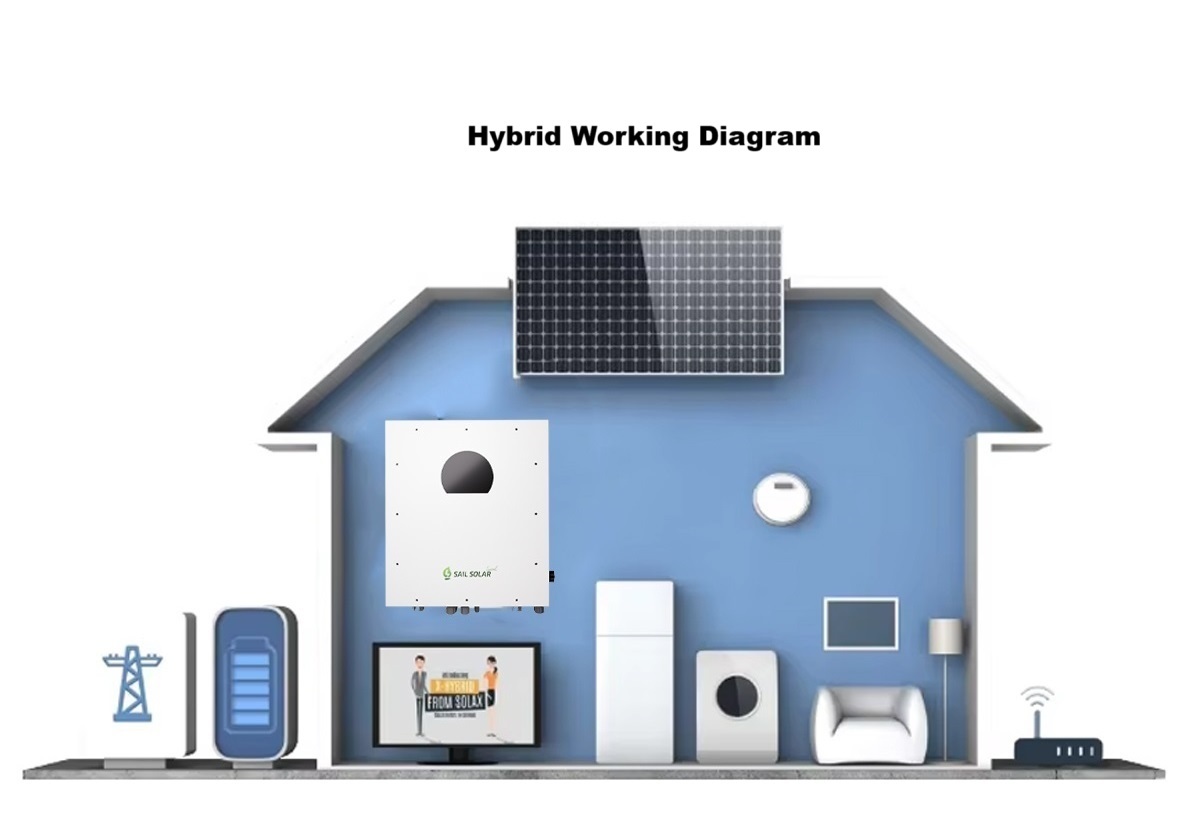

This advanced hybrid inverter is the heart of a modern home energy system, designed for reliability and efficiency.
Key Benefits & Applications:
Energy Independence: Provides a continuous and stable power supply. Perfect for off-grid locations where utility power is expensive or unreliable, and as an emergency backup during outages.
Maximize Solar ROI: Our hybrid technology ensures no solar energy goes to waste. Store excess power in your battery for use at night or during peak hours.
Earn from Your Production: Participate in net metering programs by feeding surplus energy back to the grid. This two-way flow optimizes your energy utilization and turns your system into a source of savings.
Helios-12KLP3-EU Hybrid Inverter: Power, Scale, and Reliability.
--All-in-One Power Solution: Seamlessly combines solar, battery, and grid power for continuous supply, perfect for off-grid and backup applications.
--Earn & Save with Solar: Feed excess energy to the grid for credits and store the rest, maximizing savings and sustainability.

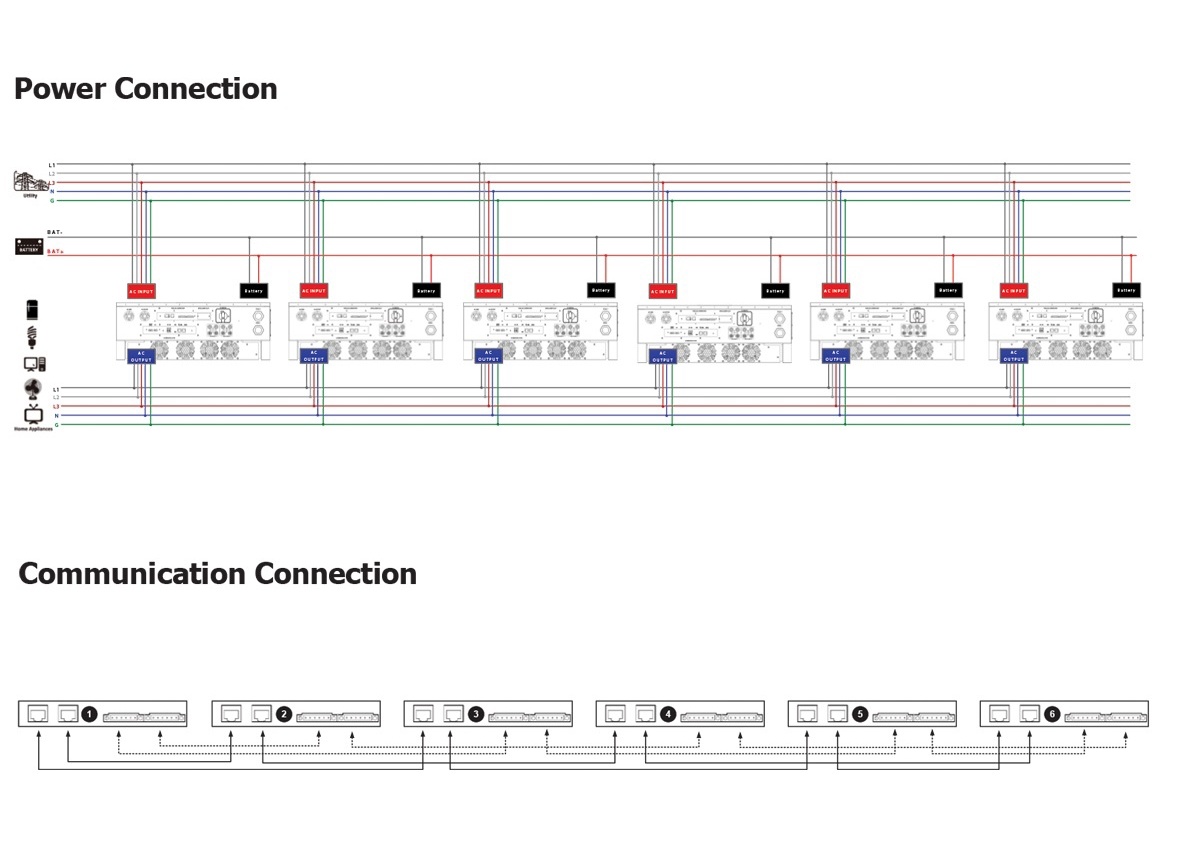

--Scale to Demand: Connect up to 6 inverters in parallel to support high-power loads from homes to commercial facilities.
--Built-in Redundancy: Ensure uninterrupted operation. The parallel system provides backup, so a single unit failure won't halt your power.
