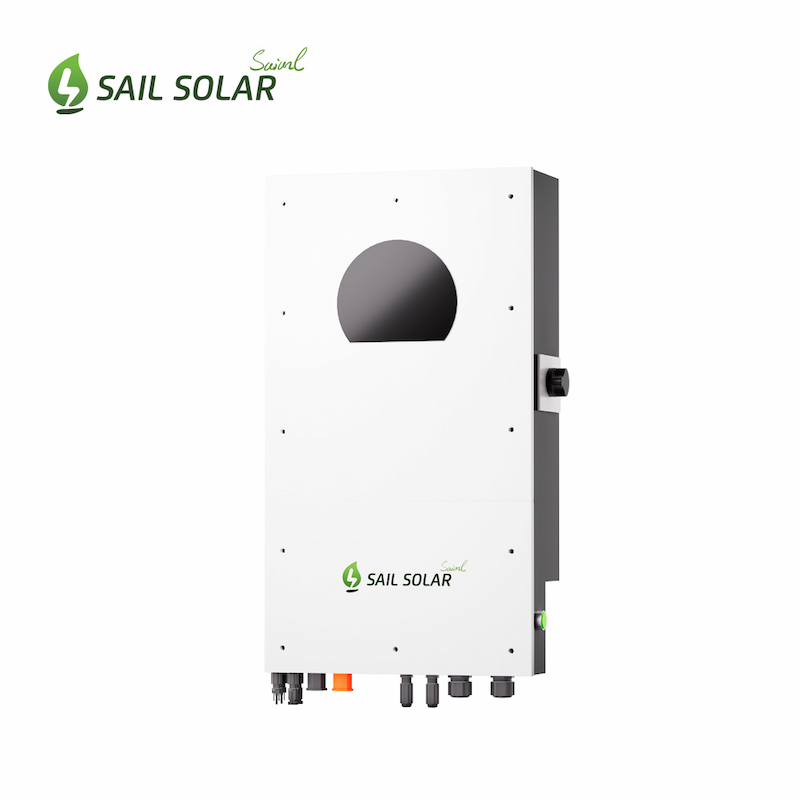

Reliable Three Phase Hybrid Solar Inverter 10KW Household Energy Storage Inverters With Parallel Function
The Helios-10KLP3-EU hybrid inverter is built for scalability, supporting parallel operation of up to 6 units to meet growing energy demands. It ensures uninterrupted power with dual independent AC sources and automatic switching, plus 150% unbalanced load capability for superior performance.
Item No :
Helios-10KLP3-EUParallel :
6 UnitsMax Power :
10000WOutput Voltage :
380VWarranty :
5 YearsCertificate :
CECommunication :
BMS (RS485)Protection :
IP65Type :

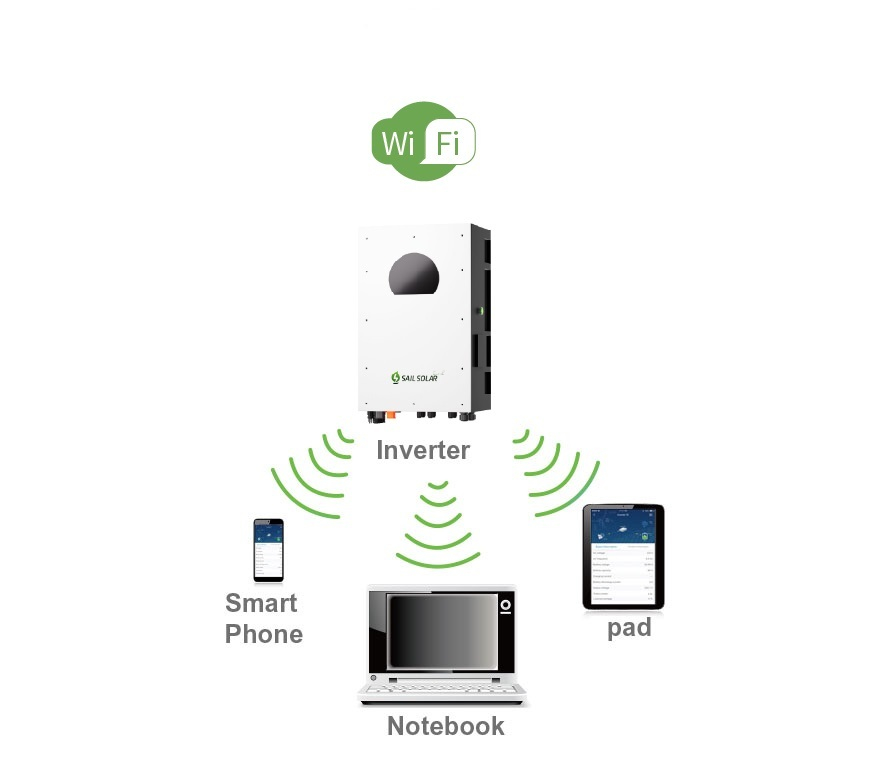

Hybrid AC/DC InverterThe inverter stay connected and in control through built-in WiFi and a dedicated mobile app, while customizing charging settings to your needs. A reserved BMS communication port (RS485) also enables advanced battery management and system integration.
Specification
|
MODEL |
Helios-10KLP3-EU
|
|
Maximum Pv Input Power |
15000 W
|
|
Rated Output Power |
10000 W
|
|
Maximum Charging Power |
10000 W
|
|
PV INPUT (DC)
|
|
|
Maximum DC Voltage
|
900 VDC
|
|
Start-up Voltage / Initial Feeding Voltage
|
150 VDC / 150 VDC
|
|
MPP Voltage Range
|
150 VDC ~ 850 VDC
|
|
Full MPP Voltage Range
|
400 VDC ~ 850 VDC
|
|
Number of MPP Trackers / Maximum Input Current
|
2 / A: 26A, B: 26A
|
|
GRID OUTPUT (AC)
|
|
|
Nominal Output Voltage
|
230 VAC (P-N) / 400 VAC (P-P)
|
|
Output Voltage Range
|
184 - 265 VAC* per phase
|
|
Nominal Output Current
|
14.5 A per phase
|
|
AC INPUT
|
|
|
AC Start-up Voltage / Auto Restart Voltage
|
120 - 140 VAC per phase / 180 VAC per phase
|
|
Acceptable Input Voltage Range
|
170 - 290 VAC per phase
|
|
Maximum AC Input Current
|
40 A
|
|
BATTERY MODE OUTPUT (AC)
|
|
|
Nominal Output Voltage
|
230 VAC (P-N) / 400 VAC (P-P)
|
|
Efficiency (DC to AC)
|
>93%
|
|
BATTERY & CHARGER
|
|
|
Battery Voltage Range
|
40 ~ 60 VDC
|
|
Maximum Charging Current
|
220 A
|
|
Maximum Charging Current
|
200 A
|
|
PHYSICAL
|
|
|
Size, D x W x H (mm)
|
247 x 500 x 650
|
|
Net Weight (kgs)
|
50
|
|
INTERFACE
|
|
|
Communication Port
|
RS-232, RS-485, USB, CAN and Wi-Fi
|
| Intelligent Slot |
Optional for SNMP and Modbus cards
|
|
ENVIRONMENT
|
|
|
Humidity
|
0 ~ 100% RH (Non-condensing)
|
|
Operating Temperature
|
-25 to 60°C, > 45°C power derating
|
|
Altitude
|
0 ~ 1000 m**
|
|
PROTECTION & CERTIFICATE
|
|
|
Safety
|
IEC 62116, IEC 62727, IEC 61683, IEC 62109, IEC 61000-6-2:2019, IEC 61000-6-4:2019,
IEC 61000-3-11:2019, EN 61000-3-12: 2011
|
|
Protection Grade
|
IP65
|
|
Grid Connection Standard
|
NRS097-2-1:2017, VDE-AR-N4105
|

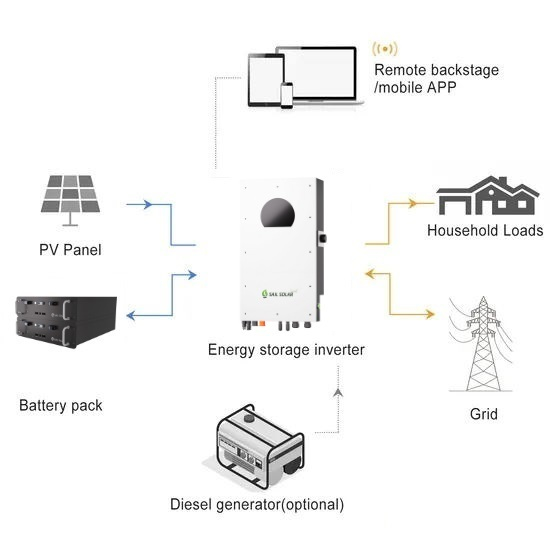

Application
Engineered for High-Performance Three-Phase Systems
The Helios-10KLP3-EU inverter is precision-engineered for large-scale solar installations in commercial and industrial environments. Its advanced three-phase output delivers superior power capacity, ensuring high efficiency and robust performance even under the most demanding energy loads.
Unmatched Compatibility and Design Resilience
With support for 48V input and 50/60Hz output, the inverter integrates seamlessly with a wide range of solar panels, providing the flexibility to design a system that fits perfectly with your energy goals. Housed in a compact and rugged enclosure, it is built to thrive in harsh outdoor conditions—guaranteeing year-round reliability and peace of mind.
Designed for Every Solar Challenge: From Homes to Heavy Industry
The Helios-10KLP3-EU inverter delivers intelligent energy control for any application. For homeowners, it maximizes self-consumption with high-efficiency conversion and provides peace of mind through real-time monitoring via its built-in Wi-Fi and dedicated mobile app.
For commercial enterprises, its robust three-phase power output seamlessly supports higher energy demands, enabling businesses to significantly cut operational costs and achieve sustainability targets. The system’s design ensures reliable performance for shopping centers, offices, and agricultural facilities.
In demanding industrial environments, the inverter truly proves its strength. Engineered with a durable, IP65-rated enclosure and built to handle rigorous three-phase loads, it guarantees unwavering stability and uptime, even in the most challenging conditions.
One Inverter, Unlimited Potential—Powering Your Future, Today.
After-Sales Service
● " 7/24 " After-Sales Support
● 7 days a week, 24 hours a day: Ready to respond and solve problems immediately—Sail Solar's commitment to worry-free after-sales service.
● Service Email: info@sailsolaress.com
Service Process
01
Submit Service Requests
Submit your service requests at any time via email, online customer service, or mobile app.
02
Rapid Response
Our service team will immediately respond to your requests and communicate the details of the issue with you.
03
On-Site Service or Remote Support
Depending on the nature of the problem, provide on-site service or remote technical support.
04
Problem Resolution
Our goal is to completely resolve your issue within 24 hours.
05
Follow-Up
After the problem is resolved, our team will continue to follow up to ensure your satisfaction with the service results.
