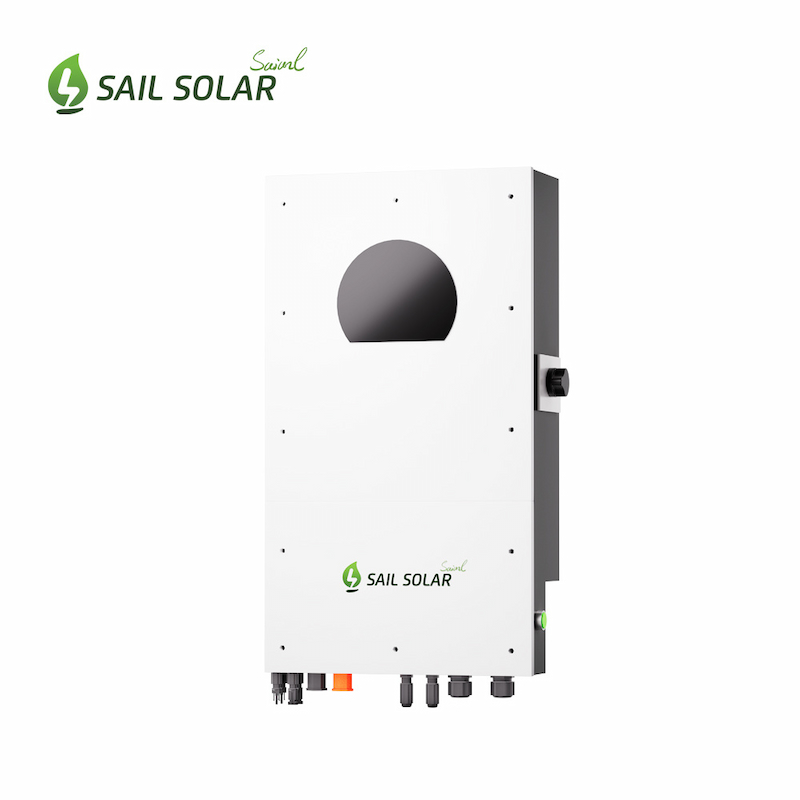

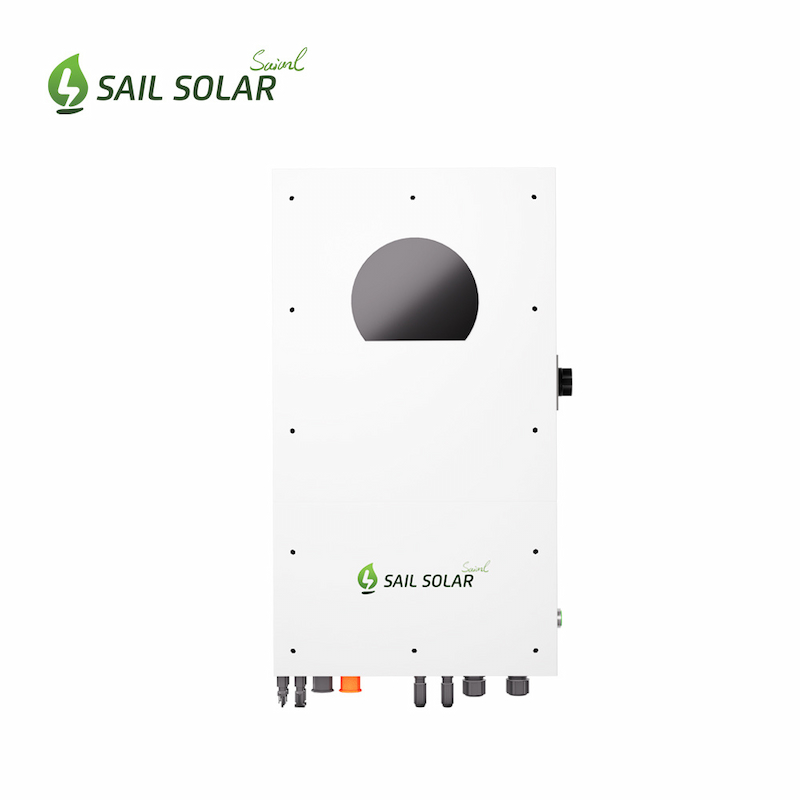

Pure Sine Wave Three Phase 380V Hybrid Solar Inverter 8 KW Mppt Home Energy System Inverters
The Helios-8KLP3-EU hybrid inverter grows with your energy needs, supporting parallel operation of up to 6 units for exceptional expansion capability.A reserved BMS communication port (RS485) enables seamless integration with battery management systems, creating a future-proof and intelligent power solution.
Item No :
Helios-8KLP3-EUParallel :
6 UnitsMax Power :
8000WOutput Voltage :
380VWarranty :
5 YearsCertificate :
CECommunication :
BMS (RS485)Protection :
IP65Type :
Hybrid AC/DC InverterThe Helios-8KLP3-EU hybrid inverter monitors and manages your power system remotely through built-in WiFi and the dedicated mobile app, while customizing charging parameters to optimize energy usage.
|
MODEL |
Helios- 8KLP3-EU
|
|
Maximum Pv Input Power |
12000 W
|
|
Rated Output Power |
8000 W
|
|
Maximum Charging Power |
8000 W
|
|
PV INPUT (DC)
|
|
|
Maximum DC Voltage
|
900 VDC
|
|
Start-up Voltage / Initial Feeding Voltage
|
150 VDC / 150 VDC
|
|
MPP Voltage Range
|
150 VDC ~ 850 VDC
|
|
Full MPP Voltage Range
|
400 VDC ~ 850 VDC
|
|
Number of MPP Trackers / Maximum Input Current
|
2 / A: 15A, B: 15A
|
|
GRID OUTPUT (AC)
|
|
|
Nominal Output Voltage
|
230 VAC (P-N) / 400 VAC (P-P)
|
|
Output Voltage Range
|
184 - 265 VAC* per phase
|
|
Nominal Output Current
|
11.6 A per phase
|
|
AC INPUT
|
|
|
AC Start-up Voltage / Auto Restart Voltage
|
120 - 140 VAC per phase / 180 VAC per phase
|
|
Acceptable Input Voltage Range
|
170 - 290 VAC per phase
|
|
Maximum AC Input Current
|
40 A
|
|
BATTERY MODE OUTPUT (AC)
|
|
|
Nominal Output Voltage
|
230 VAC (P-N) / 400 VAC (P-P)
|
|
Efficiency (DC to AC)
|
>93%
|
|
BATTERY & CHARGER
|
|
|
Battery Voltage Range
|
40 ~ 60 VDC
|
|
Maximum Charging Current
|
200 A
|
|
Maximum Charging Current
|
160 A
|
|
PHYSICAL
|
|
|
Size, D x W x H (mm)
|
247 x 500 x 650
|
|
Net Weight (kgs)
|
50
|
|
INTERFACE
|
|
|
Communication Port
|
RS-232, RS-485, USB, CAN and Wi-Fi
|
| Intelligent Slot |
Optional for SNMP and Modbus cards
|
|
ENVIRONMENT
|
|
|
Humidity
|
0 ~ 100% RH (Non-condensing)
|
|
Operating Temperature
|
-25 to 60°C, > 45°C power derating
|
|
Altitude
|
0 ~ 1000 m**
|
|
PROTECTION & CERTIFICATE
|
|
|
Safety
|
IEC 62116, IEC 62727, IEC 61683, IEC 62109, IEC 61000-6-2:2019, IEC 61000-6-4:2019,
IEC 61000-3-11:2019, EN 61000-3-12: 2011
|
|
Protection Grade
|
IP65
|
|
Grid Connection Standard
|
NRS097-2-1:2017, VDE-AR-N4105
|
The Helios series represents the culmination of in-depth market research and direct user feedback, engineered to meet the real-world energy needs of today's homeowners. Blending robust performance with sophisticated aesthetics, these inverters transform industrial-grade technology into an elegant addition to any modern living space. Featuring pure sine wave output, dual PV input, and an intuitive color LCD display, the 8kW hybrid model enables efficient energy self-consumption and seamless grid interaction. This versatile power solution delivers reliable backup energy protection, making it the ideal choice for both residential and small business applications.
Engineered for Maximum Solar Harvest
Achieving an exceptional 98.5% conversion efficiency, the Helios-8KLP3-EU ensures minimal energy loss—empowering users to extract the fullest value from every ray of sunlight.
Unmatched Flexibility in System Design
With an ultra-wide DC input voltage range of 150-850V, this hybrid inverter adapts seamlessly to diverse solar panel configurations, offering unparalleled installation freedom and compatibility.
Intelligent Monitoring at Your Command
Stay fully connected to your energy ecosystem through an advanced real-time monitoring system. Track operational status, power generation, and grid conditions effortlessly via our user-friendly mobile and desktop platforms.
Power, Precision, and Peace of Mind
From peak efficiency to flexible design and smart control, the Helios-8KLP3-EU delivers a seamlessly optimized solar experience for homeowners and installers alike.
