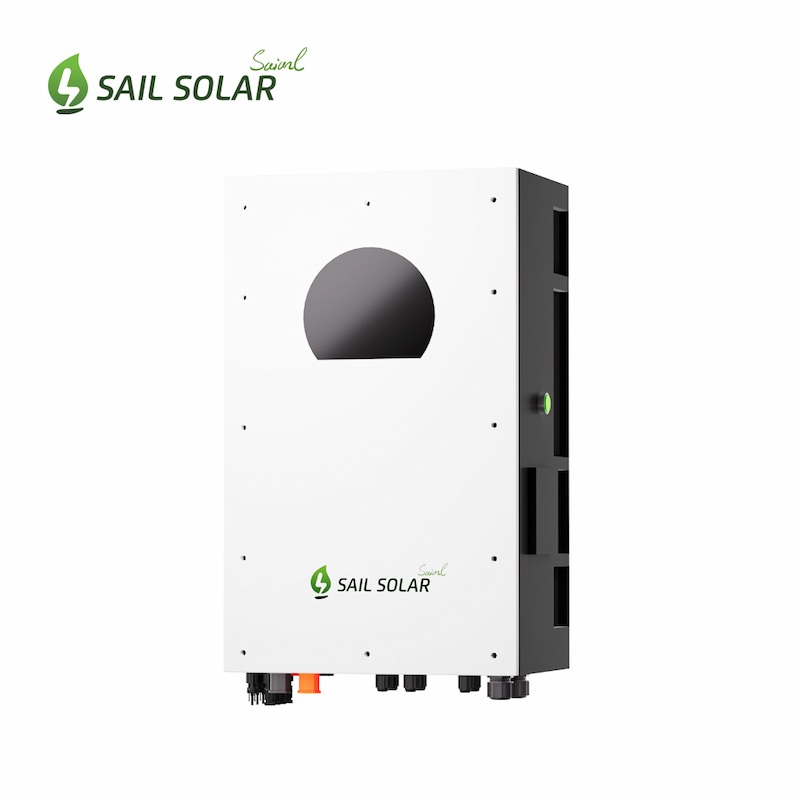

Smart Energy System Inverters 8KW 8000W Three Phase High Frequency Hybrid Solar Power Inverter
The Helios-8KLP3 inverter maximizes your energy savings with its programmable time-slot charging and discharging function, allowing you to automate power flow based on utility rates and solar availability.
Item No :
Helios-8KLP3-EUParallel :
6 UnitsMax Power :
8000WOutput Voltage :
380VWarranty :
5 YearsCertificate :
CECommunication :
BMS (RS485)Protection :
IP65Type :
Hybrid AC/DC InverterHelios-8KLP3 hybrid Inverter supports parallel operation of up to 6 units, features two independent AC power sources with automatic switching, includes built-in WiFi for mobile monitoring via an available app.
|
MODEL |
Helios- 8KLP3-EU
|
|
Maximum Pv Input Power |
12000 W
|
|
Rated Output Power |
8000 W
|
|
Maximum Charging Power |
8000 W
|
|
PV INPUT (DC)
|
|
|
Maximum DC Voltage
|
900 VDC
|
|
Start-up Voltage / Initial Feeding Voltage
|
150 VDC / 150 VDC
|
|
MPP Voltage Range
|
150 VDC ~ 850 VDC
|
|
Full MPP Voltage Range
|
400 VDC ~ 850 VDC
|
|
Number of MPP Trackers / Maximum Input Current
|
2 / A: 15A, B: 15A
|
|
GRID OUTPUT (AC)
|
|
|
Nominal Output Voltage
|
230 VAC (P-N) / 400 VAC (P-P)
|
|
Output Voltage Range
|
184 - 265 VAC* per phase
|
|
Nominal Output Current
|
11.6 A per phase
|
|
AC INPUT
|
|
|
AC Start-up Voltage / Auto Restart Voltage
|
120 - 140 VAC per phase / 180 VAC per phase
|
|
Acceptable Input Voltage Range
|
170 - 290 VAC per phase
|
|
Maximum AC Input Current
|
40 A
|
|
BATTERY MODE OUTPUT (AC)
|
|
|
Nominal Output Voltage
|
230 VAC (P-N) / 400 VAC (P-P)
|
|
Efficiency (DC to AC)
|
>93%
|
|
BATTERY & CHARGER
|
|
|
Battery Voltage Range
|
40 ~ 60 VDC
|
|
Maximum Charging Current
|
200 A
|
|
Maximum Charging Current
|
160 A
|
|
PHYSICAL
|
|
|
Size, D x W x H (mm)
|
247 x 500 x 650
|
|
Net Weight (kgs)
|
50
|
|
INTERFACE
|
|
|
Communication Port
|
RS-232, RS-485, USB, CAN and Wi-Fi
|
| Intelligent Slot |
Optional for SNMP and Modbus cards
|
|
ENVIRONMENT
|
|
|
Humidity
|
0 ~ 100% RH (Non-condensing)
|
|
Operating Temperature
|
-25 to 60°C, > 45°C power derating
|
|
Altitude
|
0 ~ 1000 m**
|
|
PROTECTION & CERTIFICATE
|
|
|
Safety
|
IEC 62116, IEC 62727, IEC 61683, IEC 62109, IEC 61000-6-2:2019, IEC 61000-6-4:2019,
IEC 61000-3-11:2019, EN 61000-3-12: 2011
|
|
Protection Grade
|
IP65
|
|
Grid Connection Standard
|
NRS097-2-1:2017, VDE-AR-N4105
|
1. Integrated Hybrid Solution

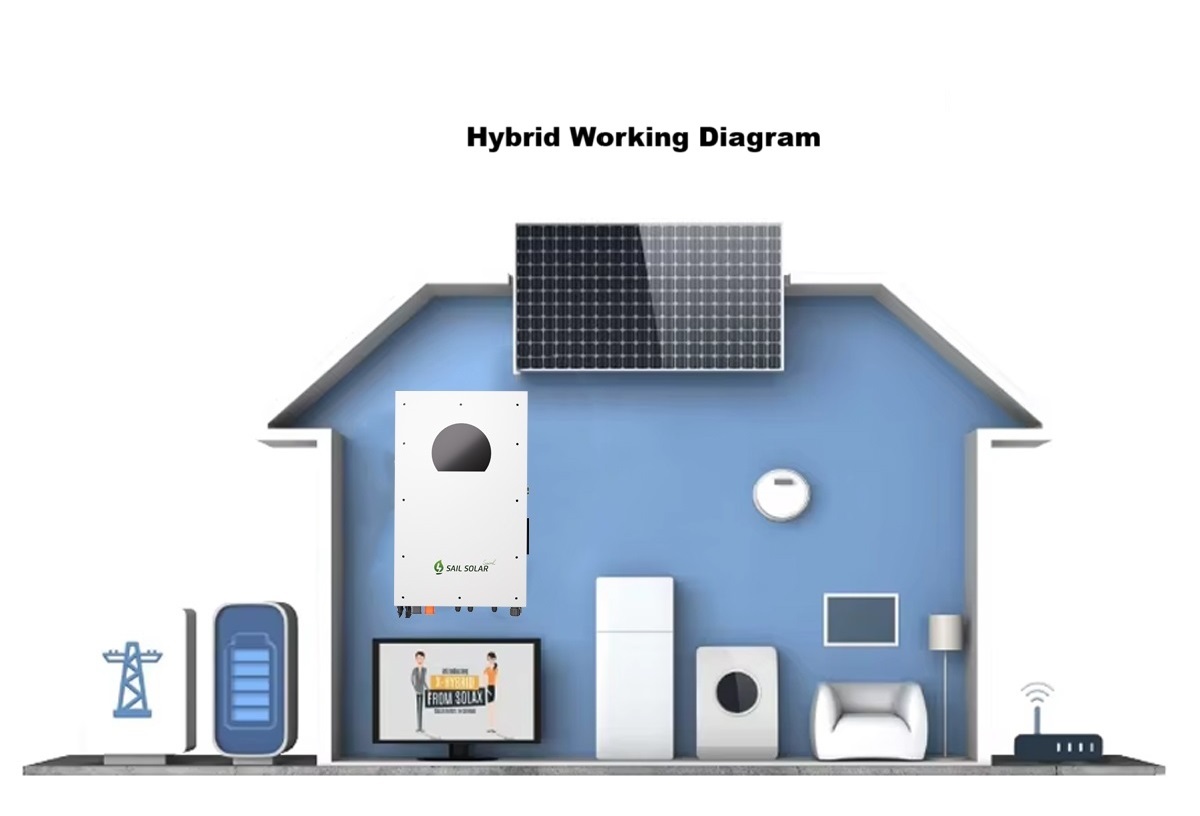

The Helios-8KLP3-EU is an all-in-one hybrid inverter that merges grid-tied and off-grid capabilities in a single, compact unit. By combining a grid-interactive inverter with a high-efficiency battery charger, it delivers a versatile and future-ready energy platform for diverse solar applications.
2. Intelligent Energy Management
Engineered to maximize self-consumption, it dynamically optimizes solar generation, stores surplus energy in batteries, and automatically provides backup power during grid failures—ensuring seamless and uninterrupted electricity supply.
3. Balanced Grid Independence
Experience the ideal balance: enjoy the convenience and cost-efficiency of grid-tied operation, alongside the security and autonomy of an off-grid system. This makes the Helios-8KLP3-EU the perfect choice for homes and businesses seeking energy self-sufficiency without losing grid connectivity.
4. Reliable & Sustainable Investment
As a cost-effective and eco-conscious energy solution, the Helios-8KLP3-EU empowers users to achieve greater energy independence while supporting sustainability goals and enhancing power reliability.
>Scalable Power on Demand

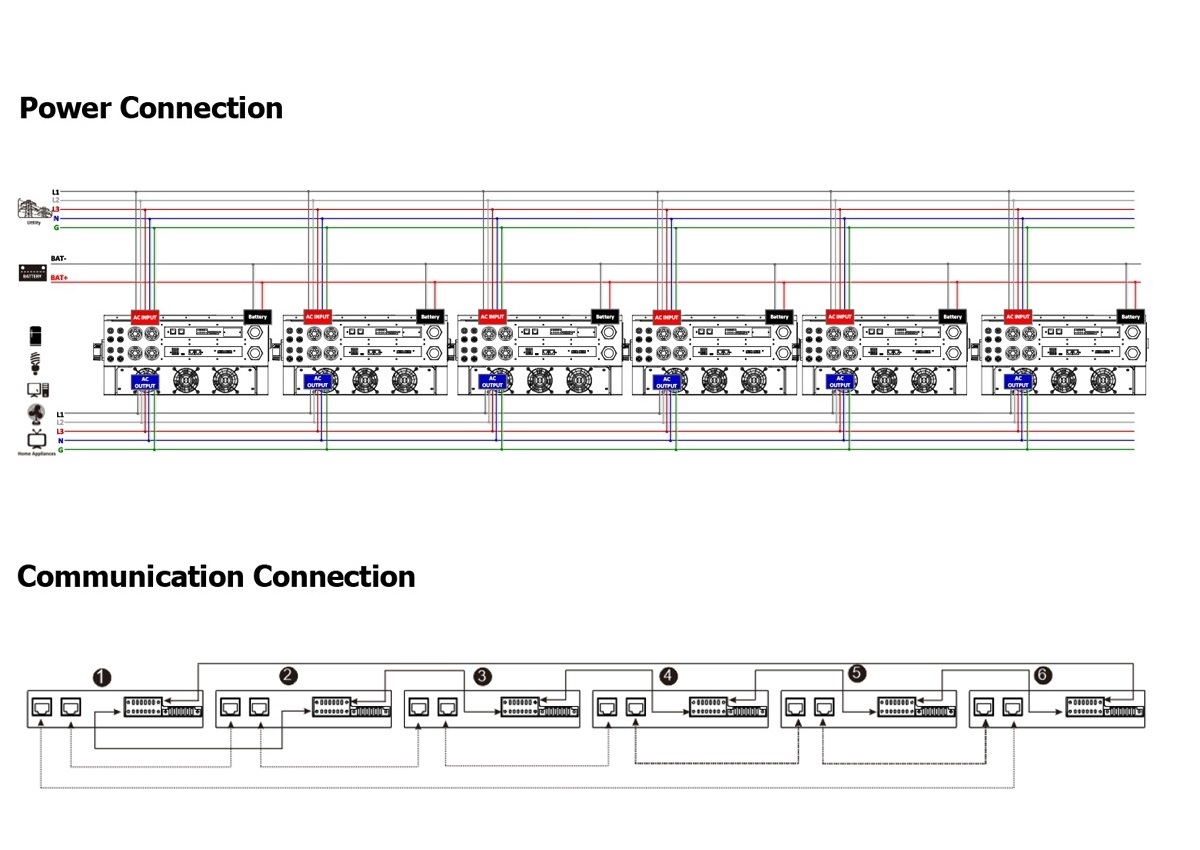

The Helios-8KLP3 Hybrid Solar Inverter supports seamless parallel configuration, offering unmatched scalability to grow with your energy needs. Start with a single unit and expand your system incrementally—making it the ideal long-term solution for both homes and businesses.
>Intelligent Load Distribution
When operating in parallel, the system automatically balances the electrical load across all connected inverters. This ensures each unit runs at its peak efficiency, reducing energy waste and maximizing DC-to-AC conversion performance across the entire system.
>Future-Ready Flexibility
Whether for residential or commercial use, the Helios-8KLP3 delivers exceptional flexibility. Its modular parallel design allows you to adapt and scale power capacity effortlessly—protecting your investment while supporting evolving energy requirements.
>Optimized System Efficiency
By distributing loads evenly and maintaining optimal operation per inverter, the parallel setup not only enhances system longevity but also elevates overall energy efficiency—helping you achieve higher returns on your solar investment.
