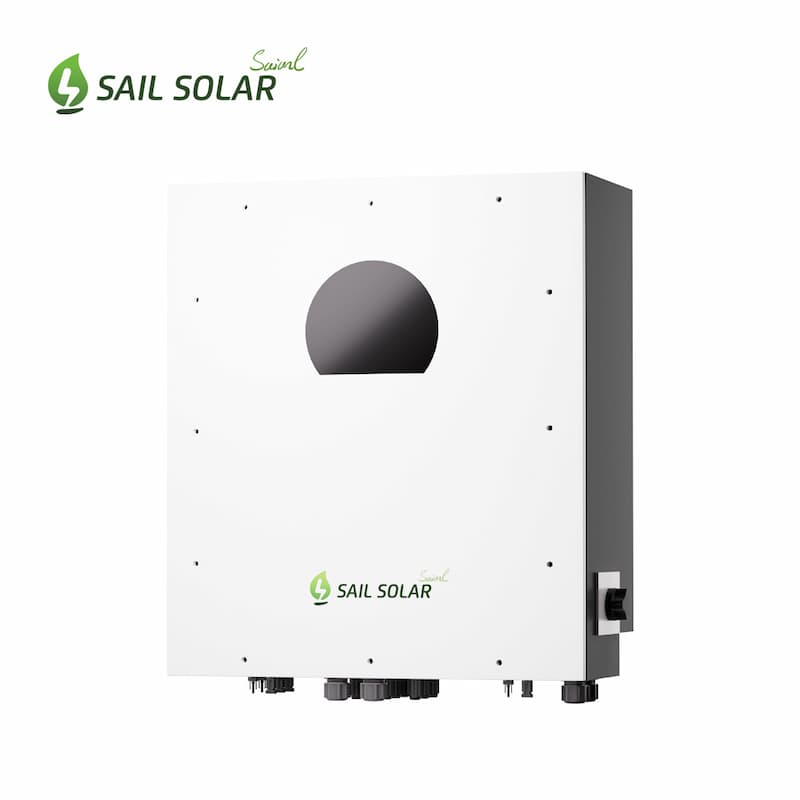

Sail Solar Hybrid 50KW Solar Inverter with WIFI for Solar Energy System
The Sail Solar 50kW three-phase hybrid inverter features industrial-grade intelligence and built-in WiFi for remote monitoring and control, optimizing energy management in commercial solar system applications.
Item No :
Helios-50KLP3-EUParallel :
4 UnitsMonitoring :
WifiMax Power :
50000WOutput Voltage :
230/400VWarranty :
5 YearsProtection :
IP65Order MOQ :
1Type :
Hybrid AC/DC InverterThis 50kW unit guarantees uninterrupted power with its dual AC input (generator compatible) and supports expansion by paralleling up to 4 units. Built to be rugged, its IP65 rating makes it suitable for outdoor use or dusty, humid indoor environments.
|
MODEL |
Helios-50KLP3-EU
|
|
Maximum Pv Input Power |
65000 W
|
|
Rated Output Power |
50000 W
|
|
Maximum Charging Power |
50000 W
|
|
PV INPUT (DC)
|
|
|
Maximum DC Voltage
|
720 VDC/ 1000 VDC
|
|
Start-up Voltage / Initial Feeding Voltage
|
320 VDC / 350 VDC
|
|
MPP Voltage Range
|
350 VDC ~ 900 VDC
|
|
Number of MPP Trackers / Maximum Input Current
|
4 / A:32A, B:32A, C:32A, D:32A
|
| Number of Strings Per MPP Tracker |
A:2, B:2, C:2, D:2 |
|
GRID OUTPUT (AC)
|
|
|
Nominal Output Voltage
|
230VAC(P-N)/400VAC(P-P)
|
|
Output Voltage Range
|
184 - 265 VAC per phase
|
|
Nominal Output Current
|
47.5~51.5 Hz or 59.3~60.5 Hz
|
|
AC INPUT
|
|
|
AC Start-up Voltage / Auto Restart Voltage
|
120 - 140 VAC / 180 VAC per phase
|
|
Acceptable Input Voltage Range
|
170 - 280 VAC per phase
|
|
Maximum AC Input Current
|
83 A
|
|
BATTERY MODE OUTPUT (AC)
|
|
|
Nominal Output Voltage
|
230VAC(P-N)/400VAC(P-P)
|
|
Efficiency (DC to AC)
|
97%
|
|
BATTERY & CHARGER
|
|
| Battery Voltage Range |
500~800VDC
|
|
Maximum Solar Charging Current
|
65 A
|
| Norminal Output Voltage |
230VAC(P-N)/400VAC(P-P)
|
| Efficiency (DC to AC) |
97%
|
|
PHYSICAL
|
|
|
Size, D x W x H (mm)
|
268 x 660 x 750
|
|
Net Weight (kgs)
|
110
|
|
INTERFACE
|
|
| Intelligent Slot |
Optional SNMP and MODBUS
|
|
Communication Port
|
RS-232, USB, RS-485, Dry Contact, CAN, Wi-Fi, Bluetooth
|
|
ENVIRONMENT
|
|
|
Humidity
|
0 ~ 100% RH
|
|
Operating Temperature
|
-25°C to 60°C(>45℃ De-rating)
|
|
PROTECTION & CERTIFICA TE
|
|
|
Safety
|
IEC/EN 61000, IEC/EN 62920, EN62477
|
|
Protection Grade
|
IP65
|
|
Grid Connection Standard
|
NRS097-2-1:2017, VDE-AR-N4105, G99, IEC 61683, IEC 61727, IEC 62116
|

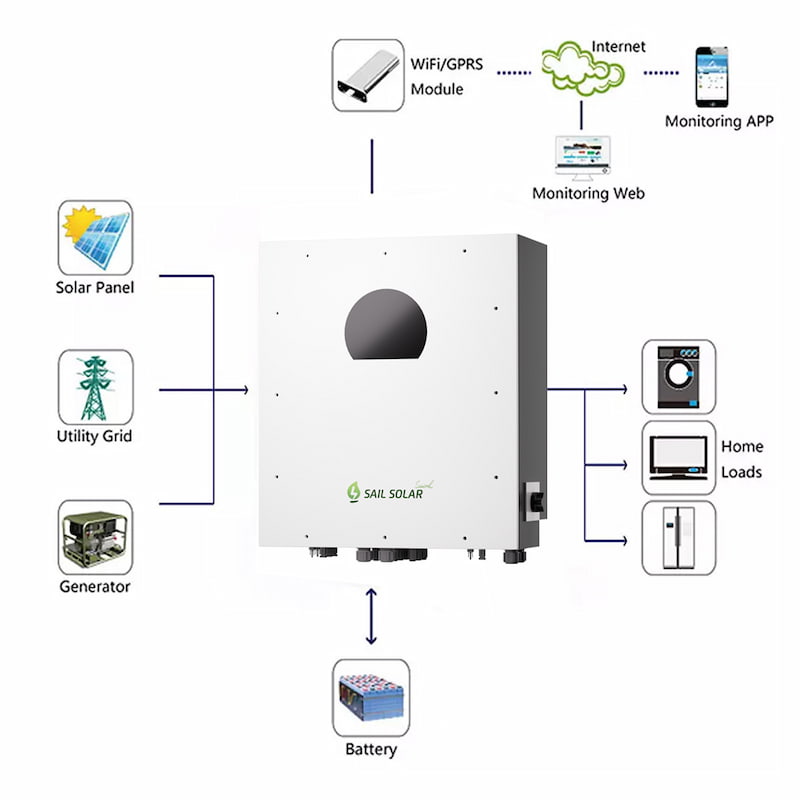

The Helios Series inverter is the heart of your household photovoltaic storage system. It intelligently manages your power supply in a prioritized manner: primary electricity is directly supplied by the solar panels. When solar generation is insufficient, it draws stored DC power from the battery, converting it into single-phase AC for home use. Should the battery run low, the system seamlessly switches to the grid to ensure an uninterrupted power supply.

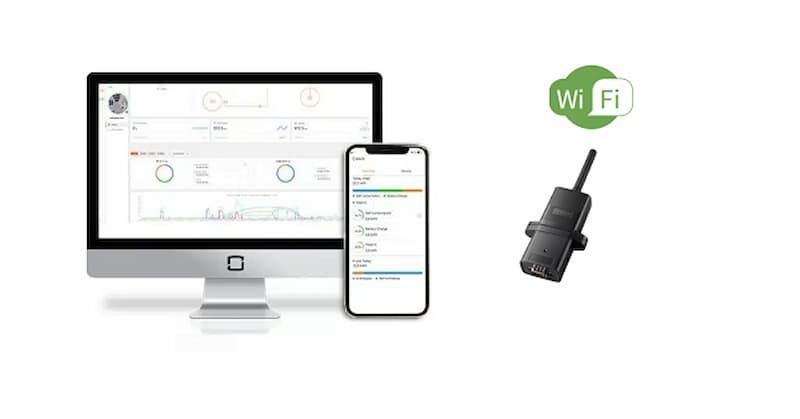

The Wi-Fi module can enable wireless communication between hybrid solar inverters and the monitoring platforms. When combining the Wi-Fi module with the app, available for both iOS and Android-based devices, users have a complete and remote monitoring and controlling experience for inverters. All data loggers and parameters are saved in iCloud.Solar monitoring apps are a great way to do just that—monitor how much energy your solar panels are producing and distribute it more efficiently where it's needed.
After-Sales Service
● " 7/24 " After-Sales Support
● 7 days a week, 24 hours a day: Ready to respond and solve problems immediately—Sail Solar's commitment to worry-free after-sales service.
● Service Email: info@sailsolaress.com
Service Process
01
Submit Service Requests
Submit your service requests at any time via email, online customer service, or mobile app.
02
Rapid Response
Our service team will immediately respond to your requests and communicate the details of the issue with you.
03
On-Site Service or Remote Support
Depending on the nature of the problem, provide on-site service or remote technical support.
04
Problem Resolution
Our goal is to completely resolve your issue within 24 hours.
05
Follow-Up
After the problem is resolved, our team will continue to follow up to ensure your satisfaction with the service results.
