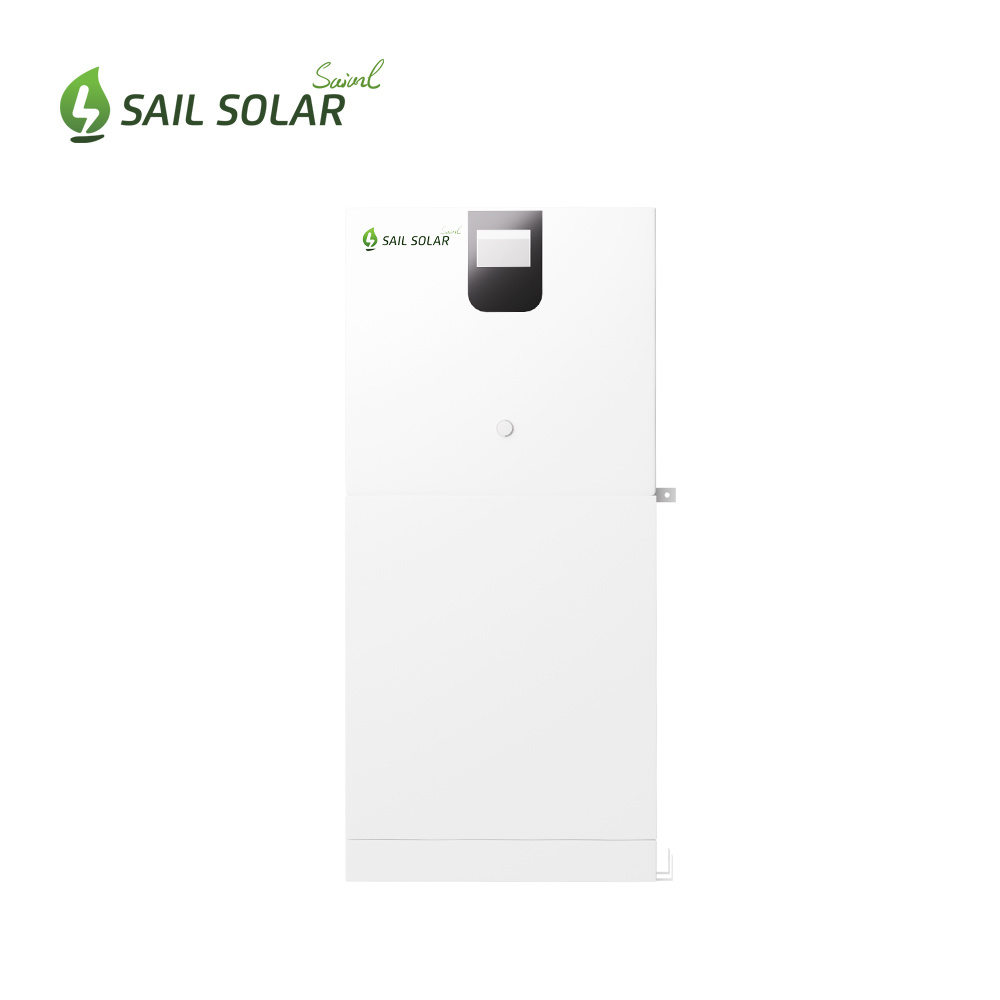

Sail Solar All in One ESS Solution 10KW Inverter 51.2V Lithium Battery Home Energy Storage System
MPPT Voltage Range :
120V~450VAC Maximum Output Current :
30AHumidity :
5%~85%Frequency :
50HzMaximum Output Current :
30ACycle Life(+25°C 0.5C) :
DOD 80%,10+ years design lifeProtocol (optional) :
RS232/RS485/CAN/BLUETOOTH/WIFISolar Charge Type :
MPPTRated Output Power :
10000WCommunication Port :
CAN, RS485Protection Class :
IP20Type :
All-in-oneSAIL SOLAR All in One Home Use Solar Power Energy Storage System is a multi-function solar inverter/solar charger, combining functions of inverter, MPPT solar charger and battery charger to offer uninterruptible power support. It is perfect backup power supply for off-grid system like household appliances, power tools, industrial equipment, and electronic audio and video equipment.
Discover the pinnacle of energy storage technology with the Sail Solar ESS Solution 10KW Inverter 15KWH 51.2V 300ah All in One Energy Storage System With Inverter, a flagship product among advanced All In One ESS Solution brands. This all-in-one system boasts an IP20 protection class and a wide MPPT voltage range, making it adaptable to various solar installations. With a rated output power of 10000W and a maximum output current of 30A, it’s designed to meet the demands of both residential and commercial settings.
The advanced All In One ESS Solution spots a robust communication port suite including CAN, RS485, and optional RS232/BLUETOOTH/WIFI for seamless integration with smart home systems. Its advanced All In One ESS Solution spots a humidity range of 5%~85%, ensuring reliable performance across diverse environmental conditions. The system’s cycle life of over 10 years at 80% DOD is a testament to its longevity and the quality expected from advanced All In One ESS Solution brands.
MODEL
|
AIO-5.12 |
AIO-10.24 |
AIO-15.36 |
AIO-20.48 |
Battery Type
|
LiFePO4 battery
|
|||
No.of Moudle |
1 |
2 |
3 |
4 |
Normal Capacity(25°c,0.2C) |
5.12kwh |
10.24kwh |
15.36kwh |
20.48kwh |
Normal Voltage(dc) |
51.2V |
51.2V |
51.2V |
51.2V |
Voltage Window(dc) |
44.8~57.6V
|
|||
Size(W/D/H) |
1190x600x184mm
|
1800x600x184mm
|
1800x600x184mm
690x600x184mm
|
1800x600x184mm
1300x600x184mm
|
Weight(Nw Kg) |
80 |
130 |
190 |
250 |
Normal charge/discharge current
|
50A |
50A |
50A |
50A |
Max.charge/discharge current |
100A |
100A |
100A |
100A |
Cycle Life(+25°C 0.5C) |
DOD 80%,10+ years design life
|
|||
Storage Temperature |
-20℃~+60°C
|
|||
Safety Standard |
CE/IEC/UL/UN38.3/MSDS
|
|||
Protection Grade
|
IP20
|
|||
Protocol (optional)
|
RS232/RS485/CAN/BLUETOOTH/WIFI
|
|||
Protection
|
Overchange protection、Overdischange protection、 Overcurrent protection
Shortcircuit protection、Overtemperature protection
|
|||
Working Temperature |
Charge:0~45°c; Discharge:-10~45°C
|
|||
Humidity |
5%~85%
|
|||
PV Charge
|
|
|||
Solar Charge Type |
MPPT
|
|||
Maximum Output Power |
5000W
|
|||
PV Charging Current Range |
0~80A
|
|||
PV Operating Voltage Range |
120~500V
|
|||
MPPT Voltage Range |
120~450V
|
|||
AC Charge |
|
|||
Maximum Charge Power |
3150W
|
|||
AC Charging Current Range |
0~60A
|
|||
Rated input Voltage |
220/230Vac
|
|||
Input Voltage Range |
90~280Vac
|
|||
AC Output
|
|
|||
Rated Output Power |
5000W
|
|||
Maximum Output Current |
30A
|
|||
Frequency |
50Hz
|
|||
Overload Current |
35A
|
|||
Battery Inverter Output |
|
|||
Rated Output Power
|
5000W
|
|||
Maximum Peak Power |
10KVA
|
|||
Power Factor |
1 |
|||
Rated Output Voltage (Vac) |
230Vac
|
|||
Frequency |
50Hz
|
|||
Auto Switch Period |
<15ms
|
|||
THD |
<3%
|
![]() |

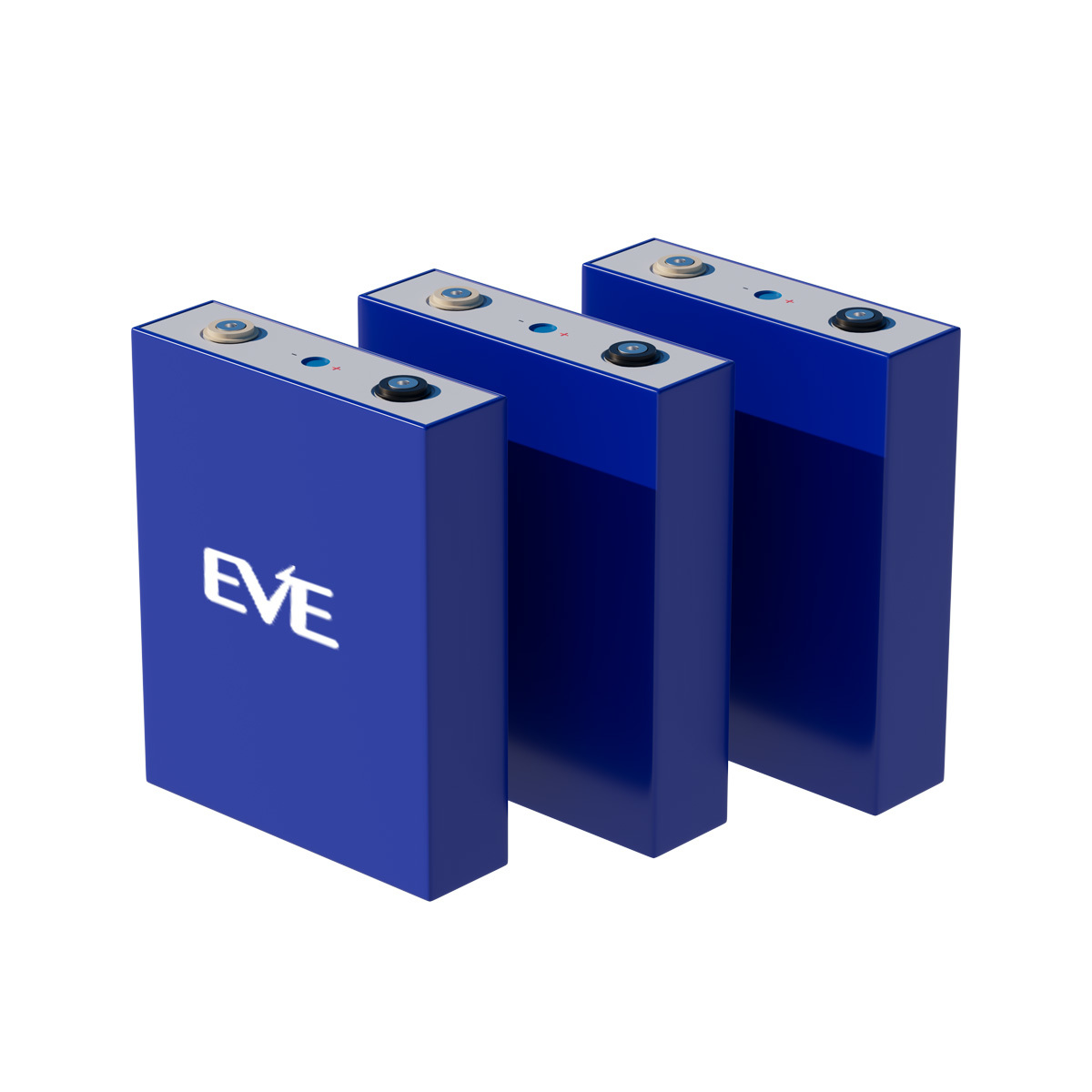

Our energy storage systems are built using Grade A EVE LiFePO4 phosphate battery cells, ensuring superior quality and performance. These advanced battery cells are known for their exceptional durability, delivering a service life of up to 10 years or more. With high energy density, excellent thermal stability, and reliable safety features, they provide consistent power output while minimizing maintenance needs. Whether for residential or commercial applications, these batteries are designed to meet the demands of long-term energy storage, ensuring peace of mind and reliable performance for years to come. |

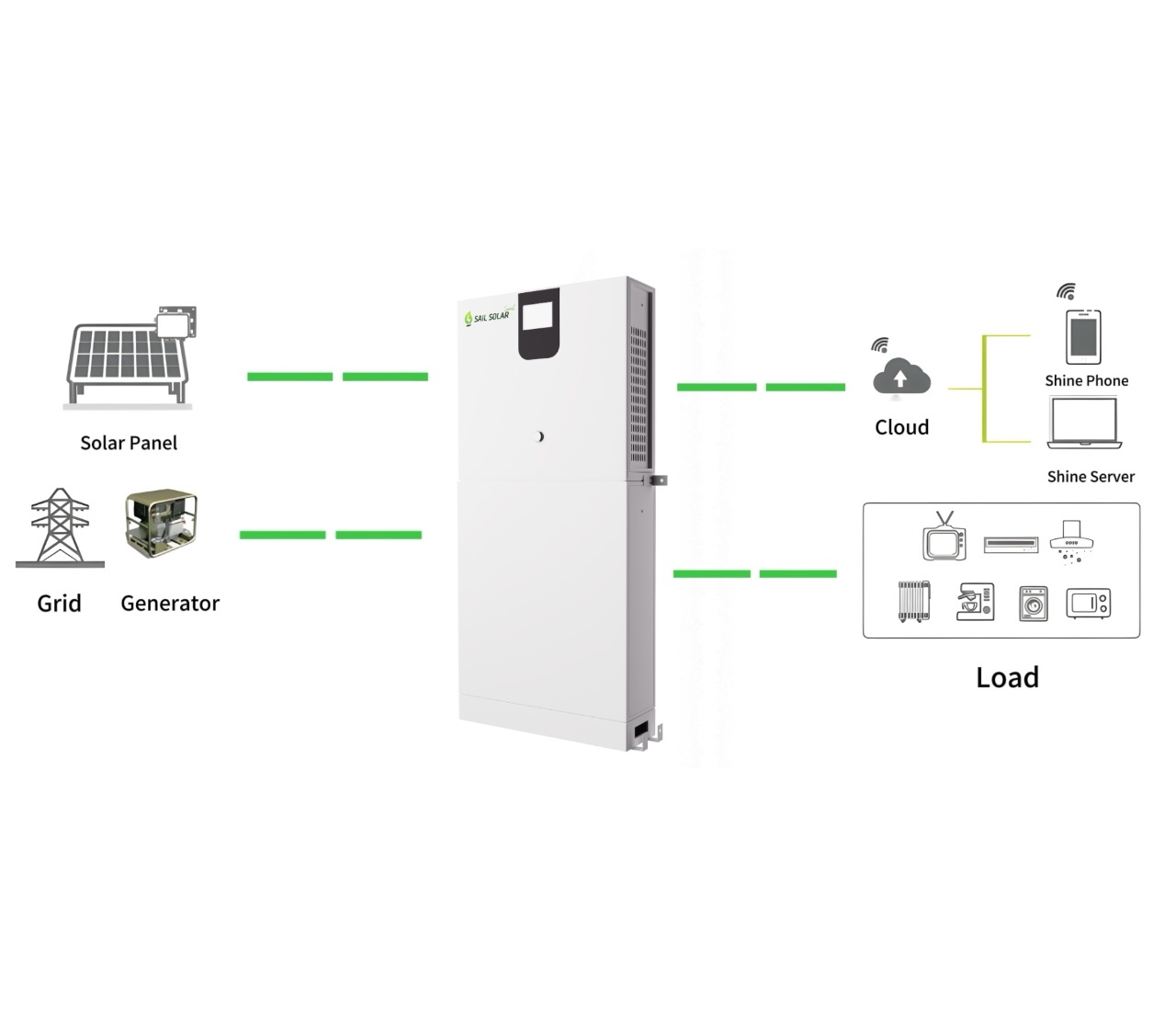

The Sail Solar ESS All-in-One 10000W is a high-performance energy storage solution that combines a solar inverter, battery storage, and intelligent energy management capabilities in one compact system. Designed to meet diverse energy demands, it delivers efficient energy usage and reliable, on-demand power for both residential and commercial applications. The system's user-friendly interface, along with its advanced monitoring and control features, makes managing energy consumption simple and convenient. By enabling real-time tracking, it allows users to optimize energy usage, reduce costs, and contribute to a more sustainable lifestyle. With the Sail Solar ESS All-in-One 10000W, experience uninterrupted power, maximize savings, and embrace a cleaner, more efficient way of using energy. This versatile solution is the perfect choice for those looking to enhance energy resilience and sustainability while minimizing their environmental footprint. |
![]() |
Our inverter and battery systems have successfully passed a comprehensive range of certifications, ensuring quality, safety, and compliance with international standards. These include VDE certification, which guarantees adherence to rigorous German safety standards; IEC 62133 and IEC 62219, which ensure safe design and testing for lithium-ion batteries; and CE marking, affirming conformity with EU health, safety, and environmental protection standards. Additionally, they meet UN38.3 transportation standards for lithium batteries, confirming their safety during shipping and handling, as well as the MSDS (Material Safety Data Sheet) requirements, which provide critical information on chemical properties and safety protocols. Together, these certifications highlight our commitment to delivering reliable, high-quality energy storage solutions that meet the strictest global standards.
After-Sales Service
● " 7/24 " After-Sales Support
● 7 days a week, 24 hours a day: Ready to respond and solve problems immediately—Sail Solar's commitment to worry-free after-sales service.
● Service Email: info@sailsolaress.com
Service Process
01
Submit Service Requests
Submit your service requests at any time via email, online customer service, or mobile app.
02
Rapid Response
Our service team will immediately respond to your requests and communicate the details of the issue with you.
03
On-Site Service or Remote Support
Depending on the nature of the problem, provide on-site service or remote technical support.
04
Problem Resolution
Our goal is to completely resolve your issue within 24 hours.
05
Follow-Up
After the problem is resolved, our team will continue to follow up to ensure your satisfaction with the service results.
