Sail Solar All In One ESS 6KW Inverter and 15KWH Lithium Battery for Home Use

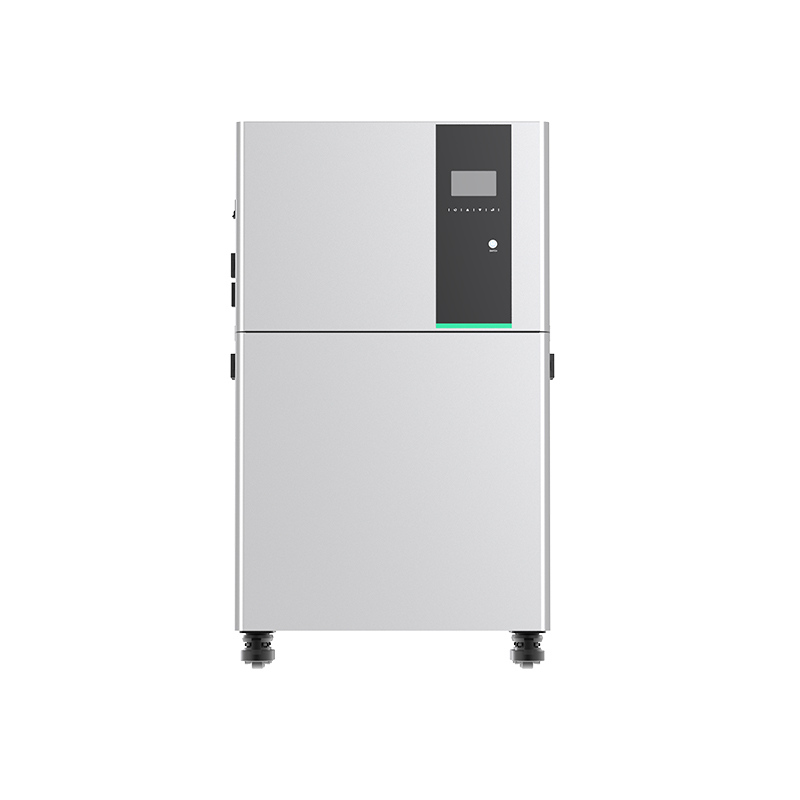

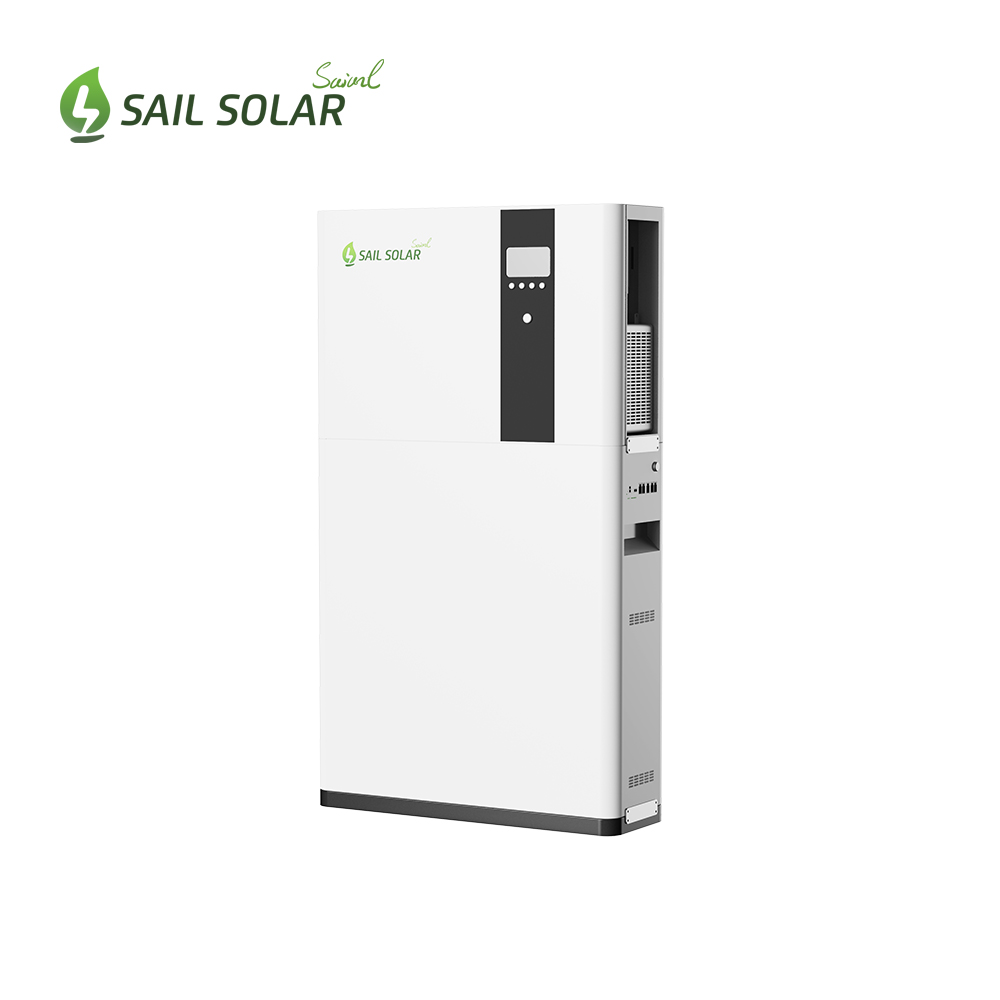

Sail Solar All In One ESS 6KW Inverter and 15KWH Lithium Battery for Home Use

Pure Sine Wave Output, Adaptable toDifferent Loads

UPS Function: Transfer Time <20ms

Easy Installation with Modular and Stacked Design

  • Frequency :

    50/60Hz
  • Maximum Output Current :

    30A
  • Cycle Life(+25°C 0.5C) :

    DOD 80%,10+ years design life
  • Protocol (optional) :

    RS232/RS485/CAN/BLUETOOTH/WIFI
  • Solar Charge Type :

    MPPT
  • Rated Output Power :

    6200W
  • Communication Port :

    CAN, RS485
  • Protection Class :

    IP20
  • Type :

    All-in-one

SAIL SOLAR All in One Home Use Solar Power Energy Storage System is a multi-function solar inverter/solar charger, combining functions of inverter, MPPT solar charger and battery charger to offer uninterruptible power support. It is perfect backup power supply for off-grid system like household appliances, power tools, industrial equipment, and electronic audio and video equipment. lt is an independent household solar power station meets the needs of households for arbitrary electricity consumption.

Specification



MODEL

SAS-AIO-15.36

Inverter parameter

Rated power
6200W
AC rated voltage
220VAC/230VAC
Selectable voltage range
170-280VAC
Frequency range
50HZ/60Hz
AC voltage
230VAC±5%
Efficiency
≥ 93.5%
Transfer time
10ms
Waveform
Sine Wave
Rated battery voltage
51.2V
Battery voltage range
40-58.4V
Compatible battery type
Lithium
Max.PV array open circuit voltage
500VDC
Max.PV array power
6200W
MPPT range@ Operating voltage
60-450VDC
Max.charge current
100A
Net weight
10kg
Dimension
550*200*324mm
Battery parameter

Rated capacity
15.36 kWh
Nominal voltage
51.2V
Discharge voltage range
43.2-57.6V
Standard charge current
0.5C@25℃
Max.charging current
1C@25℃
Max.discharge current
1C@25℃
Max.power output
15360Wh
Depth of discharge DOD
1
Communication Interface
RS485/RS232/CAN
Cycle life
25±2℃,0.5C/0.5C,EOL80% ≥ 6000
Working temperature range
Charge:0℃ ~60℃ Discharge:-20℃ ~60℃
Net weight
145kg
Dimension
550*200*1443mm

Product Description



The system's integrated architecture eliminates the complexity of traditional split-type solar storage setups, designed for home users with no professional electrical experience:

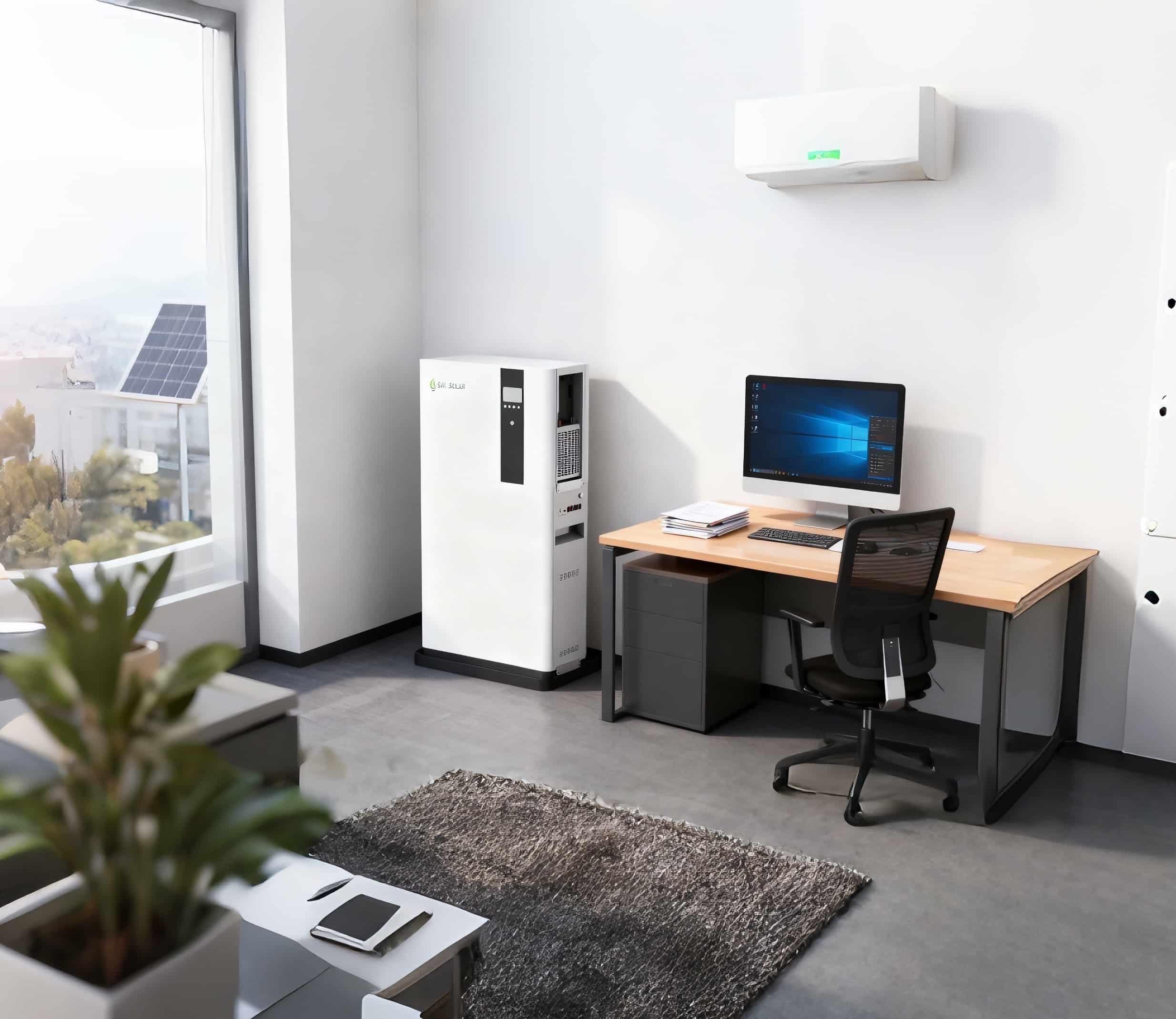

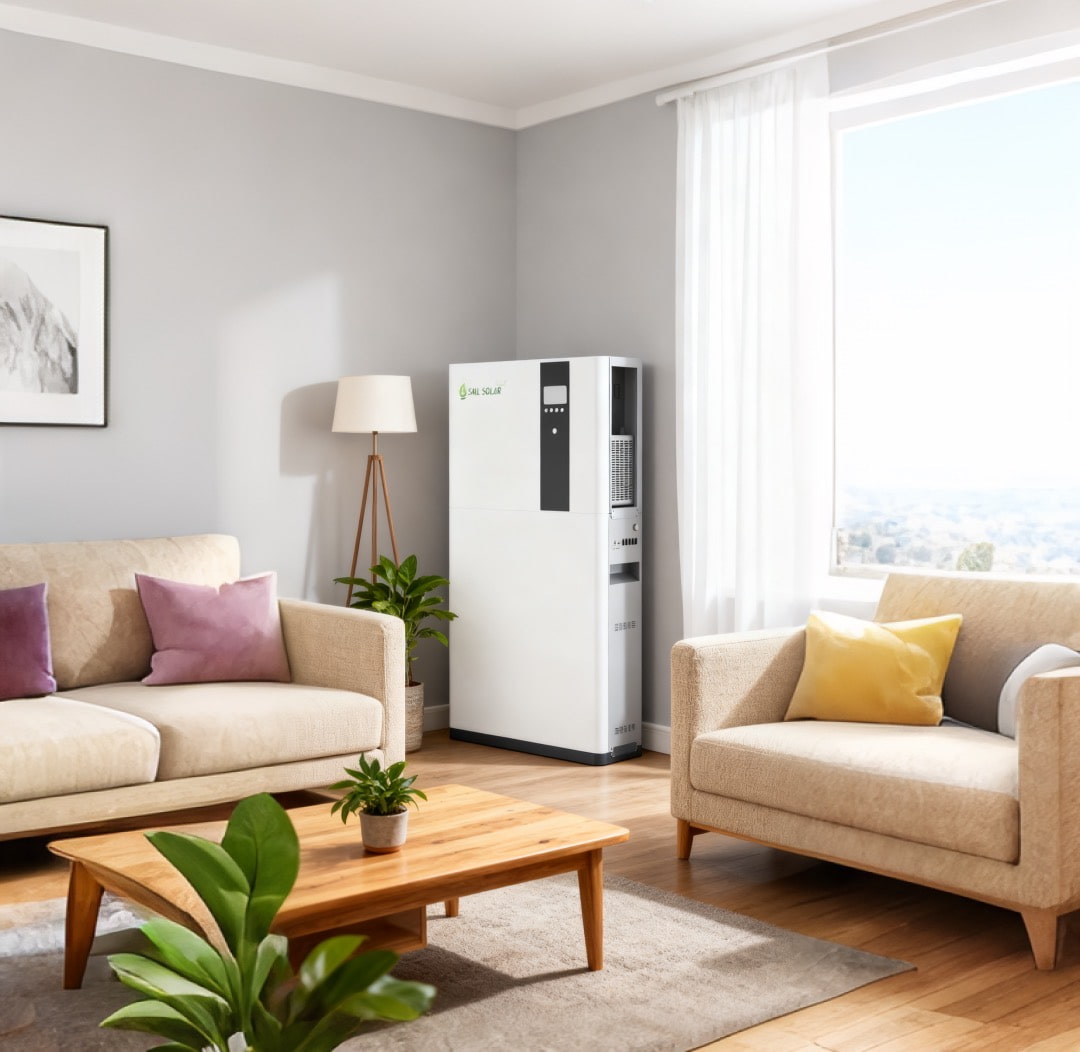

Compact & Space-Saving: The 6.2kW+15.36kWh model measures ~550*200*1443mm (weight: ~145kg) small enough to install in garages, utility closets, or basements without occupying excessive space. No separate inverter cabinet or battery rack is needed.

Pre-Wired & Plug-and-Play: Factory-integrated wiring between the inverter, battery, and EMS means on-site installation takes only 2–3 hours (by a professional electrician). It connects to solar panels via standard MC4 connectors and to the home electrical panel via pre-wired terminals-no complex splicing or configuration required.

Quiet Operation: No moving parts in the inverter or battery, operating at ≤35dB (quieter than a household refrigerator)-suitable for indoor installation near living areas without causing noise disturbance.

Crafted with premium LiFePO4 cells, our battery sets a new standard for home energy storage—delivering uncompromising safety and long-term reliability that outperforms traditional lead-acid and other lithium-ion options.



Built-In Safety

Featuring a non-flammable, non-explosive chemical structure resistant to thermal runaway up to 200°C, every battery is encased in a flame-retardant shell. With integrated over-temperature and short-circuit protection, it offers complete peace of mind for household use.

Lasts for Decades

Engineered to endure over 6,000 deep discharge cycles at 80% DoD while maintaining at least 80% capacity for 10–15 years. That’s 5–10 times longer than lead-acid batteries—saving you from frequent replacements and reducing environmental waste.

All-Weather Ready

Designed to perform reliably in extreme temperatures, from -20°C to 60°C (-4°F to 140°F). Whether you're in chilly Northern Europe, sunny Australia, or anywhere in between, enjoy consistent power without compromise.



After-Sales Service

" 7/24 " After-Sales Support

7 days a week, 24 hours a day: Ready to respond and solve problems immediately—Sail Solar's commitment to worry-free after-sales service.

Service Email: info@sailsolaress.com


Service Process

01

Submit Service Requests

Submit your service requests at any time via email, online customer service, or mobile app.

02

Rapid Response

Our service team will immediately respond to your requests and communicate the details of the issue with you.

03

On-Site Service or Remote Support

Depending on the nature of the problem, provide on-site service or remote technical support.

04

Problem Resolution

Our goal is to completely resolve your issue within 24 hours.

05

Follow-Up

After the problem is resolved, our team will continue to follow up to ensure your satisfaction with the service results.
