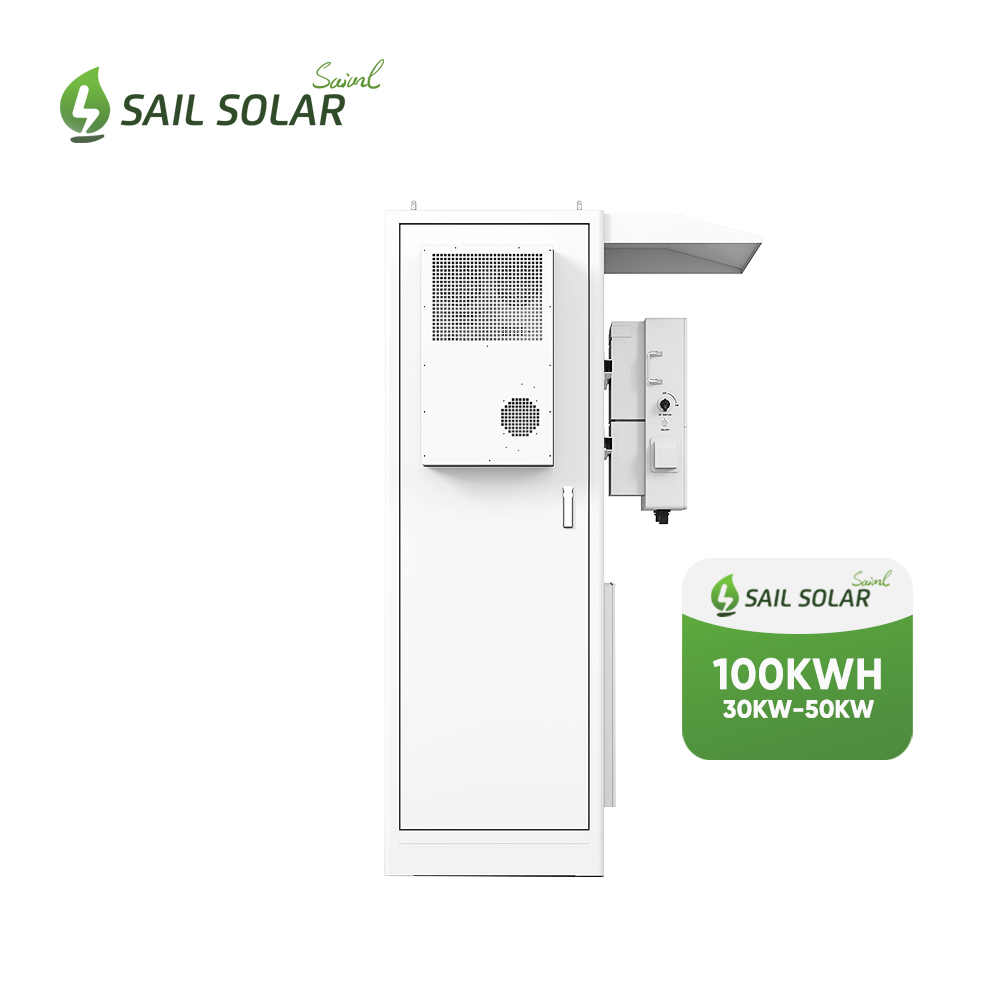

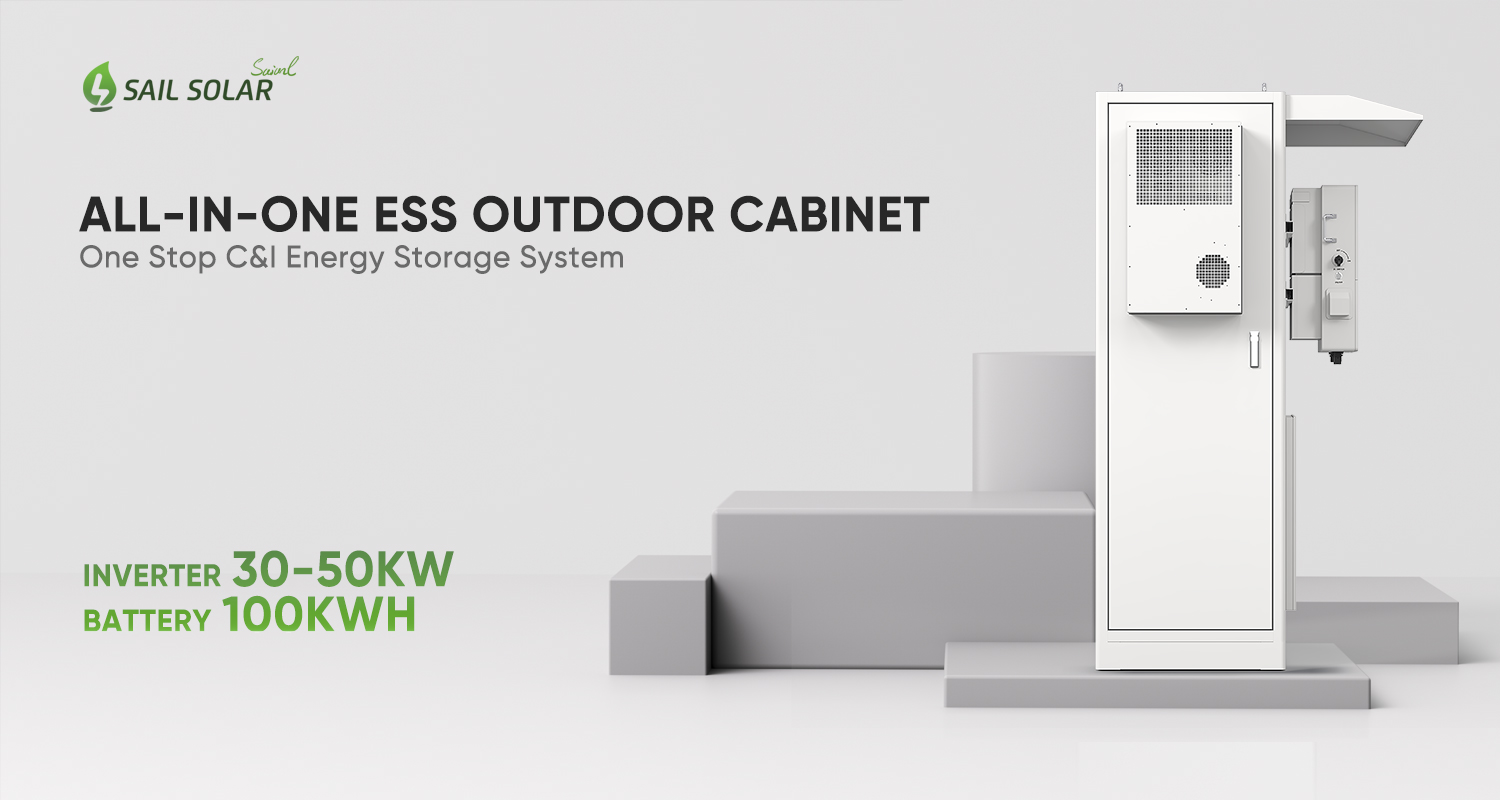

Complete Kit Sail Solar 30KW 50KW Hybrid Solar Inverter with 100KWH Lithium Battery Outdoor All in One Energy Storage System

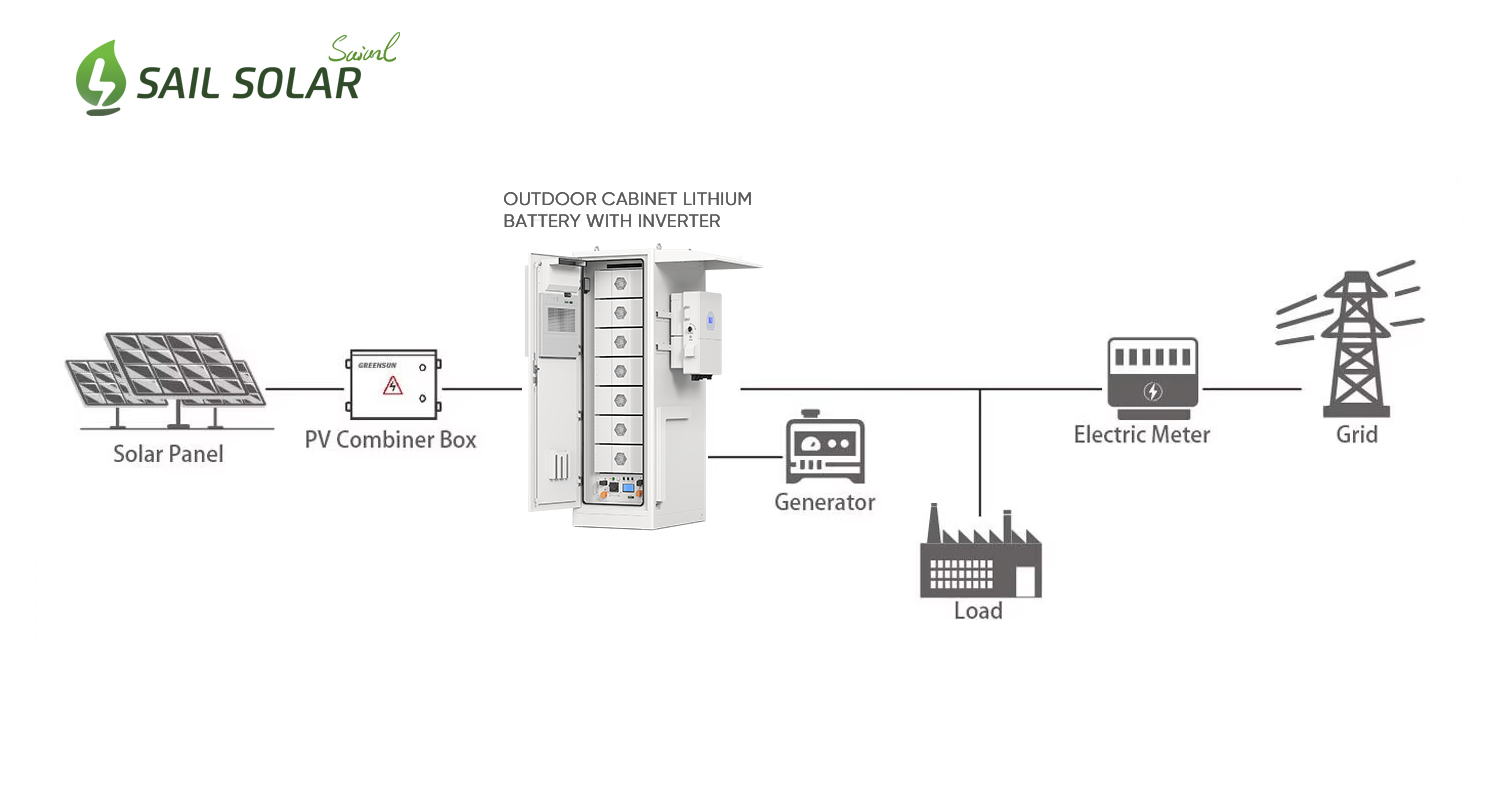

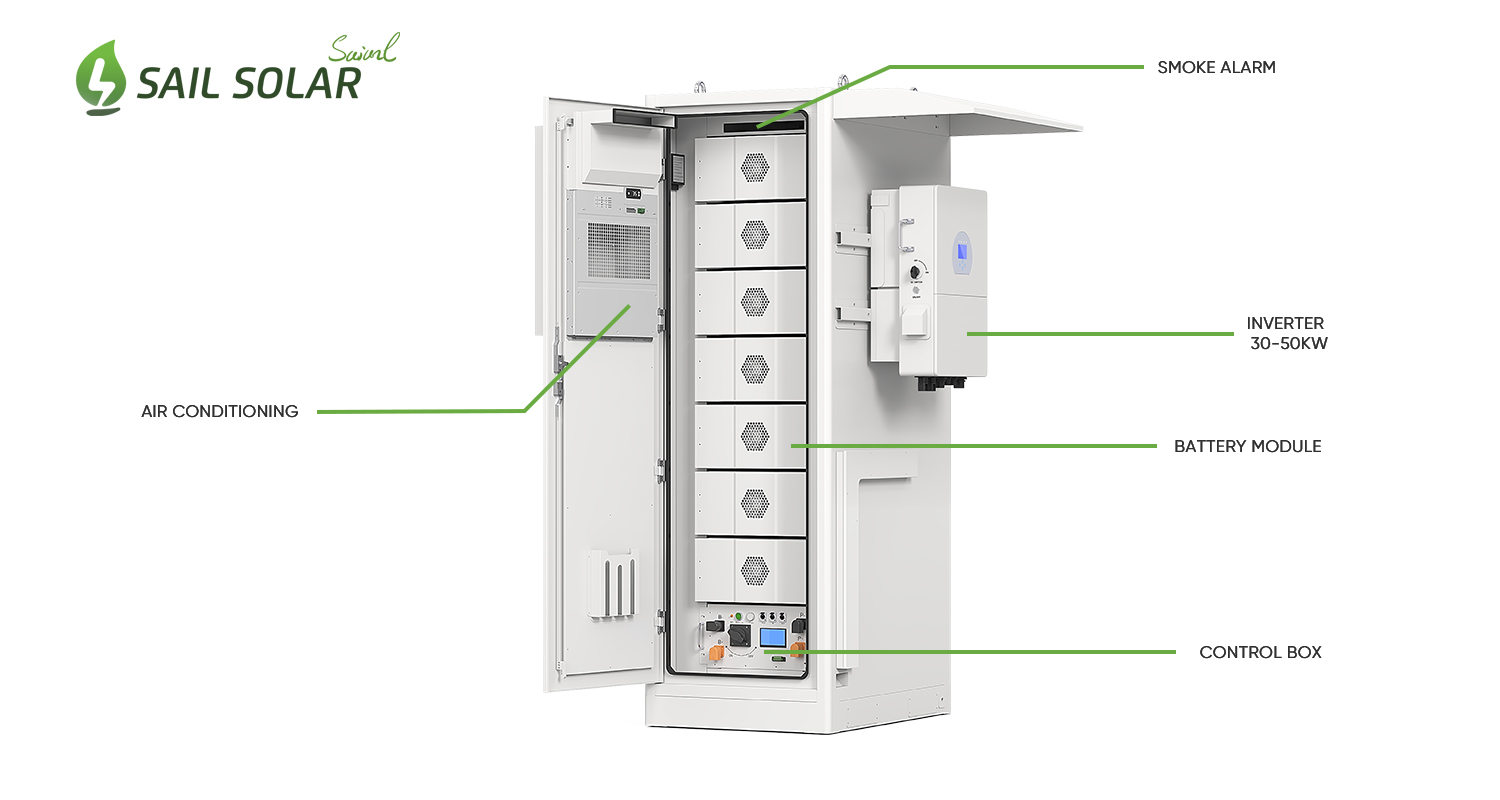

This all-in-one outdoor energy storage system is equipped with a 100kWh lithium iron battery pack and an optional 30-50kW Deye/Solis hybrid inverter for reliable power management. Voltage regulation and three-phase balancing ensure grid stability, while an integrated air cooling system, fire suppression mechanism, and centralized energy management system work together to ensure the safe and efficient operation of the entire system.
Item No :
BESS-I100Battery Type :
LiFePO4Battery :
100KWHRated Output Power :
30-50KWCycle Life :
>8000 CyclesProtection Class :
IP54Warranty :
10 YearsCommunication :
CAN, RS485Type :
HybridThis solution is specifically designed to cope with harsh outdoor environments (such as high humidity, dust, and changeable weather), making it an ideal choice for outdoor photovoltaic energy storage devices. It features an IP54-rated cabinet enclosure, a 100kWh lifepo4 battery pack, and can be equipped with an optional 30-50kW hybrid inverter to adapt to various power consumption modes.
Specification
|
MODEL
|
BESS-I100 |
|
Type
|
Battery: 100.35kWh /Inverter: 30-50kw
|
| Battery Cell |
Lithium-ion |
| Battery Pack |
LFP314Ah |
| Rated Voltage(V) |
51.2V 314Ah |
| Rated Energy(KWH) |
358.4V(7module in series) |
| Inverter |
Deye/Solis
|
| Rated Grid Voltage (V) | 380V |
|
Size: W*D*H (mm)
|
1200*803*2375 |
|
Weight (KG)
|
1300
|
|
Protection Level
|
IP54
|
|
Cooling Method
|
Air cooling (refrigeration, ventilation, heating)
|
|
Fire Protection System
|
Integrated
|
|
Communication
|
RS485,CAN
|
Product Description


Flexible Operation Mode: Seamless millisecond-level switching between grid-connected and off-grid modes ensures power supply to critical loads and also features peak shaving and valley filling energy management functions.
High-efficiency energy conversion: Advanced power devices with a conversion efficiency of over 98.5%; multiple MPPTs support photovoltaic oversizing to maximize energy capture.
Industrial-grade power supply compatibility: Outputs 380/400/415V three-phase power, compatible with industrial and commercial power distribution, supports unbalanced loads, and provides stable voltage.
