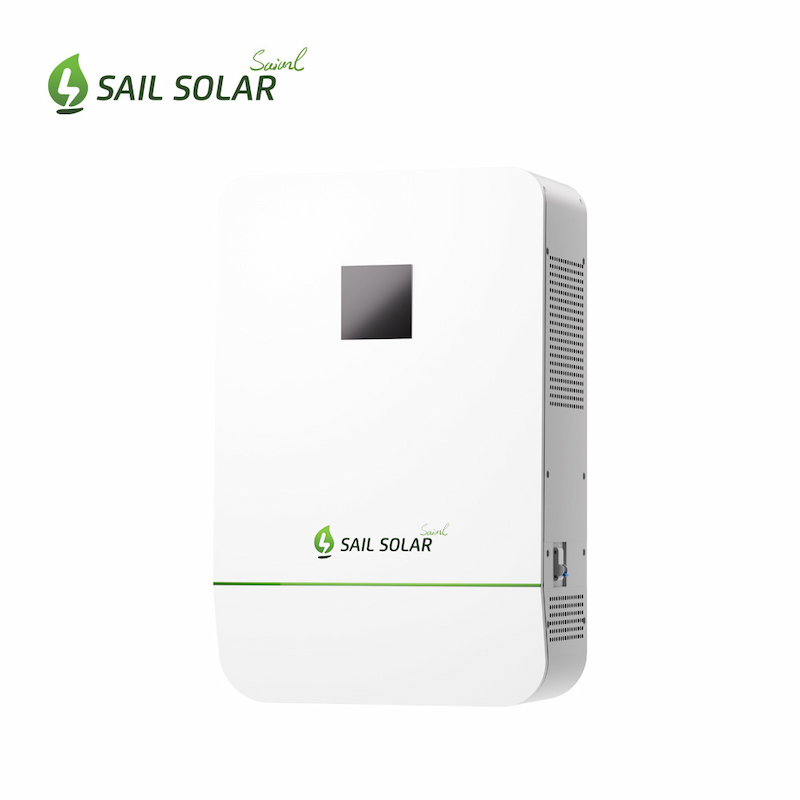

Low Voltage Hybrid Solar Inverter 10 Kw 10Kva MPPT PV Inverters For House Energy Storage
Xihe-10KLP3-EU high-quality inverter system outputs pure sine wave AC power, ensure reliable long-term operation at rated capacity, features an industrial design with a modern aesthetic, is easy to install and use.
Item No :
Xihe-10KLP3-EUParallel :
6 UnitsMax Power :
10000WOutput Voltage :
380VWarranty :
5 YearsCertificate :
CECommunication :
BMS (RS485)Protection :
IP20Type :
Hybrid AC/DC InverterXihe-10KLP3-EU inverter incorporates exclusive Li-ion battery BMS dual activation, offers remote monitoring of operating parameters, boasts advanced MPPT with up to 99.9% efficiency, provides comprehensive security from hardware to software, has multiple safety approvals, supports various types of batteries, and includes support for Li-ion battery BMS communication.
|
MODEL |
Xihe-10KLP3-EU
|
|
INVERTER
|
|
|
Rated Output Power
|
10,000W
|
|
Max.Peak Power
|
20,000W
|
|
Rated Output Voltage
|
230Vac, single-phase / three-phase, be paralleled
|
|
Load Capacity of Motors
|
6HP
|
|
Rated AC Frequency
|
50Hz/60Hz
|
|
Waveform
|
Pure Sine Wave
|
|
Switch Time
|
10ms（typical）
|
|
Parallel Capacity
|
1~6 units
|
|
Output Mode
|
O-grid (default)/Hybrid
|
|
BATTERY
|
|
|
Battery Type
|
Lead-acid/Li-ion/User defined
|
|
Rated Battery Voltage
|
48V
|
|
Voltage Range
|
40～60Vdc
|
|
Max.MPPT Charging Current
|
200A
|
|
Max.Mains/Generator Charging Current
|
120A
|
|
Max.Hybrid Charging Current
|
200A
|
|
PV INPUT
|
|
|
Num. of MPPT Trackers
|
2
|
|
Max.PV Array Power
|
5,500W + 5,500W
|
|
Max.Input Current
|
22A + 22A
|
|
MPPT Voltage Range
MAINS / GENERATOR INPUT
|
125～425Vdc |
|
Max.Voltage of Open Circuit
|
500Vdc + 500Vdc
|
|
MPPT Voltage Range
|
90～275Vac
|
|
Frequency Range
|
50/60Hz
|
|
Bypass Overload Current
|
63A
|
|
EFFICIENCY
|
|
|
MPPT Tracking Efficiency
|
99.9%
|
|
Max. Battery Inverter Efficiency
|
92%
|
|
GENERAL
|
|
|
Dimensions
|
620*445*130mm
|
|
Weight
|
27kg
|
|
Protection Grade
|
IP20, indoor onIy
|
|
Operating Temperature Range
|
-10~55℃, >45℃ derated
|
|
Noise
|
≤60dB
|
|
Cooling Method
|
Internal Fan
|
|
COMMUNICATION
|
|
|
Embedded Interfaces
|
RS485 / USB / Dry contact
|
|
External Modules (Optional)
|
Wi-Fi / GPRS
|
|
CERTIFICATION
|
|
|
Safety
|
IEC62109-1, IEC62109-2
|
|
EMC
|
EN61000-6-1, EN61000-6-3, FCC 15 class B
|
|
RoHS
|
Yes
|
Our solar inverters efficiently convert the DC electricity generated by your solar panels into AC power, ready to use in your home or business. With industry-leading conversion efficiency and intelligent power management, they maximize the output and value of your solar energy system.
A key benefit is their seamless integration with solar panels, batteries, and the grid—providing a reliable and adaptable energy solution. Whether your goal is to lower electricity bills, reduce your carbon footprint, or achieve energy independence, our solar inverters are the ideal choice to meet your sustainable energy needs.
Engineered for Performance, Designed for Simplicity
Beyond exceptional performance, our solar inverters are built for effortless user experience. With an intuitive interface and advanced monitoring capabilities, you can easily track system performance and optimize settings in real time.
Reliability You Can Count On
Featuring robust construction and integrated safety protections, our inverters deliver unwavering day-to-day operation and long-term durability—giving you years of trusted power with minimal maintenance.
Flexible Global Delivery
We support air, sea, and land shipping options, enabling you to select the most efficient and cost-effective logistics solution for your project—anywhere in the world.
After-Sales Service
● " 7/24 " After-Sales Support
● 7 days a week, 24 hours a day: Ready to respond and solve problems immediately—Sail Solar's commitment to worry-free after-sales service.
● Service Email: info@sailsolaress.com
Service Process
01
Submit Service Requests
Submit your service requests at any time via email, online customer service, or mobile app.
02
Rapid Response
Our service team will immediately respond to your requests and communicate the details of the issue with you.
03
On-Site Service or Remote Support
Depending on the nature of the problem, provide on-site service or remote technical support.
04
Problem Resolution
Our goal is to completely resolve your issue within 24 hours.
05
Follow-Up
After the problem is resolved, our team will continue to follow up to ensure your satisfaction with the service results.
