Liquid Cooling 1MW 2MWH BESS 20ft Container Solar Energy Storage System with EMS Integrated

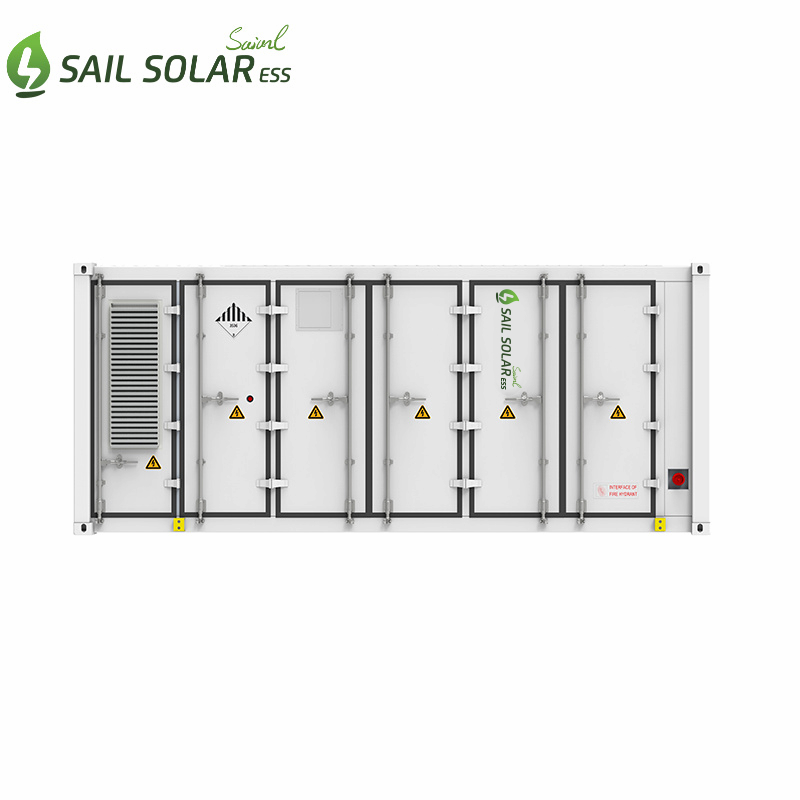

This is an outdoor liquid cooling energy storage container product with an all-in-one integrated structure, with a rated energy of 2170kWh and a rated power of 1125kW. The solution allows easy transportation, rapid installation, and flexible deployment, making it suitable for a wide range of C&I, and utility-scale energy storage applications.
Item No :
1MW/2MWH Liquid Cooling BESSPower Conversion System :
125KW PCS *9Battery Type :
LiFePO4Cooling :
Liquid CoolingCapacity :
1125KW / 2MWHOutput Voltage :
380V / 400V, Other Voltages CustomizedProtection Class :
IP55Warranty :
10 YearsSail Solar all-in-one container solution integrates PCS, EMS, BMS, cooling and fire suppression systems, AC combiner cabinet, and other essential components. The highly integrated system delivers higher energy density in a compact 20GP container.

Specification
|
DC Side
|
||
|
Cell Type
|
LFP314Ah | |
| Pack Capacity |
48.23kWh/1P48S
|
|
|
System Capacity
|
2170.3kWh/9P240S
|
|
|
Rated Voltage (V)
|
768V
|
|
|
Recommended voltage range
|
672-864Vdc
|
|
| AC Side | ||
|
Rated Output Power
|
1000kW
|
|
|
Max Power
|
1100kW
|
|
|
Nominal Voltage
|
400Vac/3P+N+PE
|
|
| THDi |
≤3%
|
|
|
Power factor
|
-0.99 lagging ~ 0.99 leading
|
|
|
General
|
||
|
System Efficiency
|
≥88%
|
|
|
Charge/Discharge Rate
|
0.5P
|
|
|
Depth of Discharge
|
95%DOD(25±2℃)
|
|
|
Cycle Life
|
≥8000 times (25±2℃,0.5P,95%DOD)
|
|
|
Ingress Protection
|
IP55
|
|
|
Cooling Method
|
Liquid cooling + Forced air cooling
|
|
|
Operating Temperature
|
-25 to 55℃
|
|
|
Relative Humidity
|
5-95%RH, non-condensing
|
|
|
Noise
|
≤80dB
|
|
|
Working Altitude
|
≤4000m
(Derated above 2,000m, maximum application altitude≤4000m)
|
|
|
Dimensions (W*D*H)
|
6058*2438*2591 mm
|
|
|
Fire Suppression System
|
PACK-level aerosol+Container-level aerosol, Water spray system
|
|
|
Communication interface
|
Ethernet/RS485
|
|
Product Description

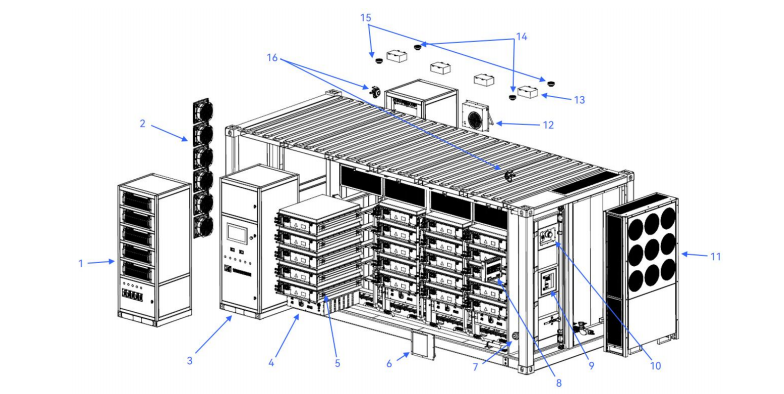

The outdoor liquid cooling energy storage container equipped with an integrated outdoors container, with below main components:
>The system consists of liquid-cooled battery pack, which is equipped with 314Ah cells. It features a 1P48S configuration and employs liquid cooling to maintain a temperature difference among the cells within 3 ℃, thereby enhancing operational efficiency and extending the service life of the battery.
>9 modular bidirectional power converters (PCS), The container includes 2 PCS cabinets, with a total of 9 125kW PCS. Each PCS is connected to one battery cluster and controls the charging and discharging of this battery cluster.
>1 vertical 40kW liquid cooling unit and 1 aerosol fire extinguishing system to ensure the system work normally and safely in various environments.
>1 dynamic environment monitoring system and 1 container-level EMS control system.

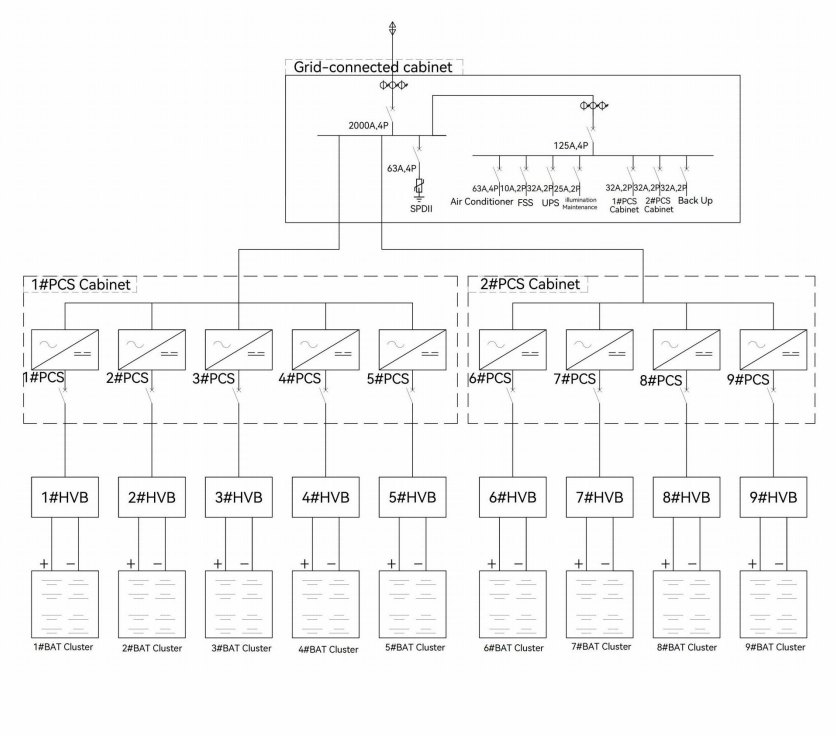

System Wiring Connection
Modular Design: 9 × 125kW PCS units form a total 1125kW system, allowing flexible scalability and enhanced redundancy.
DC-side Parallel Configuration: Multiple battery clusters are connected in parallel to each PCS; battery consistency and cluster-level protection are essential.
Centralized AC Interconnection: All PCS units converge at the Grid-connected Cabinet, simplifying control, metering, and protection.
Typical Applications: Commercial & industrial (C&I) storage, PV-storage-charging integration, and sites requiring backup power capability.

EMS delivers intelligent energy management with unmatched flexibility. Whether on web or mobile, the dual-platform interface empowers you to take control anytime, anywhere.
One-Tap Operations – Simplify complex tasks with intuitive, single-click execution.
Dual-Platform Support – Seamlessly operate across web and mobile platforms.
Multiple Operating Modes – Adapt to various scenarios with flexible control strategies.
Easy Operation & Maintenance – Reduce downtime with user-friendly interfaces and streamlined workflows.
Fast Troubleshooting – Quickly identify and resolve issues with intelligent diagnostics.
