High Frequency Single Phase Solar Inverter 5.5 Kw DC to AC Smart Hybrid Inverters With CE Certificate

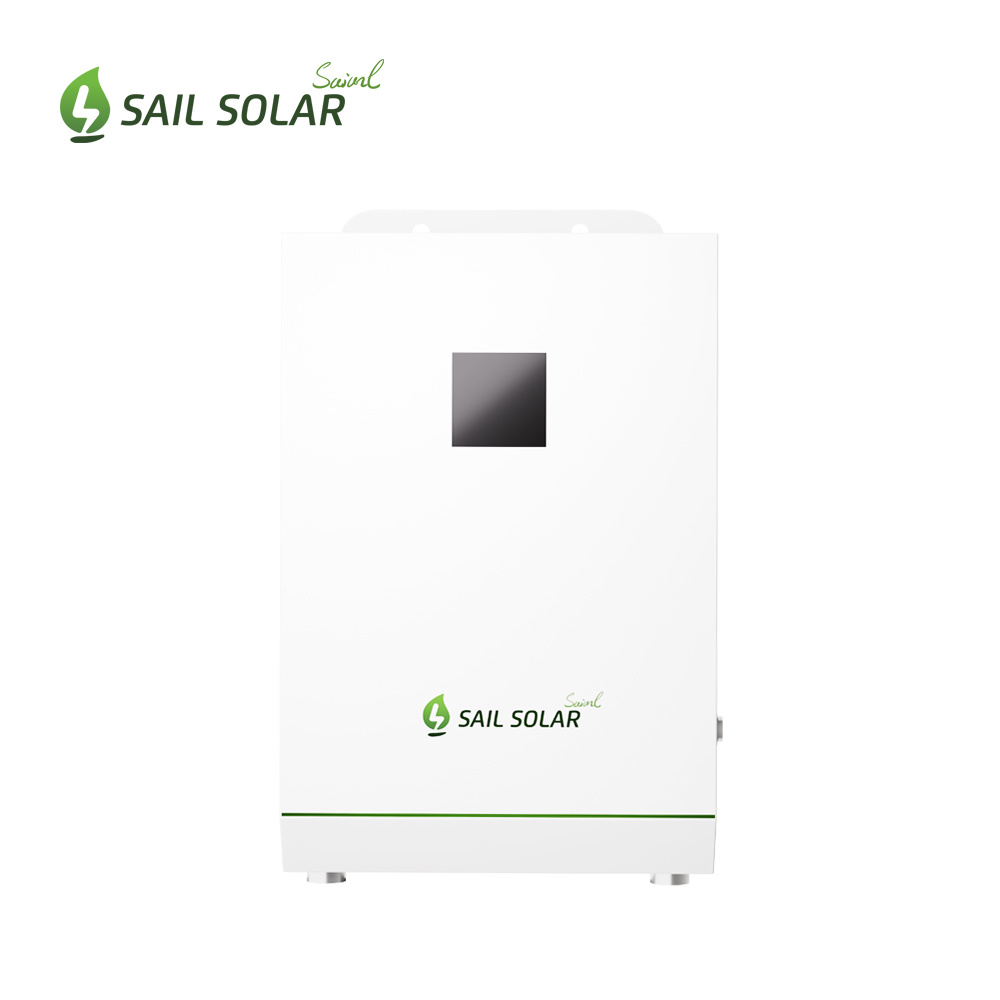

The Xihe-5.5KLP1-EU is a high-quality inverter system that delivers reliable, pure sine wave AC power. It is engineered for long-term operation at full rated capacity and features a modern industrial design for easy installation.
Item No :
Xihe-5.5KLP1-EUMonitoring :
WifiBattery :
Lithium/Lead Acid BatteryOutput Voltage :
220V,230VWarranty :
5 YearsCertificate :
CECommunication :
BMS (RS485)Protection :
IP20Type :
Hybrid AC/DC InverterStay in control with remote monitoring and enjoy peace of mind with comprehensive hardware-to-software protection. Certified safe and compatible with various batteries, the Xihe-5.5KLP1-EU is the intelligent core of your energy system.
Specification
|
MODEL |
Xihe-5.5KLP1-EU
|
|
INVERTER
|
|
|
Rated Output Power
|
5,500W
|
|
Max.Peak Power
|
11,000VA
|
|
Rated Output Voltage
|
230Vac（L/N/PE single phase）
|
|
Load Capacity of Motors
|
4HP
|
|
Rated AC Frequency
|
50Hz/60Hz
|
|
Waveform
|
Pure Sine Wave
|
|
Switch Time
|
10ms（typical）
|
|
BATTERY
|
|
|
Battery Type
|
Lead-acid/Li-ion/User defined
|
|
Rated Battery Voltage
|
48V
|
|
Voltage Range
|
20～33Vdc
|
|
Max.MPPT Charging Current
|
100A
|
|
Max.Mains/Generator Charging Current
|
60A
|
|
Max.Hybrid Charging Current
|
100A
|
|
PV INPUT
|
|
|
Num. of MPPT Trackers
|
1 |
|
Max.PV Array Power
|
6,000W
|
|
Max.Input Current
|
22A
|
|
Max.Voltage of Open Circuit
|
500Vdc
|
|
MPPT Voltage Range
|
120-450Vdc
|
|
UTILITY / GENERATOR INPUT
|
|
|
Input Voltage Range
|
UPS mode：170～280Vac； APL mode：90～280Vac |
|
Frequency Range
|
50/60Hz
|
|
Bypass Overload Current
|
40A
|
|
EFFICIENCY
|
|
|
MPPT Tracking Efficiency
|
99.9%
|
|
Max. Battery Inverter Efficiency
|
92%
|
|
GENERAL
|
|
|
Dimensions
|
426*322*126mm (1.40*1.06*0.41ft)
|
|
Weight
|
10.5kg
|
|
Protection Grade
|
IP20, indoor onIy
|
|
Operating Temperature Range
|
-10℃~55℃
|
|
Noise
|
≤60dB
|
|
Cooling Method
|
Forced air cooling with adjustable air speed
|
|
COMMUNICATION
|
|
|
Embedded Interfaces
|
RS485 / USB / Dry contact
|
|
External Modules (Optional)
|
Wi-Fi / GPRS
|
|
CERTIFICATION
|
|
|
Safety
|
CE(IEC 62109-1)/FCC/SAA/CETL(UL1741 C22.2 NO.107.1)
|
|
EMC
|
EN61000
|
|
RoHS
|
Yes
|
Components:
>The AC-DC charging module utilizes a state-of-the-art digital control algorithm for precise voltage and current regulation. Its compact design features a wide input voltage range and comprehensive protections, ensuring stable and reliable battery charging.
>Meanwhile, the Xihe-5.5KLP1-EU solar inverter employs a fully digital design and advanced SPWM technology to convert DC to pure sine wave AC, making it ideal for powering everything from household appliances to industrial equipment.
>Both units are equipped with an LCD for real-time system monitoring and are protected by a suite of electronic safeguards for enhanced safety and operational stability.

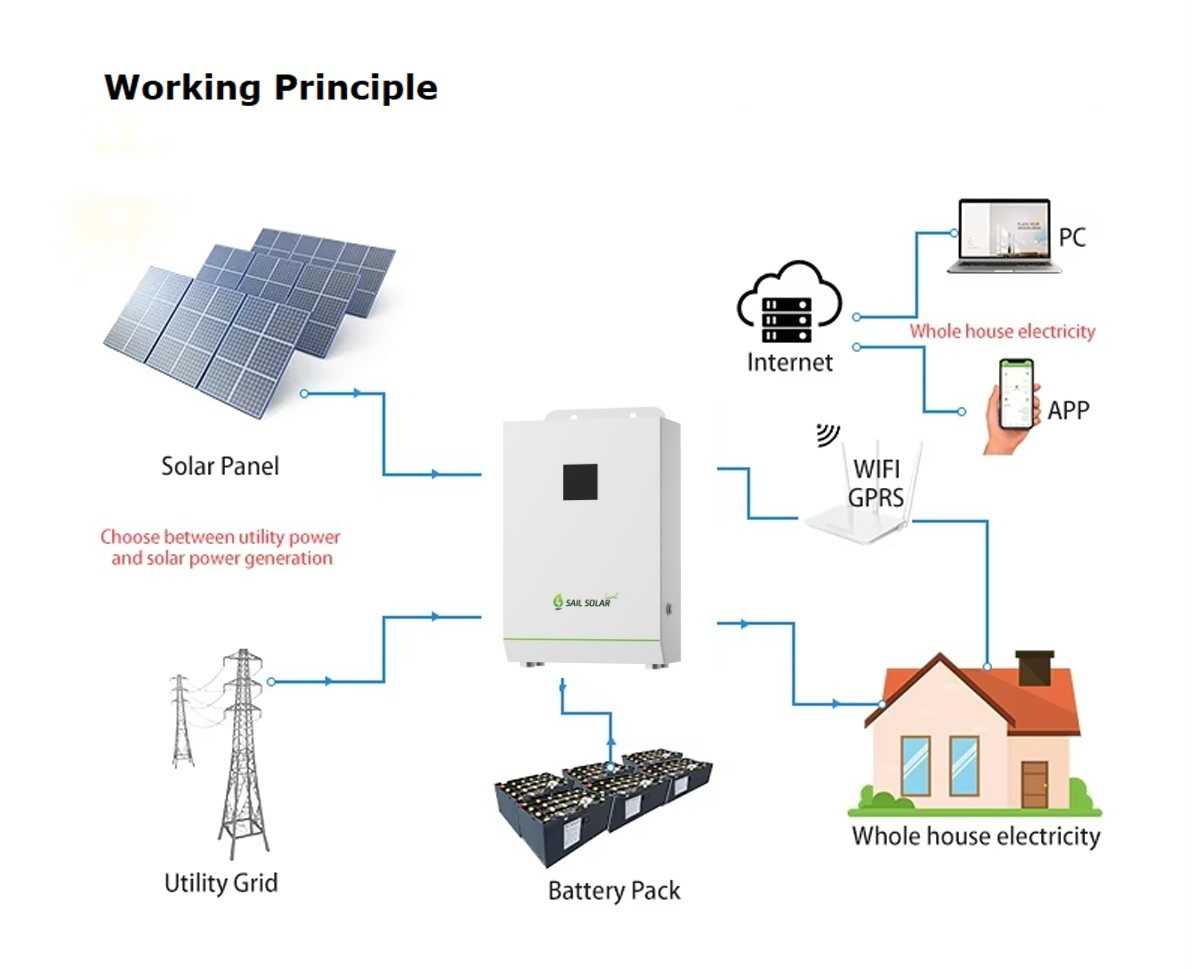

Solar inverter with Wi-Fi capability is designed to bring you closer to a sustainable and efficient energy lifestyle. With advanced technology, our inverter not only converts solar power into usable electricity but also connects you to a world of smart energy monitoring and control.
Key Features:

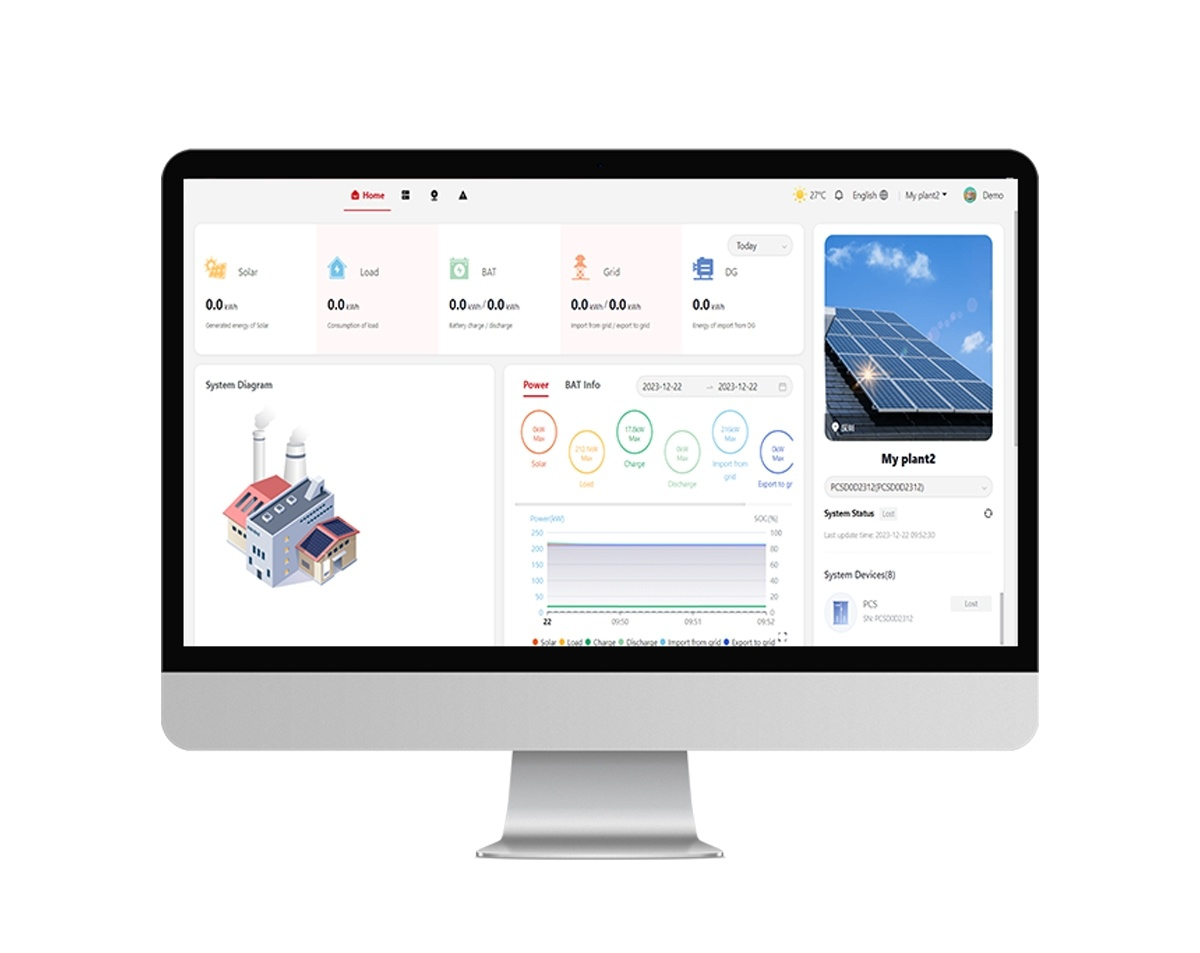

Remote Monitoring: Keep an eye on your solar panel performance from anywhere. Track energy production, consumption, and system health at your fingertips.
User-Friendly Interface: Our intuitive app provides a seamless user experience, allowing you to monitor and manage your solar system effortlessly.
Enhanced Efficiency: Optimize your solar energy usage with real-time insights. Make informed decisions to maximize your energy savings and reduce your carbon footprint.
Reliable Performance: Built with robust technology, our Solar Inverter with Wi-Fi ensures uninterrupted operation, even in harsh weather conditions.
