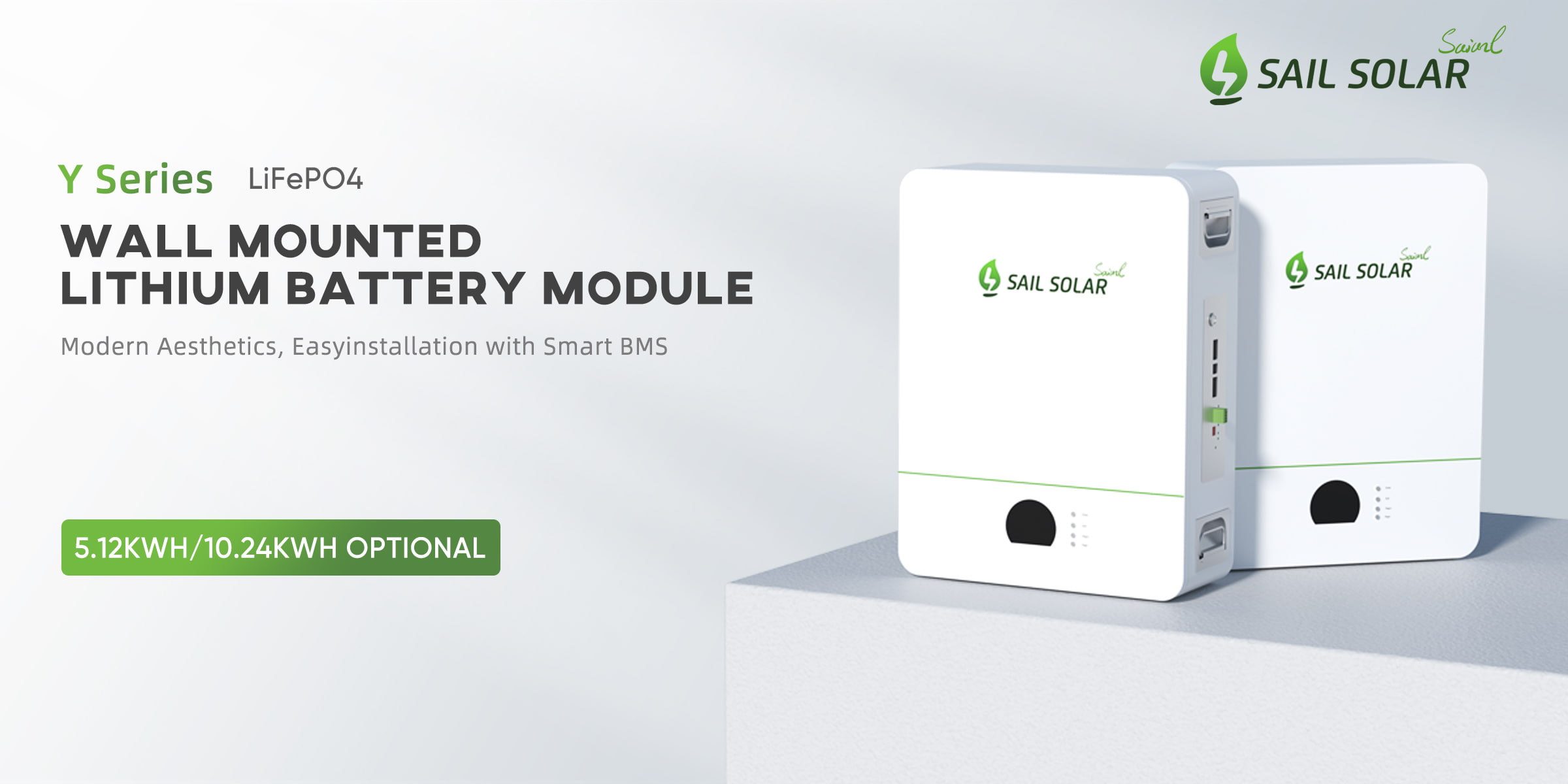

Sail Solar 51.2V 100Ah Solar Power Wall Mounted Energy Storage Battery
Versatile Power: High-efficiency 51.2V 100Ah capacity for diverse applications.
Built-in Safety: Stable voltage with intelligent protection for reliability.
Green & Low-Upkeep: An eco-friendly, cost-saving energy solution.
Payment :
T/T,L/C, Western UnionShipping Port :
Shanghai/ShenzhenWarranty :
5 YearsCertificate :
CE/IEC/UL/UN38.3/MSDSCommunication :
RS232/RS485/CAN/BLUEBOOTH/WIFIProtection :
IP20Order MOQ :
1Nominal Capacity :
5.12KWhNominal Voltage :
51.2VType :
Lithium-ion BatteryItem No. :
Y Series SAS51100-WMExperience superior performance and peace of mind with our latest solar battery. Built with premium Grade A cells and an advanced BMS, it guarantees stable, safe, and efficient operation. With versatile communication ports (CAN, RS232, RS485), it ensures seamless compatibility with all mainstream inverters, offering unparalleled flexibility to meet your diverse energy needs.
|
MODEL |
SAS51100-WM |
SAS51200-WM |
| Battery Type |
LiFePO4 |
|
| Nominal Voltage |
51.2V |
|
| Nominal Capacity |
100Ah |
200Ah |
| Energy |
5.12KWh |
10.24KWh |
| Internal Resistance |
≤50mΩ |
|
| Cycle Life |
6000 Cycles @ 0.5C 80%D.O.D |
|
| Months Self Discharge |
<3% |
|
| Efficiency of Charge |
99.5%@ 0.2C |
|
| Efficiency of Discharge |
96-99%@ 1C |
|
| Charge Voltage |
58.4±0.5V |
|
| Charge Mode |
CC/CV |
|
| Charge Current |
20A |
40A |
| Max Charge Current |
100Ah |
200Ah |
| Charge Cut-off Voltage |
58.4V |
|
| Continuous Discharge Current |
20A |
40A |
| Max Discharge Current |
100A |
200A |
| Discharge Cut-off Voltage |
43.2V |
|
| Charge Temperature |
0 to 45 ℃ |
|
| Discharge Temperature |
-20 to 55 ℃ |
|
| Storage Temperature |
-10 to 40 ℃ |
|
| Protection Grade |
IP20(IP54 OPTIONAL) |
|
| Cell & Method |
EVE 3.2V100Ah-16S1P |
EVE 3.2V100Ah-16S2P |
| Size (mm) |
600*440*168(D*W*H) |
780*505*168(D*W*H) |
| Protocol(Optional) |
RS232/RS485/CAN/BLUETOOTH/WIFI |
|
| BMS |
100A |
200A |
| Safety & Certification |
CE/IEC/UL/UN38.3/MSDS |
|
| Terminal |
100A |
200A |
| Net Weight (kg) |
51KG |
90KG |
| Wooden Box Package Size (mm) |
940*555*405 |
|
| Quantity of Loading |
120pcs/20ft 240pcs/40ft |
|
Higher Energy Density: Advanced design packs more power into the same size and weight, giving you greater energy capacity and longer runtime from a compact system.
All-Weather Reliability: Expertly engineered to perform exceptionally in low temperatures, guaranteeing a consistent power supply day and night, through every season.

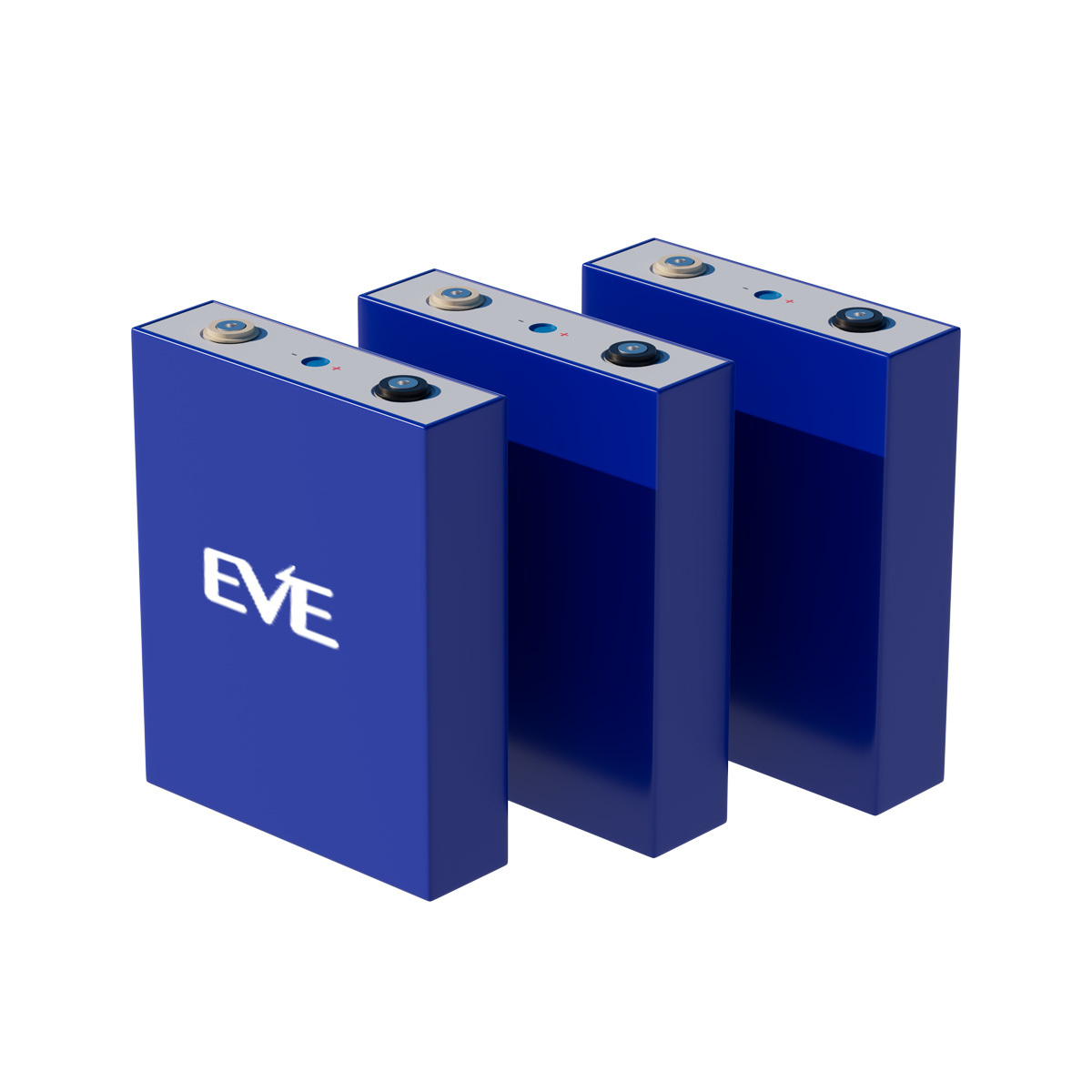

Optimized System Performance: The integration of EVE cells ensures that your entire solar storage system operates at peak efficiency and reliability, meeting a wider range of household and commercial energy needs.

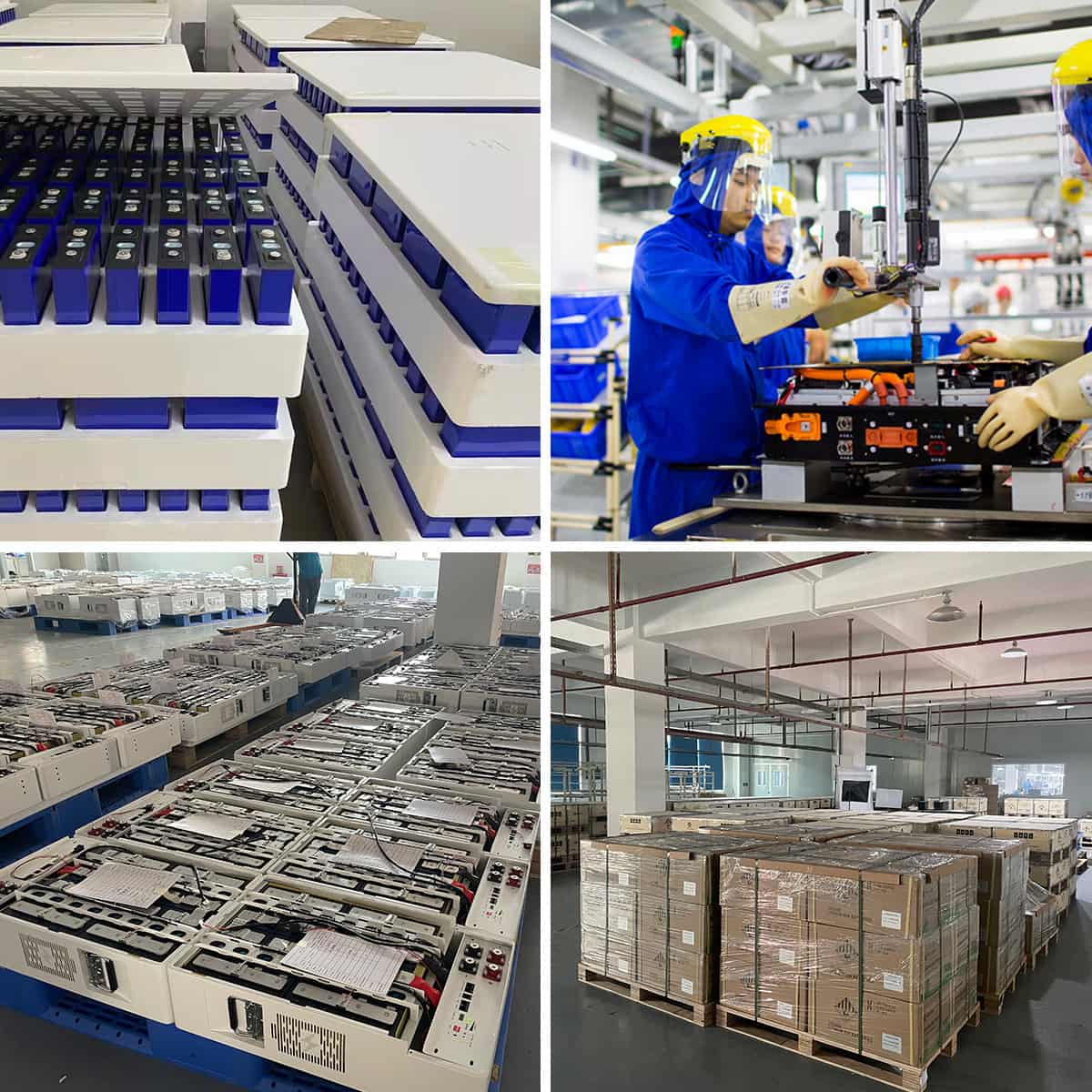

At Sail Solar, we have developed an industry-leading intelligent manufacturing system that integrates cutting-edge technologies and advanced processes. With a commitment to continuous innovation, our top-tier R&D team independently drives breakthroughs in equipment design and manufacturing technology. From the production of high-performance battery cells to assembly and packaging, we deliver unmatched quality and efficiency at every stage.
Our intelligent factory employs 5G technology to enable real-time monitoring and seamless communication across all production units. This high-speed connectivity ensures rapid decision-making and adaptive manufacturing, ensuring we can meet evolving market demands with agility and precision.
Our lithium battery products have been exported to more than 100 countries, including but not limited to the United States, Canada, Puerto Rico, Germany, Poland, Belgium, Philippines, Saudi Arabia, South Africa, Nigeria. Products comply with mainstream market certifications, including UL, CE, ISO, MSDS, UN38.3, etc.
