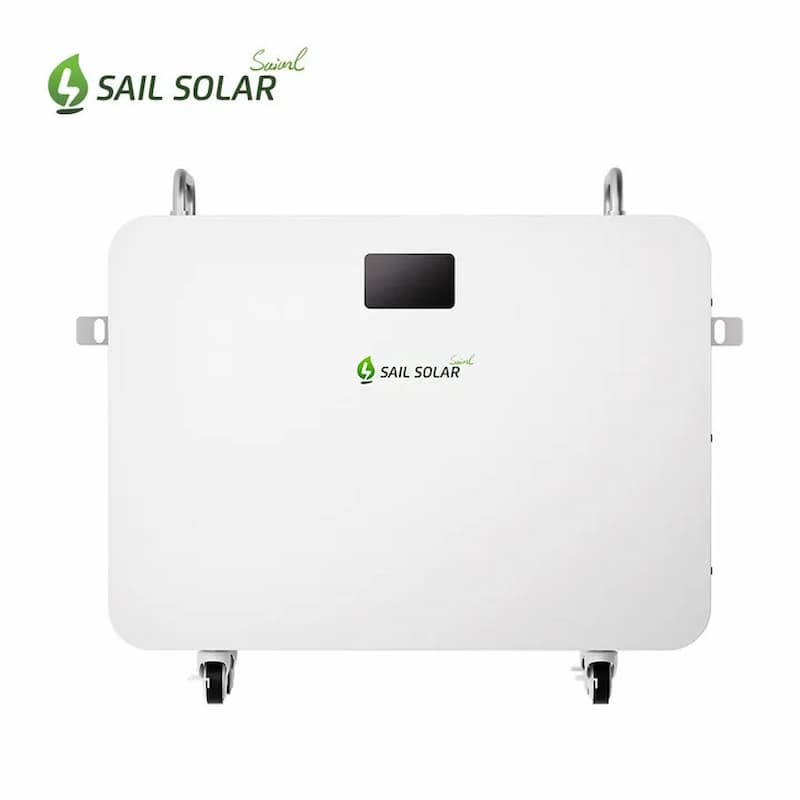

Sail Solar M Series Portable Mobile Lithium Battery M-51100 5.12KWh High Performance Grade A Cells 100Ah
The Sail Solar Lithium battery integrates a compact design, an intuitive LCD screen, convenient setting buttons, and Bluetooth smartphone monitoring. It arrives as a complete kit with all necessary cables and accessories for immediate installation.
Payment :
T/T,L/C, Western UnionShipping Port :
Shanghai/ShenzhenWarranty :
5 YearsCertificate :
CE/IEC/UL/UN38.3/MSDSCommunication :
RS232/RS485/CAN/BLUEBOOTH/WIFIProtection :
IP20Order MOQ :
1Nominal Capacity :
5.12KWhNominal Voltage :
51.2VType :
Lithium-ion BatteryItem No. :
M Series M-51100Compact design saves crucial space. The LCD screen and buttons offer effortless control. Bluetooth monitoring puts data in your hand. With all accessories included, it's ready upon arrival. Explore OEM options and let's grow together.
Specification
|
MODEL |
M-51100 |
M-51280 |
M-51304 |
| Battery Type |
LiFePO4 |
||
| Nominal Voltage |
51.2V |
||
| Nominal Capacity |
100Ah |
280Ah |
304Ah |
| Energy |
5.12KWh |
14.33KWh |
15.56KWh |
| Cycle Life |
6000 Cycles @ 0.5C 80%D.O.D |
||
| Charge Voltage |
56V |
||
| Max Charge Current |
100Ah |
150/200A for 280AH (Pack)
|
150/200A for 304AH (Pack)
|
| Charge Cut-off Voltage |
58.4V |
||
| Max Discharge Current |
100A |
150/200A for 280AH (Pack) |
150/200A for 304AH (Pack) |
| Discharge Cut-off Voltage |
43.2V |
||
| Charge Temperature |
0℃ to 55℃@60±25% Relative Humidity |
||
| Discharge Temperature |
-20℃ to 55℃@60±25% Relative Humidity |
||
| Storage Temperature |
-20℃ to 55℃@60±25% Relative Humidity |
||
| Protection Grade |
IP20 |
||
| Cell & Method |
EVE 3.2V100Ah-16S1P |
EVE 3.2V100Ah-16S1P |
EVE 3.2V304Ah-16S1P |
| Case Material |
Metal |
||
| Protocol(Optional) |
RS232/RS485/CAN/BLUETOOTH/WIFI |
||
| Case Type |
Mobile Power |
||
| Size (mm) |
612*190*370(D*W*H) |
780*500*240(D*W*H) |
780*500*240(D*W*H) |
| Net Weight (kg) |
55KG |
145KG |
145KG |
| Wooden Box Package Size (mm) |
712*298*535(D*W*H) |
880*330*785 (D*W*H) |
880*330*785 (D*W*H) |
| Pack Certificates |
UN38.3, MSDS
|
||
| Cell Certificates |
UN38.3, MSDS, IEC62619, CE, UL1973
|
||
Application

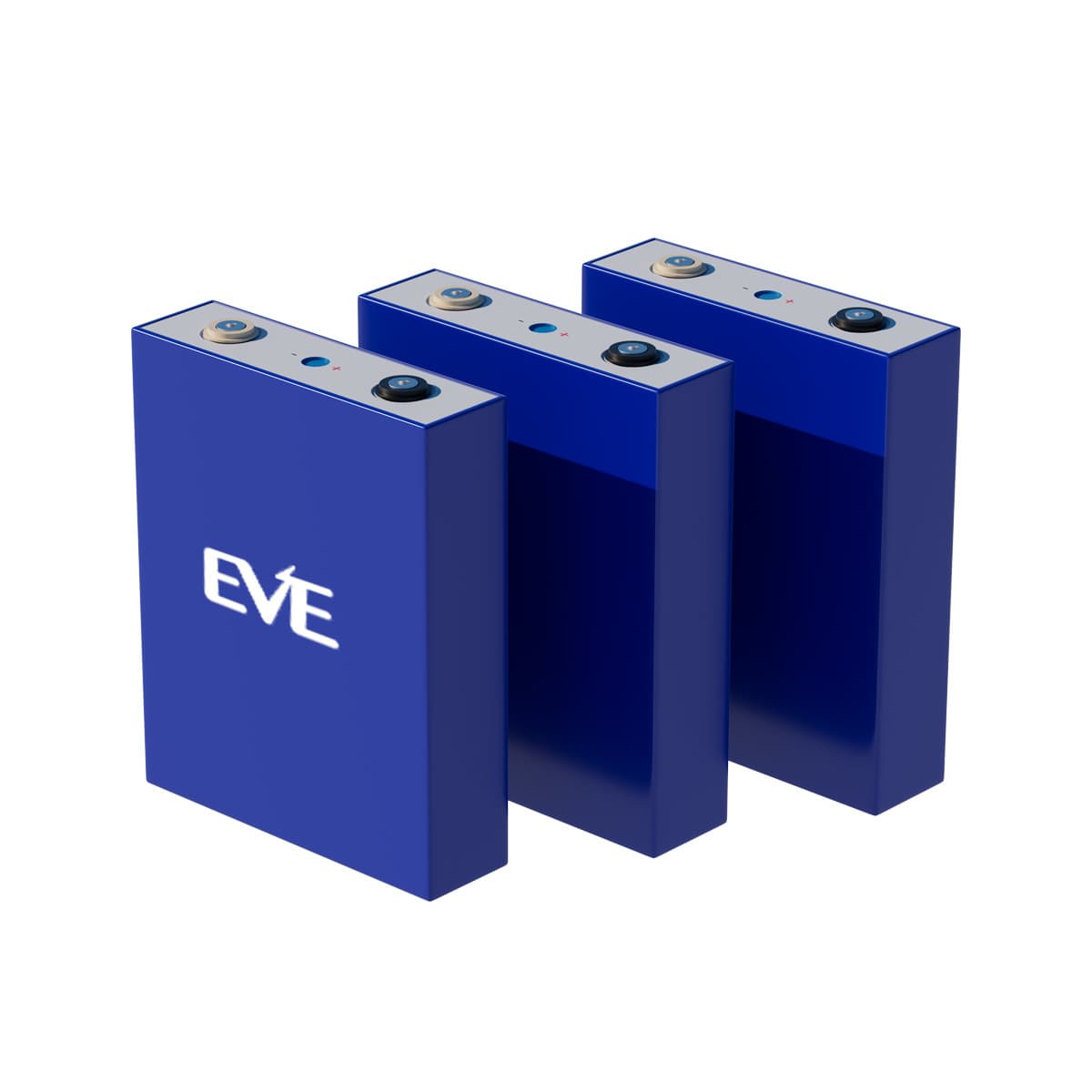

Engineered with advanced design and premium materials, EVE cells deliver exceptional energy density, enabling more power to be stored in a compact and lightweight structure. This results in significantly improved system efficiency and extended operational endurance for solar energy applications.
The Sail Solar M Series Portable Lithium Battery (Model M-51100) leverages Grade A EVE cells to offer a robust 5.12 kWh / 100Ah energy storage solution. Built to perform reliably under demanding conditions, these cells maintain stable output even in low-temperature environments, making the M-51100 an ideal power source for systems operating in extreme climates.
By integrating EVE cell technology, the Sail Solar M-51100 not only achieves superior performance but also provides a versatile and scalable energy storage platform. This portable power unit enhances the efficiency, reliability, and overall value of renewable energy systems, ensuring you maximize the return on your sustainable investment.
Sail Solar Lithium Battery: Key Advantages
• Universal Compatibility: Designed for high-performance, plug-and-play integration with most major inverter brands.
• Real-Time Monitoring: Leverage our dedicated app for live data on charge cycles, efficiency metrics, and overall system health.
• Informed Control: Make data-driven decisions to maximize system uptime, longevity, and return on investment.
• Future-Ready Design: A resilient and intelligent foundation for any solar energy storage application.
Certificate
The company's lithium battery products are exported to more than 100 countries, including major markets such as the United States, Canada, Germany, Poland, Belgium, Philippines, Saudi Arabia, South Africa, and Nigeria. All products are in compliance with mainstream international certification standards, including UL, CE, ISO, MSDS, and UN38.3.
After-Sales Service
● " 7/24 " After-Sales Support
● 7 days a week, 24 hours a day: Ready to respond and solve problems immediately—Sail Solar's commitment to worry-free after-sales service.
● Service Email: info@sailsolaress.com
Service Process
01
Submit Service Requests
Submit your service requests at any time via email, online customer service, or mobile app.
02
Rapid Response
Our service team will immediately respond to your requests and communicate the details of the issue with you.
03
On-Site Service or Remote Support
Depending on the nature of the problem, provide on-site service or remote technical support.
04
Problem Resolution
Our goal is to completely resolve your issue within 24 hours.
05
Follow-Up
After the problem is resolved, our team will continue to follow up to ensure your satisfaction with the service results.
Designed for multi-module installation, this battery features high compatibility BSM, ensuring seamless integration with leading inverter brands for reliable and efficient energy storage. Perfect for both residential and small workshop use, this eco-friendly system ensures reliable power backup with its cutting-edge technology. Join over 6000 satisfied families who have already made the switch. Contact us now to learn more.
