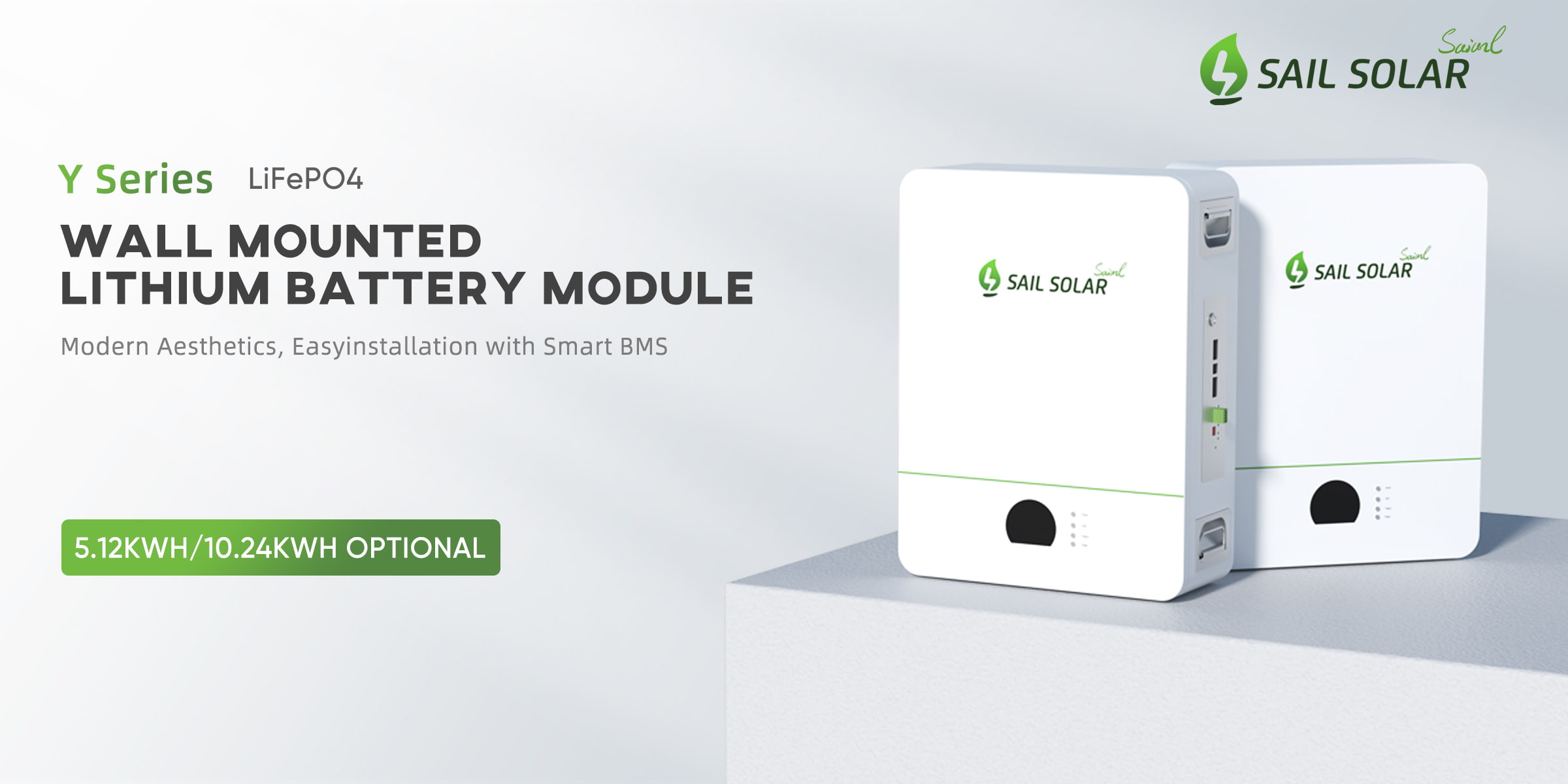

Sail Solar 100Ah Powerwall SAS51100-WM 51.2V High Output Wall Mounted Lithium Battery
Supporting RS485 and CAN communication.
Modular design, can be expanded at any time to increase the energy of the system.
Supporting up to 15 batteries in parallel.
Payment :
T/T,L/C, Western UnionShipping Port :
Shanghai/ShenzhenWarranty :
5 YearsCertificate :
CE/IEC/UL/UN38.3/MSDSCommunication :
RS232/RS485/CAN/BLUEBOOTH/WIFIProtection :
IP65Order MOQ :
1Nominal Capacity :
5.12KWhNominal Voltage :
51.2VType :
Lithium-ion BatteryItem No. :
Y Series SAS51100-WMSail Solar PowerWall SAS51100-WM was designed with maximum storage in mind. It drinks energy from the sun all day, storing it up for use at night, during a blackout, or in emergency situations. With 10kWh of energy capacity, you can sleep easy knowing your appliances have the power they need, when they need it.
|
MODEL |
SAS51100-WM |
SAS51200-WM |
| Battery Type |
LiFePO4 |
|
| Nominal Voltage |
51.2V |
|
| Nominal Capacity |
100Ah |
200Ah |
| Energy |
5.12KWh |
10.24KWh |
| Internal Resistance |
≤50mΩ |
|
| Cycle Life |
6000 Cycles @ 0.5C 80%D.O.D |
|
| Months Self Discharge |
<3% |
|
| Efficiency of Charge |
99.5%@ 0.2C |
|
| Efficiency of Discharge |
96-99%@ 1C |
|
| Charge Voltage |
58.4±0.5V |
|
| Charge Mode |
CC/CV |
|
| Charge Current |
20A |
40A |
| Max Charge Current |
100Ah |
200Ah |
| Charge Cut-off Voltage |
58.4V |
|
| Continuous Discharge Current |
20A |
40A |
| Max Discharge Current |
100A |
200A |
| Discharge Cut-off Voltage |
43.2V |
|
| Charge Temperature |
0 to 45 ℃ |
|
| Discharge Temperature |
-20 to 55 ℃ |
|
| Storage Temperature |
-10 to 40 ℃ |
|
| Protection Grade |
IP20(IP54 OPTIONAL) |
|
| Cell & Method |

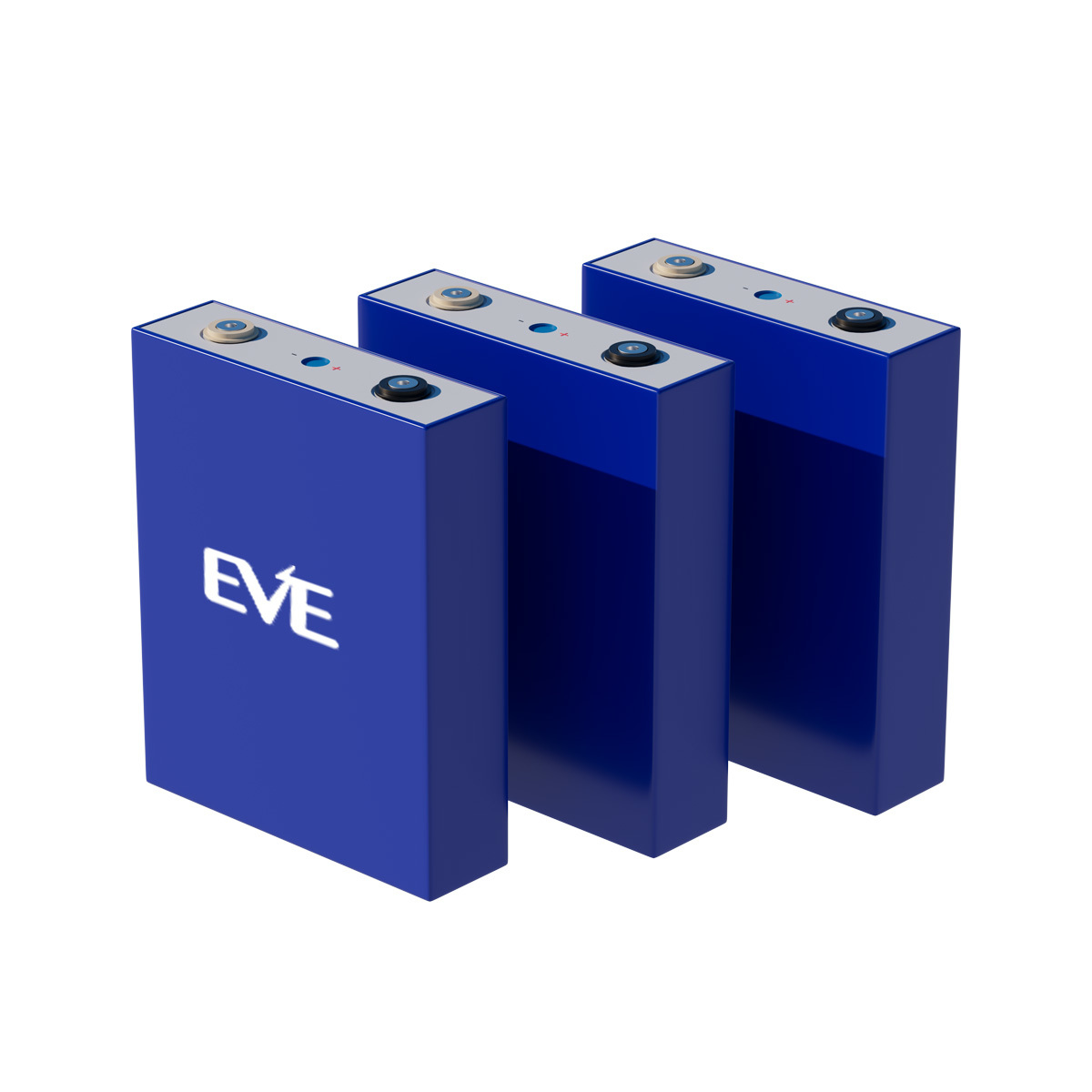

EVE 3.2V100Ah-16S1P |
EVE 3.2V100Ah-16S2P |
| Size (mm) |
600*440*168(D*W*H) |
780*505*168(D*W*H) |
| Protocol(Optional) |
RS232/RS485/CAN/BLUETOOTH/WIFI |
|
| BMS |
100A |
200A |
| Safety & Certification |
CE/IEC/UL/UN38.3/MSDS |
|
| Terminal |
100A |
200A |
| Net Weight (kg) |
51KG |
90KG |
| Wooden Box Package Size (mm) |
940*555*405 |
|
| Quantity of Loading |
120pcs/20ft 240pcs/40ft |
|
Exceptional Energy Density: Store more power in a compact size for enhanced efficiency and longer duration.
All-Weather Reliability: Consistent performance in low temperatures for 24/7 peace of mind.
Superior System Solution: Maximizes the efficiency and reliability of any green energy application.
Sail Solar Lithium Batteries: Power Smart, Live Smart.
Enjoy universal compatibility with leading inverters for seamless integration into any system, new or existing. Monitor your energy and battery health in real-time with our intuitive app for total control and peace of mind. Choose Sail Solar for a reliable, efficient, and future-ready energy solution.
Our lithium battery products have been exported to more than 100 countries, including but not limited to the United States, Canada, Puerto Rico, Germany, Poland, Belgium, Philippines, Saudi Arabia, South Africa, Nigeria. Products comply with mainstream market certifications, including UL, CE, ISO, MSDS, UN38.3, etc.
After-Sales Service
● " 7/24 " After-Sales Support
● 7 days a week, 24 hours a day: Ready to respond and solve problems immediately—Sail Solar's commitment to worry-free after-sales service.
● Service Email: info@sailsolaress.com
Service Process
01
Submit Service Requests
Submit your service requests at any time via email, online customer service, or mobile app.
02
Rapid Response
Our service team will immediately respond to your requests and communicate the details of the issue with you.
03
On-Site Service or Remote Support
Depending on the nature of the problem, provide on-site service or remote technical support.
04
Problem Resolution
Our goal is to completely resolve your issue within 24 hours.
05
Follow-Up
After the problem is resolved, our team will continue to follow up to ensure your satisfaction with the service results.
Designed for multi-module installation, this battery features high compatibility BSM, ensuring seamless integration with leading inverter brands for reliable and efficient energy storage. Perfect for both residential and small workshop use, this eco-friendly system ensures reliable power backup with its cutting-edge technology. Join over 6000 satisfied families who have already made the switch. Contact us now to learn more.
