5KWH Sail Solar 51.2V 100Ah Latest LiFePo4 Rack-mount Lithium Battery for Solar Energy System Use
Long life LiFePO4 cells, high energy density
Modular design, simple operation, supports multiple units in parallel
Factory-direct pricing & OEM support
Item No :
SAS51100Nominal Voltage :
51.2VNominal Capacity :
5.12KWhWarranty :
10 YearsCertificate :
CE/IEC/UL/UN38.3/MSDSCommunication :
RS232/RS485/CAN/BLUEBOOTH/WIFIProtection :
IP20 (IP54 OPTIONAL)Type :
Lifepo4 BatteryThis Sail Solar 51.2V 100Ah (5.12kWh) rack-mount Lifepo4 lithium battery uses Grade A cells, has a cycle life of over 6000 cycles, features a built-in intelligent BMS for comprehensive protection, a simple rack design for easy installation, and supports parallel expansion, making it suitable for home and commercial use.
Specification
|
MODEL |
SAS51100 |
| Battery Type |
LiFePO4 |
| Nominal Voltage |
51.2V |
| Nominal Capacity |
100Ah |
| Energy |
5.12KWh |
| Internal Resistance |
≤200mΩ |
| Cycle Life |
≥6000 Cycles @ 0.5C 80%D.O.D |
| Months Self Discharge |
<3% |
| Efficiency of Charge |
99.5%@ 0.2C |
| Efficiency of Discharge |
96-99%@ 1C |
| Charge Voltage |
58.4±0.5V |
| Charge Mode |
CC/CV |
| Charge Current |
40A |
| Max Charge Current |
100A |
| Continuous Discharge Current |
40A |
| Max Discharge Current |
100A |
| Charge Temperature |
0 to 55 ℃ |
| Discharge Temperature |
-10 to 60 ℃ |
| Storage Temperature |
-10 to 40 ℃ |
| Protection Grade |
IP20(IP54 OPTIONAL) |
| Cell & Method |
3.2V100Ah-16S1P |
| Terminal |
100A |
| Protocol(Optional) |
RS232/RS485/CAN/BLUETOOTH/WIFI |
| BMS |
100A |
| Safety & Certification |
CELL:UL1642/UL1973/IEC62619/CE/CB/UN38.3/UL9540/ROHS/REACH
|
| Size (mm) |
440*440*133(D*W*H) |
| Net Weight (kg) | 47KG |
| Wooden Box Package Size (mm) |
652*542*205 |
| Quantity of Loading |
300pcs/20ft 520pcs/40ft |

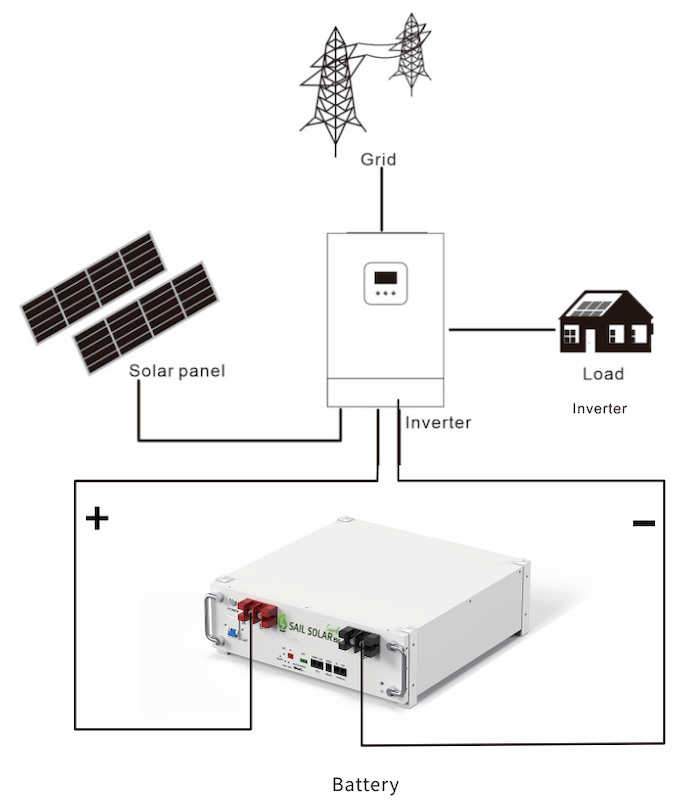

Core Energy Storage Unit: Stores excess solar energy generated during the day, providing reliable power at night or on cloudy days to meet your home or business's electricity needs.
Uninterruptible Power Supply: Seamlessly provides emergency power during grid outages, ensuring the continuous operation of critical loads (lighting, appliances, communication equipment) and preventing interruptions.
Intelligent Protection with Built-in Battery Management System (BMS): Monitors voltage, current, and temperature in real time to prevent overcharging, over-discharging, overcurrent, and short circuits, ensuring long-term safe and reliable operation.
-

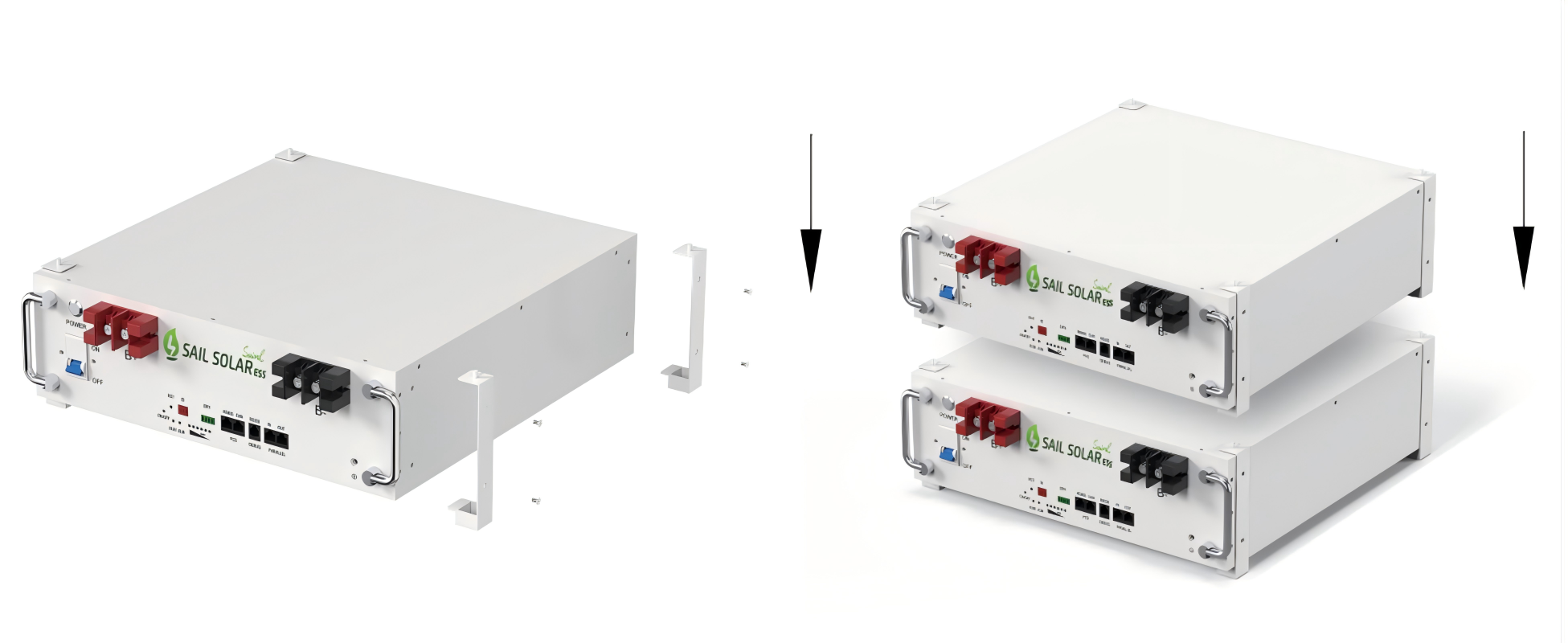

- Easy Bracket Installation: Dedicated, easy-to-use brackets require no complicated tools and can be installed in minutes, significantly reducing installation barriers and labor costs.
- Vertical Stacking for Expansion: Supports safe stacking of multiple batteries without occupying horizontal space. It easily adapts to racks or indoor corners, and capacity upgrades require no additional site modifications.
- High-Performance Solution: The simplified bracket structure reduces redundant hardware costs, allowing you to achieve the same stable performance as professional rack solutions at a more affordable price.
- Flexible Application: Whether for home energy storage cabinets, commercial equipment rooms, or small industrial systems, batteries can be stacked and connected in series to quickly build a neat and scalable energy storage system.
This 51.2V 100Ah battery is designed for seamless integration, featuring a built-in BMS and supporting RS485, RS232, and CAN communication protocols for real-time data exchange with inverters and monitoring systems. It is fully compatible with most mainstream hybrid and off-grid inverter brands, including Solis, GoodWe, Growatt, Deye, Sofar Solar, Solax Power,etc, truly achieving plug-and-play functionality. This multi-protocol compatibility ensures reliable system communication, simplifies setup, and allows for flexible integration into new and existing solar energy storage systems.
