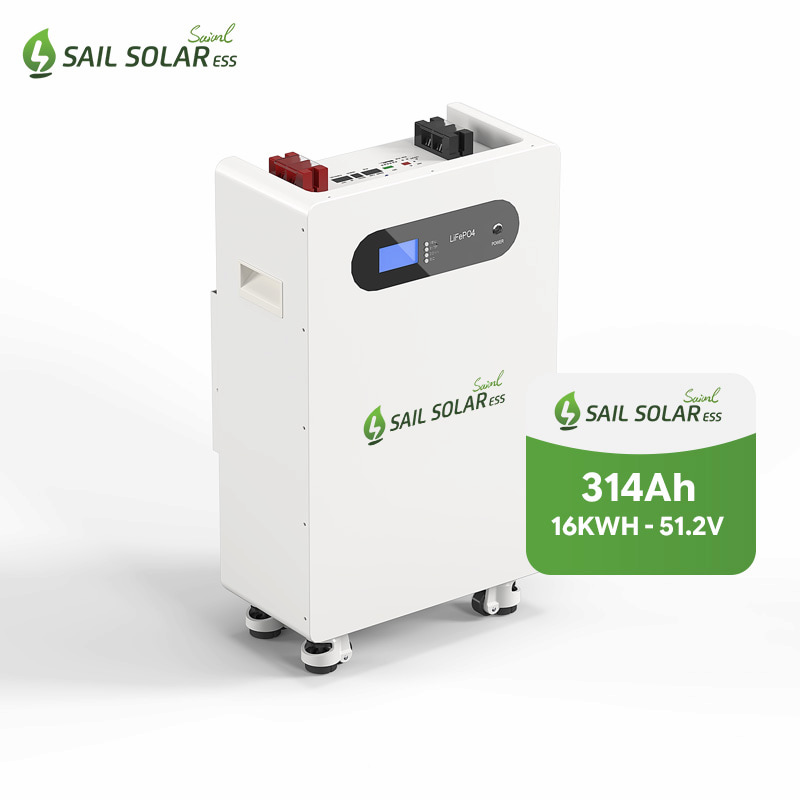

Sail Solar 16KWH Mobile LiFePo4 Low Volatge Lithium Battery 51.2V 314Ah for Home Use
This high-performance mobile lithium battery has a rated capacity of 16.07 kWh, a cycle life of over 6000 cycles, fast charge and discharge speed, and a wide temperature range.
Item No :
SAS51314-WNominal Voltage :
51.2VNominal Capacity :
16.07KWhWarranty :
10 YearsCertificate :
CE/IEC/UL/UN38.3/MSDSCommunication :
RS232/RS485/CAN/BLUEBOOTH/WIFIProtection :
IP20 (IP54 Optional)Type :
LiFePo4 BatteryThis mobile lifepo4 battery, designed specifically for solar solutions, uses 16 cells with a capacity of 314Ah, a voltage of 51.2V, and an energy output of 16.07kWh. It has a built-in battery management system (BMS) that supports deep cycling, can monitor the working status in real time, and prevent abnormal battery operation.
Specification
|
MODEL |
SAS51314-W |
| Battery Type |
LiFePO4 |
| Nominal Voltage |
51.2V |
| Nominal Capacity |
314Ah |
| Energy |
16.07KWh |
| Cycle Life |
6000 Cycles @ 0.5C 90%D.O.D |
| Charge Voltage |
56V |
| Max Charge Current |
200Ah |
| Charge Cut-off Voltage |
57.6V |
| Max Discharge Current |
200A |
| Discharge Cut-off Voltage |
44.8V |
| Charge Temperature |
0℃ to 55℃@60±25% Relative Humidity |
| Discharge Temperature |
-20℃ to 60℃@60±25% Relative Humidity |
| Storage Temperature |
-10℃ to 40℃@60±25% Relative Humidity |
| Protection Grade |
IP20 (IP54 OPTIONAL) |
| Cell & Method |
EVE 3.2V 314Ah-16S2P |
| Case Material |
Metal |
| Protocol(Optional) |
RS232/RS485/CAN/BLUETOOTH/WIFI |
| Size (mm) |
503*233*880(D*W*H) |
| Net Weight (kg) |
122KG |
| Pack Certificates |
UN38.3, MSDS
|
| Cell Certificates |
UN38.3, MSDS, IEC62619, CE, UL1973
|
Application

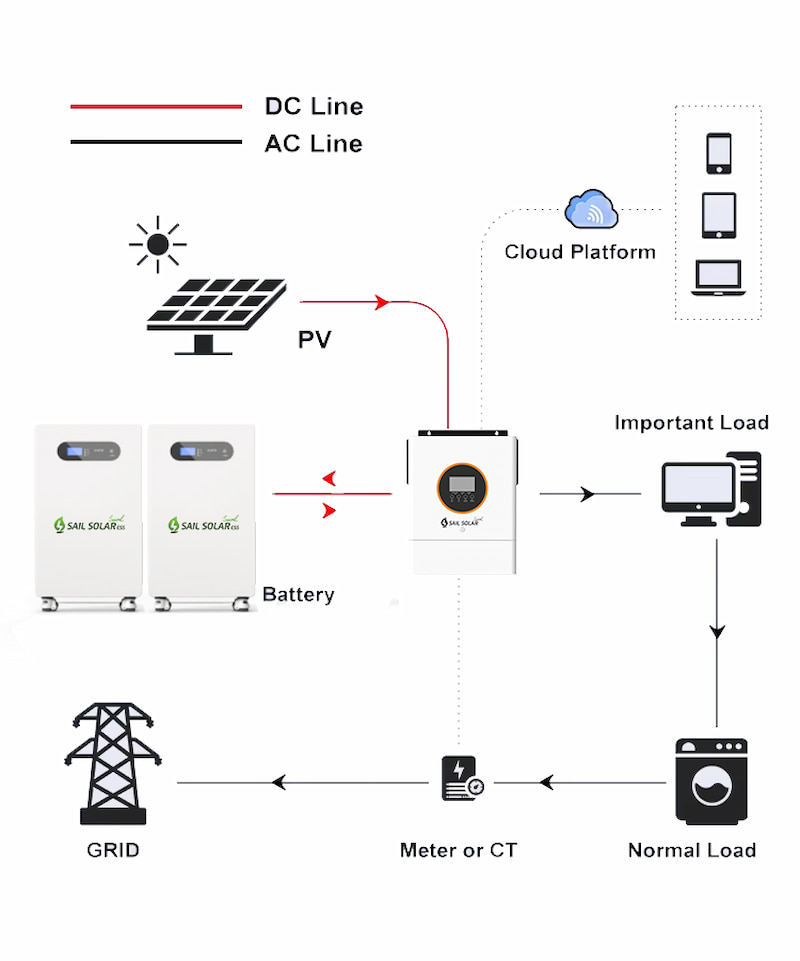

The Sail Solar 16kwh mobile LiFePO4 battery is a core energy storage unit designed for residential hybrid solar systems. It can store surplus electricity from photovoltaic power generation systems for nighttime use, reducing electricity costs; and provide backup power during grid outages to ensure the normal operation of critical household appliances. It features a built-in Battery Management System (BMS) to ensure stable power output and is equipped with wheels for easy mobility, positioning, and parallel expansion.
The Sail Solar 16kWh wheeled battery is an ideal energy storage solution for homes or small studios.
- High-quality lithium iron phosphate cells, 90% discharge depth, over 6000 cycles, 10-year design life, significantly reducing household electricity costs.
- Built-in intelligent BMS monitors voltage, current, and temperature throughout the process, preventing overcharging, over-discharging, short circuits, and high temperatures.
- Vertical cabinet with casters eliminates the need for complex wall-mounting, saving space and facilitating installation.
- Perfectly compatible with hybrid systems, data is synchronized to the cloud platform, allowing you to check remaining battery power and operating status anytime on your mobile phone or computer, achieving smart home energy management.
Supports parallel connection of multiple batteries, flexibly expanding the total energy storage capacity. This battery also features a universal RS485/CAN dual communication protocol, ensuring good compatibility with mainstream first-tier inverters such as Deye, Growatt, Solis, etc.

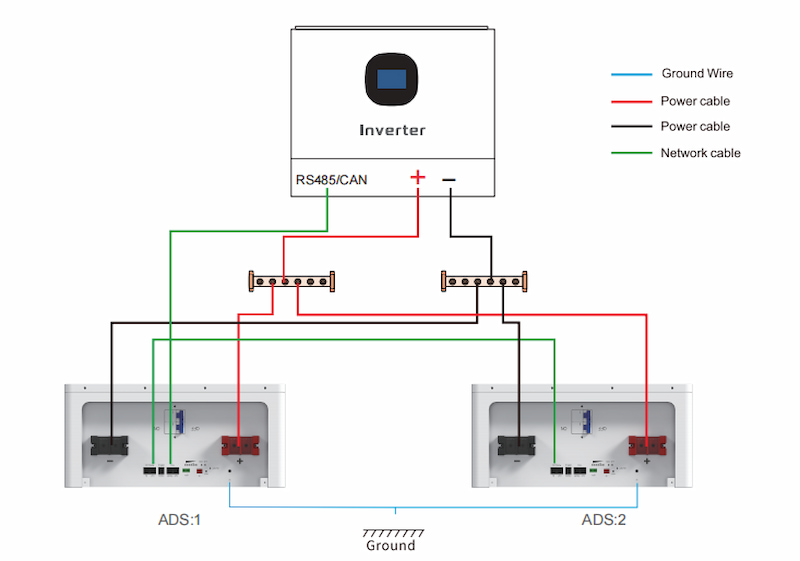

The red and black main power cables are responsible for power transmission between the battery's positive and negative terminals and the inverter's DC terminal.
The green RS485/CAN communication cables enables data exchange between the battery and the inverter, achieving synchronous charge/discharge control of multiple units.
The blue grounding cable provides unified grounding, eliminating the risk of leakage and ensuring household electrical safety.
