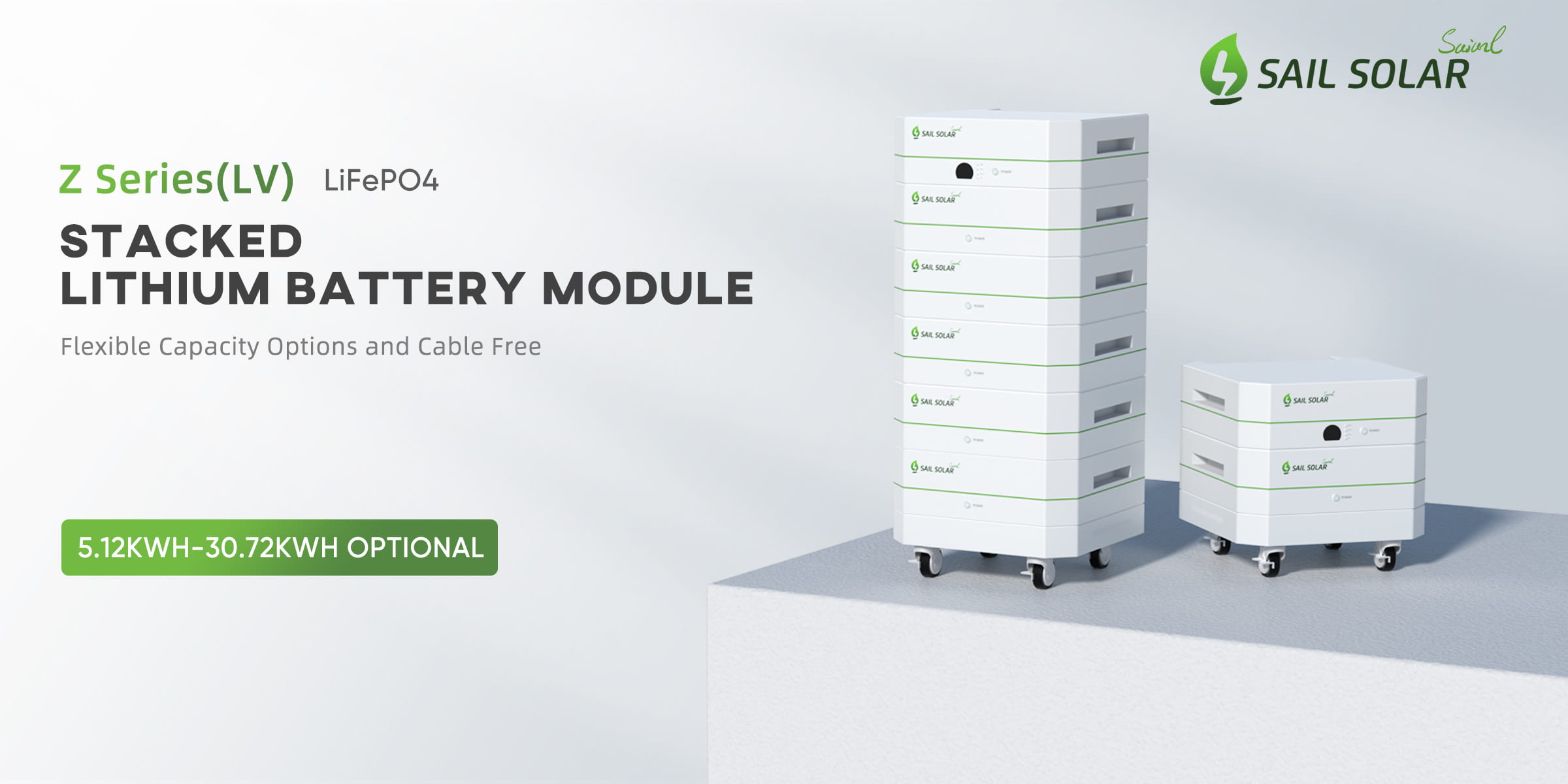

Sail Solar Low Voltage Stacked Battery SASZ51LV 51.2V for Flexible Power Management
Engineered for performance and ease of use, the Sail Solar Lithium Battery combines a compact design with an LCD screen, Bluetooth smart monitoring, and a full set of installation accessories. We are expanding our global OEM cooperation and welcome custom logo designs for partnership opportunities.
Payment :
T/T,L/C, Western UnionShipping Port :
Shanghai/ShenzhenWarranty :
10 YearsCertificate :
CE/IEC/UL/UN38.3/MSDSCommunication :
RS232/RS485/CAN/BLUEBOOTH/WIFIProtection :
IP50Order MOQ :
1Nominal Capacity :
5.12KWh/10.24KWh/15.36KWh/20.48KWh/25.60KWh/30.72KWhNominal Voltage :
51.2VType :
Lithium-ion BatteryItem No. :
Z Series Z-51(100-600)-LVThe Sail Solar Lithium Battery features a compact, user-centric design with an LCD screen and simple controls. Its integrated Bluetooth allows for monitoring from your smartphone, and it comes complete with all cables and accessories for immediate installation. We invite global OEM cooperation and are ready to integrate your custom logo design.
Specification
|
MODEL |
SASZ51100-LV |
SASZ51200-LV |
SASZ51300-LV |
SASZ51400-LV |
SASZ51500-LV |
SASZ51600-LV |
|
| Battery Type |
LiFePO4 |
||||||
|
Electrical Parameters (25°C) |
Rated Voltage |
51.2V |
51.2V |
51.2V |
51.2V |
51.2V |
51.2V |
|
Rated Capacity |
100Ah@25°C |
200Ah@25°C |
300Ah@25°C |
400Ah@25°C |
500Ah@25°C |
600Ah@25°C |
|
|
Energy |
5.12KWh |
10.24KWh |
15.36KWh |
20.48KWh |
25.6KWh |
30.72KWh |
|
|
Months Self Discharge |
<3% |
<3% |
<3% |
<3% |
<3% |
<3% |
|
|
Charge Efficiency |
99.5%@0.2C |
99.5%@0.2C |
99.5%@0.2C |
99.5%@0.2C |
99.5%@0.2C |
99.5%@0.2C |
|
|
Discharge Efficiency |
96-99%@1C |
96-99%@1C |
96-99%@1C |
96-99%@1C |
96-99%@1C |
96-99$%@1C |
|
|
Terminal Diameter |
M8 |
M8 |
M8 |
M8 |
M8 |
M8 |
|
| Internal Resistance(Fully Charged,25°C) |
≤50mΩ |
≤50mΩ |
≤50mΩ |
≤50mΩ |
≤50mΩ |
≤50mΩ |
|
| Cycle Life |
6000 Cycles@0.5C 80%D.O.D |
||||||
|
Capacity Affected by Temperature |
40°C |
101% |
|||||
|
25°C |
100% |
||||||
|
0°C |
90% |
||||||
|
-10°C |
75% |
||||||
| Nominal Operating Temperature |
25°C±3°C(77℉±5℉) |
||||||
|
Operating Temperature Range |
Discharge |
-20°C~60°C(-4℉~140℉) |
|||||
|
Charge |
0°C~45°C(32℉~113℉) |
||||||
|
Storage |
0°C~40°C(32℉~104℉) |
||||||
| Protection Grade |
IP50 |
||||||
| Charge Voltage |
56.8V |
||||||
| Standard Charge Mode(25°C±2°C,<75°CRH) |
0.2CA Constant Current to 57V,then Constant Voltage 57V ,until the Current Drops to 0.02cA,before Use, rest 30 Minutes |
||||||
| Charge Current |
50A |
100A |
150A |
200A |
250A |
300A |
|
| Continuous Discharge Current |
100A |
160A |
240A |
320A |
400A |
480A |
|
| Maximum Pulse Current |
150A(<1S) |
320A(<1S) |
480A(<1S) |
640A(<1S) |
800A(<1S) |
960A(<1S) |
|
| Discharge Cut Off Voltage |
44.8V |
||||||
| Protocol(Optional) |
RS232/RS485/CAN/BLUETOOTH/WIFI |
||||||
| SOC(Optional) |
Screen/LED/PC Software |
||||||
| Application Connection |
1 String 1 Parallel |
||||||
| Cells(Per Module) |
EVE 3.2V100Ah-16S1P |
||||||
| Safety&Certification |
CE/IEC/UL/UN38.3/MSDS |
||||||
| Size |
Length |
640±2mm(23.84 inch) |
|||||
|
Width |
400±2mm(14.9 inch) |
||||||
|
Height |
160±2mm(5.96 inch) |
||||||
|
Total Height |
314±2mm(11.69 inch) |
||||||
| Approx.Weight |
52kg(114.64lbs)±2kg |
||||||
Application

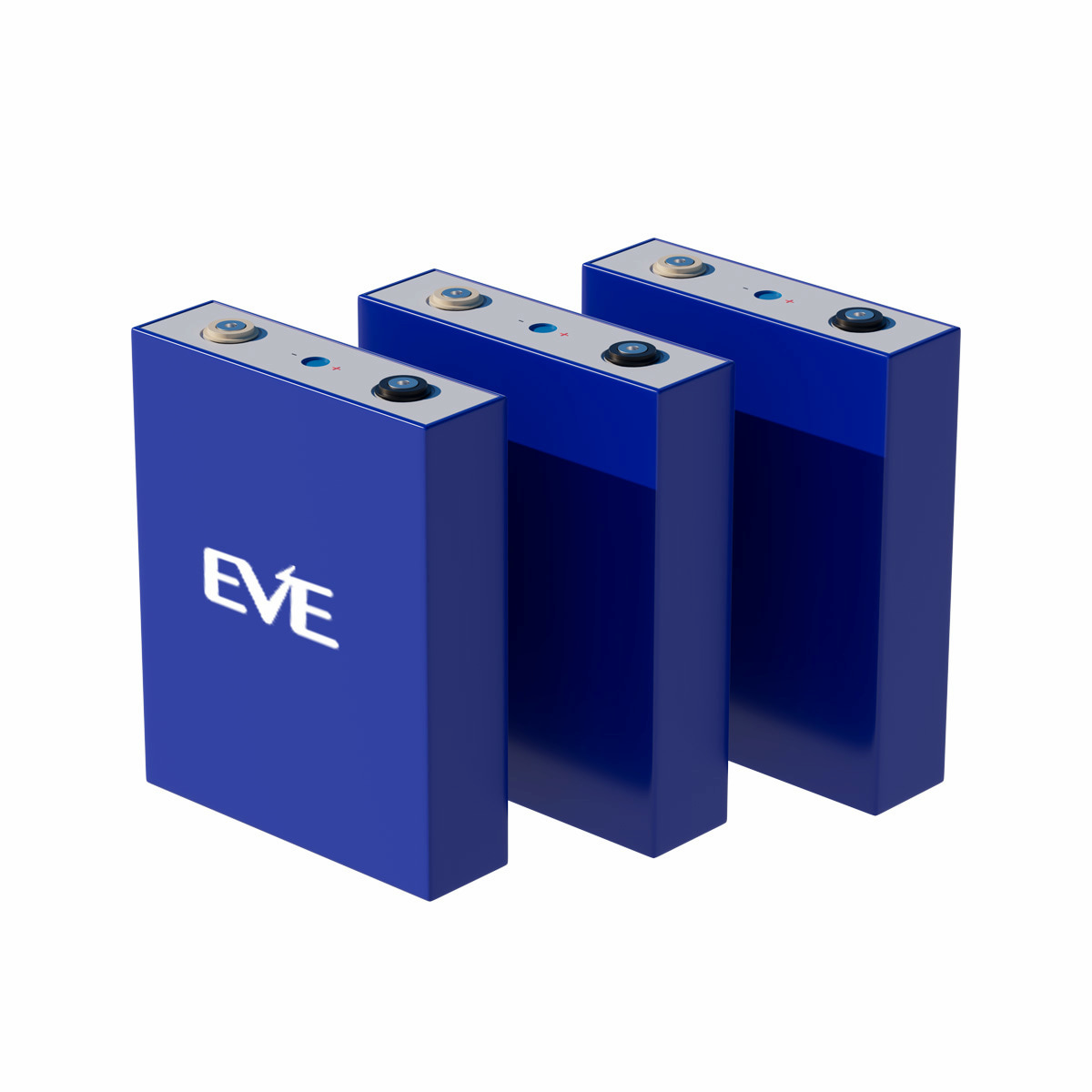

Engineered with EVE Battery Cells: The Core of Superior Performance
At the heart of every Sail Solar battery lies the premium EVE cell, selected for its groundbreaking energy density. Through advanced design and materials, it stores more power within the same compact size and weight, directly enhancing the efficiency and runtime of your solar energy system.
Beyond capacity, EVE cells excel in reliability. They are engineered to maintain stable performance even in sub-zero conditions, ensuring a consistent energy supply for 24/7 operation, regardless of extreme climates.
By integrating these high-fidelity cells, Sail Solar batteries are empowered to deliver unmatched performance and broader application versatility. They represent the ideal cornerstone for maximizing both the efficiency and reliability of your green energy investment.
Beyond mere compatibility, our Sail Solar lithium battery is designed for harmonious partnership with the market's leading inverters. It achieves effortless integration, empowering you to enhance your current setup or build a new one with absolute confidence.
True clarity comes from our sophisticated monitoring system, which translates complex performance data into accessible, real-time insights—from charge cycles to long-term health—putting unparalleled control at your fingertips.
Ultimately, Sail Solar represents an intelligent investment in a resilient, efficient, and forward-looking energy ecosystem.
Certificate
Sail Solar lithium batteries are the trusted choice for a global clientele, powering progress in over 100 countries across the Americas, Europe, the Middle East, Africa, and Asia.
Our commitment to universal quality and safety is certified by the world's most rigorous standards, including UL, CE, ISO, MSDS, and UN38.3. This comprehensive certification portfolio is your guarantee of a product designed for seamless acceptance and reliable performance in any market.
After-Sales Service
● " 7/24 " After-Sales Support
● 7 days a week, 24 hours a day: Ready to respond and solve problems immediately—Sail Solar's commitment to worry-free after-sales service.
● Service Email: info@sailsolaress.com
Service Process
01
Submit Service Requests
Submit your service requests at any time via email, online customer service, or mobile app.
02
Rapid Response
Our service team will immediately respond to your requests and communicate the details of the issue with you.
03
On-Site Service or Remote Support
Depending on the nature of the problem, provide on-site service or remote technical support.
04
Problem Resolution
Our goal is to completely resolve your issue within 24 hours.
05
Follow-Up
After the problem is resolved, our team will continue to follow up to ensure your satisfaction with the service results.
Designed for multi-module installation, this battery features high compatibility BSM, ensuring seamless integration with leading inverter brands for reliable and efficient energy storage. Perfect for both residential and small workshop use, this eco-friendly system ensures reliable power backup with its cutting-edge technology. Join over 6000 satisfied families who have already made the switch. Contact us now to learn more.
Read More
Upgrade your energy storage with the Sail Solar vertical home battery system today! Enjoy easy installation, exceptional performance, and the flexibility to expand your capacity up to 240 kWh. Perfect for both residential and small workshop use, this eco-friendly system ensures reliable power backup with its cutting-edge technology. Join over 6000 satisfied families who have already made the switch. Contact us now to learn more.
Read More
Sail Solar Lithium battery has compact design, LCD screen, convenient setting buttons, bluetooth Monitor on your smartphones, and cables&accessories ready for installation. To welcome the world cooperation we accept OEM with your logo design!
Read More
The Sail Solar Lithium Battery embodies a philosophy where sophisticated design meets intuitive control. Its compact chassis integrates a clear LCD display and tactile controls, while Bluetooth connectivity offers remote command. Every unit arrives with a full suite of accessories, ensuring a flawless installation. We extend an invitation for global OEM collaboration, offering a premium product worthy of carrying your signature.
Read More
The Sail Solar Lithium Battery offers a compact design, LCD screen, Bluetooth monitoring, and a complete installation kit—all the features the market demands. We welcome global OEM partners to customize this product with your logo. Let's join forces to power the world together
Read More
Sail Solar is dedicated to delivering streamlined energy storage. Our lithium battery's compact form, integrated display, and smart Bluetooth monitoring provide a seamless user experience. Designed for easy setup with included accessories, it's the smart choice for modern power needs. We invite OEM collaborations worldwide to bring this integrated solution to your market under your brand.
Read More
The Sail Solar Lithium battery integrates a compact design, an intuitive LCD screen, convenient setting buttons, and Bluetooth smartphone monitoring. It arrives as a complete kit with all necessary cables and accessories for immediate installation.
Read More
Sail Solar Lithium Battery: Your Plug & Play Power Hub! Imagine a powerful energy solution that's incredibly user-friendly. Our compact battery packs an intuitive LCD interface with easy-setting buttons. Plus, with built-in Bluetooth, you can monitor your power anytime, right from your smartphone! Everything you need for a quick setup is right in the box. Want to Sell This Under Your Own Brand? We offer OEM services and welcome worldwide partners to collaborate with custom logo designs!
Read More
