Sail Solar Lifepo4 100 kWh Battery for Saler Commercial Solar Batteries Rechargeable Battery
Easy for Installation
Multiple Communication
20+ Years Lifetime
Free Design
CE, ISO, UL, MSDS
Packaging Details :
wooden caseDelivery Time :
35 work daysCertification :
CE, MSDS, UN38.3Normal Capacity :
580AhRecommend Charge/Discharge Current :
100ACell&Method :
EVE302V280Ah-16S1PCycle Life :
6000 cyclesMPPT Protocol :
RS232/RS485/CAN/BLUETOOTH/WIFIProtection Class :
IP54Battery Type :
Lithium Ion, LiFePO4Place of Origin :
ChinaBrand :
Sail SolarWarranty :
10 YearsNominal Voltage :
51.2VIn order to better meet the diversified needs of the market, relying on its own technology, resources, talents and other advantages, it has successfully created 100kwh High Voltage Lithium Lifepo4 LFP Battery. We have been constantly developing new technologies to manufacture value-added Sail Solar 100kwh High Voltage Lithium Lifepo4 LFP Battery. It can be widely found in the application field of Energy Storage Battery. Sail Solar is a solution for all your buying needs. We can offer you the prices that you need and quality that is good for you.
|
MODEL
|
SAS-50KWH-R/SAS-50KWH-C |
SAS-100KWH-R/SAS-100KWH-C |
SAS-150KWH-R/SAS-150KWH-C |
SAS-200KWH-R/SAS-200KWH-C |
|
Battery Type
|
LiFePO4 battery
|
|||
| Nominal Voltage |
51.2V |
|||
| Normal Capacity |
280Ah |
|||
| Energy |
14.336Kw/h |
|||
| Efficiency of Charge |
99.5%@0.2C |
|||
| Efficiency of Discharge |
96-99%@1C |
|||
| Charge Voltage |
58.4±0.5V |
|||
|
Module Size(mm)
|
792*483*245(D*W*H) |
|||
| Net weight(kg) |
108 |
|||
| Cell&Method |
EVE302V280Ah-16S1P
|
|||
| Interal Resistance |
≤50mΩ
|
|||
|
Battery rack specification
|
||||
|
Configuration
|
4 battery modules+1 BPU(204.8V 280Ah)
|
7 battery modules+1 BPU(358.4V 280Ah) |
11 battery modules+1 BPU(563.2V 280Ah) |
14 battery modules+1 BPU(716.8V 280Ah) |
|
Energy
|
57.34Kw/h
|
100.35Kw/h |
157.7Kw/h |
200Kw/h |
| Discharge Cut-Off Voltage(V) |
176 |
308 |
484 |
616 |
| Charge Cut-Off Voltage(V) |
227.2
|
397.6 |
624.8 |
795.2 |
| Recommend Charge/Discharge Current(A) |
100
|
|||
|
Max.Charge/Discharge working Current(A)
|
200 |
|||
| Protocol(optional) |
RS232/RS485/CAN/BLUETOOTH/WIFI |
|||
| Working Temperature |
0℃~50℃ Charge-10℃~50℃ Discharge
|
|||
| Certification |
CE/IEC/UL/UN38.3/MSDS
|
|||
| Cycle Life |
6000 cycles @ 0.5C 80% D.O.D
|
|||
| Series |
Max Support 16 Units in Parallel
|
|||
| Rack Size(mm) |
1080*800*650
|
1080*800*1250 |
1080*800*1800 |
1655*800*1530 |
| Net Weight(kg) |
530
|
930 |
1460 |
1860 |
| Protection |
Build in smart BMS, Breaker
|
|||
| Protection Grade |
IP20(IP54 is optional)
|
|||
|
Humidity
|
5%~95% |
|||
| Altitude |
≤2000m
|
|||
The SAS High-Voltage Battery System is a state-of-the-art energy storage solution tailored for industrial and commercial applications. Built on advanced technology and engineered with durability in mind, it delivers dependable and efficient power storage to meet the demands of high-performance environments. Its high-voltage capabilities enable greater energy storage capacity, ensuring optimized performance and seamless integration into energy-intensive operations.
Designed for versatility, the SAS system is an ideal choice for a variety of applications, ranging from large-scale solar power installations to commercial buildings and industrial facilities. Whether supporting renewable energy projects, providing backup power during outages, or enhancing grid stability, the SAS High-Voltage Battery System stands out as a reliable and scalable solution. With its robust design and innovative features, it empowers businesses to achieve energy efficiency and sustainability goals while adapting to the evolving demands of modern energy management.

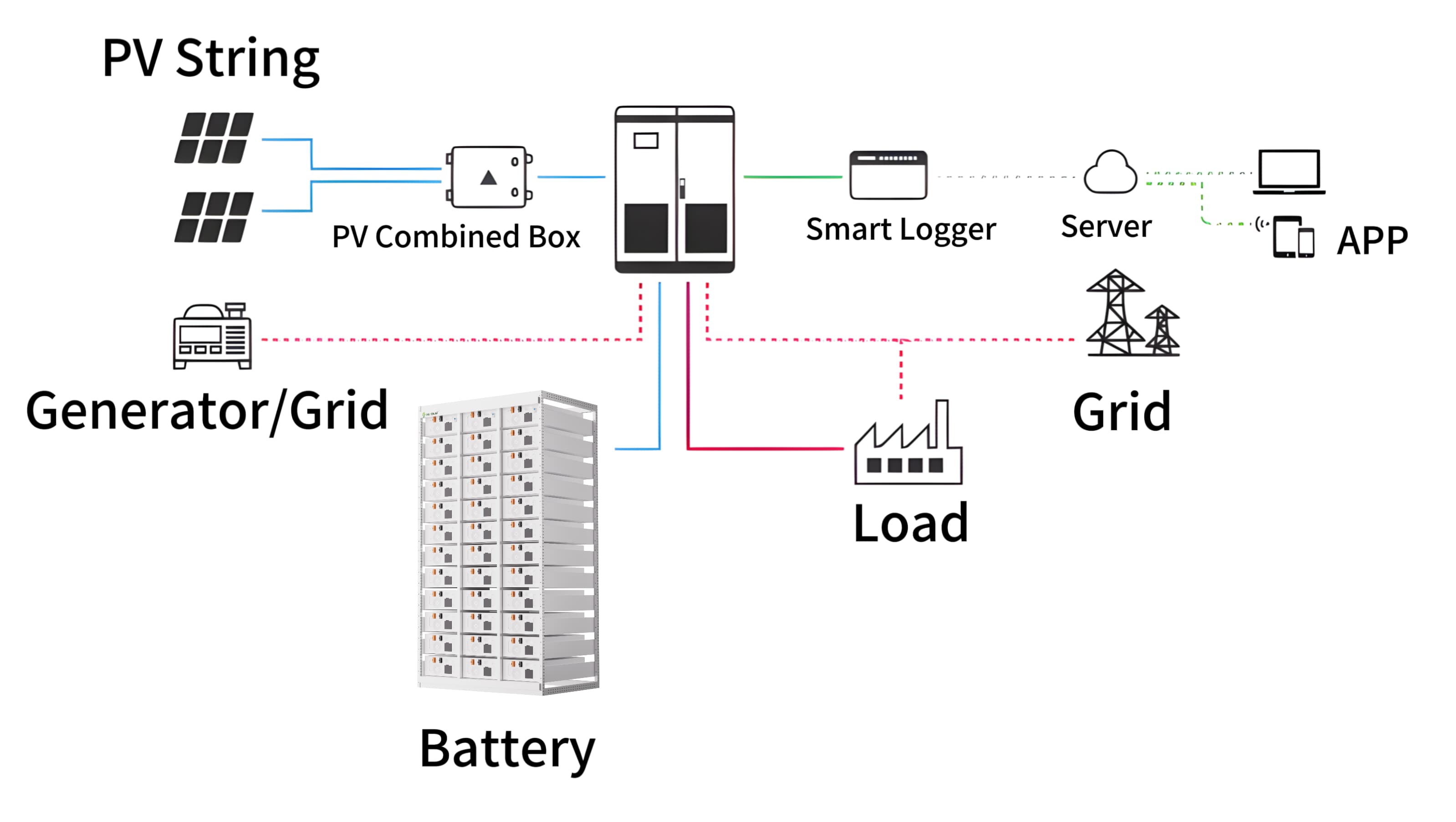

The Sail Solar 100kWh battery energy storage system is meticulously designed to generate and store green energy, providing a sustainable solution and maximizing return on investment. By combining this system with a solar panel installation, users can efficiently store renewable electricity in advanced battery packs, ensuring a reliable power supply during peak demand periods. This makes it an essential energy solution for homes, businesses, public utilities, and industrial applications, delivering both environmental benefits and cost savings.
Sail Solar's high-voltage rack-mounted lithium-ion battery is compatible with a wide range of inverters on the market and comes with a 10-year warranty and best-in-class service.
Our lithium battery products have been exported to more than 100 countries, including but not limited to the United States, Canada, Puerto Rico, Germany, Poland, Belgium, Philippines, Saudi Arabia, South Africa, Nigeria. Products comply with mainstream market certifications, including UL, CE, ISO, MSDS, UN38.3, etc.
