Sail Solar 100Ah Rack Battery 51.2V Solar Energy Storage for Home Solar System
Sail Solar rack batteries feature over 6000 times cycle life as the batteries' materials are lithium iron phosphate battery cells.They are suitable for household off-grid solar systems, energy storage backups, databases, schools, hospitals, etc.
Item No :
X Series SAS51100Payment :
T/T,L/C, Western UnionShipping Port :
Shanghai/ShenzhenWarranty :
5 YearsCertificate :
CE/IEC/UL/UN38.3/MSDSCommunication :
RS232/RS485/CAN/BLUEBOOTH/WIFIProtection :
IP20Order MOQ :
1Nominal Capacity :
5.12KWhNominal Voltage :
51.2VType :
Lithium-ion BatterySail Solar Lithium battery has compact design, LCD screen, convenient setting buttons, bluetooth Monitor on your smartphones, and cables&accessories ready for installation. Additionally, the battery offers seamless information monitoring via its exceptional RS232/485 communication function when connected to a computer. Choose Sail Solar for reliable and advanced energy solutions.
|
MODEL |
SAS51100 |
SAS51200 |
SAS51300 |
| Battery Type |
LiFePO4 |
||
| Nominal Voltage |
51.2V |
||
| Nominal Capacity |
100Ah |
200Ah |
300Ah |
| Energy |
5.12KWh |
10.24KWh |
15.36KWh |
| Internal Resistance |
≤50mΩ |
||
| Cycle Life |
6000 Cycles @ 0.5C 80%D.O.D |
||
| Months Self Discharge |
<3% |
||
| Efficiency of Charge |
99.5%@ 0.2C |
||
| Efficiency of Discharge |
96-99%@ 1C |
||
| Charge Voltage |
58.4±0.5V |
||
| Charge Mode |
CC/CV |
||
| Charge Current |
20A |
40A |
|
| Max Charge Current |
100Ah |
200Ah |
|
| Charge Cut-off Voltage |
58.4V |
||
| Continuous Discharge Current |
20A |
40A |
|
| Max Discharge Current |
100A |
200A |
|
| Discharge Cut-off Voltage |
43.2V |
||
| Charge Temperature |
0 to 45 ℃ |
||
| Discharge Temperature |
-20 to 55 ℃ |
||
| Storage Temperature |
-10 to 40 ℃ |
||
| Protection Grade |
IP20 |
||
| Cell & Method |
EVE 3.2V100Ah-16S1P |
EVE 3.2V100Ah-16S2P |
EVE 3.2V304Ah-16S1P |
| Terminal |
100A |
200A |
|
| Protocol(Optional) |
RS232/RS485/CAN/BLUETOOTH/WIFI |
||
| BMS |
100A |
200A |
|
| Safety & Certification |
CE/IEC/UL/UN38.3/MSDS |
||
| Size (mm) |
550*482*133(D*W*H) |
550*482*133(D*W*H) |
550*482*133(D*W*H) |
| Net Weight (kg) | 47KG | 88KG | 114KG |
| Wooden Box Package Size (mm) |
940*555*405 |
||
| Quantity of Loading |
120pcs/20ft 240pcs/40ft |
||

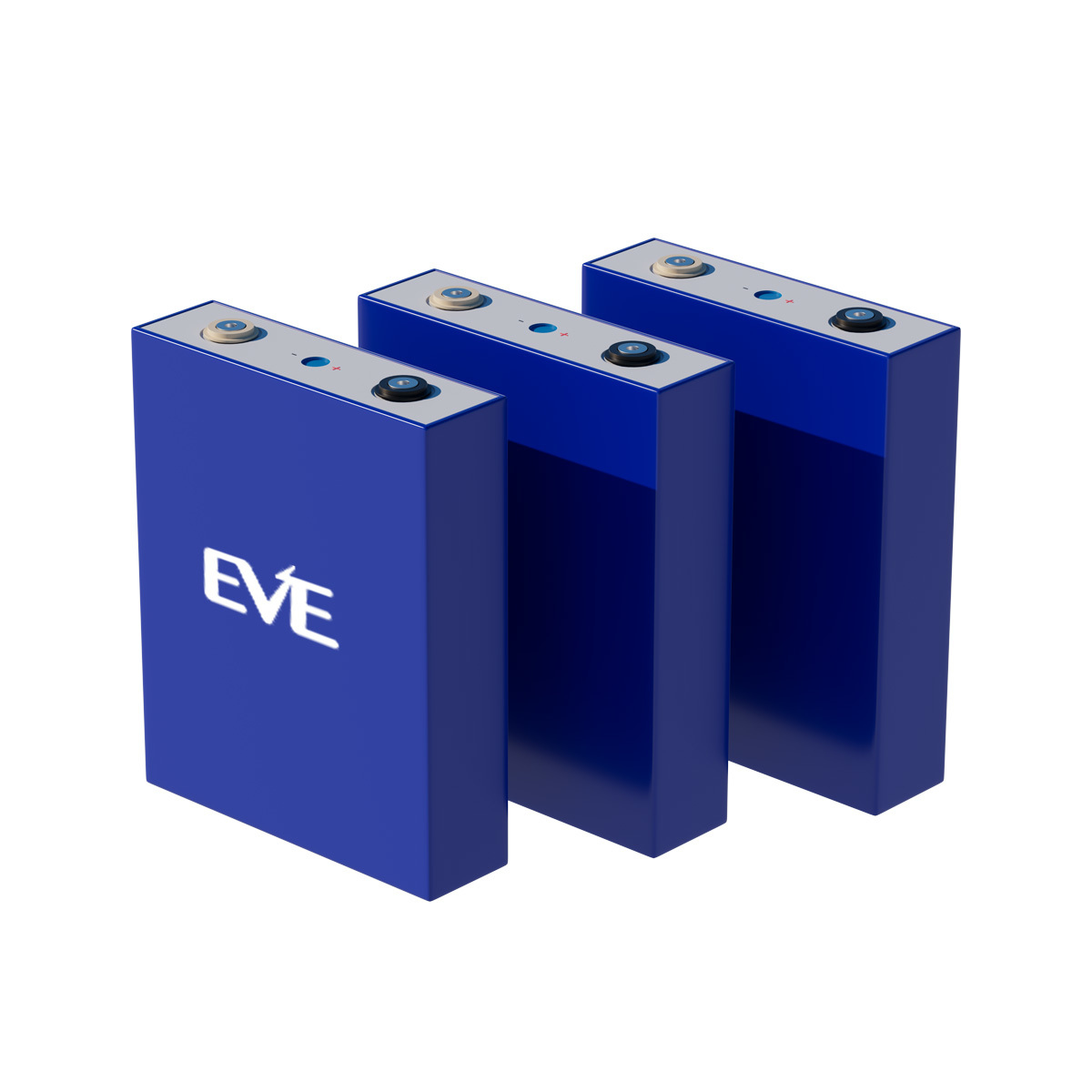

Sail Solar batteries integrate EVE cells to deliver exceptional energy density in a compact design, providing more power and longer runtime for solar energy systems. These cells maintain reliable performance even in extreme cold, ensuring uninterrupted power supply in all climates.
The combination of EVE's advanced technology and Sail Solar's engineering creates a versatile energy solution suitable for diverse applications. This partnership delivers enhanced efficiency and reliability for residential and commercial green energy systems.

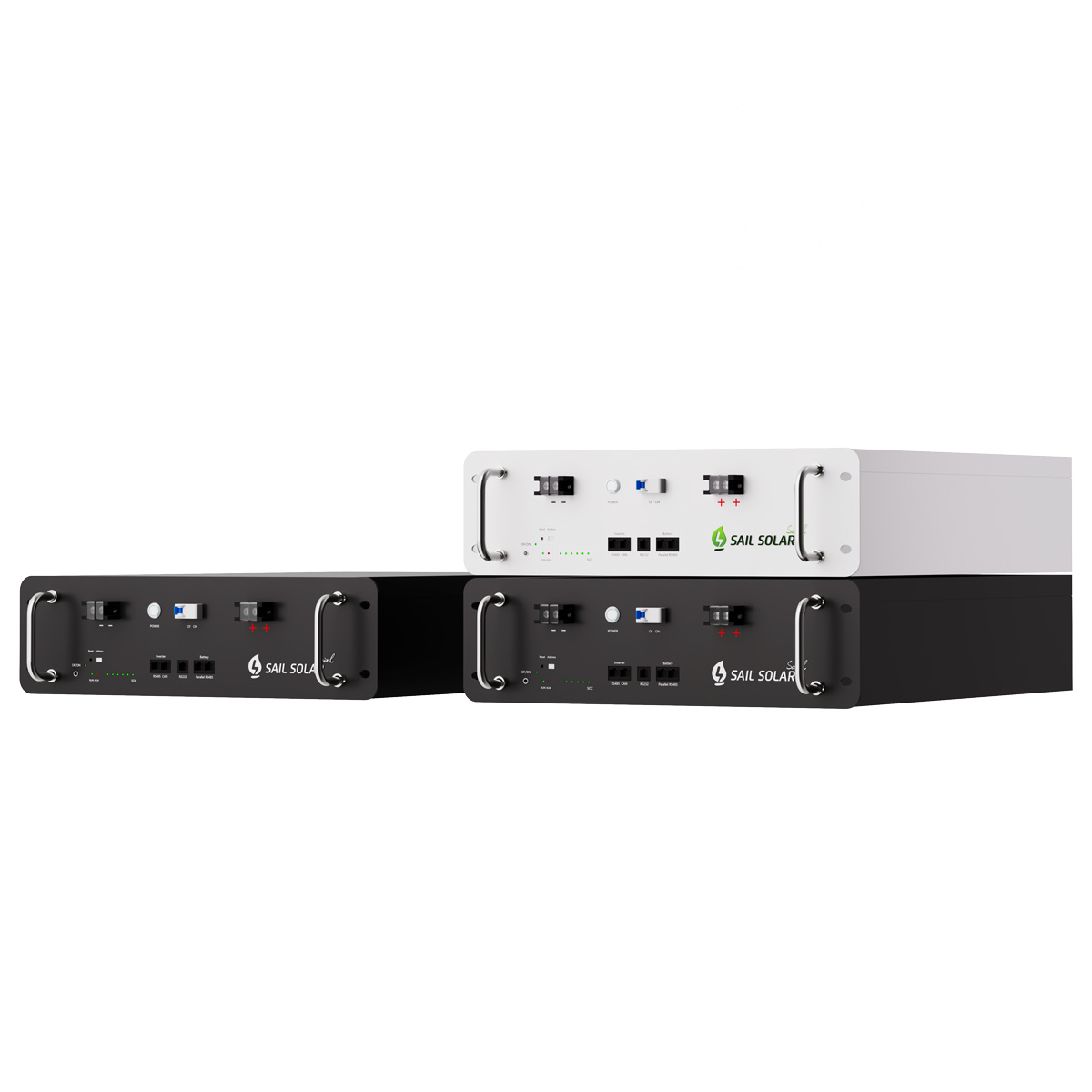

Sail Solar Rack Battery: Compact Power for Smart Homes
Designed for new installations, our high-density rack battery saves space while delivering full power. Flexible mounting fits any home layout.
As a complete lithium solution provider, we craft customized energy systems for homes, businesses, and utilities - all built to last.
Our lithium battery products have been exported to more than 100 countries, including but not limited to the United States, Canada, Puerto Rico, Germany, Poland, Belgium, Philippines, Saudi Arabia, South Africa, Nigeria. Products comply with mainstream market certifications, including UL, CE, ISO, MSDS, UN38.3, etc.
After-Sales Service
● " 7/24 " After-Sales Support
● 7 days a week, 24 hours a day: Ready to respond and solve problems immediately—Sail Solar's commitment to worry-free after-sales service.
● Service Email: info@sailsolaress.com
Service Process
01
Submit Service Requests
Submit your service requests at any time via email, online customer service, or mobile app.
02
Rapid Response
Our service team will immediately respond to your requests and communicate the details of the issue with you.
03
On-Site Service or Remote Support
Depending on the nature of the problem, provide on-site service or remote technical support.
04
Problem Resolution
Our goal is to completely resolve your issue within 24 hours.
05
Follow-Up
After the problem is resolved, our team will continue to follow up to ensure your satisfaction with the service results.
Designed for multi-module installation, this battery features high compatibility BSM, ensuring seamless integration with leading inverter brands for reliable and efficient energy storage. Perfect for both residential and small workshop use, this eco-friendly system ensures reliable power backup with its cutting-edge technology. Join over 6000 satisfied families who have already made the switch. Contact us now to learn more.
