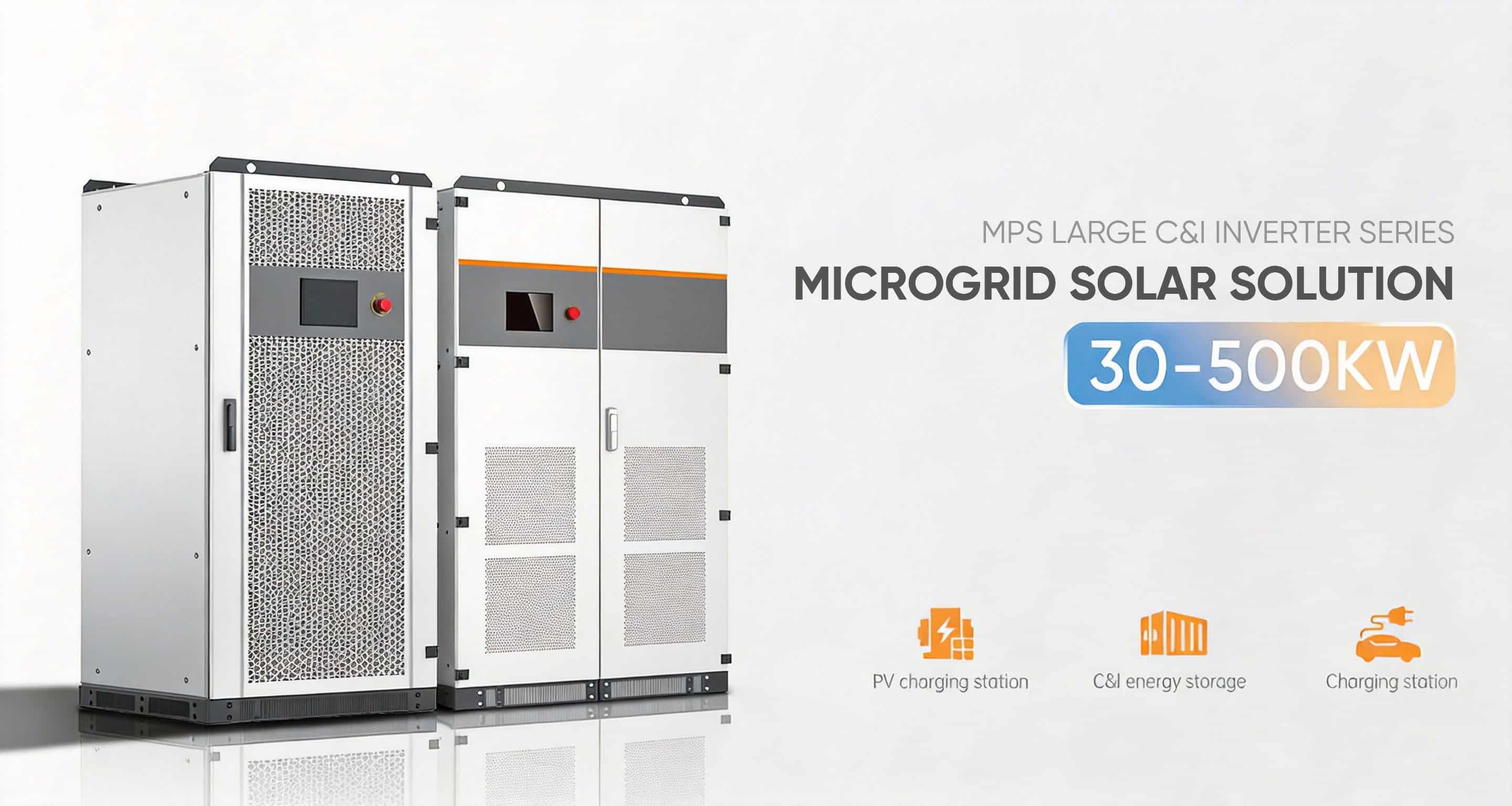

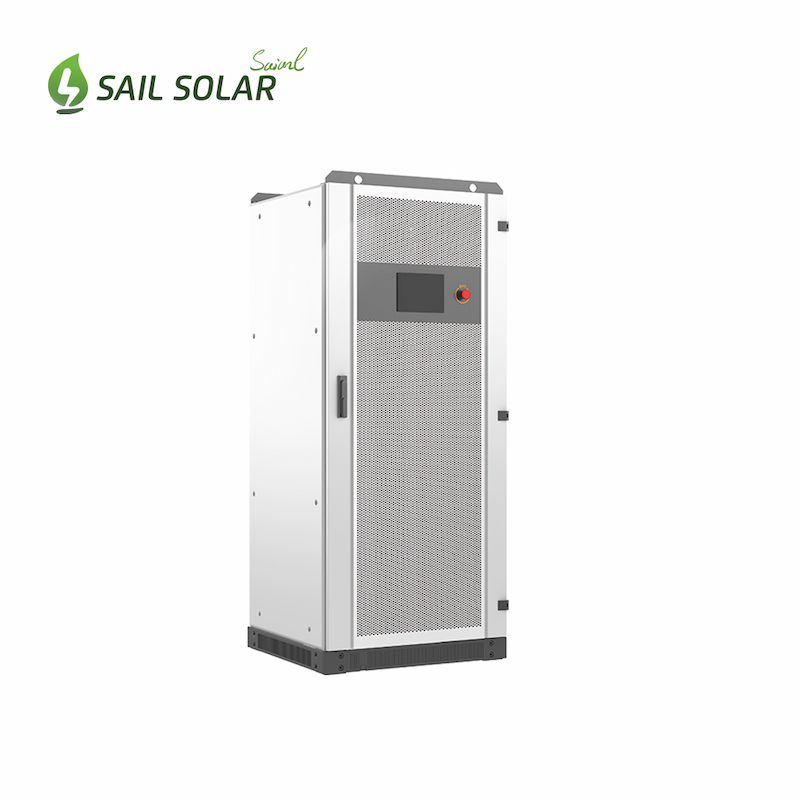

Customized 100KW 250KW 500KW Hybrid Solar Inverter Energy Storage Solar Inverter for Commercial and Industrial Use

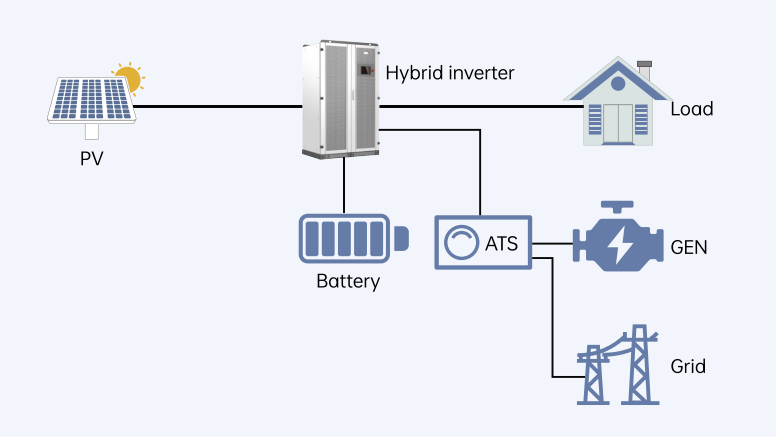

This Hybrid inverter is an energy storage inverter that integrates a photovoltaic controller, energy storage converter, and grid-connected/off-grid automatic switching unit, which is a very good and convenient device used in big capacity hybrid energy storage system.
Item No :
30KW/50KW/100KW/150KW/250KW/500KWBrand :
OEM/Sail SolarNominal Voltage :
400V/Customized US VoltageBattery Type :
Lithium Battery/Lead Acid BatteryType of cooling :
Air CoolingGrid Connection :
3W+N+PEProtection Class :
IP20Certificate :
EN 62109-1/-2, EN 62477-1, EN 61000-6-2/-6-4, NRS 097-2-1:2024, ASGCCommunication :
RS485/CANThis Hybrid inverter is an energy storage inverter that integrates a photovoltaic controller, energy storage converter, and grid-connected/off-grid automatic switching unit, which is a very good and convenient device used in microgrid system.
Specifications
| Power | 30KW | 50KW | 100KW | 150KW | 250KW | 500KW |
| AC (Ongrid) | ||||||
| Max Output Power (KW) | 33 | 55 | 110 | 165 | 275 | 550 |
| Rated Output Power (KW) | 30 | 50 | 100 | 150 | 250 | 500 |
| Rated Voltage(V) | 400 | |||||
| Rated Current (A) | 320-460 | |||||
| Rated Frequency (Hz) | 50/60 | |||||
| THDI | <3% | |||||
| Power Factor | 1leading-1lagging (Settlable) | |||||
| Grid Type | 3W+N+PE | |||||
| AC (off-grid) | ||||||
| Max Output Power (KW) | 33 | 55 | 110 | 165 | 275 | 550 |
| Rated Output Power (KW) | 30 | 50 | 100 | 150 | 250 | 500 |
| Rated Voltage(V) | 400 | |||||
| Rated Current (A) | 43 | 72 | 144 | 216 | 361 | 722 |
| THDu | ≤1% linear; or≤5% nonlinear | |||||
| Rated Frequency (Hz) | 50/60 | |||||
| Overload Capacity | 110% long-term, 120% 1min | |||||
| PV Input | ||||||
| Max PV Input Voltage (V) | 1000 | |||||
| Max PV Power (KW) | 82.5 | 82.5 | 165/247.5 | 165/247.5/330 | 330/412.5 | 660/742.5/825 |
| Mppt Module Qty | 1 | 1 | 2/3 | 2/3/4 | 4/5 | 8/9/10 |
| Mppt Voltage Range (V) | 250-1000 | |||||
| Battery | ||||||
| Battery Voltage Range (V) | 250-850 | 320~850 | 420~950 | 420~950 | 420~950 | 500~950 |
| Max Charging Power (KW) | 33 | 55 | 110 | 165 | 275 | 550 |
| General Data | ||||||
| Operating Temperature | -30 ~ 55 | |||||
| Ingress Protection | IP20 | |||||
| Cooling | Air Cooling | |||||
| BMS Communication | RS485/CAN | |||||
| EMS Communication | RS485,TCP/IP | |||||
| Certificates | EN 62109-1/-2, EN 62477-1, EN 61000-6-2/-6-4, NRS 097-2-1:2024, ASGC | |||||
Product Description
Working Mode：
Self-consumption：In this mode, the system gives priority to powering the load. If the photovoltaic power generation is not enough to drive the load, the photovoltaic and other power sources (batteries or grid) will be used together to power the load.
Battery priority：In this mode, the system gives priority to powering the battery, which is used to charge the battery when the system works in backup power conditions or in some usage scenarios.
Mixed mode:In this mode, the system can run different working modes in different time periods.
Optimal mode:In this mode, the system divides the working area according to the battery SOC to run different working modes.
Manual mode: In this mode, the system is dispatched by EMS or used for charging and discharging tests.

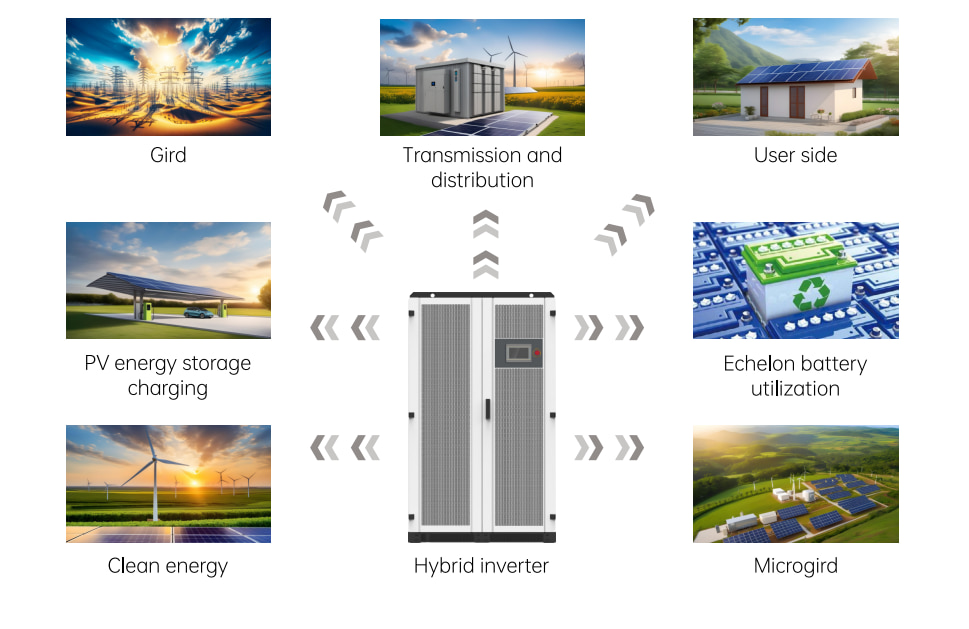

Applications
After-Sales Service
● " 7/24 " After-Sales Support
● 7 days a week, 24 hours a day: Ready to respond and solve problems immediately—Sail Solar's commitment to worry-free after-sales service.
● Service Email: info@sailsolaress.com
Service Process
01
Submit Service Requests
Submit your service requests at any time via email, online customer service, or mobile app.
02
Rapid Response
Our service team will immediately respond to your requests and communicate the details of the issue with you.
03
On-Site Service or Remote Support
Depending on the nature of the problem, provide on-site service or remote technical support.
04
Problem Resolution
Our goal is to completely resolve your issue within 24 hours.
05
Follow-Up
After the problem is resolved, our team will continue to follow up to ensure your satisfaction with the service results.
The inverter outputs pure sine waves, providing clean, stable, and reliable power, effectively protecting sensitive equipment. Its rugged design makes it suitable for a wide range of home and commercial scenarios.
Read More
This inverter is compatible with three-phase power systems, ensuring balanced and stable power output, making it particularly suitable for high-energy consumption scenarios. Its hybrid technology can seamlessly integrate solar energy, grid power and energy storage systems to help users optimize their energy structure.
Read More
This 25kW 208V three-phase hybrid inverter supports a wide battery voltage range and includes three maximum power point trackers (MPPTs), allowing flexible and efficient connection to photovoltaic arrays with a maximum PV input voltage of up to 1000V. And it enables smart energy management through remote monitoring capabilities using Wi-Fi.
Read More
This 25kW three-phase 208V hybrid inverter is a core device for high-performance energy solutions for industrial, commercial, and large residential applications. The product integrates convenient remote monitoring functions and can be managed in real time via Wi-Fi. It also has an IP65 outdoor protection level and a wide operating temperature range, ensuring high reliability and safety in various complex environments.
Read More
The SAIL SOLAR 30kW three-phase hybrid inverter integrates remote real-time monitoring capabilities, allowing users to monitor system status anytime, anywhere via a cloud platform. It fully complies with international safety and grid-connection certification standards, ensuring exceptional stability and absolute safety during 24/7 operation.
Read More
Sail Solar new 30KW MPP-Tracker inverter. IP65 protection level, supports maximum 1000V DC input, and wide MPPT range. Safe power generation and long-term operation.
Read More
Sail Solar 50kW three-phase hybrid inverter combines high-performance power conversion with advanced hybrid capabilities. Its streamlined design makes it easy to install and intelligently manages solar, battery, and grid power to reliably support a wide range of energy loads.
Read More
The Sail Solar 50kW three-phase hybrid inverter features industrial-grade intelligence and built-in WiFi for remote monitoring and control, optimizing energy management in commercial solar system applications.
Read More
