Residential Energy Storage Inverters 12 Kw Pure Sine Wave MPPT Solar Power Hybrid Inverter For Home
Payment :
T/T, L/C, Western UnionShipping Port :
ShanghaiParallel :
6 UnitsMonitoring :
WifiMax Power :
12000WOutput Voltage :
380VWarranty :
5 YearsCertificate :
CECommunication :
BMS (RS485)Protection :
IP65Order MOQ :
1Type :
Hybrid AC/DC InverterItem No. :

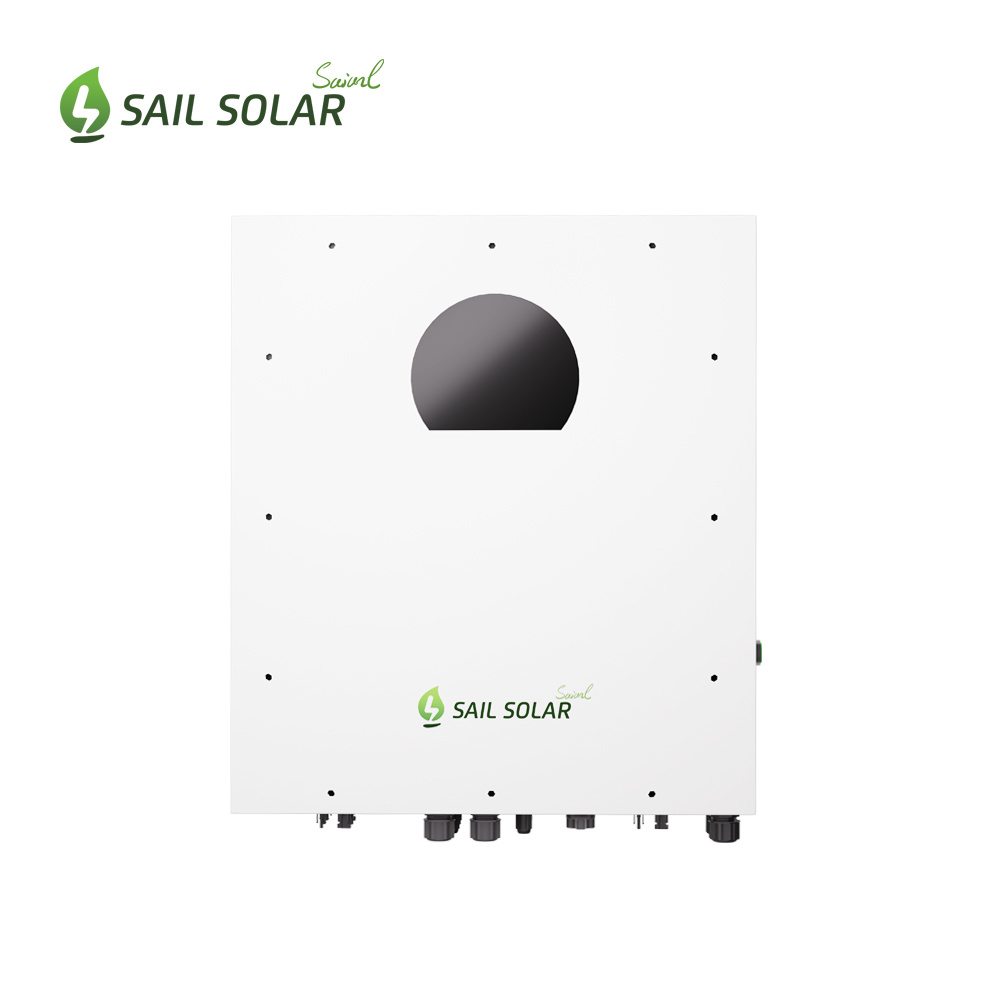

Helios-12KLP3-EUHelios-12KLP3-EU hybrid inverter supports parallel operation of up to 6 units, offers 150% unbalanced load support, handles a maximum PV input current of 26A, features dual outputs for smart load management, is IP65 waterproof and dustproof, and includes a reserved communication port for BMS (RS485).
Specification
MODEL |
Helios-12KLP3-EU
|
Maximum Pv Input Power |
16000 W
|
Rated Output Power |
12000W |
Maximum Charging Power |
12000W |
PV INPUT (DC)
|
|
Maximum DC Voltage
|
1000 VDC
|
Start-up Voltage / Initial Feeding Voltage
|
320 VDC / 350 VDC
|
MPP Voltage Range
|
350 VDC ~ 950 VDC
|
Number of MPP Trackers / Maximum Input Current
|
2 / A: 26A, B: 26A
|
Number of Strings Per MPP Tracker
|
A: 2, B: 2
|
GRID OUTPUT (AC)
|
|
Nominal Output Voltage
|
230 VAC (P-N) / 400 VAC (P-P)
|
Output Voltage Range
|
184 - 265 VAC per phase
|
Nominal Output Current
|
17.4 A per phase
|
AC INPUT
|
|
AC Start-up Voltage / Auto Restart Voltage
|
120 - 140 VAC / 180 VAC
|
Acceptable Input Voltage Range
|
170 - 290 VAC per phase
|
Maximum AC Input Current
|
40 A
|
BATTERY MODE OUTPUT (AC)
|
|
Nominal Output Voltage
|
230 VAC (P-N) / 400 VAC (P-P)
|
Efficiency (DC to AC)
|
91%
|
BATTERY & CHARGER
|
|
Battery Voltage Range
|
40 ~ 62 VDC
|
Maximum Charging Current
|
250 A
|
PHYSICAL
|
|
Size, D x W x H (mm)
|
255 x 660 x 750
|
Net Weight (kgs)
|
75
|
INTERFACE
|
|
Communication Port
|
RS-232, RS-485, USB, CAN and Wi-Fi
|
Intelligent Slot |
Optional for SNMP and Modbus cards
|
ENVIRONMENT
|
|
Humidity
|
0 ~ 100% RH (Non-condensing)
|
Operating Temperature
|
-25 to 60°C, > 45°C power derating
|
Altitude
|
0 ~ 1000 m**
|
PROTECTION & CERTIFIC ATE
|
|
Safety
|
IEC 62109, IEC 62116, IEC 61727, IEC 61683
|
Protection Grade
|
IP65
|
Grid Connection Standard
|
NRS097-2-1:2017, VDE-AR-N4105
|
![]() |

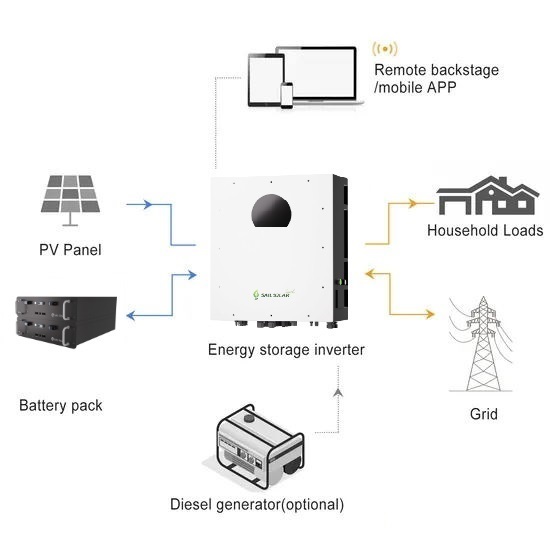

Helios 12kw versatile hybrid and off-grid solar inverter gives you self-consumption functions and an advanced energy management system powered by energy meter, which comes included. There's no complex and time-consuming navigation.The IP65 waterproof and dustproof rating gives you peace of mind in any environment, and the built-in WiFi allows you to monitor your inverter from your mobile device. With dual outputs for smart load management, the hybrid solar inverter can handle up to 26A PV input current per MPPT and supports 150% unbalanced load. Additionally, it offers parallel operation for up to six units—it can scale seamlessly alongside your changing energy needs. |

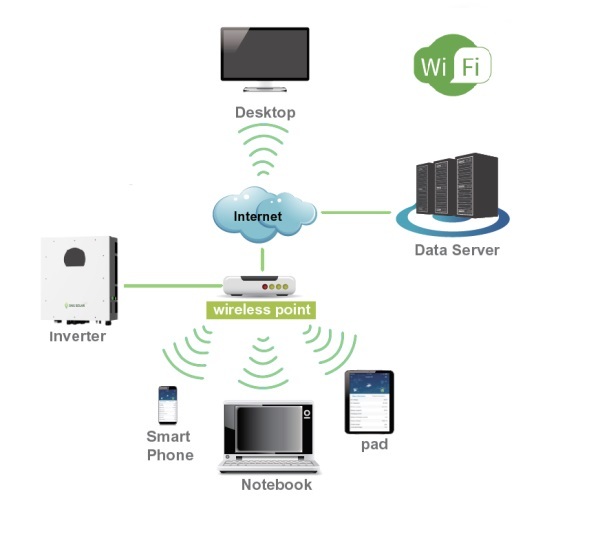

Wi-Fi module can enable wireless communication between off-grid inverters and monitoring platform. Users have complete and remote monitoring and controlling experience for inverters when combining WiFi module with APP, available for both iOS and Android based device. All data loggers and parameters are saved in iCloud. Main Features: > Data transmission to data center >Real-time dynamic graphs of inverter data >Allow to access historic data in centralized data center >Remote monitoring and control of multiple inverters via mobile APP(iOS and Android) >Parameter settings available, just as output setting, output priority setting, AC input range, battery setting etc.
|
![]() |
