Home Products Hybrid Inverter

Residential Hybrid Inverter

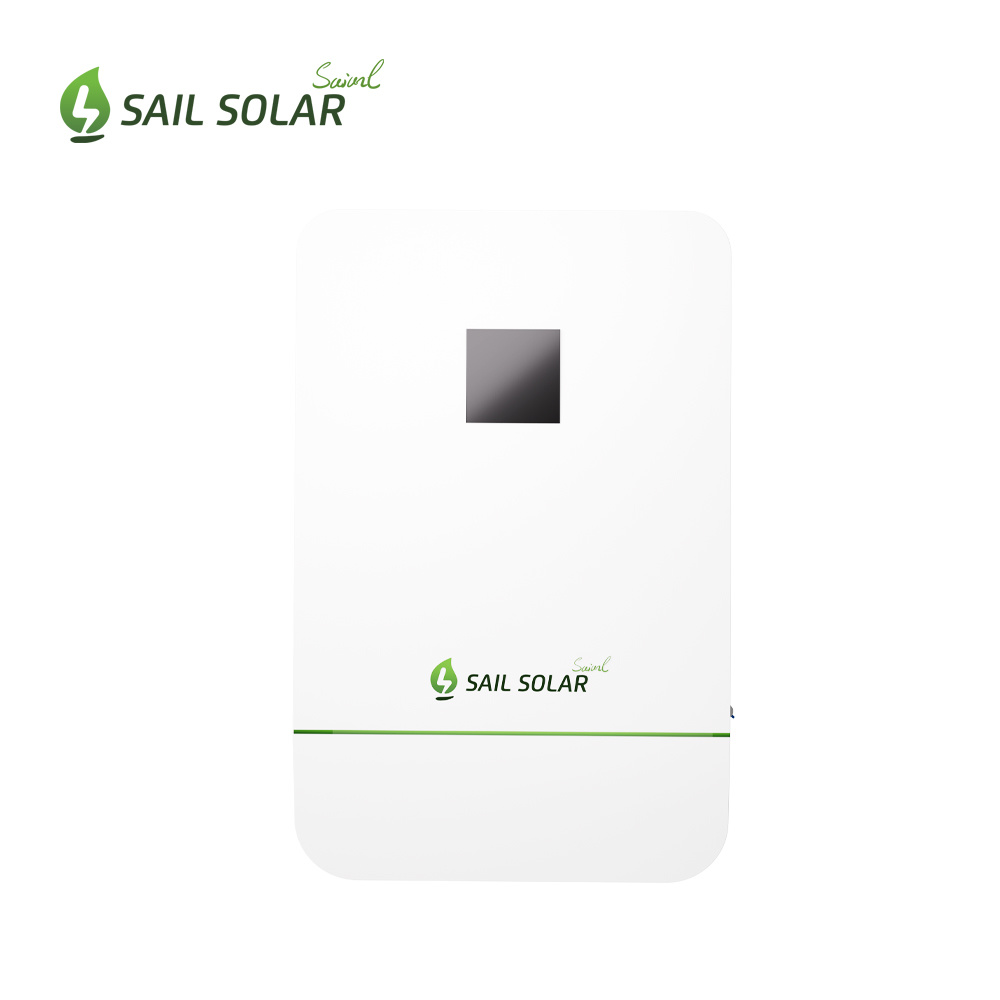

48V MPPT Solar Charge Hybrid Inveters 10Kw Three Phase All In One Solar Inverter For Residence

48V MPPT Solar Charge Hybrid Inveters 10Kw Three Phase All In One Solar Inverter For Residence

  • Payment :

    T/T, L/C, Western Union
  • Shipping Port :

    Shanghai
  • Parallel :

    6 Units
  • Monitoring :

    Wifi
  • Max Power :

    10000W
  • Output Voltage :

    380V
  • Warranty :

    5 Years
  • Certificate :

    CE
  • Communication :

    BMS (RS485)
  • Protection :

    IP20
  • Order MOQ :

    1
  • Type :

    Hybrid AC/DC Inverter
  • Item No. :

    Xihe-10KLP3-EU

Xihe-10KLP3-EU high-quality inverter system outputs pure sine wave AC power, ensure reliable long-term operation at rated capacity, features an industrial design with a modern aesthetic, is easy to install and use, incorporates exclusive Li-ion battery BMS dual activation, offers remote monitoring of operating parameters, boasts advanced MPPT with up to 99.9% efficiency, provides comprehensive security from hardware to software, has multiple safety approvals, supports various types of batteries, and includes support for Li-ion battery BMS communication.

Specification

MODEL

Xihe-10KLP3-EU
INVERTER



Rated Output Power
10,000W
Max.Peak Power
20,000W
Rated Output Voltage
230Vac, single-phase / three-phase, be paralleled
Load Capacity of Motors
6HP
Rated AC Frequency
50Hz/60Hz
Waveform
Pure Sine Wave
Switch Time
10ms(typical)
Parallel Capacity
1~6 units
Output Mode
O-grid (default)/Hybrid
BATTERY



Battery Type
Lead-acid/Li-ion/User defined
Rated Battery Voltage
48V
Voltage Range
40~60Vdc
Max.MPPT Charging Current
200A
Max.Mains/Generator Charging Current
120A
Max.Hybrid Charging Current
200A
PV INPUT



Num. of MPPT Trackers
2
Max.PV Array Power
5,500W + 5,500W
Max.Input Current
22A + 22A
MPPT Voltage Range
MAINS / GENERATOR INPUT

125~425Vdc

Max.Voltage of Open Circuit
500Vdc + 500Vdc
MPPT Voltage Range
90~275Vac
Frequency Range
50/60Hz
Bypass Overload Current
63A
EFFICIENCY



MPPT Tracking Efficiency
99.9%
Max. Battery Inverter Efficiency
92%
GENERAL



Dimensions
620*445*130mm
Weight
27kg
Protection Grade
IP20, indoor onIy
Operating Temperature Range
-10~55℃, >45℃ derated
Noise
≤60dB
Cooling Method
Internal Fan
COMMUNICATION



Embedded Interfaces
RS485 / USB / Dry contact
External Modules (Optional)
Wi-Fi / GPRS
CERTIFICATION

Safety
IEC62109-1, IEC62109-2
EMC
EN61000-6-1, EN61000-6-3, FCC 15 class B
RoHS
Yes

Application

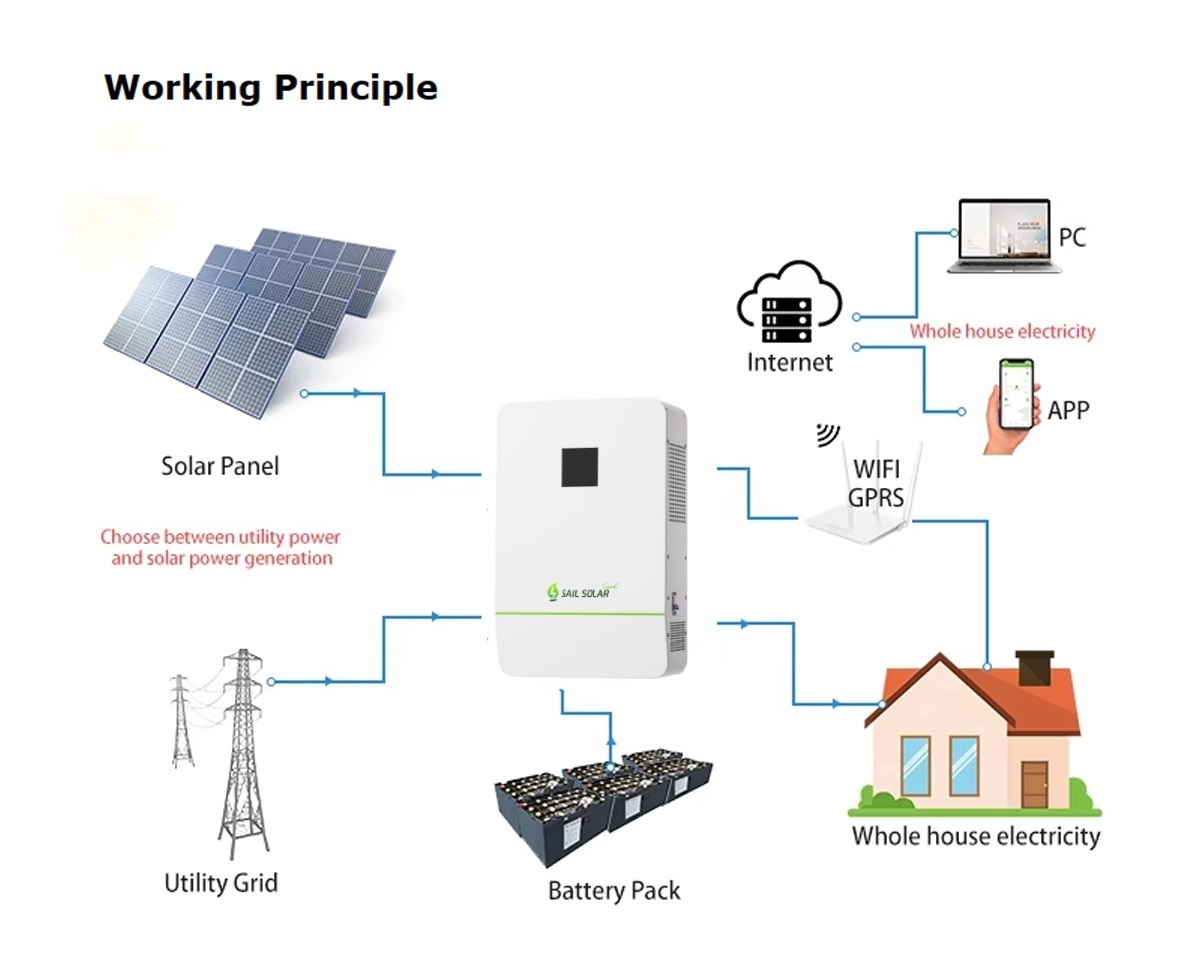

Xihe-10KLP3-EU is a solar inverter designed to convert the DC power produced by solar panels into AC power for use in residential and commercial solar power systems. It has a maximum output power of 10kW and can handle a maximum DC input voltage of 500Vdc+500Vdc, which makes it compatible with most solar panels available in the market.
The inverter features an LCD display, which provides real-time monitoring of the system's performance, including input voltage, output power, and current. It also features communication interfaces such as RS485 ,CAN , USB ,Dry contact.

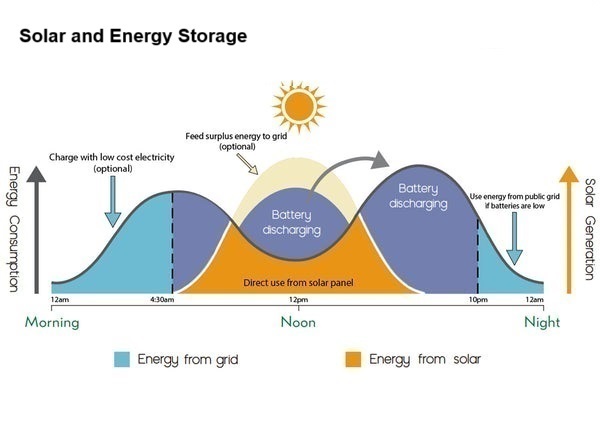

This Xihe-10KLP3-EU inverter has 4 charging modes: solar only, mains priority, solar Priority, and mains & solar charging. And there are 2 output modes, inverter and mains power, to give you seamless power supply. With time-slot charging and discharging setting function, this inverter can help to save on your electricity bills.Designed for flexibility, it offers multiple connection options including AC, DC, and solar inputs, allowing you to integrate renewable energy sources seamlessly into your power system.Its compact design and straightforward installation process make setting up the Xihe-10KLP3-EU a breeze. Plus, low maintenance requirements mean more uptime and less hassle for you.









After-Sales Service

" 7/24 " After-Sales Support

7 days a week, 24 hours a day: Ready to respond and solve problems immediately—Sail Solar's commitment to worry-free after-sales service.

Service Email: info@sailsolaress.com


Service Process

01

Submit Service Requests

Submit your service requests at any time via email, online customer service, or mobile app.

02

Rapid Response

Our service team will immediately respond to your requests and communicate the details of the issue with you.

03

On-Site Service or Remote Support

Depending on the nature of the problem, provide on-site service or remote technical support.

04

Problem Resolution

Our goal is to completely resolve your issue within 24 hours.

05

Follow-Up

After the problem is resolved, our team will continue to follow up to ensure your satisfaction with the service results.
