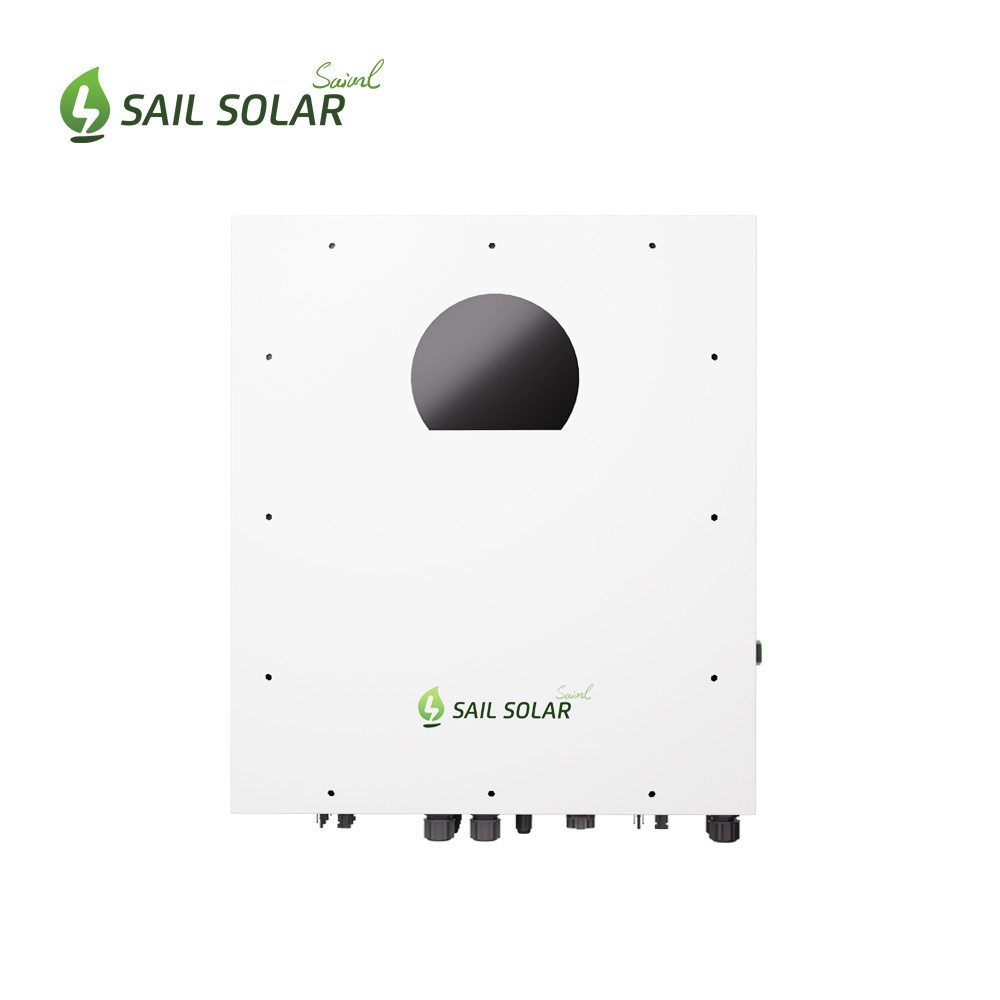

Intelligent Hybrid Inverters 15 Kw Three-phase Battery Backup Solar Power Inverter For PV System
Payment :
T/T, L/C, Western UnionShipping Port :
ShanghaiParallel :
6 UnitsMonitoring :
WifiMax Power :
15000WOutput Voltage :
380VWarranty :
5 YearsCertificate :
CECommunication :
BMS (RS485)Protection :
IP65Order MOQ :
1Type :
Hybrid AC/DC InverterItem No. :
Helios-15KLP3-EUHelios-15KLP3-EU hybrid inverter supports parallel operation up to 6 units, offers 150% unbalanced load support, handles a maximum PV input current of 26A, features dual outputs for smart load management, is IP65 waterproof and dustproof, and includes a reserved communication port for BMS (RS485).
|
MODEL |
Helios-15KLP3-EU
|
|
Maximum Pv Input Power |
22500 W
|
|
Rated Output Power |
15000 W
|
|
Maximum Charging Power |
15000 W
|
|
PV INPUT (DC)
|
|
|
Maximum DC Voltage
|
1000 VDC
|
|
Start-up Voltage / Initial Feeding Voltage
|
320 VDC / 350 VDC
|
|
MPP Voltage Range
|
350 VDC ~ 950 VDC
|
|
Number of MPP Trackers / Maximum Input Current
|
2 / A: 26A, B: 26A
|
|
Number of Strings Per MPP Tracker
|
A: 2, B: 2
|
|
GRID OUTPUT (AC)
|
|
|
Nominal Output Voltage
|
230 VAC (P-N) / 400 VAC (P-P)
|
|
Output Voltage Range
|
184 - 265 VAC per phase
|
|
Nominal Output Current
|
21.7 A per phase
|
|
AC INPUT
|
|
|
AC Start-up Voltage / Auto Restart Voltage
|
120 - 140 VAC / 180 VAC
|
|
Acceptable Input Voltage Range
|
170 - 290 VAC per phase
|
|
Maximum AC Input Current
|
40 A
|
|
BATTERY MODE OUTPUT (AC)
|
|
|
Nominal Output Voltage
|
230 VAC (P-N) / 400 VAC (P-P)
|
|
Efficiency (DC to AC)
|
91%
|
|
BATTERY & CHARGER
|
|
|
Battery Voltage Range
|
40 ~ 62 VDC
|
|
Maximum Charging Current
|
300 A
|
|
PHYSICAL
|
|
|
Size, D x W x H (mm)
|
255 x 660 x 750
|
|
Net Weight (kgs)
|
78
|
|
INTERFACE
|
|
|
Communication Port
|
RS-232, RS-485, USB, CAN and Wi-Fi
|
| Intelligent Slot |
Optional for SNMP and Modbus cards
|
|
ENVIRONMENT
|
|
|
Humidity
|
0 ~ 100% RH (Non-condensing)
|
|
Operating Temperature
|
-25 to 60°C, > 45°C power derating
|
|
Altitude
|
0 ~ 1000 m**
|
|
PROTECTION & CERTIFICA TE
|
|
|
Safety
|
IEC 62109, IEC 62116, IEC 61727, IEC 61683
|
|
Protection Grade
|
IP65
|
|
Grid Connection Standard
|
NRS097-2-1:2017, VDE-AR-N4105
|
 |
Helios-15KLP3-EU solar inverter built-in user-friendly HMI LCD will simply the initial setup. Important information is presented on the main screen and parameter settings are grouped by function. Furthermore, five preset scenarios to simplify setup in a few minutes. All data is presented with statistical graphs by clicking each icon presented on the main screen. And it can support parallel connections for up to 6 units, this inverter can build a robust 90KW system, perfectly suited for large commercial and industrial projects. Ensure uninterrupted power supply, day or night, without missing a beat. |
|

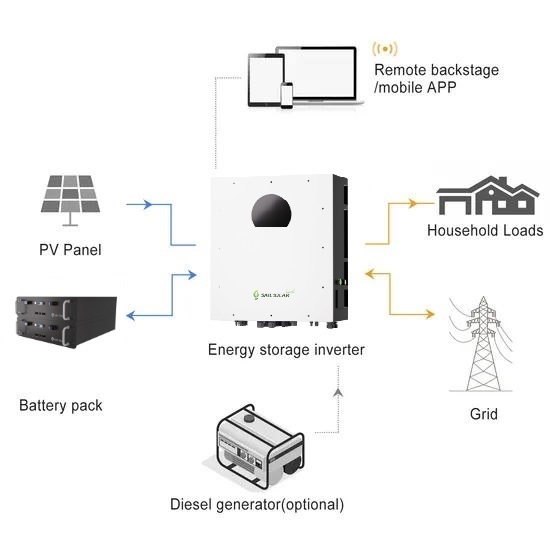

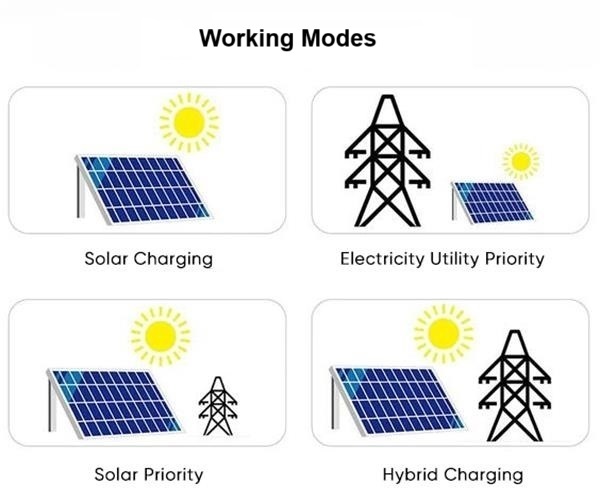

There are three operation modes of this hybrid solar inverter : Grid-tie with backup, Grid-Tie and Off-Grid. Grid-tie with backup: PV power can feed-in back to grid, provide power to the load and charge battery. There are four options available in this mode: Grid tie with backup I, II, III and IV. In this mode, users can configure PV power supply priority, charging source priority and load supply source priority. However, when Grid-tie with backup IV option is selected in PV energy supply priority, the inverter is only operated between two working logics based on defined peak time and off-peak time of electricity. Only peak time and off-peak time of electricity are able to set up for optimized electricity usage. Grid-Tie: PV power only can feed-in back to grid. Off-Grid: PV power only provides power to the load and charge battery. No feed-in back to grid is allowed.
|
 |
