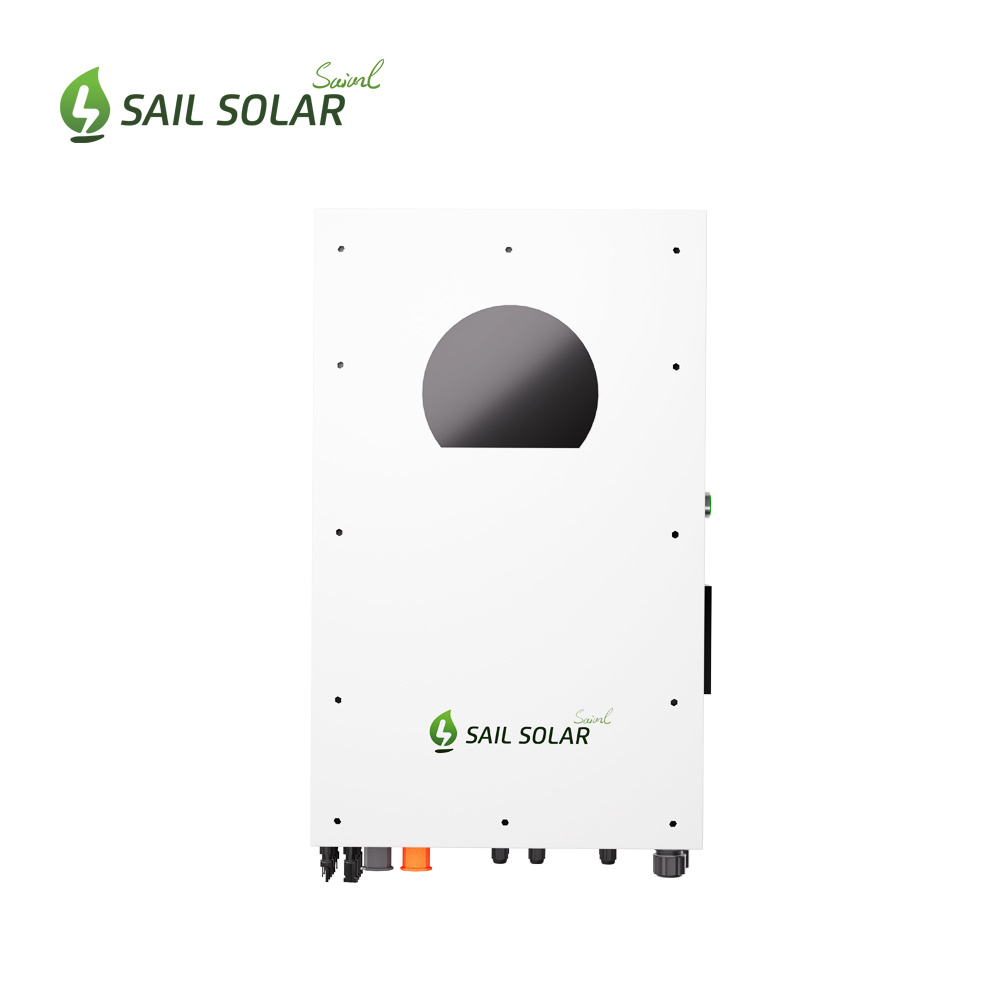

Pure Sine Wave Three Phase 380V Hybrid Solar Inverter 8 Kw Home Energy System Inverters With Two MPPT

Pure Sine Wave Three Phase 380V Hybrid Solar Inverter 8 Kw Home Energy System Inverters With Two MPPT

  • Payment :

    T/T, L/C, Western Union
  • Shipping Port :

    Shanghai
  • Parallel :

    6 Units
  • Monitoring :

    Wifi
  • Max Power :

    8000W
  • Output Voltage :

    380V
  • Warranty :

    5 Years
  • Certificate :

    CE
  • Communication :

    BMS (RS485)
  • Protection :

    IP65
  • Order MOQ :

    1
  • Type :

    Hybrid AC/DC Inverter
  • Item No. :

    Helios-8KLP3-EU

Helios-8KLP3-EU hybrid inverter supports parallel operation of up to 6 units, features two independent AC power sources with automatic switching, includes built-in WiFi for mobile monitoring via an available app, offers 150% unbalanced load support, allows user-adjustable charging current and voltage, and has a reserved communication port for BMS (RS485).

Specification

MODEL

Helios- 8KLP3-EU

Maximum Pv Input Power

12000 W

Rated Output Power

8000 W

Maximum Charging Power

8000 W
PV INPUT (DC)



Maximum DC Voltage
900 VDC
Start-up Voltage / Initial Feeding Voltage
150 VDC / 150 VDC
MPP Voltage Range
150 VDC ~ 850 VDC
Full MPP Voltage Range
400 VDC ~ 850 VDC
Number of MPP Trackers / Maximum Input Current
2 / A: 15A, B: 15A
GRID OUTPUT (AC)



Nominal Output Voltage
230 VAC (P-N) / 400 VAC (P-P)
Output Voltage Range
184 - 265 VAC* per phase
Nominal Output Current
11.6 A per phase
AC INPUT



AC Start-up Voltage / Auto Restart Voltage
120 - 140 VAC per phase / 180 VAC per phase
Acceptable Input Voltage Range
170 - 290 VAC per phase
Maximum AC Input Current
40 A
BATTERY MODE OUTPUT (AC)



Nominal Output Voltage
230 VAC (P-N) / 400 VAC (P-P)
Efficiency (DC to AC)
>93%
BATTERY & CHARGER



Battery Voltage Range
40 ~ 60 VDC
Maximum Charging Current
200 A
Maximum Charging Current
160 A
PHYSICAL



Size, D x W x H (mm)
247 x 500 x 650
Net Weight (kgs)
50
INTERFACE



Communication Port
RS-232, RS-485, USB, CAN and Wi-Fi
Intelligent Slot
Optional for SNMP and Modbus cards
ENVIRONMENT



Humidity
0 ~ 100% RH (Non-condensing)
Operating Temperature
-25 to 60°C, > 45°C power derating
Altitude
0 ~ 1000 m**
PROTECTION & CERTIFICA TE



Safety
IEC 62116, IEC 62727, IEC 61683, IEC 62109, IEC 61000-6-2:2019, IEC 61000-6-4:2019,
IEC 61000-3-11:2019, EN 61000-3-12: 2011
Protection Grade
IP65
Grid Connection Standard
NRS097-2-1:2017, VDE-AR-N4105

Application



Through the research of existing products on the market and the actual needs of the end customers, the Helios series of solar inverters have been independently developed. In terms of appearance design, the method of combining industry and fashion is adopted, turning a product that was originally industrialized into a stylish household appliance.

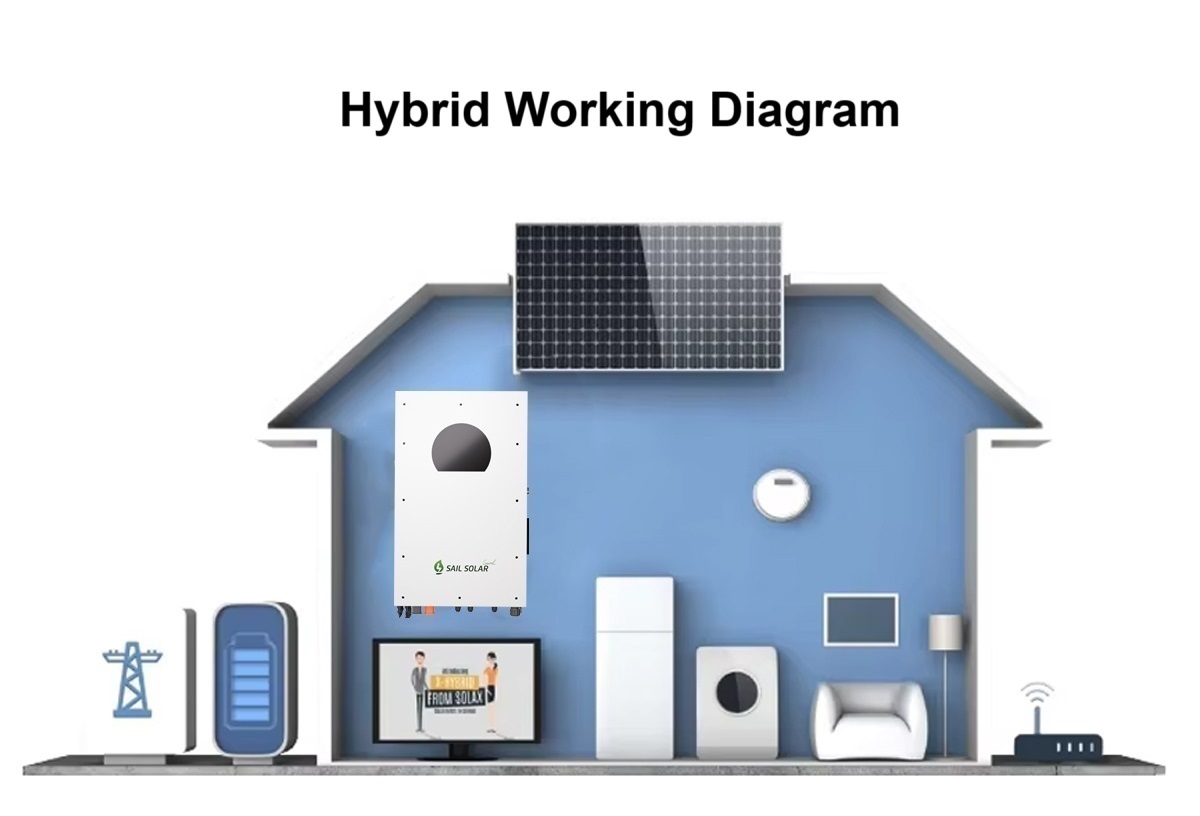

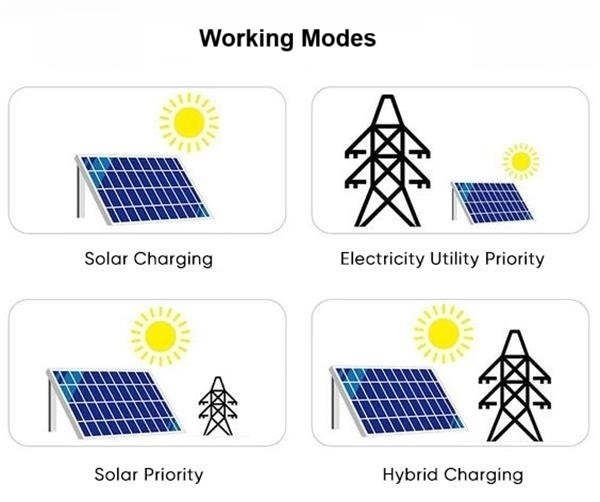

This pure sine wave hybrid solar inverter that can self-consumption and feed into the grid. With dual PV input and dual AC output and a newly developed color LCD display screen.This 8kw hybrid solar inverter is a great solar energy backup power solution for homes and small businesses.



Helios-8KLP3-EU hybrid solar inverter achieves an impressive conversion efficiency of up to 98.5%. This means that it loses very little energy during the process of converting solar power to electrical power, ensuring that users get the most out of their solar generation. It is supports a DC input voltage range of 150-850V. This broad range allows it to accommodate different specifications and configurations of solar panels, providing users with a flexible installation and usage experience. In addition, this hybrid solar inverter comes equipped with an advanced monitoring system that can track the inverter's operational status, power generation, and grid conditions in real-time. Users can monitor the system's performance and control it remotely via a mobile or computer-based platform.
