Home Products Hybrid Inverter

Residential Hybrid Inverter

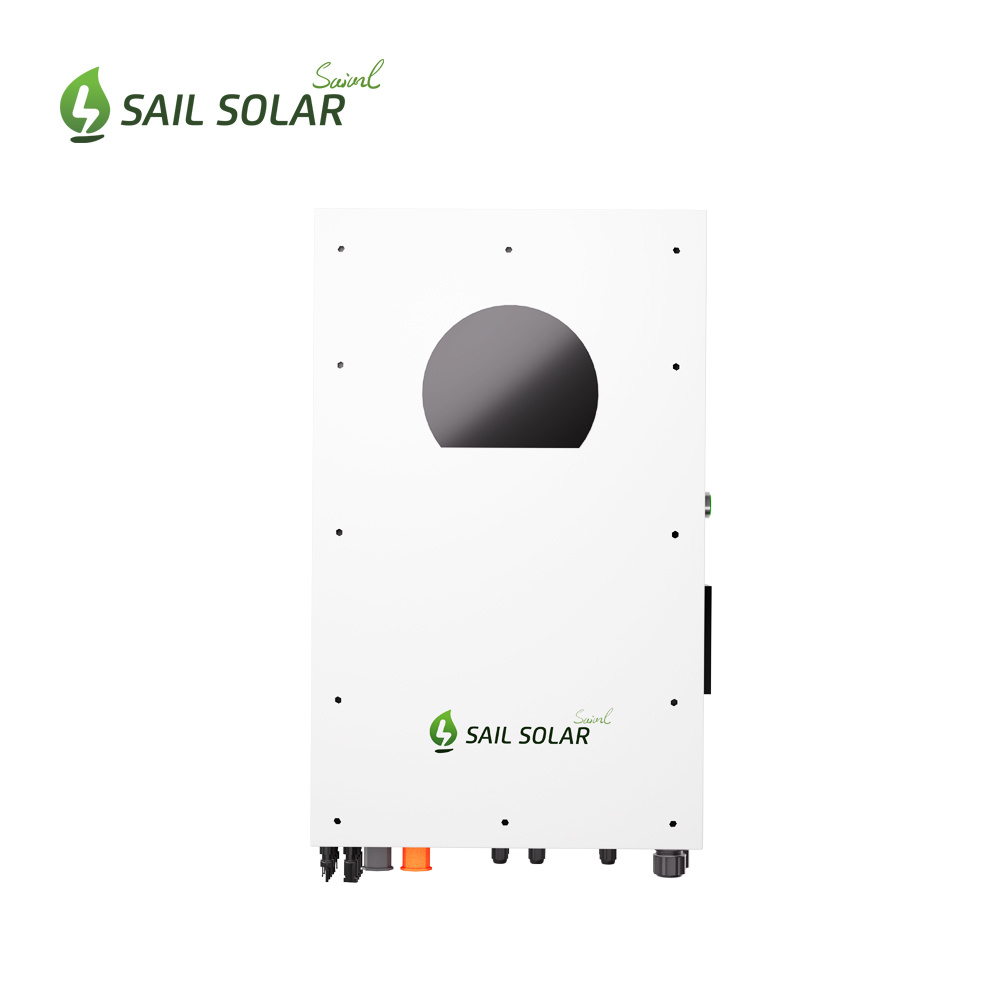

High Efficiency Three Phase Hybrid Solar Inverter 10Kw Household Energy Storage Inverters With Parallel Function

High Efficiency Three Phase Hybrid Solar Inverter 10Kw Household Energy Storage Inverters With Parallel Function

  • Payment :

    T/T, L/C, Western Union
  • Shipping Port :

    Shanghai
  • Parallel :

    6 Units
  • Monitoring :

    Wifi
  • Max Power :

    10000W
  • Output Voltage :

    380V
  • Warranty :

    5 Years
  • Certificate :

    CE
  • Communication :

    BMS (RS485)
  • Protection :

    IP65
  • Order MOQ :

    1
  • Type :

    Hybrid AC/DC Inverter
  • Item No. :

    Helios-10KLP3-EU

Helios-10KLP3-EU hybrid inverter supports parallel operation of up to 6 units, features two independent AC power sources with automatic switching, includes built-in WiFi for mobile monitoring via an available app, offers 150% unbalanced load support, allows user-adjustable charging current and voltage, and has a reserved communication port for BMS (RS485).

Specification

MODEL

Helios-10KLP3-EU

Maximum Pv Input Power

15000 W

Rated Output Power

10000 W

Maximum Charging Power

10000 W
PV INPUT (DC)



Maximum DC Voltage
900 VDC
Start-up Voltage / Initial Feeding Voltage
150 VDC / 150 VDC
MPP Voltage Range
150 VDC ~ 850 VDC
Full MPP Voltage Range
400 VDC ~ 850 VDC
Number of MPP Trackers / Maximum Input Current
2 / A: 26A, B: 26A
GRID OUTPUT (AC)



Nominal Output Voltage
230 VAC (P-N) / 400 VAC (P-P)
Output Voltage Range
184 - 265 VAC* per phase
Nominal Output Current
14.5 A per phase
AC INPUT



AC Start-up Voltage / Auto Restart Voltage
120 - 140 VAC per phase / 180 VAC per phase
Acceptable Input Voltage Range
170 - 290 VAC per phase
Maximum AC Input Current
40 A
BATTERY MODE OUTPUT (AC)



Nominal Output Voltage
230 VAC (P-N) / 400 VAC (P-P)
Efficiency (DC to AC)
>93%
BATTERY & CHARGER



Battery Voltage Range
40 ~ 60 VDC
Maximum Charging Current
220 A
Maximum Charging Current
200 A
PHYSICAL



Size, D x W x H (mm)
247 x 500 x 650
Net Weight (kgs)
50
INTERFACE



Communication Port
RS-232, RS-485, USB, CAN and Wi-Fi
Intelligent Slot
Optional for SNMP and Modbus cards
ENVIRONMENT



Humidity
0 ~ 100% RH (Non-condensing)
Operating Temperature
-25 to 60°C, > 45°C power derating
Altitude
0 ~ 1000 m**
PROTECTION & CERTIFICA TE



Safety
IEC 62116, IEC 62727, IEC 61683, IEC 62109, IEC 61000-6-2:2019, IEC 61000-6-4:2019,
IEC 61000-3-11:2019, EN 61000-3-12: 2011
Protection Grade
IP65
Grid Connection Standard
NRS097-2-1:2017, VDE-AR-N4105

Application

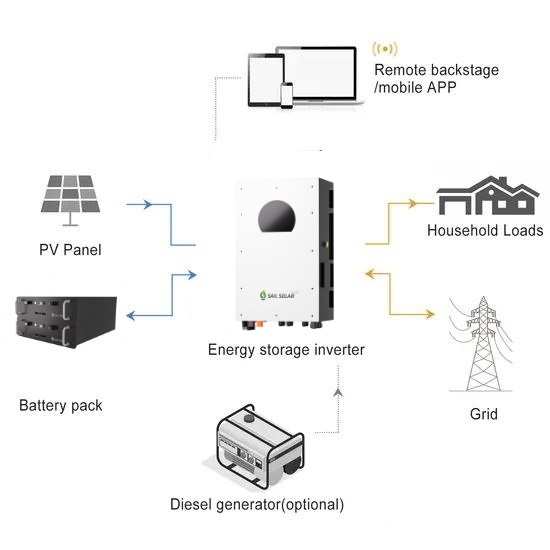

Specifically designed for three-phase applications, this inverter is ideal for large solar power generation systems, such as those used in commercial and industrial settings. The three-phase output allows the inverter to meet higher power demands and enhance the overall performance of the system.

Helios-10KLP3-EU inverter is compatible with a variety of solar panel systems, including those with an input voltage of 48V and an output frequency of 50/60Hz. This wide compatibility enables users to choose the solar panels that best suit their needs. The inverter features a robust and compact design that can withstand harsh outdoor conditions. This ensures long-term stability and reliability during operation.

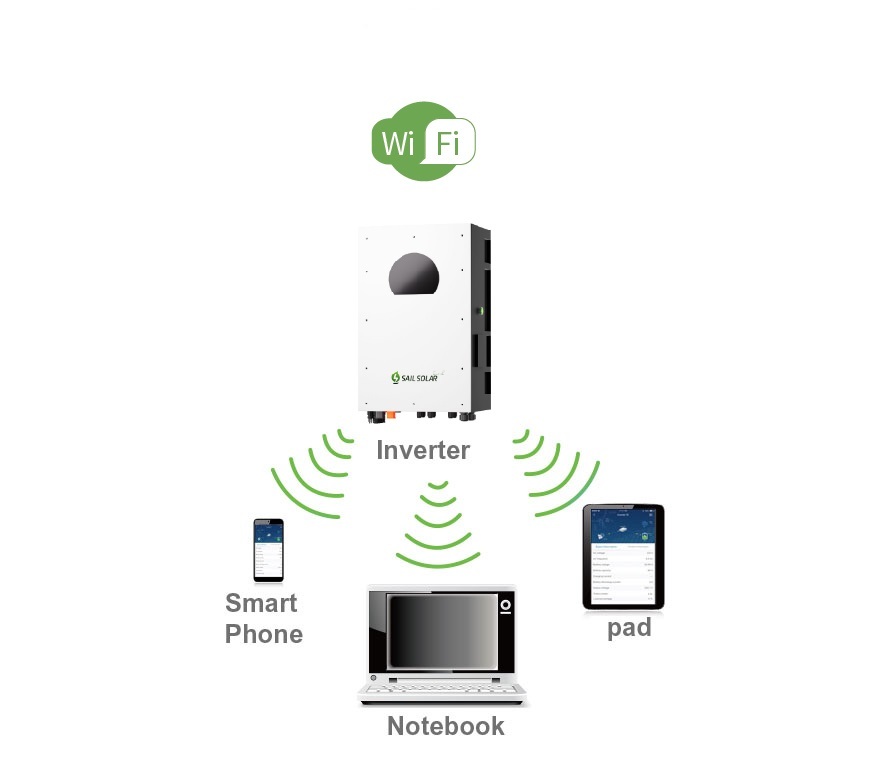

Helios-10KLP3-EU inverter is ideal for residential solar power systems. Its high efficiency and robust design ensure that homeowners can maximize their energy output while maintaining a reliable power supply. The built-in Wi-Fi module allows for easy monitoring and management of the system via a smartphone or tablet. For commercial properties, the three-phase output of the Infinisolar WP Elite 10KW inverter makes it suitable for larger installations with higher power demands. This is particularly beneficial for businesses looking to reduce their energy costs and carbon footprint by utilizing solar power.

n industrial settings, where power requirements are significantly higher, the inverter’s ability to handle three-phase output ensures stable and efficient operation. Its durable build and IP65 rating make it suitable for the demanding conditions often found in industrial environments.
