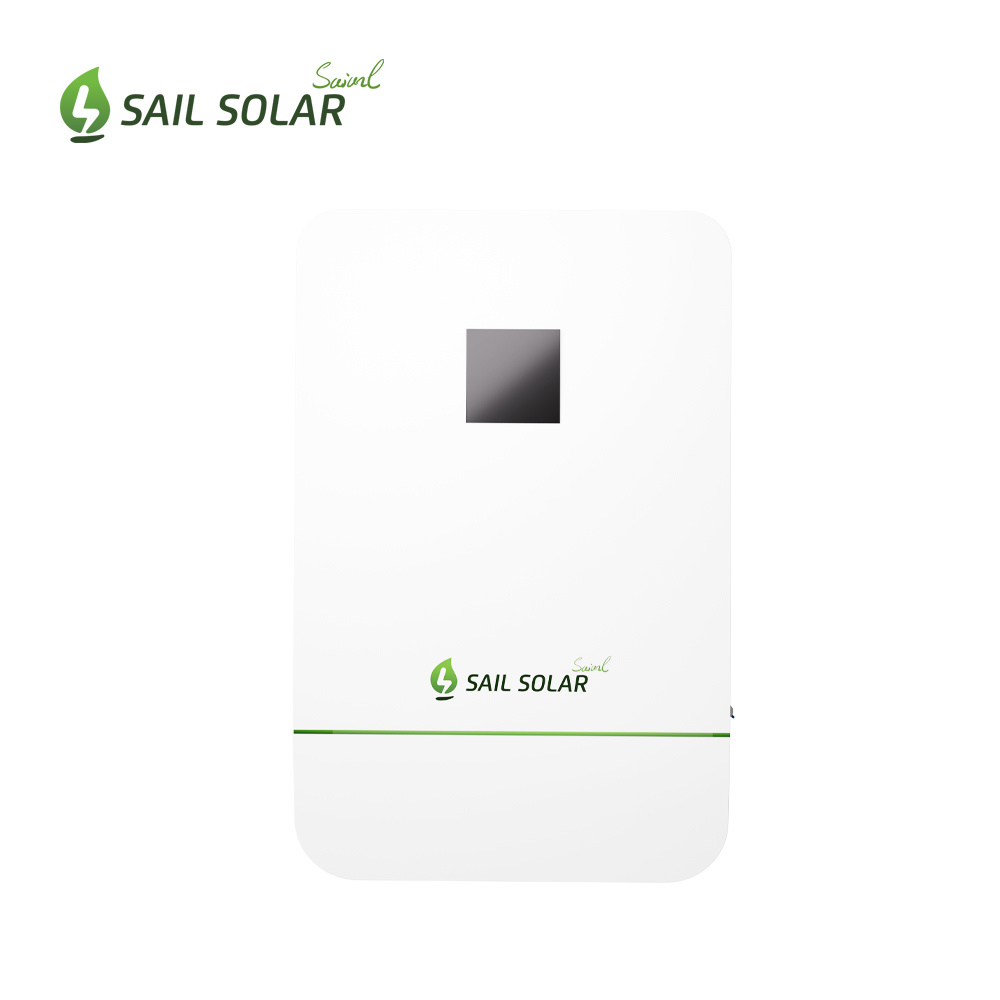

Rechargeable MPPT Hybrid Solar Inverters 8 Kw Three Phase Solar Power Storage Inverter For Home

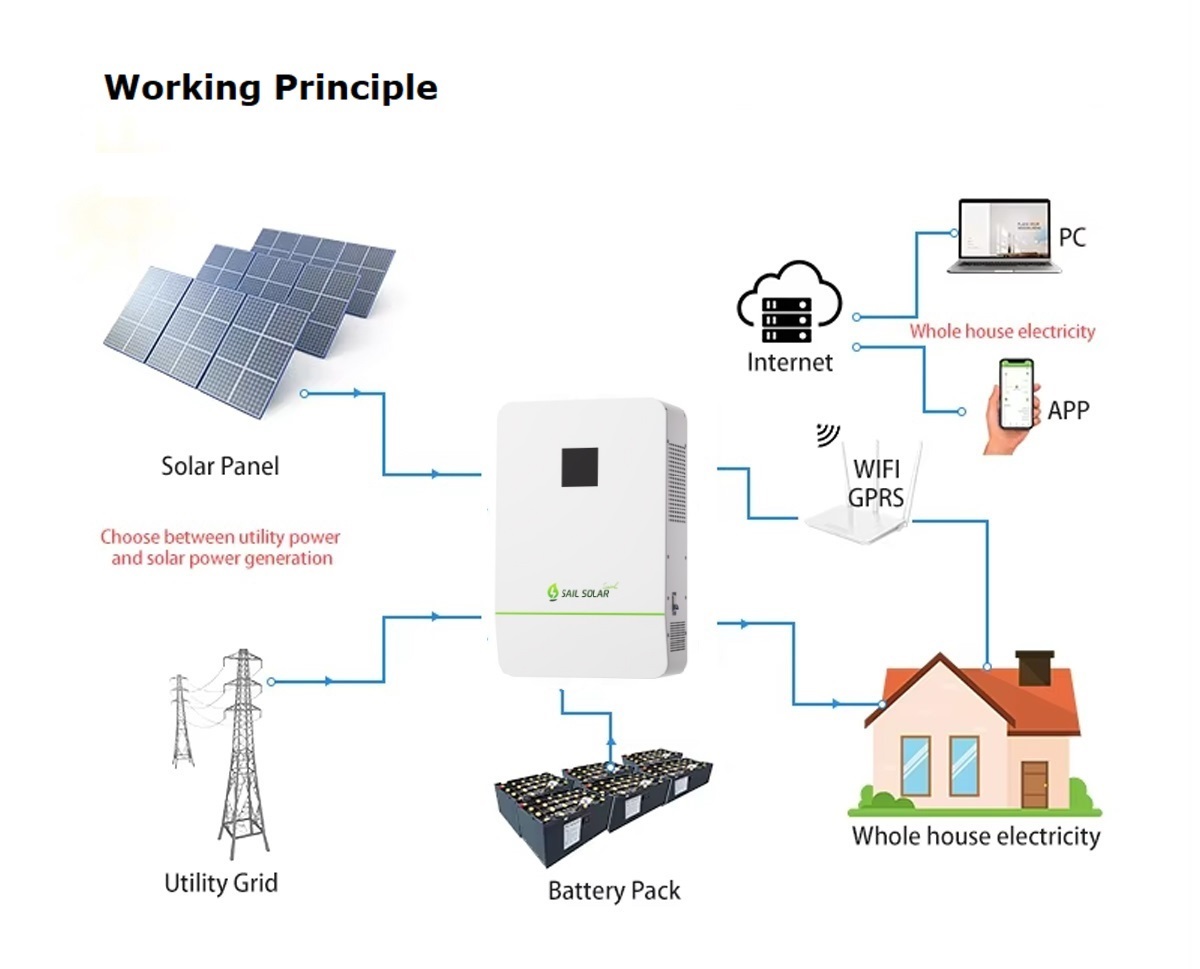

Xihe-8KLP1-EU solar inverter offers four charging modes: solar only, mains priority, solar priority, and mixed mains/PV charging . It features a time-slot charging and discharging setting function, allowing you to set the time period for mains charging cut in/out and switch between battery discharging and mains bypass power supply mode. It includes an energy-saving mode to reduce no-load energy losses and offers two output modes: utility bypass and inverter output, ensuring uninterrupted power supply. The LCD large screen dynamic flow diagram design makes it easy to understand system data and operation status. Comprehensive protection includes complete short circuit protection, over current protection, over/under voltage protection, overload protection, and backfeed protection. Additionally, it supports CAN, USB, and RS485 communication.

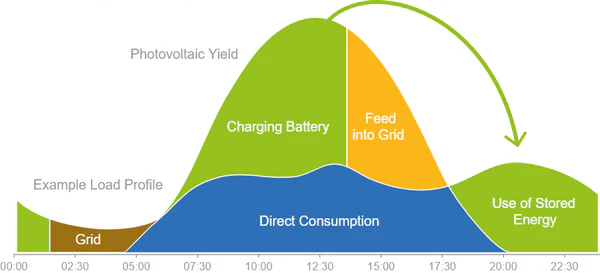

The Xihe-8KLP1-EU solar inverter is equipped with a time-slot charging and discharging function, which allows users to set different charging and discharging periods according to the local peak and valley tariffs, so that the utility power and PV energy can be used rationally.

When mains electricity is expensive, the battery inverter is used to carry the load; when the mains electricity is cheap, the mains electricity is used to carry the load and charge, which can help customers to save electricity costs to the greatest extent.With 3 definable periods, the user can freely set the mains charging/carrying time within the range of 00:00 to 23:59. During the time period set by the user, if PV energy is available, PV energy will be used first, and if PV energy is not available or insufficient, utility energy will be used as a supplement.
