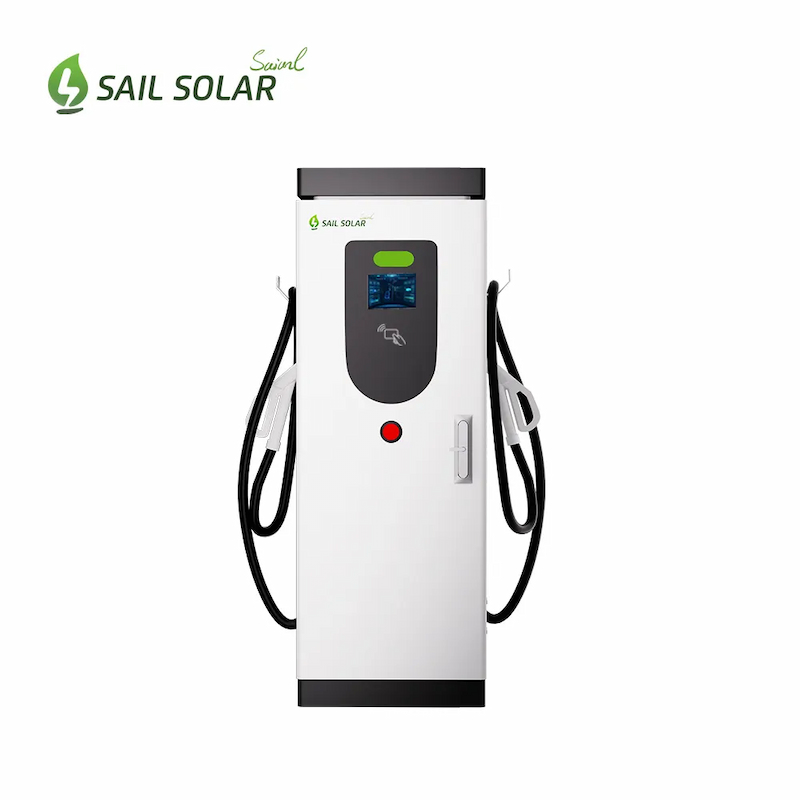

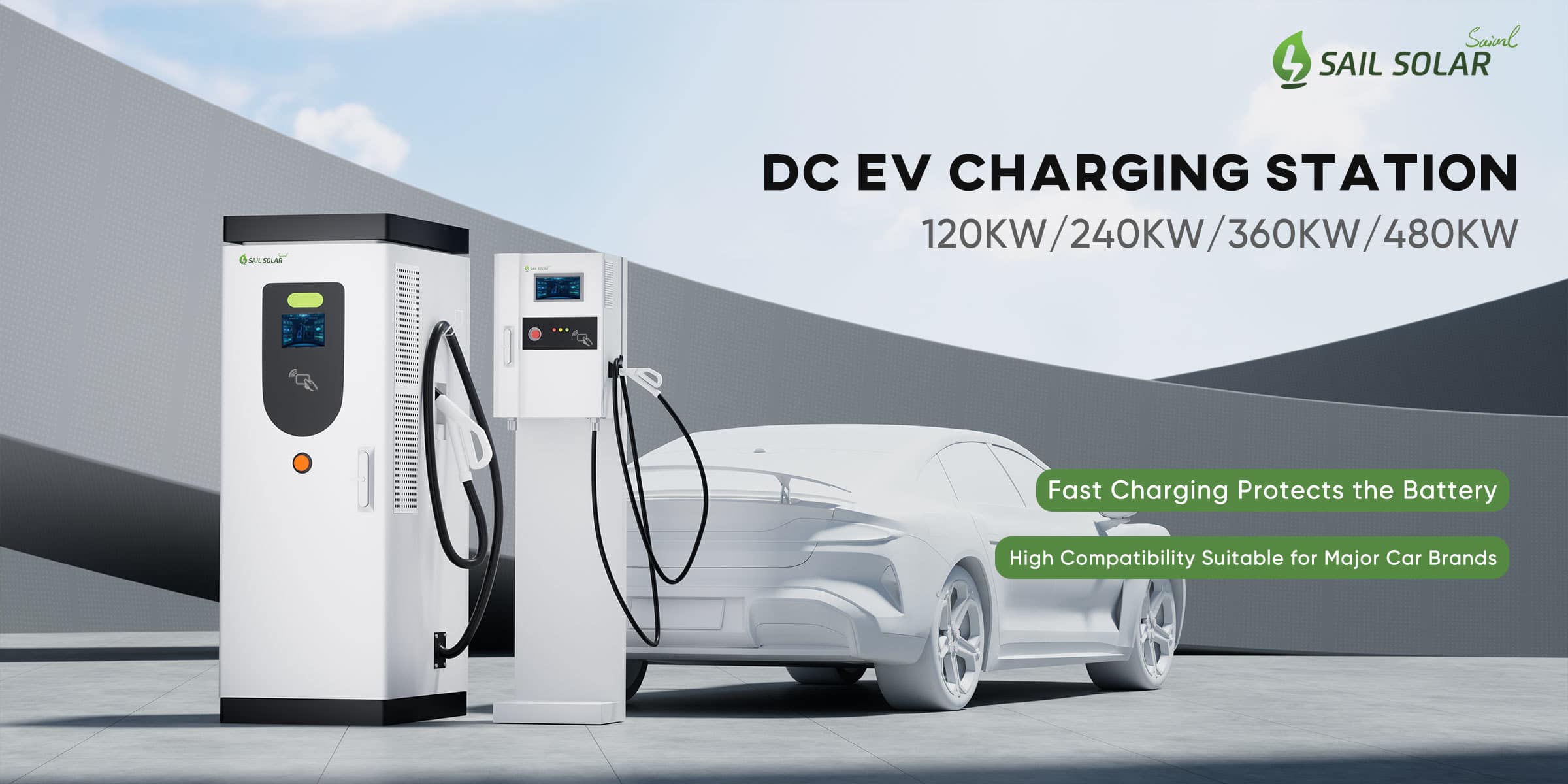

Fast DC EV Charger 120kw 240kw 360kw 480kw Safe DC Electric Car EV Charger with Remote Control

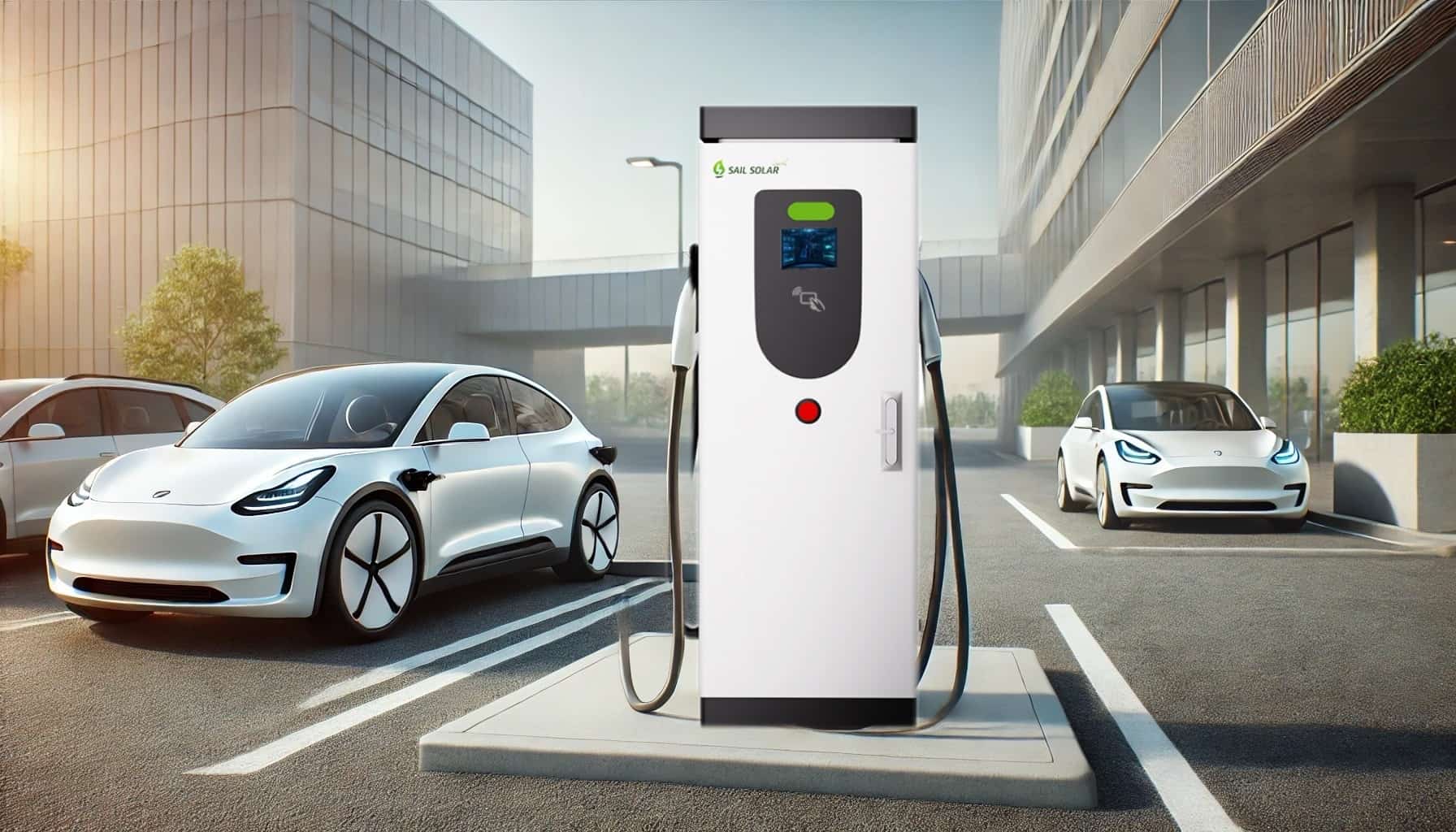

Sail Solar DC EV Charger is primarily installed in commercial parking lots, expressway service areas, factories, and other high-demand locations. It provides fast and efficient charging for various types of electric vehicles through high-power charging plugs.
Cable length :
5 meters (8m/10m optional)Communication mode :
4G, Ethernet, WiFi , BluetoothMax DC output power rating :
120KW, 240kW ,300kW ,360kWLocalization :
CE, TR25Charging type :
DC ChargerTrademark :
OEM acceptableWiFi :
SupportSafety and Certification :
IEC 61851-1 , IEC 61851- 21- 2 , IEC 61851- 22 , IEC 62196 - 2, IEC 62196 -3Protection :
OVP, OCP, OPP, OTP, UVP, SCP, LVP, Residual current detection, Surge protectionThis type of charging pile is typically larger, featuring a robust design and advanced technology to support rapid charging needs. It is ideal for public charging stations, logistics hubs, business areas, and other places requiring quick and convenient charging solutions.
|
Charging type
|
DC Charger
|
|
Localization
|
CE, TR25
|
|
Max DC output power rating
|
240kW ,300kW ,360kW
|
|
Input voltage range
|
400VAC, 400 VAC +/- 15% (50 Hz or 60 Hz)
|
|
Connector types
|
3P+N+PE(Three phase)
|
|
Input AC power rating(MAX)
|
440A , 550A , 660A
|
|
Power factor (full load)
|
> 0.99
|
| THDi | <5% |
|
Standby power
|
< 10W
|
|
Protection
|
OVP, OCP, OPP, OTP, UVP, SCP, LVP, Residual current detection, Surge protection,
Door Access , RCD Protection |
|
Communication mode
|
4G, Ethernet
|
|
User authentication
|
RFID, MAC, Screen button
|
|
RFID Reader
|
ISO 14443
|
|
Software update
|
Remote upgrade
|
|
Control and configuration
|
Cloud platform, OCPP 1.6J (Extendable to ocpp2.0)
|
|
IP and IK rating
|
IP-65 and IK-10 (cabinet)
|
|
Operational altitude
|
Up to 2500 m
|
|
Operating temperature range
|
-40°C to + 55°C (power de - rating applies)
|
|
Humidity
|
5 -95 % Rh non- condensing
|
|
Dimensions (W x D x H )
|
750mm*700mm*1860mm
|
|
Cable length
|
5 meters (8m/10m optional)
|
|
Charging system
|
IEC 61851-1 , IEC 61851- 21- 2 , IEC 61851- 22 , IEC 62196 - 2, IEC 62196 -3
|
Application
Advantages and Feasures
>IP55 with labyrinth type air inlet and outlet. 95% efficiency and wide constant power range of 300-1000V.
>Master-slave charging supported, upto 1000V/400A achieve high power fast charging.
>Three-proof paint coating of moisture-proof, mold-proof, salt spray-proof ensure stable quality.
>Smart Options: GPS navigation and real-time reservation queries are available via the app and mini-program. The bright 7-inch display offers a wide range of applications, including residential and factory environments, and is suitable for car charging.
We understand that compatibility is key. To ensure the best performance for your specific vehicle, we encourage you to consult with our customer service team. They will provide detailed compatibility information and help you select the ideal charger model and configuration based on your car’s make and charging requirements.
Our DC EV Charger is engineered to meet the demands of the modern electric vehicle, delivering reliable, efficient, and ultra-fast charging for a wide range of models. As a powerful solution for commercial and public charging stations, it minimizes downtime and maximizes convenience, ensuring drivers are back on the road quickly and safely.
Whether you’re equipping a public charging hub or optimizing a commercial fleet, we’re here to help you make the right choice for your EV charging needs.
