product detals
Home Products Lithium Battery

Residential Lithium Battery

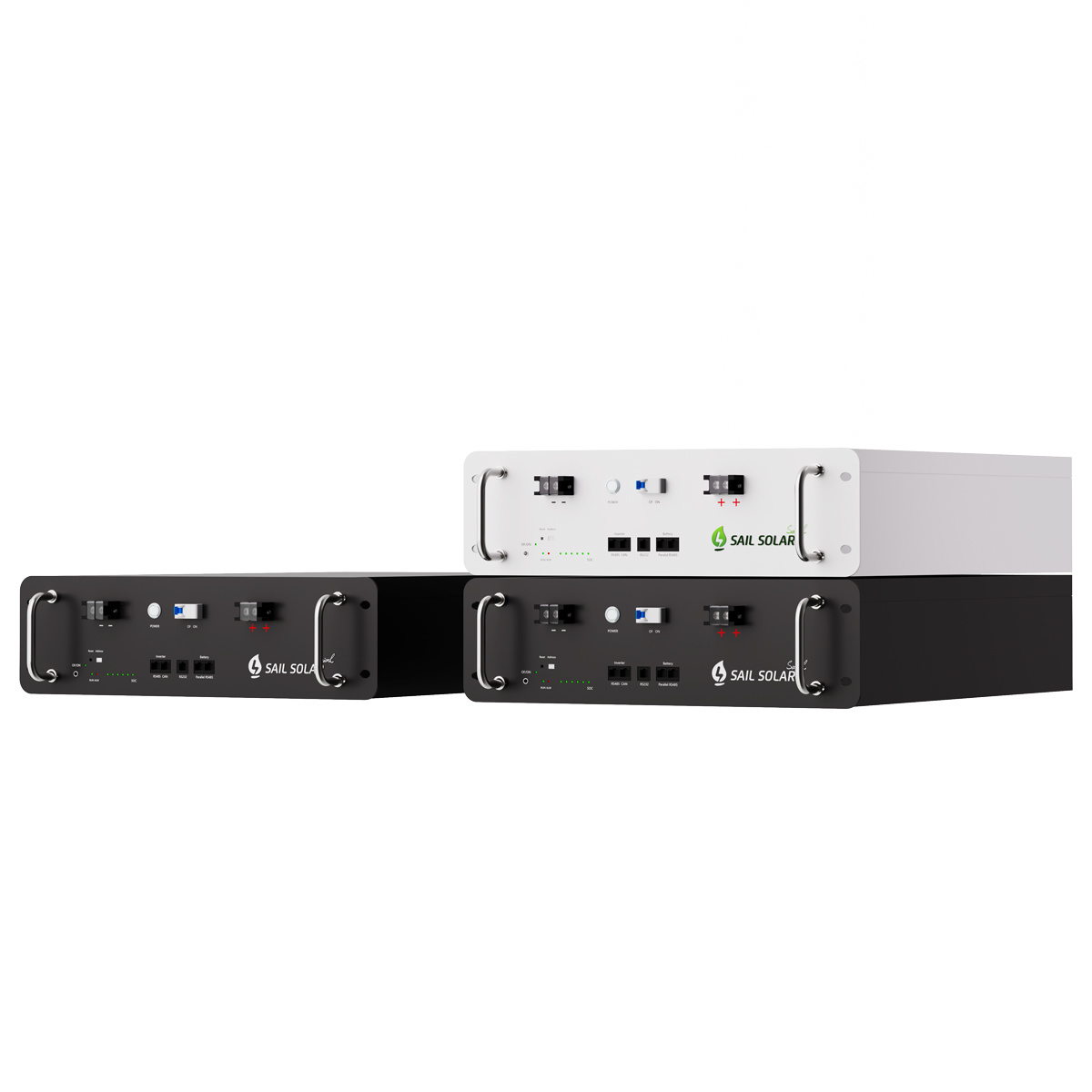

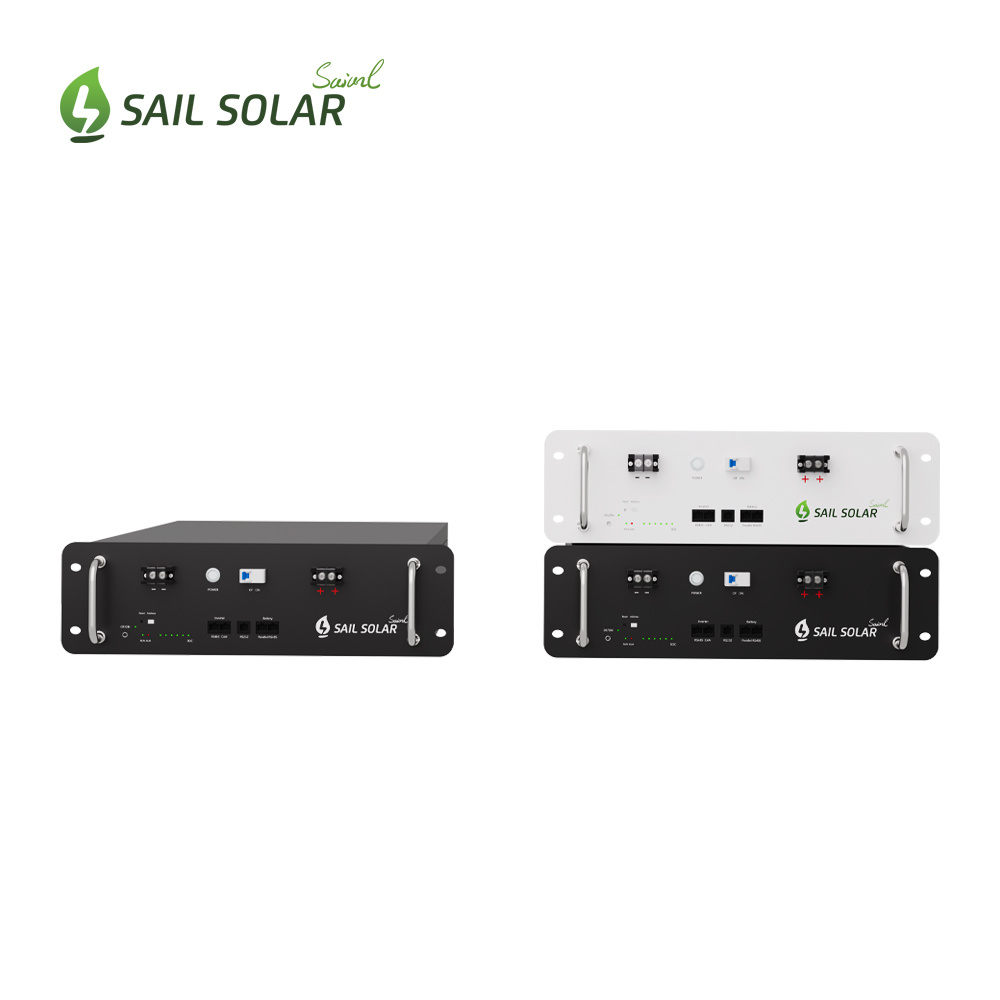

Sail Solar X Series Rack LiFePO4 Battery X-51300-15.36KWh Power Bank

Sail Solar X Series Rack LiFePO4 Battery X-51300-15.36KWh Power Bank

  • Payment :

    T/T,L/C, Western Union
  • Shipping Port :

    Shanghai/Shenzhen
  • Warranty :

    5 Years
  • Certificate :

    CE/IEC/UL/UN38.3/MSDS
  • Communication :

    RS232/RS485/CAN/BLUEBOOTH/WIFI
  • Protection :

    IP20
  • Order MOQ :

    1
  • Nominal Capacity :

    15.36KWh
  • Nominal Voltage :

    51.2V
  • Type :

    Lithium-ion Battery
  • Item No. :

    X Series X-51300

Product Description:
This Chinese quality All In One Lifepo4 Battery Energy Storage System features a 51.2V nominal voltage and 15.36KWh capacity, providing stable power output with IP20 protection. Equipped with multiple communication options (RS232/RS485/CAN/BLUETOOTH/WIFI), it ensures seamless integration with various energy systems. Certified to CE/IEC/UL/UN38.3/MSDS standards, the system offers a 5-year warranty for guaranteed reliability.

Ideal for solar energy storage and backup power, the Chinese quality All In One Lifepo4 Battery Energy Storage System combines advanced technology with durable construction, making it a trusted choice for sustainable energy solutions worldwide.

Sail Solar Lithium battery has compact design, LCD screen, convenient setting buttons, bluetooth Monitor on your smartphones, and cables&accessories ready for installation. To welcome the world cooperation we accept OEM with your logo design!

Chinese quality All In One Lifepo4 Battery Energy Storage System

Specification

MODEL

X-51100

X-51200

X-51300

Battery Type

LiFePO4

Nominal Voltage

51.2V

Nominal Capacity

100Ah

200Ah

300Ah

Energy

5.12KWh

10.24KWh

15.36KWh

Internal Resistance

≤50mΩ

Cycle Life

6000 Cycles @ 0.5C 80%D.O.D

Months Self Discharge

<3%

Efficiency of Charge

99.5%@ 0.2C

Efficiency of Discharge

96-99%@ 1C

Charge Voltage

58.4±0.5V

Charge Mode

CC/CV

Charge Current

20A

40A

Max Charge Current

100Ah

200Ah

Charge Cut-off Voltage

58.4V

Continuous Discharge Current

20A

40A

Max Discharge Current

100A

200A

Discharge Cut-off Voltage

43.2V

Charge Temperature

0 to 45 ℃

Discharge Temperature

-20 to 55 ℃

Storage Temperature

-10 to 40 ℃

Protection Grade

IP20

Cell & Method

EVE 3.2V100Ah-16S1P

EVE 3.2V100Ah-16S2P

EVE 3.2V304Ah-16S1P

Terminal

100A

200A

Protocol(Optional)

RS232/RS485/CAN/BLUETOOTH/WIFI

BMS

100A

200A

Safety & Certification

CE/IEC/UL/UN38.3/MSDS

Size (mm)

550*482*133(D*W*H)

550*482*133(D*W*H)

550*482*133(D*W*H)

Net Weight (kg) 47KG 88KG 114KG
Wooden Box Package Size (mm)

940*555*405

Quantity of Loading

120pcs/20ft 240pcs/40ft

Application

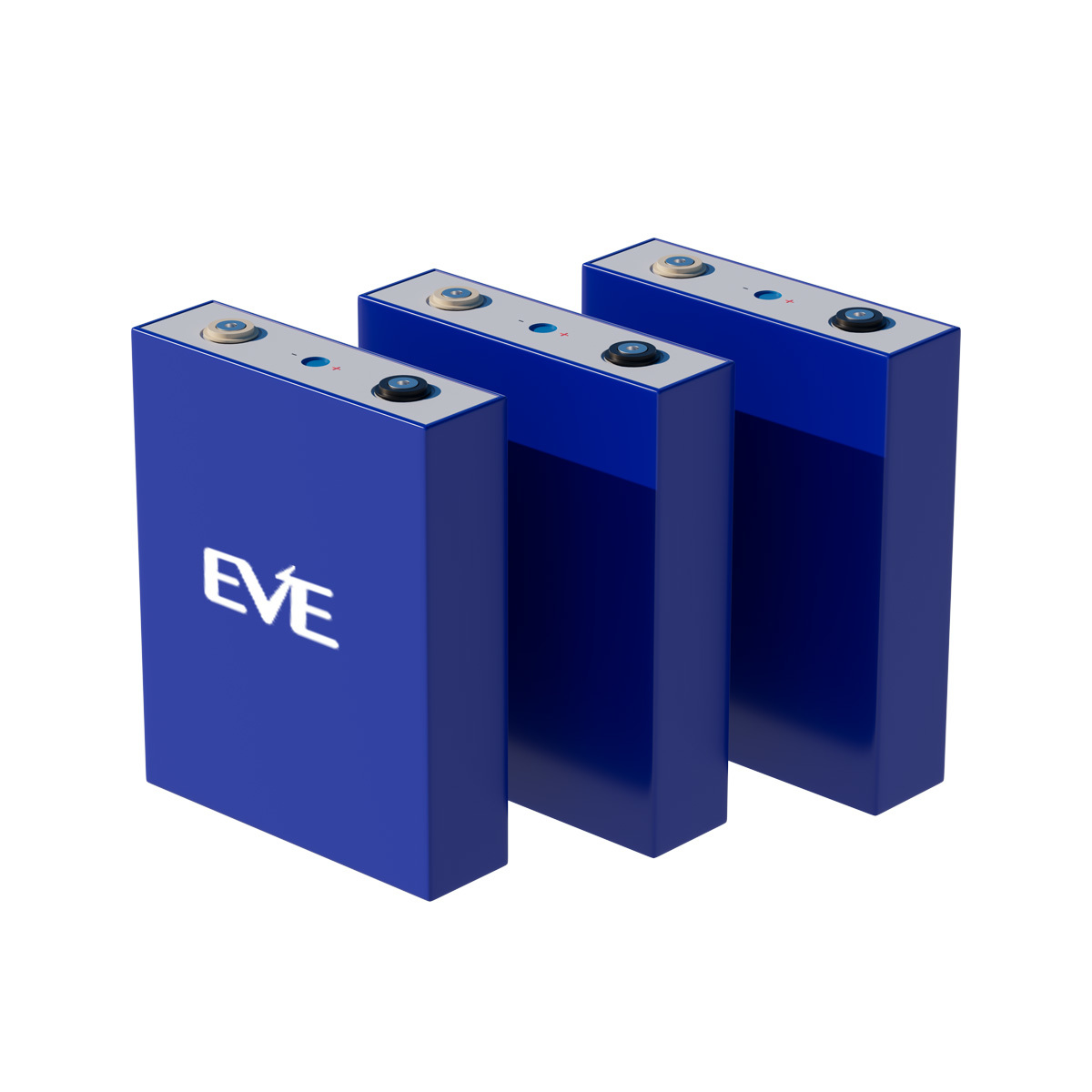

EVE cells leverage advanced design and material technologies to achieve exceptional energy density. This means more energy can be stored in the same volume and weight, delivering enhanced efficiency and longer-lasting power for your solar energy systems.

EVE cells are designed to deliver exceptional performance even in low-temperature environments. This makes them ideal for energy storage systems that operate around the clock, ensuring consistent power supply even in extreme climates.

By integrating EVE battery cells, Sail Solar lithium batteries not only deliver superior performance but also cater to a broader range of energy storage needs. This is the perfect solution for maximizing the efficiency and reliability of green energy systems.

Chinese quality All In One Lifepo4 Battery Energy Storage System
Chinese quality All In One Lifepo4 Battery Energy Storage System

The Stack Rack Battery is an excellent choice for new household energy storage installations. Its innovative design combines practicality and efficiency, making it a top-tier solution for modern energy needs.

With its high energy density and versatile mounting options, the Stack Rack Battery optimizes space usage and adapts seamlessly to a variety of installation scenarios. Whether for compact urban homes or larger properties, this battery system provides a sleek and efficient solution.

Thanks to its modular design, the Stack Rack Battery is built to grow with you. It can easily accommodate evolving energy demands, ensuring your system meets both current and future requirements without the need for costly overhauls.

At Sail Solar, we pride ourselves on being a leading professional lithium battery manufacturer. With extensive experience and cutting-edge technology, we deliver high-quality energy storage solutions. Our fully integrated lithium battery production line enables us to provide customized storage systems tailored to residential, commercial, and utility-scale applications.

Certificate

Our lithium battery products have been exported to more than 100 countries, including but not limited to the United States, Canada, Puerto Rico, Germany, Poland, Belgium, Philippines, Saudi Arabia, South Africa, Nigeria. Products comply with mainstream market certifications, including UL, CE, ISO, MSDS, UN38.3, etc.

Chinese quality All In One Lifepo4 Battery Energy Storage System



After-Sales Service

" 7/24 " After-Sales Support

7 days a week, 24 hours a day: Ready to respond and solve problems immediately—Sail Solar's commitment to worry-free after-sales service.

Service Email: info@sailsolaress.com


Service Process

01

Submit Service Requests

Submit your service requests at any time via email, online customer service, or mobile app.

02

Rapid Response

Our service team will immediately respond to your requests and communicate the details of the issue with you.

03

On-Site Service or Remote Support

Depending on the nature of the problem, provide on-site service or remote technical support.

04

Problem Resolution

Our goal is to completely resolve your issue within 24 hours.

05

Follow-Up

After the problem is resolved, our team will continue to follow up to ensure your satisfaction with the service results.
