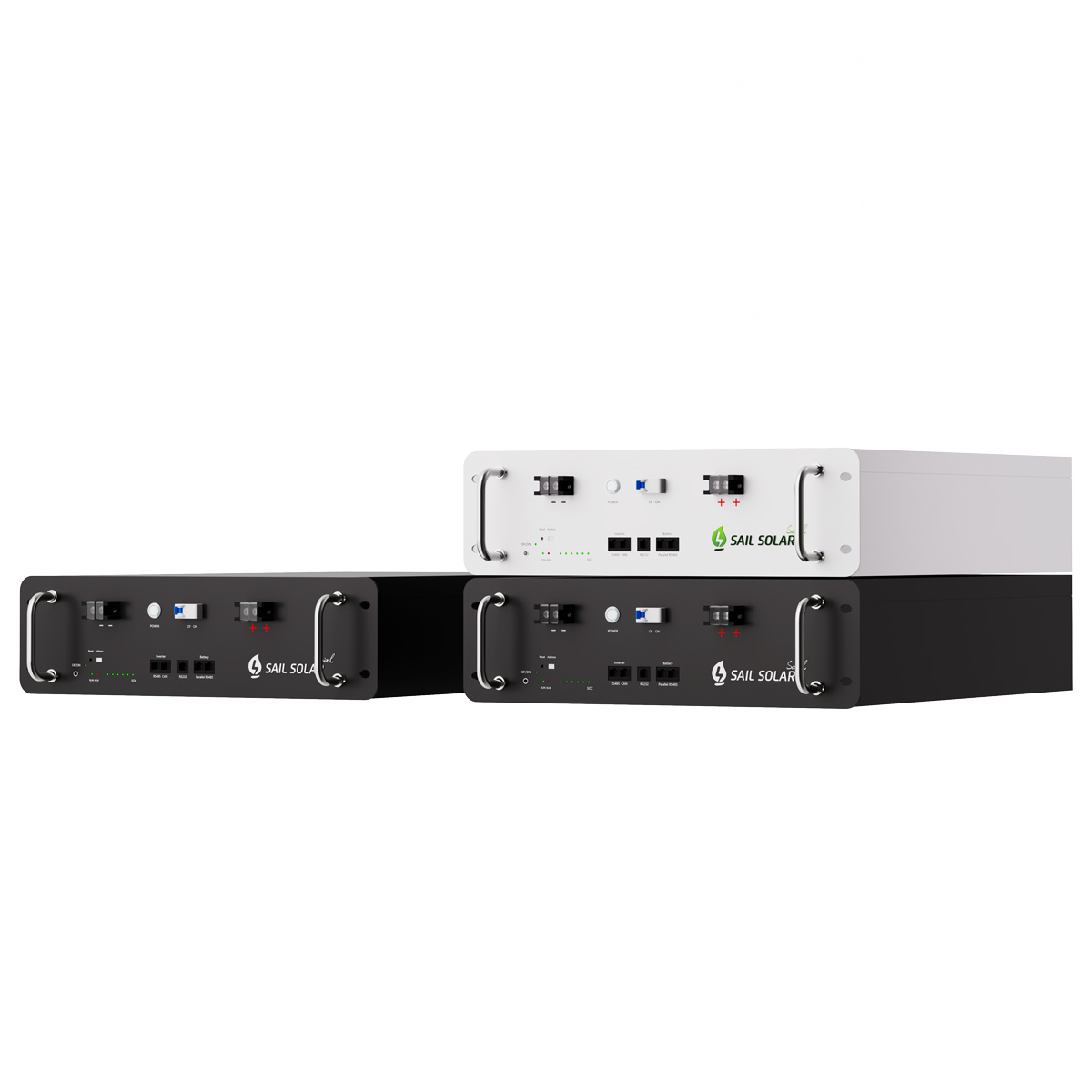

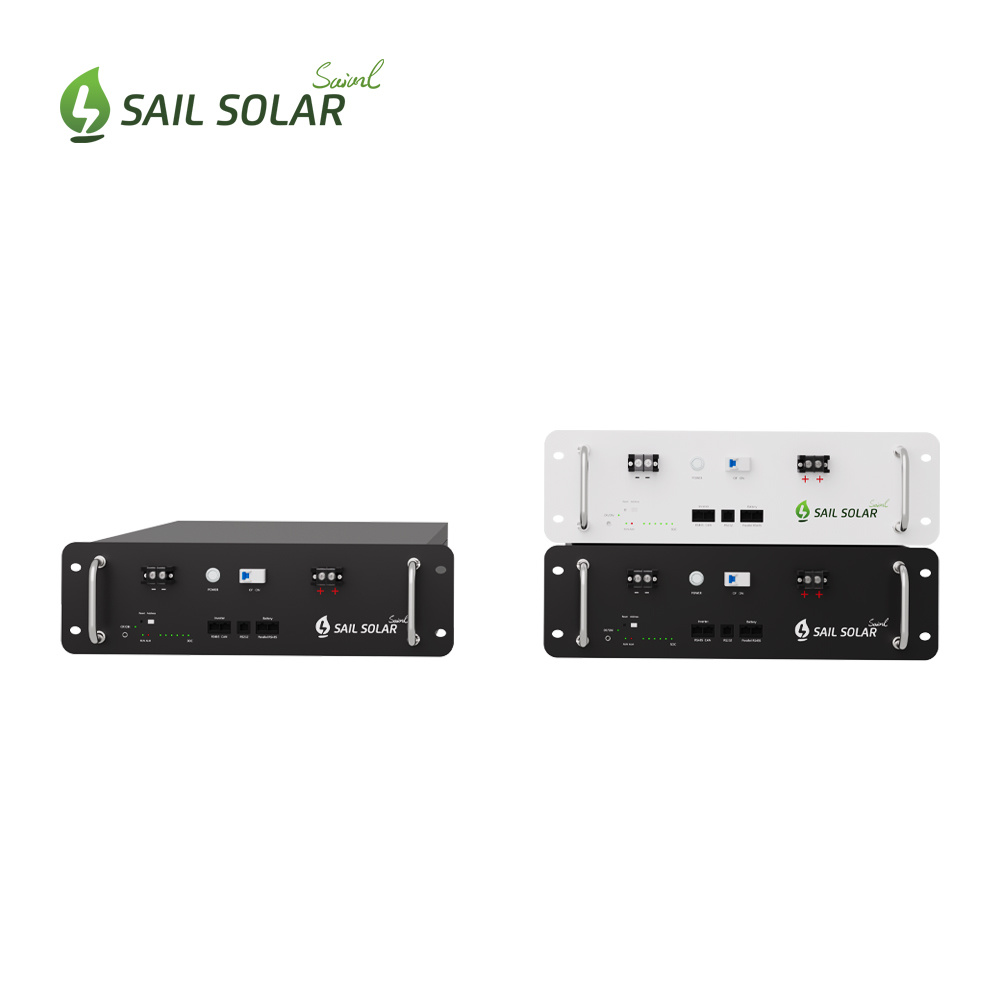

Sail Solar X Series 51.2V 200Ah Rack Lithium Battery X-51200 for Sustainable Energy

Sail Solar X Series 51.2V 200Ah Rack Lithium Battery X-51200 for Sustainable Energy

  • Payment :

    T/T,L/C, Western Union
  • Shipping Port :

    Shanghai/Shenzhen
  • Warranty :

    5 Years
  • Certificate :

    CE/IEC/UL/UN38.3/MSDS
  • Communication :

    RS232/RS485/CAN/BLUEBOOTH/WIFI
  • Protection :

    IP20
  • Order MOQ :

    1
  • Nominal Capacity :

    10.24KWh
  • Nominal Voltage :

    51.2V
  • Type :

    Lithium-ion Battery
  • Item No. :

    X Series X-51200

Sail Solar Lithium battery has compact design, LCD screen, convenient setting buttons, bluetooth Monitor on your smartphones, and cables&accessories ready for installation. To welcome the world cooperation we accept OEM with your logo design!

Specification

MODEL

X-51100

X-51200

X-51300

Battery Type

LiFePO4

Nominal Voltage

51.2V

Nominal Capacity

100Ah

200Ah

300Ah

Energy

5.12KWh

10.24KWh

15.36KWh

Internal Resistance

≤50mΩ

Cycle Life

6000 Cycles @ 0.5C 80%D.O.D

Months Self Discharge

<3%

Efficiency of Charge

99.5%@ 0.2C

Efficiency of Discharge

96-99%@ 1C

Charge Voltage

58.4±0.5V

Charge Mode

CC/CV

Charge Current

20A

40A

Max Charge Current

100Ah

200Ah

Charge Cut-off Voltage

58.4V

Continuous Discharge Current

20A

40A

Max Discharge Current

100A

200A

Discharge Cut-off Voltage

43.2V

Charge Temperature

0 to 45 ℃

Discharge Temperature

-20 to 55 ℃

Storage Temperature

-10 to 40 ℃

Protection Grade

IP20

Cell & Method

EVE 3.2V100Ah-16S1P

EVE 3.2V100Ah-16S2P

EVE 3.2V304Ah-16S1P

Terminal

100A

200A

Protocol(Optional)

RS232/RS485/CAN/BLUETOOTH/WIFI

BMS

100A

200A

Safety & Certification

CE/IEC/UL/UN38.3/MSDS

Size (mm)

550*482*133(D*W*H)

550*482*133(D*W*H)

550*482*133(D*W*H)

Net Weight (kg) 47KG 88KG 114KG
Wooden Box Package Size (mm)

940*555*405

Quantity of Loading

120pcs/20ft 240pcs/40ft

Application

The Stack Rack Battery is an excellent choice for new household energy storage installations.

Its innovative design combines practicality and efficiency, making it a top-tier solution for modern energy needs.

With its high energy density and versatile mounting options, the Stack Rack Battery optimizes space usage and adapts seamlessly to a variety of installation scenarios.

Whether for compact urban homes or larger properties, this battery system provides a sleek and efficient solution.

Thanks to its modular design, the Stack Rack Battery is built to grow with you. It can easily accommodate evolving energy demands, ensuring your system meets both current and future requirements without the need for costly overhauls.

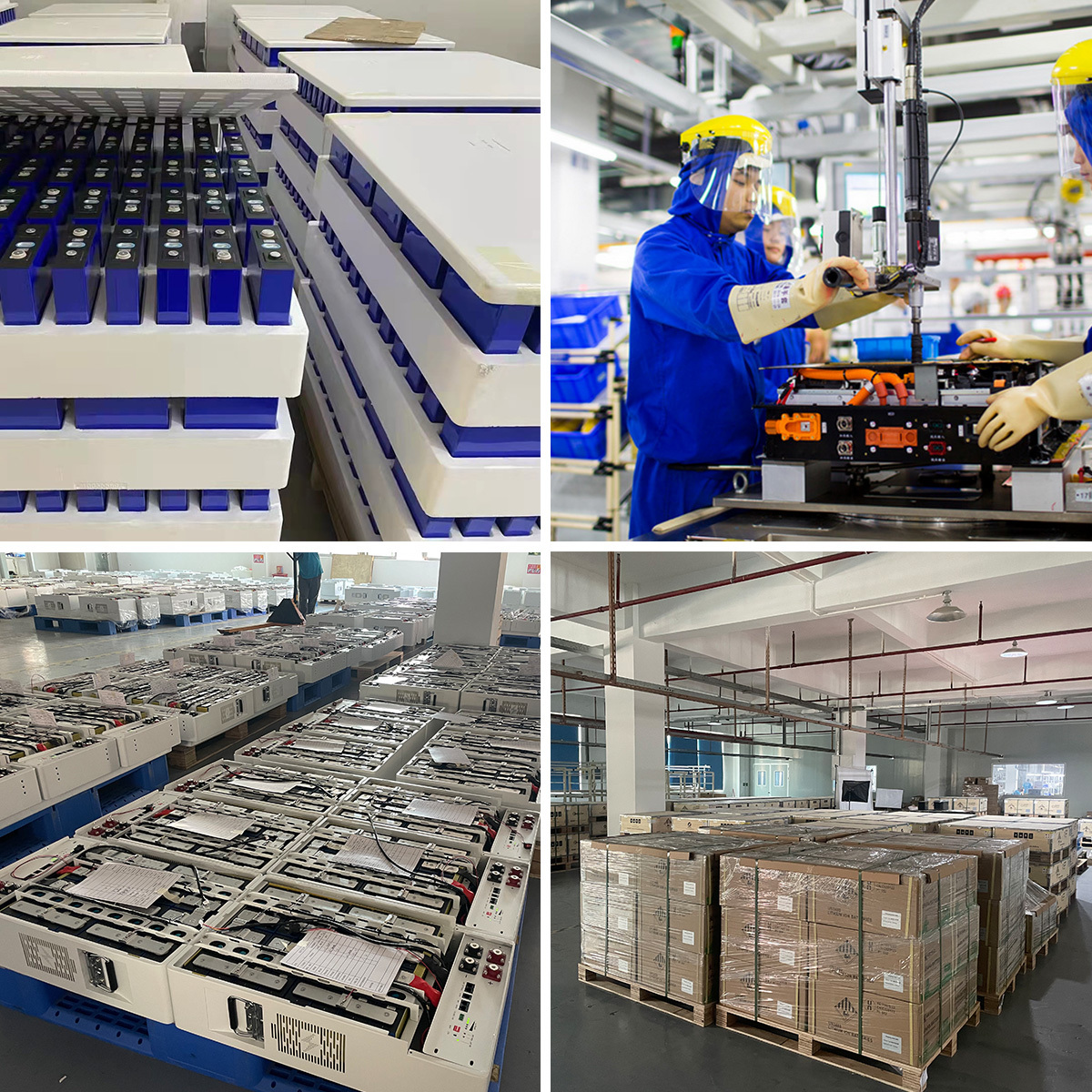

At Sail Solar, we have developed an industry-leading intelligent manufacturing system that integrates cutting-edge technologies and advanced processes. With a commitment to continuous innovation, our top-tier R&D team independently drives breakthroughs in equipment design and manufacturing technology. From the production of high-performance battery cells to assembly and packaging, we deliver unmatched quality and efficiency at every stage.

Our intelligent factory employs 5G technology to enable real-time monitoring and seamless communication across all production units. This high-speed connectivity ensures rapid decision-making and adaptive manufacturing, ensuring we can meet evolving market demands with agility and precision.

Certificate

Our lithium battery products have been exported to more than 100 countries, including but not limited to the United States, Canada, Puerto Rico, Germany, Poland, Belgium, Philippines, Saudi Arabia, South Africa, Nigeria. Products comply with mainstream market certifications, including UL, CE, ISO, MSDS, UN38.3, etc.
