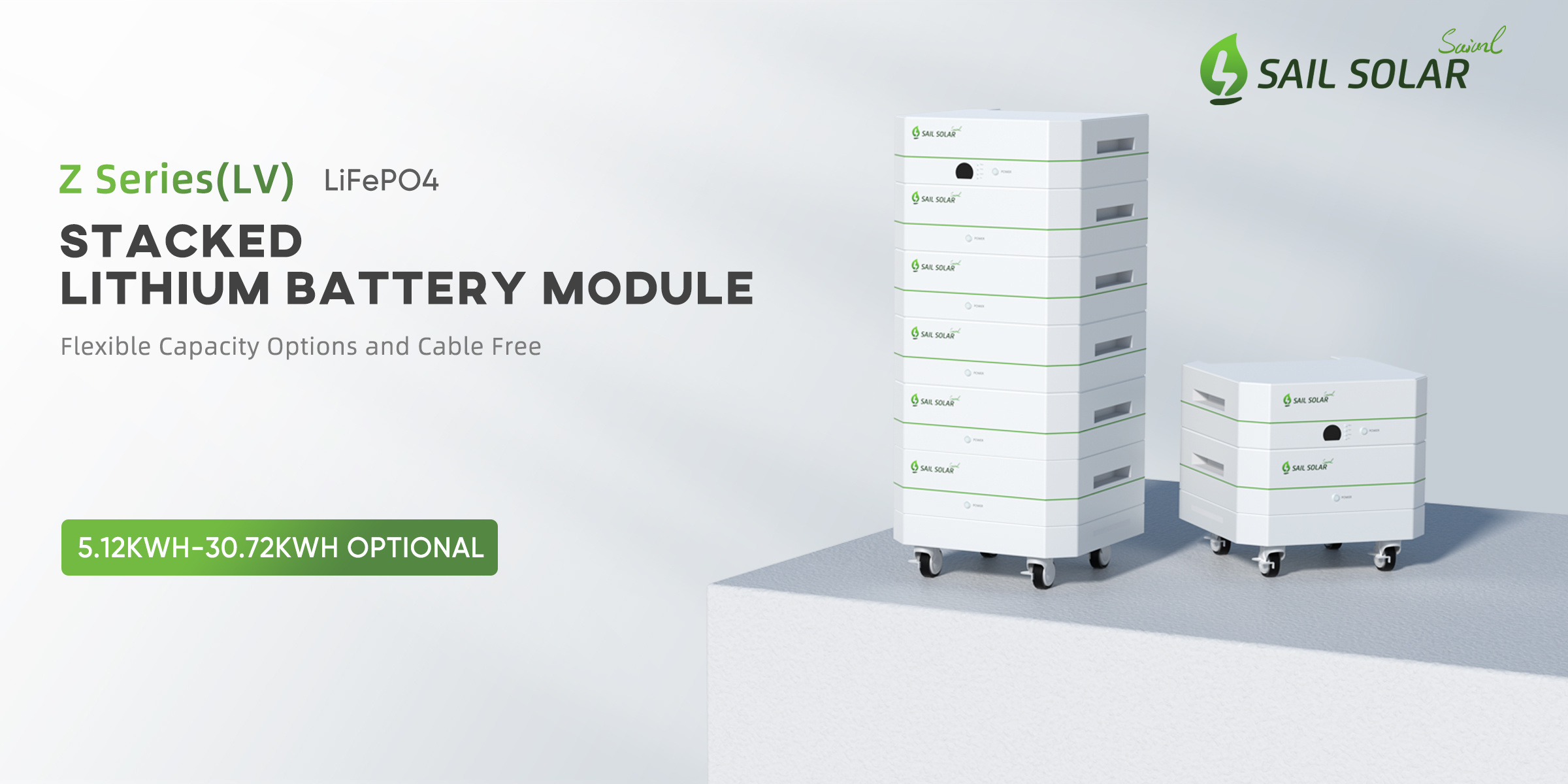

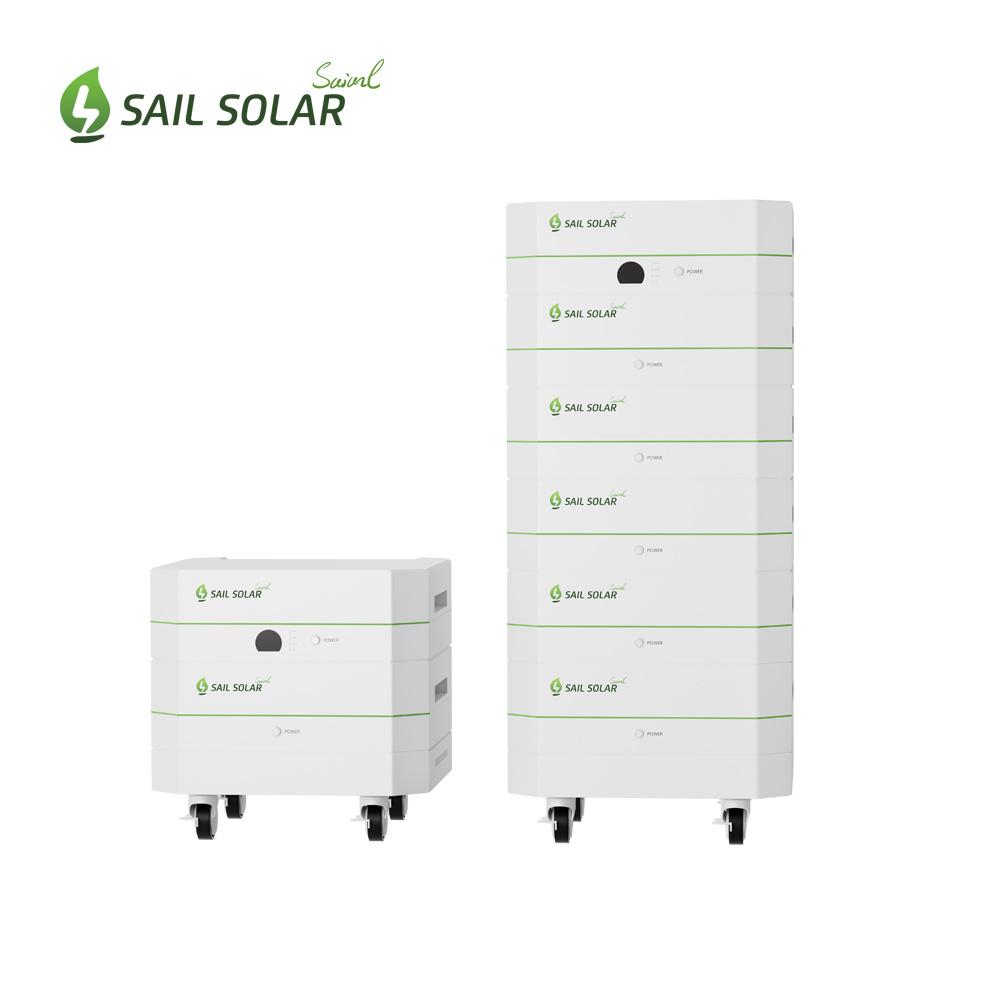

Sail Solar Low Voltage Stacked Battery Z-51LV 51.2V for Flexible Power Management
Payment :
T/T,L/C, Western UnionShipping Port :
Shanghai/ShenzhenWarranty :
10 YearsCertificate :
CE/IEC/UL/UN38.3/MSDSCommunication :
RS232/RS485/CAN/BLUEBOOTH/WIFIProtection :
IP50Order MOQ :
1Nominal Capacity :
5.12KWh/10.24KWh/15.36KWh/20.48KWh/25.60KWh/30.72KWhNominal Voltage :
51.2VType :
Lithium-ion BatteryItem No. :
Z Series Z-51(100-600)-LVSail Solar Lithium battery has compact design, LCD screen, convenient setting buttons, bluetooth Monitor on your smartphones, and cables&accessories ready for installation. To welcome the world cooperation we accept OEM with your logo design!
|
MODEL |
Z-51100-LV |
Z-51200-LV |
Z-51300-LV |
Z-51400-LV |
Z-51500-LV |
Z-51600-LV |
|
| Battery Type |
LiFePO4 |
||||||
|
Electrical Parameters (25°C) |
Rated Voltage |
51.2V |
51.2V |
51.2V |
51.2V |
51.2V |
51.2V |
|
Rated Capacity |
100Ah@25°C |
200Ah@25°C |
300Ah@25°C |
400Ah@25°C |
500Ah@25°C |
600Ah@25°C |
|
|
Energy |
5.12KWh |
10.24KWh |
15.36KWh |
20.48KWh |
25.6KWh |
30.72KWh |
|
|
Months Self Discharge |
<3% |
<3% |
<3% |
<3% |
<3% |
<3% |
|
|
Charge Efficiency |
99.5%@0.2C |
99.5%@0.2C |
99.5%@0.2C |
99.5%@0.2C |
99.5%@0.2C |
99.5%@0.2C |
|
|
Discharge Efficiency |
96-99%@1C |
96-99%@1C |
96-99%@1C |
96-99%@1C |
96-99%@1C |
96-99$%@1C |
|
|
Terminal Diameter |
M8 |
M8 |
M8 |
M8 |
M8 |
M8 |
|
| Internal Resistance(Fully Charged,25°C) |
≤50mΩ |
≤50mΩ |
≤50mΩ |
≤50mΩ |
≤50mΩ |
≤50mΩ |
|
| Cycle Life |
6000 Cycles@0.5C 80%D.O.D |
||||||
|
Capacity Affected by Temperature |
40°C |
101% |
|||||
|
25°C |
100% |
||||||
|
0°C |
90% |
||||||
|
-10°C |
75% |
||||||
| Nominal Operating Temperature |
25°C±3°C(77℉±5℉) |
||||||
|
Operating Temperature Range |
Discharge |
-20°C~60°C(-4℉~140℉) |
|||||
|
Charge |
0°C~45°C(32℉~113℉) |
||||||
|
Storage |
0°C~40°C(32℉~104℉) |
||||||
| Protection Grade |
IP50 |
||||||
| Charge Voltage |
56.8V |
||||||
| Standard Charge Mode(25°C±2°C,<75°CRH) |
0.2CA Constant Current to 57V,then Constant Voltage 57V ,until the Current Drops to 0.02cA,before Use, rest 30 Minutes |
||||||
| Charge Current |
50A |
100A |
150A |
200A |
250A |
300A |
|
| Continuous Discharge Current |
100A |
160A |
240A |
320A |
400A |
480A |
|
| Maximum Pulse Current |
150A(<1S) |
320A(<1S) |
480A(<1S) |
640A(<1S) |
800A(<1S) |
960A(<1S) |
|
| Discharge Cut Off Voltage |
44.8V |
||||||
| Protocol(Optional) |
RS232/RS485/CAN/BLUETOOTH/WIFI |
||||||
| SOC(Optional) |
Screen/LED/PC Software |
||||||
| Application Connection |
1 String 1 Parallel |
||||||
| Cells(Per Module) |
EVE 3.2V100Ah-16S1P |
||||||
| Safety&Certification |
CE/IEC/UL/UN38.3/MSDS |
||||||
| Size |
Length |
640±2mm(23.84 inch) |
|||||
|
Width |
400±2mm(14.9 inch) |
||||||
|
Height |
160±2mm(5.96 inch) |
||||||
|
Total Height |
314±2mm(11.69 inch) |
||||||
| Approx.Weight |
52kg(114.64lbs)±2kg |
||||||
 |

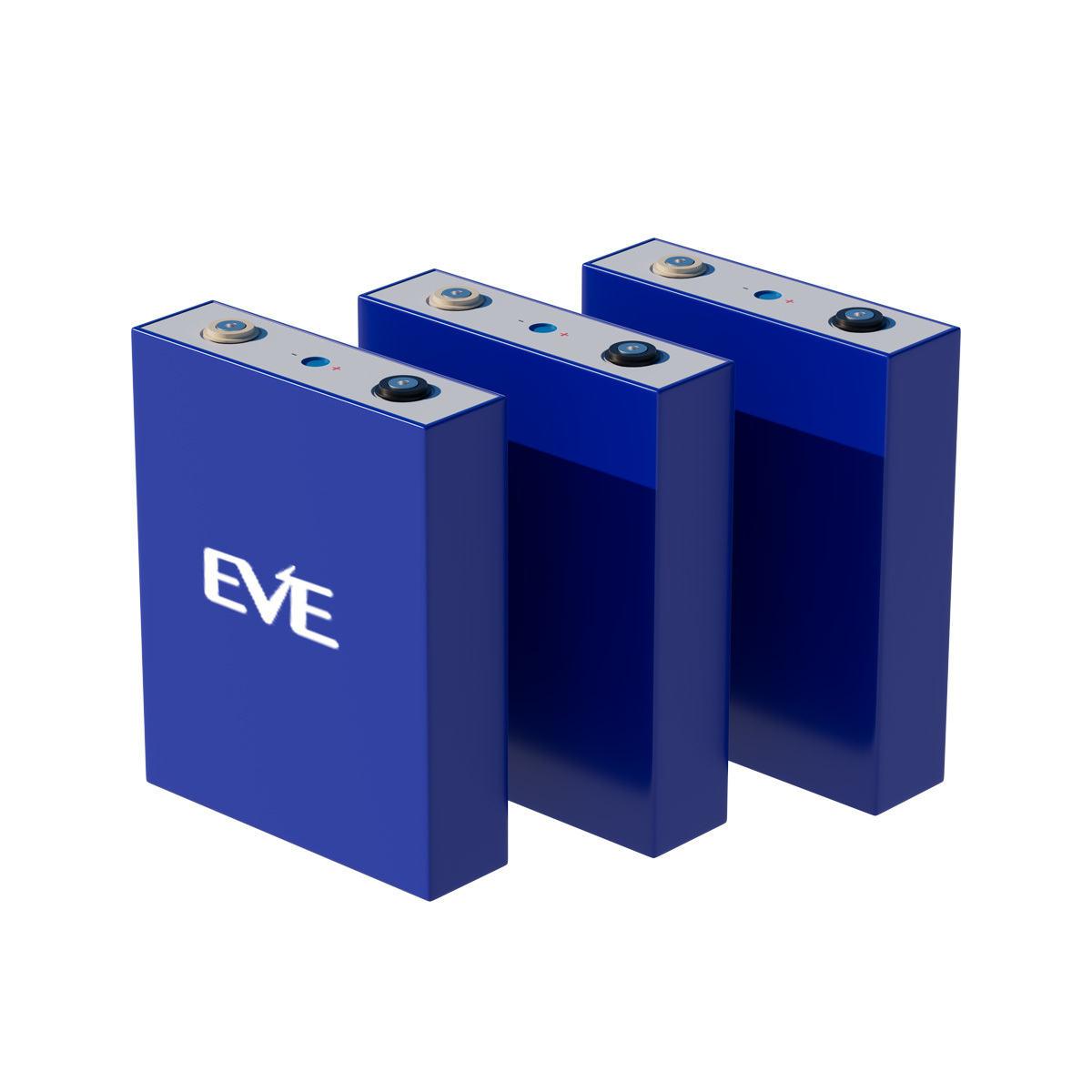

EVE cells leverage advanced design and material technologies to achieve exceptional energy density. This means more energy can be stored in the same volume and weight, delivering enhanced efficiency and longer-lasting power for your solar energy systems. EVE cells are designed to deliver exceptional performance even in low-temperature environments. This makes them ideal for energy storage systems that operate around the clock, ensuring consistent power supply even in extreme climates. By integrating EVE battery cells, Sail Solar lithium batteries not only deliver superior performance but also cater to a broader range of energy storage needs. This is the perfect solution for maximizing the efficiency and reliability of green energy systems. |
|
Our Sail Solar lithium battery is designed for flexibility and performance, making it compatible with most of the leading inverter brands on the market. Whether you’re upgrading your existing solar system or setting up a new one, you can trust our battery to integrate smoothly with your setup. Stay informed about your battery's health and performance at all times. With our user-friendly online monitoring apps, you can easily check real-time data such as charge levels, efficiency, and overall system condition, ensuring optimal operation and peace of mind. Sail Solar lithium batteries are the smart choice for efficiency, reliability, and future-ready energy solutions. |
 |
Our lithium battery products have been exported to more than 100 countries, including but not limited to the United States, Canada, Puerto Rico, Germany, Poland, Belgium, Philippines, Saudi Arabia, South Africa, Nigeria. Products comply with mainstream market certifications, including UL, CE, ISO, MSDS, UN38.3, etc.
