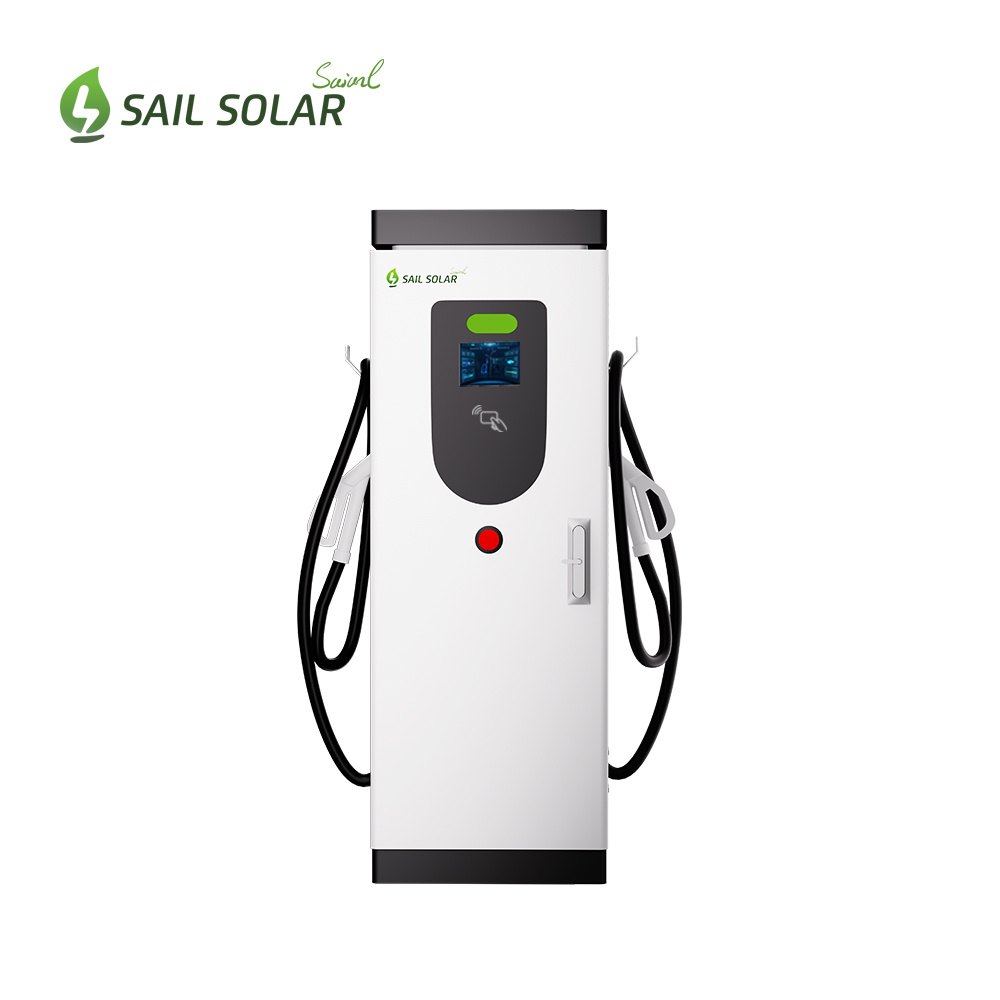

Reliable and Fast DC EV Charger 120kw 240kw 360kw 480kw Safe DC Electric Car EV Charger with Remote Control

Reliable and Fast DC EV Charger 120kw 240kw 360kw 480kw Safe DC Electric Car EV Charger with Remote Control

  • Shipping Port :

    Shanghai
  • Charging system :

    IEC 61851-1 , IEC 61851- 21- 2 , IEC 61851- 22 , IEC 62196 - 2, IEC 62196 -3
  • Cable length :

    5 meters (8m/10m optional)
  • Dimensions (W x D x H ) :

    750mm*700mm*1860mm
  • Operational altitude :

    Up to 2500 m
  • Software update :

    Remote upgrade
  • RFID Reader :

    ISO 14443
  • Communication mode :

    4G, Ethernet, WiFi , Bluetooth
  • Max DC output power rating :

    240kW ,300kW ,360kW
  • Localization :

    CE, TR25
  • Charging type :

    DC Charger
  • Trademark :

    OEM acceptable
  • WiFi :

    Support
  • Protection :

    IP65
  • Order MOQ :

    1

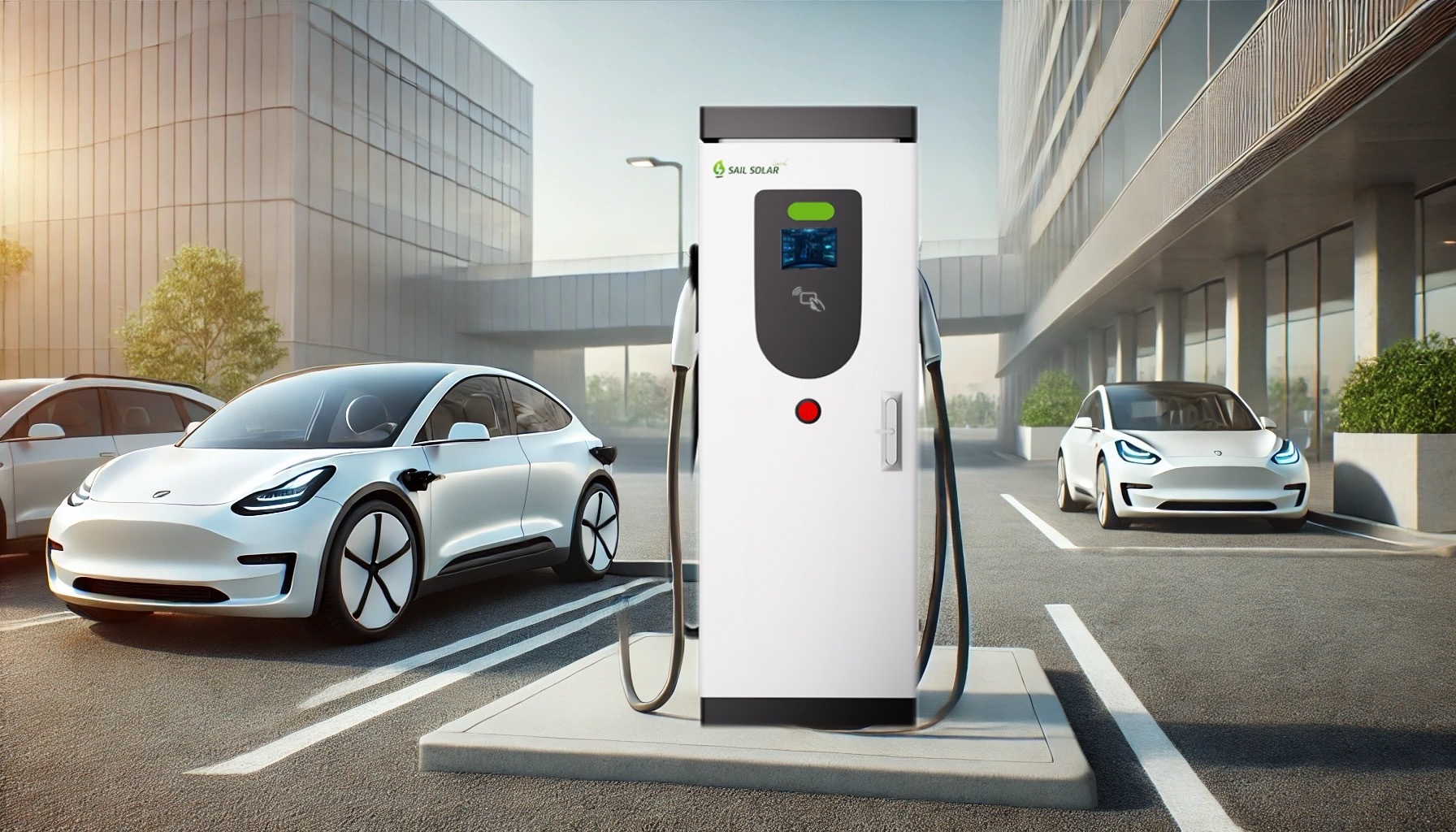

Sail Solar DC EV Charger is primarily installed in commercial parking lots, expressway service areas, factories, and other high-demand locations. It provides fast and efficient charging for various types of electric vehicles through high-power charging plugs. This type of charging pile is typically larger, featuring a robust design and advanced technology to support rapid charging needs. It is ideal for public charging stations, logistics hubs, business areas, and other places requiring quick and convenient charging solutions.

Specification

Charging type
DC Charger
Localization
CE, TR25
Max DC output power rating
240kW ,300kW ,360kW
Input voltage range
400VAC, 400 VAC +/- 15% (50 Hz or 60 Hz)
Connector types
3P+N+PE(Three phase)
Input AC power rating(MAX)
440A , 550A , 660A
Power factor (full load)
> 0.99
THDi <5%
Standby power
< 10W
Protection
OVP, OCP, OPP, OTP, UVP, SCP, LVP, Residual current detection, Surge protection,
Door Access , RCD Protection
Communication mode
4G, Ethernet
User authentication
RFID, MAC, Screen button
RFID Reader
ISO 14443
Software update
Remote upgrade
Control and configuration
Cloud platform, OCPP 1.6J (Extendable to ocpp2.0)
IP and IK rating
IP-65 and IK-10 (cabinet)
Operational altitude
Up to 2500 m
Operating temperature range
-40°C to + 55°C (power de - rating applies)
Humidity
5 -95 % Rh non- condensing
Dimensions (W x D x H )
750mm*700mm*1860mm
Cable length
5 meters (8m/10m optional)
Charging system
IEC 61851-1 , IEC 61851- 21- 2 , IEC 61851- 22 , IEC 62196 - 2, IEC 62196 -3

Application

The Sail Solar DC EV Charger is designed to make charging your electric vehicle faster and more efficient than ever. With an intuitive interface and advanced functionality, it simplifies the fast-charging process, providing a seamless experience for users at public charging stations, commercial hubs, and high-demand locations.

Engineered to meet international standards, the charger ensures exceptional safety, reliability, and compatibility with a wide range of electric vehicles. Its high-power output and robust construction guarantee secure connections and stable energy delivery, safeguarding your vehicle while adhering to the most stringent safety protocols.

Equipped with radio frequency (RF) and Wi-Fi wireless communication capabilities, the charger enables seamless connectivity and real-time monitoring. This ensures fast, stable, and flexible control, whether you’re tracking charging progress, managing fleet operations, or adjusting settings remotely.

Our DC EV Charger is designed to provide reliable, efficient, and ultra-fast charging for a wide range of electric vehicles. It supports various car models, making it a powerful solution for commercial and public EV charging needs. With its advanced technology, user-friendly interface, and durable construction, the charger ensures your vehicle is powered up rapidly and safely, minimizing downtime and maximizing convenience. The DC EV Charger is an ideal choice for modern electric vehicles, delivering seamless integration and exceptional performance for fast charging.

For specific compatibility details and to ensure the best fit for your electric vehicle, please consult with our customer service team. We offer a variety of models and configurations, and our knowledgeable staff can assist you in selecting the right DC EV Charger based on your car's make and charging requirements. Whether you're looking for a solution for public charging stations or a commercial fleet, we're here to help you make the best choice for your EV charging needs.



After-Sales Service

" 7/24 " After-Sales Support

7 days a week, 24 hours a day: Ready to respond and solve problems immediately—Sail Solar's commitment to worry-free after-sales service.

Service Email: info@sailsolaress.com


Service Process

01

Submit Service Requests

Submit your service requests at any time via email, online customer service, or mobile app.

02

Rapid Response

Our service team will immediately respond to your requests and communicate the details of the issue with you.

03

On-Site Service or Remote Support

Depending on the nature of the problem, provide on-site service or remote technical support.

04

Problem Resolution

Our goal is to completely resolve your issue within 24 hours.

05

Follow-Up

After the problem is resolved, our team will continue to follow up to ensure your satisfaction with the service results.
