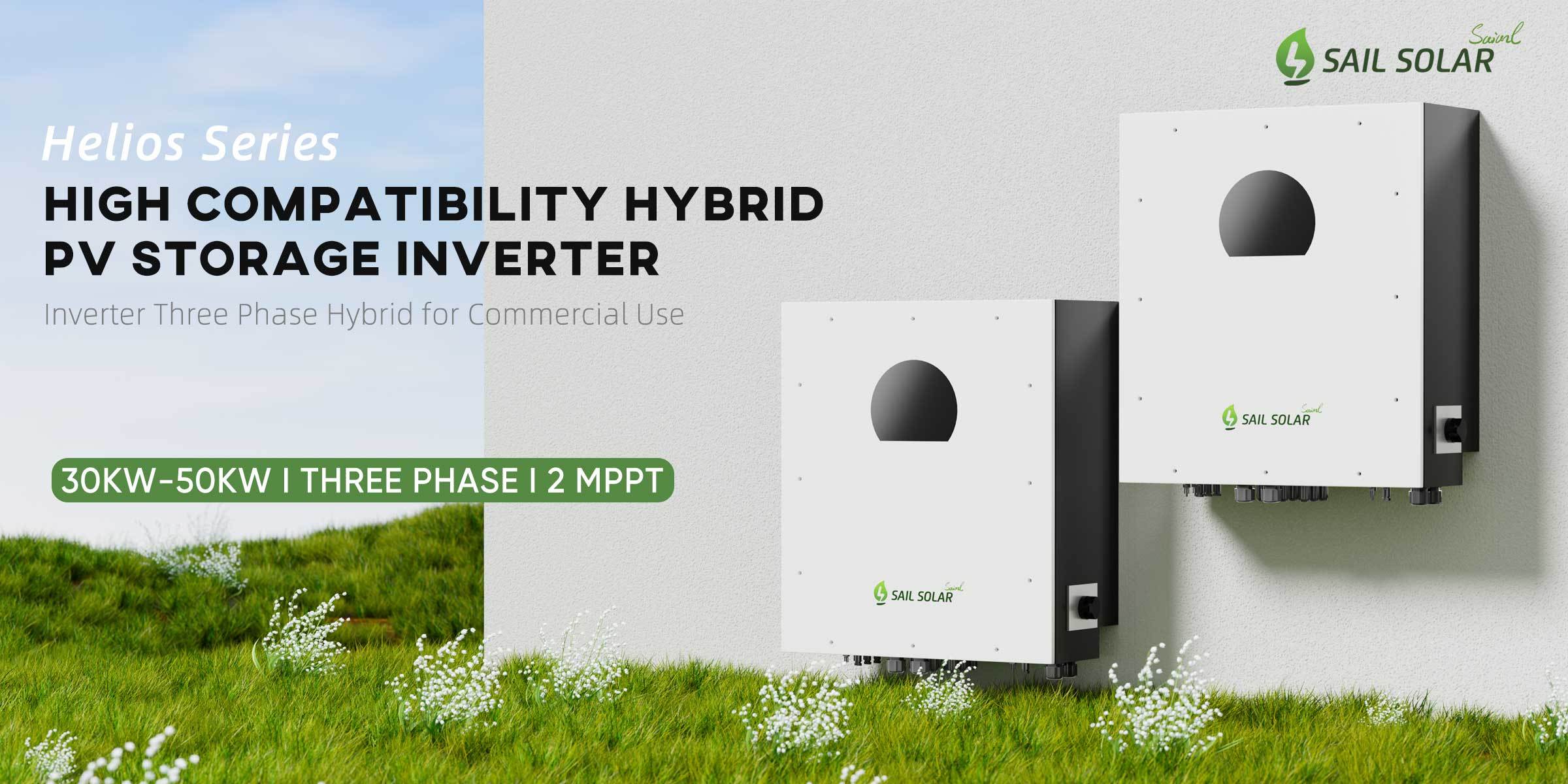

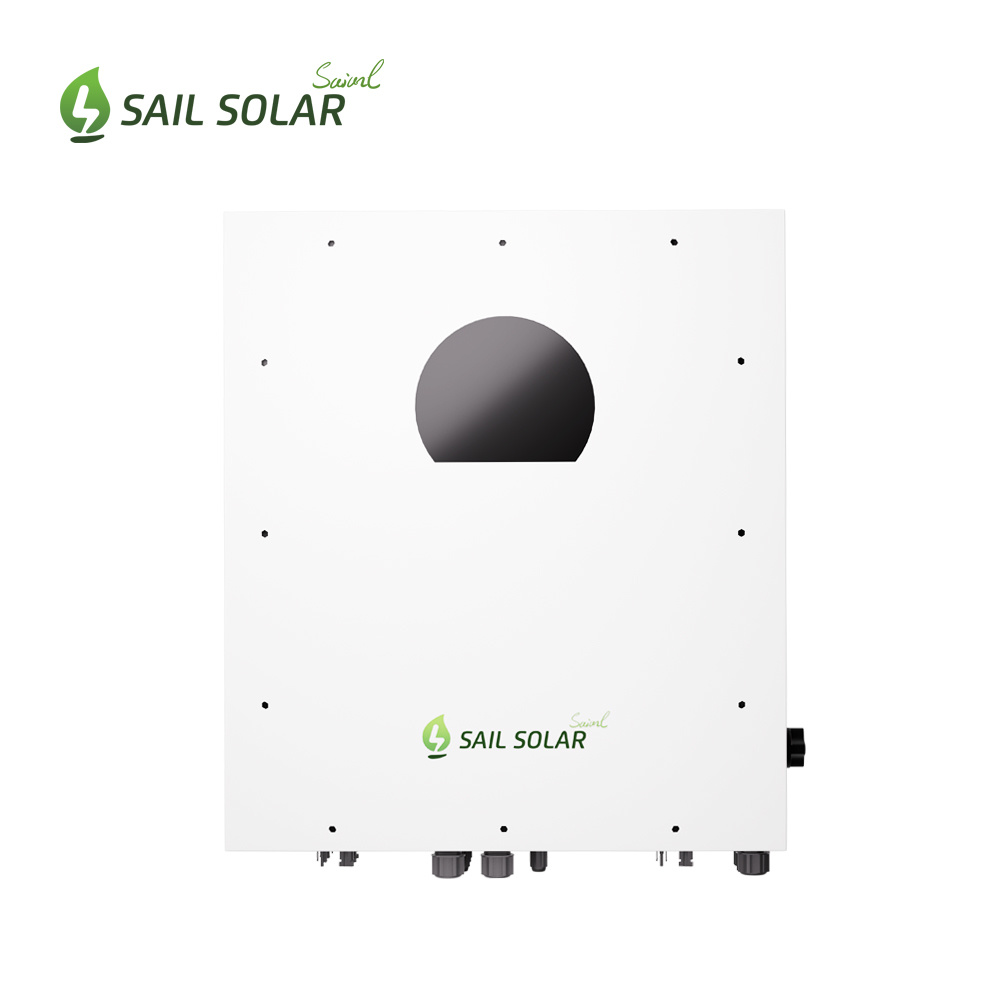

Hybrid Solar System with WIFI 50kw Inverter for Solar Energy System

With ingress protection to IP65, 50kW is suitable for use both in outdoor applications and indoor environments where atmospheric moisture and dust are present, 50kW also offers a dual Ac input power source compatible with generator power to guarantee uninterruptible power. lt allows parallel operation up to 4 units for power expansion.

Specification

MODEL	Helios-50KLP3-EU
Maximum Pv Input Power	65000 W
Rated Output Power	50000 W
Maximum Charging Power	50000 W
PV INPUT (DC)
Maximum DC Voltage	720 VDC/ 1000 VDC
Start-up Voltage / Initial Feeding Voltage	320 VDC / 350 VDC
MPP Voltage Range	350 VDC ~ 900 VDC
Number of MPP Trackers / Maximum Input Current	4 / A:32A, B:32A, C:32A, D:32A
Number of Strings Per MPP Tracker	A:2, B:2, C:2, D:2
GRID OUTPUT (AC)
Nominal Output Voltage	230VAC(P-N)/400VAC(P-P)
Output Voltage Range	184 - 265 VAC per phase
Nominal Output Current	47.5~51.5 Hz or 59.3~60.5 Hz
AC INPUT
AC Start-up Voltage / Auto Restart Voltage	120 - 140 VAC / 180 VAC per phase
Acceptable Input Voltage Range	170 - 280 VAC per phase
Maximum AC Input Current	83 A
BATTERY MODE OUTPUT (AC)
Nominal Output Voltage	230VAC(P-N)/400VAC(P-P)
Efficiency (DC to AC)	97%
BATTERY & CHARGER
Battery Voltage Range	500~800VDC
Maximum Solar Charging Current	65 A
Norminal Output Voltage	230VAC(P-N)/400VAC(P-P)
Efficiency (DC to AC)	97%
PHYSICAL
Size, D x W x H (mm)	268 x 660 x 750
Net Weight (kgs)	110
INTERFACE
Intelligent Slot	Optional SNMP and MODBUS
Communication Port	RS-232, USB, RS-485, Dry Contact, CAN, Wi-Fi, Bluetooth
ENVIRONMENT
Humidity	0 ~ 100% RH
Operating Temperature	-25°C to 60°C(>45℃ De-rating)
PROTECTION & CERTIFICA TE
Safety	IEC/EN 61000, IEC/EN 62920, EN62477
Protection Grade	IP65
Grid Connection Standard	NRS097-2-1:2017, VDE-AR-N4105, G99, IEC 61683, IEC 61727, IEC 62116

Application

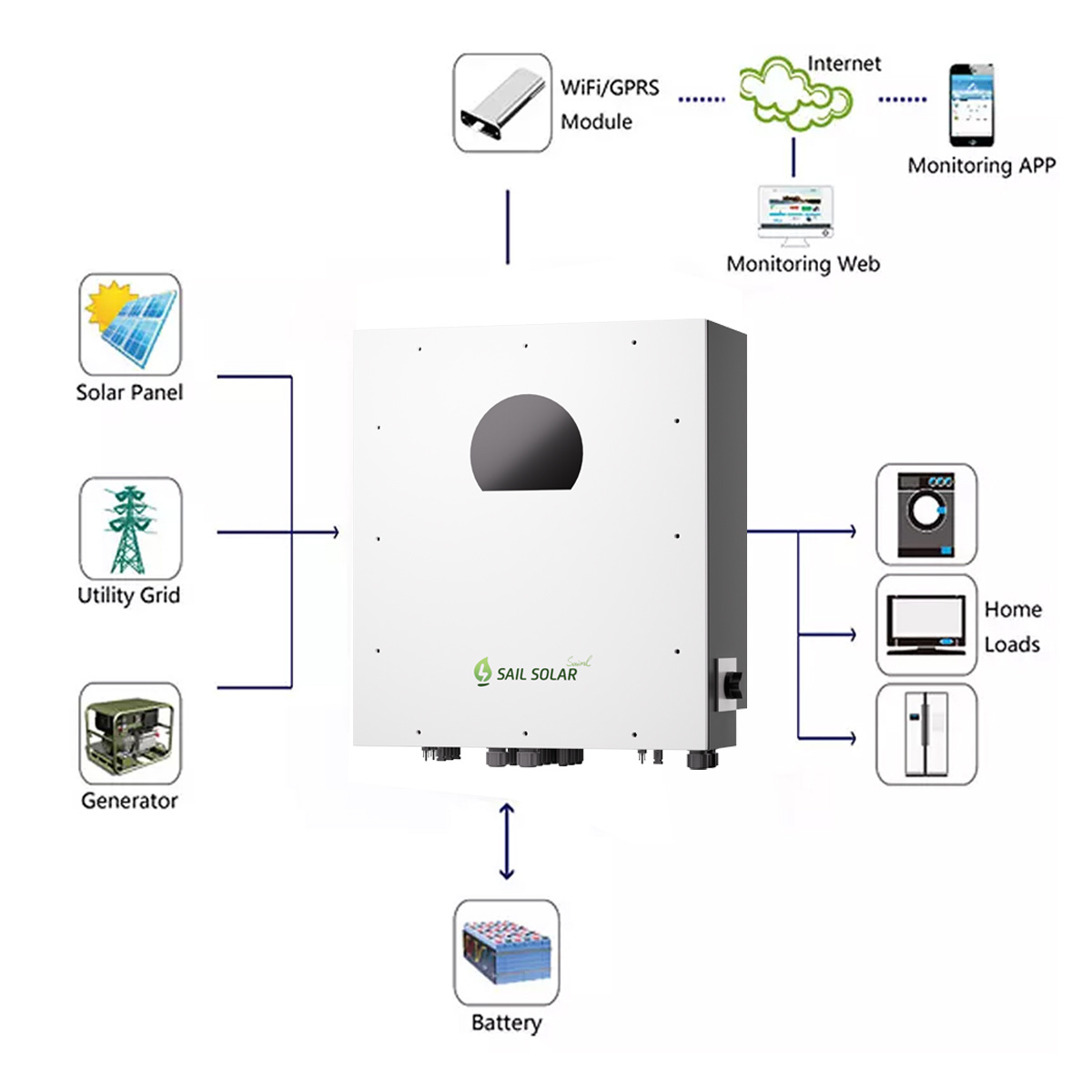

Helios series inverter is suitable for the household photovoltaic energy storage system. DC power generated by solar panels is stored in the battery through the inverter. When electricity is needed, it is first supplied by solar panels. If the light intensity cannot support the operation of solar panels, the inverter will convert the DC power of the battery into a single-phase power for home load. If the battery power is not enough, it can be quickly switched to power grid to supply power.

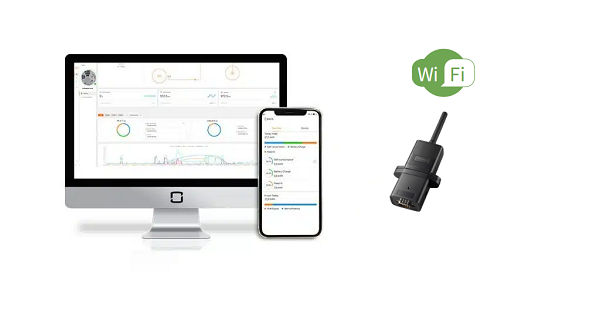

The Wi-Fi module can enable wireless communication between hybrid solar inverters and the monitoring platforms. When combining the Wi-Fi module with the app, available for both iOS and Android-based devices, users have a complete and remote monitoring and controlling experience for inverters. All data loggers and parameters are saved in iCloud.Solar monitoring apps are a great way to do just that—monitor how much energy your solar panels are producing and distribute it more efficiently where it’s needed.
