Home Smart Energy System Inverters 8Kw Three Phase High Frenquency Hybrid Solar Power Inverter
Payment :
T/T, L/C, Western UnionShipping Port :
ShanghaiParallel :
6 UnitsMonitoring :
WifiMax Power :
8000WOutput Voltage :
380VWarranty :
5 YearsCertificate :
CECommunication :
BMS (RS485)Protection :
IP65Order MOQ :
1Type :
Hybrid AC/DC InverterItem No. :

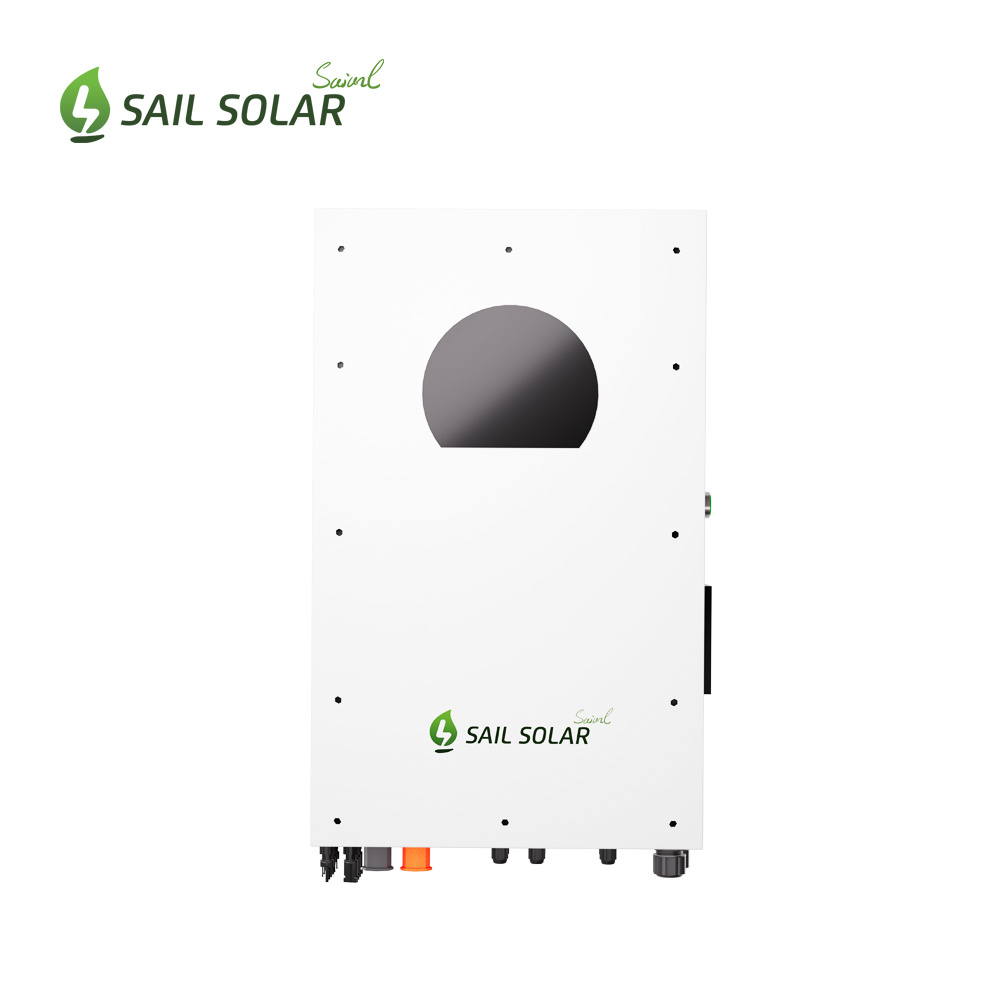

Helios-8KLP3-EUHelios-8KLP3 h ybrid Inverter supports parallel operation of up to 6 units, features two independent AC power sources with automatic switching, includes built-in WiFi for mobile monitoring via an available app, offers 150% unbalanced load support, allows user-adjustable charging current and voltage, and has a reserved communication port for BMS (RS485).
MODEL |
Helios-
8KLP3-EU
|
Maximum Pv Input Power |
12000 W
|
Rated Output Power
|
8000 W
|
Maximum Charging Power
|
8000 W
|
PV INPUT (DC)
|
|
Maximum DC Voltage
|
900 VDC
|
Start-up Voltage / Initial Feeding Voltage
|
150 VDC / 150 VDC
|
MPP Voltage Range
|
150 VDC ~ 850 VDC
|
Full MPP Voltage Range
|
400 VDC ~ 850 VDC
|
Number of MPP Trackers / Maximum Input Current
|
2 / A: 15A, B: 15A
|
GRID OUTPUT (AC)
|
|
Nominal Output Voltage
|
230 VAC (P-N) / 400 VAC (P-P)
|
Output Voltage Range
|
184 - 265 VAC* per phase
|
Nominal Output Current
|
11.6 A per phase
|
AC INPUT
|
|
AC Start-up Voltage / Auto Restart Voltage
|
120 - 140 VAC per phase / 180 VAC per phase
|
Acceptable Input Voltage Range
|
170 - 290 VAC per phase
|
Maximum AC Input Current
|
40 A
|
BATTERY MODE OUTPUT (AC)
|
|
Nominal Output Voltage
|
230 VAC (P-N) / 400 VAC (P-P)
|
Efficiency (DC to AC)
|
>93%
|
BATTERY & CHARGER
|
|
Battery Voltage Range
|
40 ~ 60 VDC
|
Maximum Charging Current
|
200 A
|
Maximum Charging Current
|
160 A
|
PHYSICAL
|
|
Size, D x W x H (mm)
|
247 x 500 x 650
|
Net Weight (kgs)
|
50
|
INTERFACE
|
|
Communication Port
|
RS-232, RS-485, USB, CAN and Wi-Fi
|
Intelligent Slot |
Optional for SNMP and Modbus cards
|
ENVIRONMENT
|
|
Humidity
|
0 ~ 100% RH (Non-condensing)
|
Operating Temperature
|
-25 to 60°C, > 45°C power derating
|
Altitude
|
0 ~ 1000 m**
|
PROTECTION & CERTIFICA
TE
|
|
Safety
|
IEC 62116, IEC 62727, IEC 61683, IEC 62109, IEC 61000-6-2:2019, IEC 61000-6-4:2019,
IEC 61000-3-11:2019, EN 61000-3-12: 2011
|
Protection Grade
|
IP65
|
Grid Connection Standard
|
NRS097-2-1:2017, VDE-AR-N4105
|
![]() |
Helios-8KLP3-EU hybrid

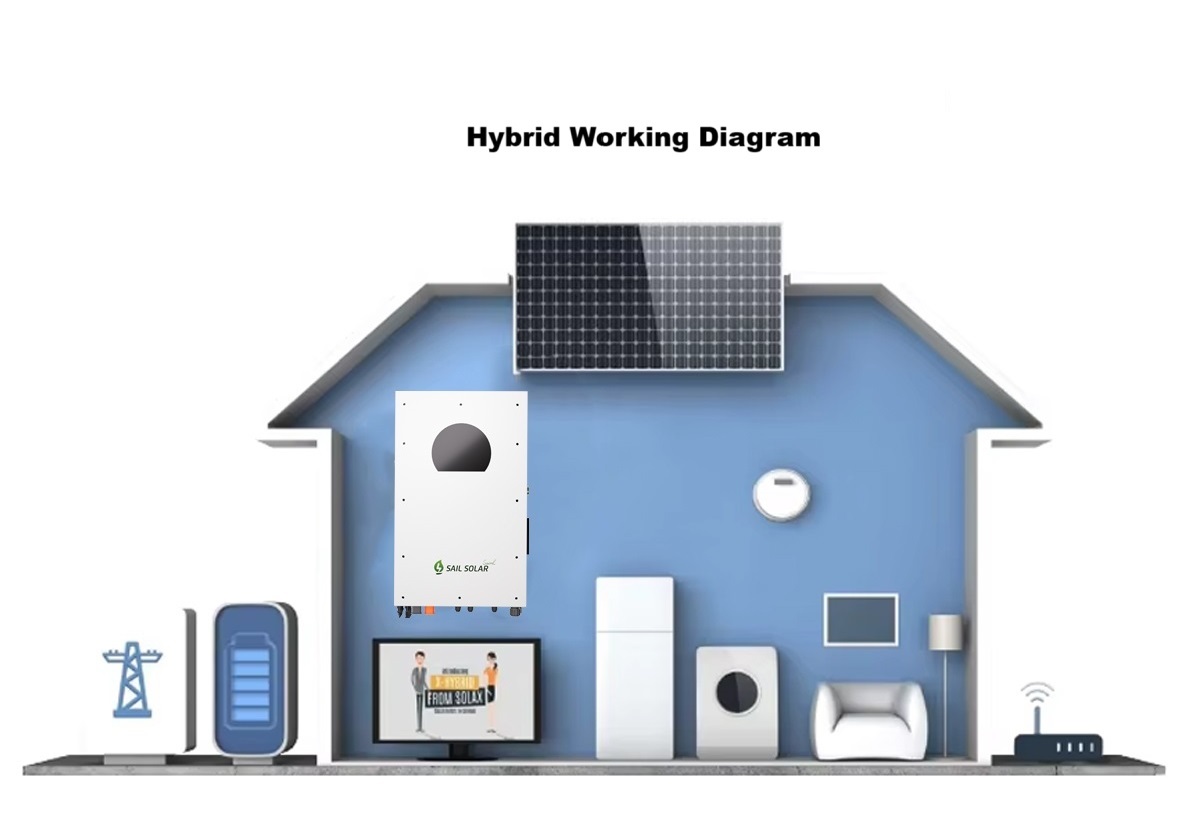

solar inverters are designed for both grid-tied and off-grid solar power systems. They combine the functions of a grid-tied inverter and a battery charger in a single unit, making them a versatile and flexible solution. Hybrid inverters can optimise the power output from solar panels, store excess energy in batteries, and provide backup power during outages. They offer the convenience of grid-tied systems with the security of off-grid systems, making them an ideal choice for homes and businesses that want to be self-sufficient while still having a connection to the grid. Hybrid solar inverters are a cost-effective and environmentally friendly solution for those looking for energy independence and reliability.
|
Helios-8KLP3 Hybrid Solar Inverter paralleling offers unmatched scalability, allowing you to easily expand your system as your energy demands grow. You can start with a smaller setup and add more inverters over time, ensuring that your system always matches your current needs. This flexibility makes it an excellent choice for both residential and commercial installations.

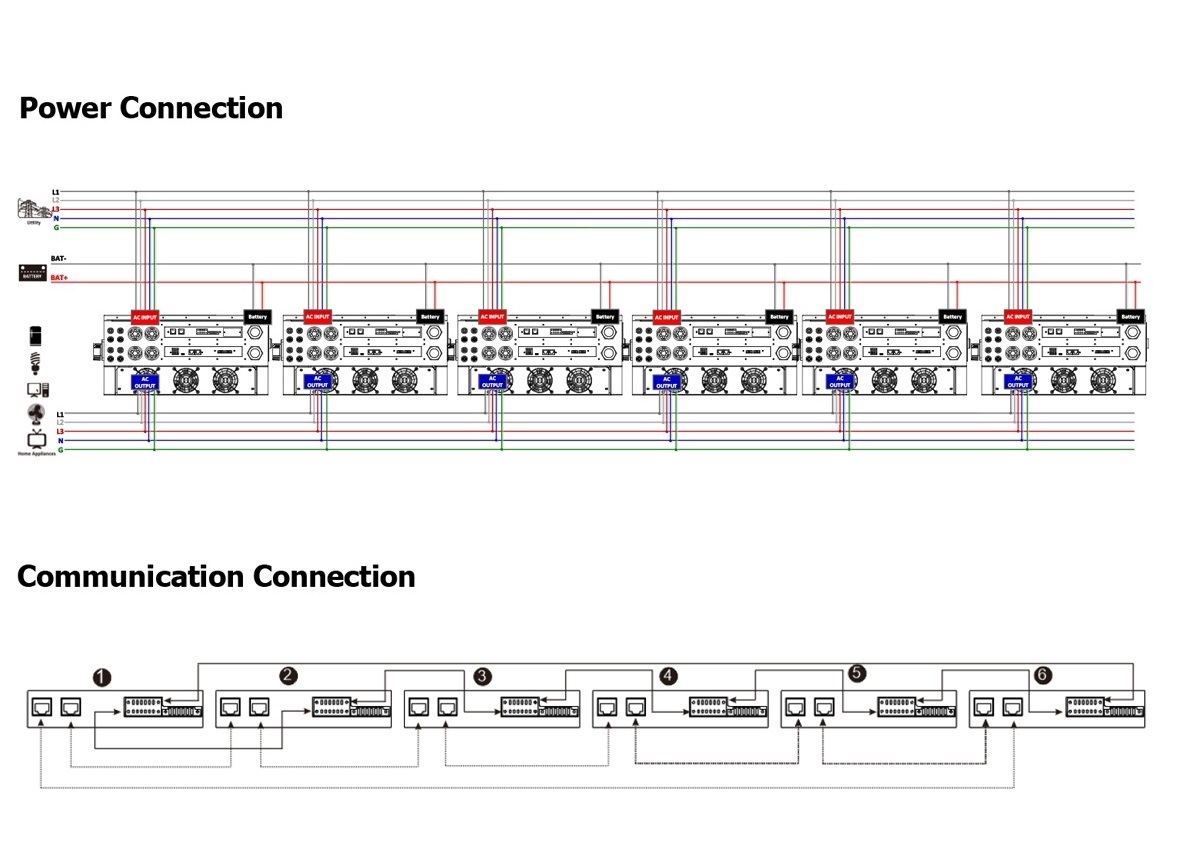

When inverters are operated in parallel, the load is distributed evenly across all units, which can lead to optimized overall system efficiency. Each inverter operates at its optimal performance level, reducing energy wastage and maximizing the conversion of DC to AC power.
|
![]() |
