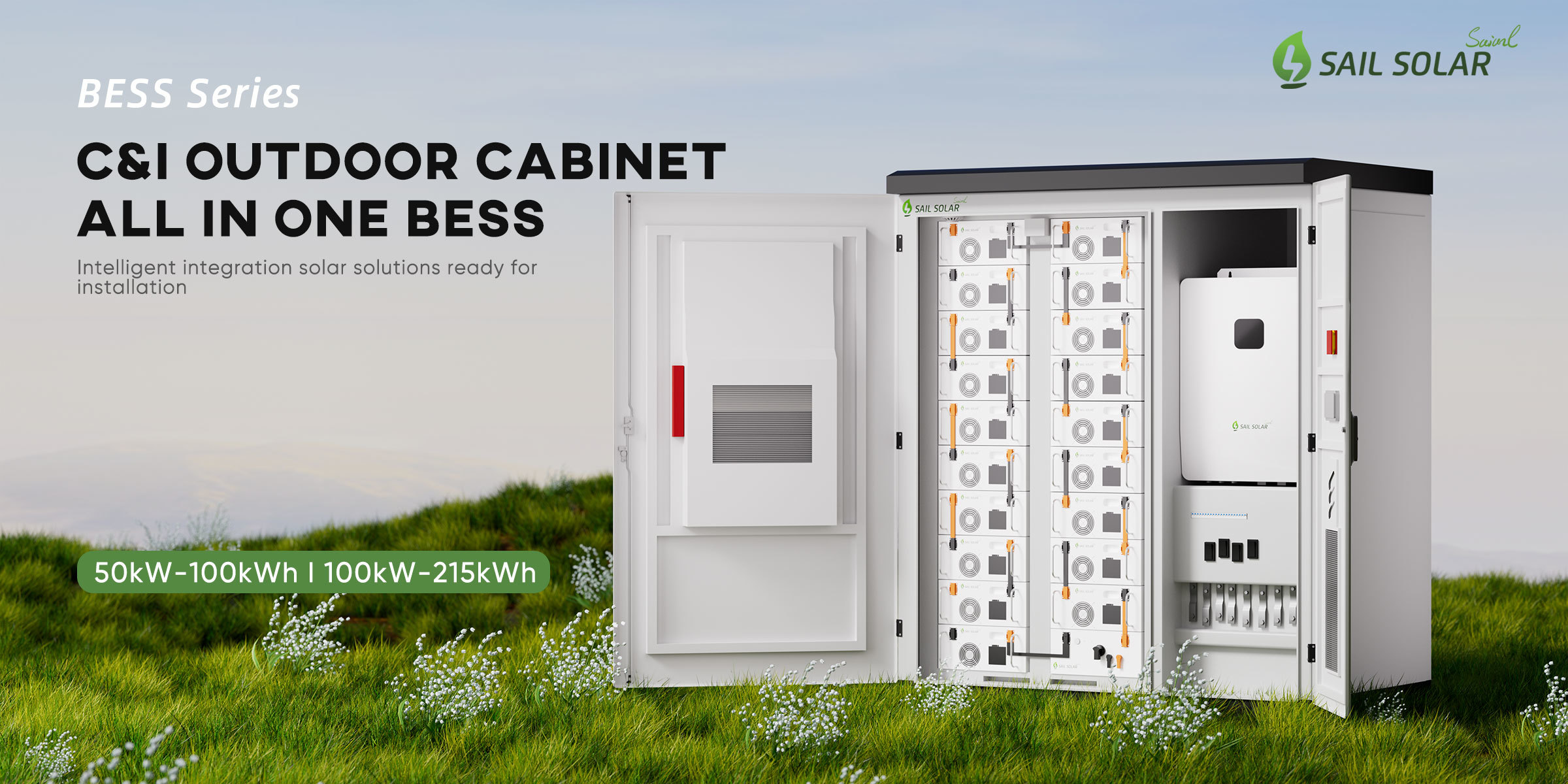

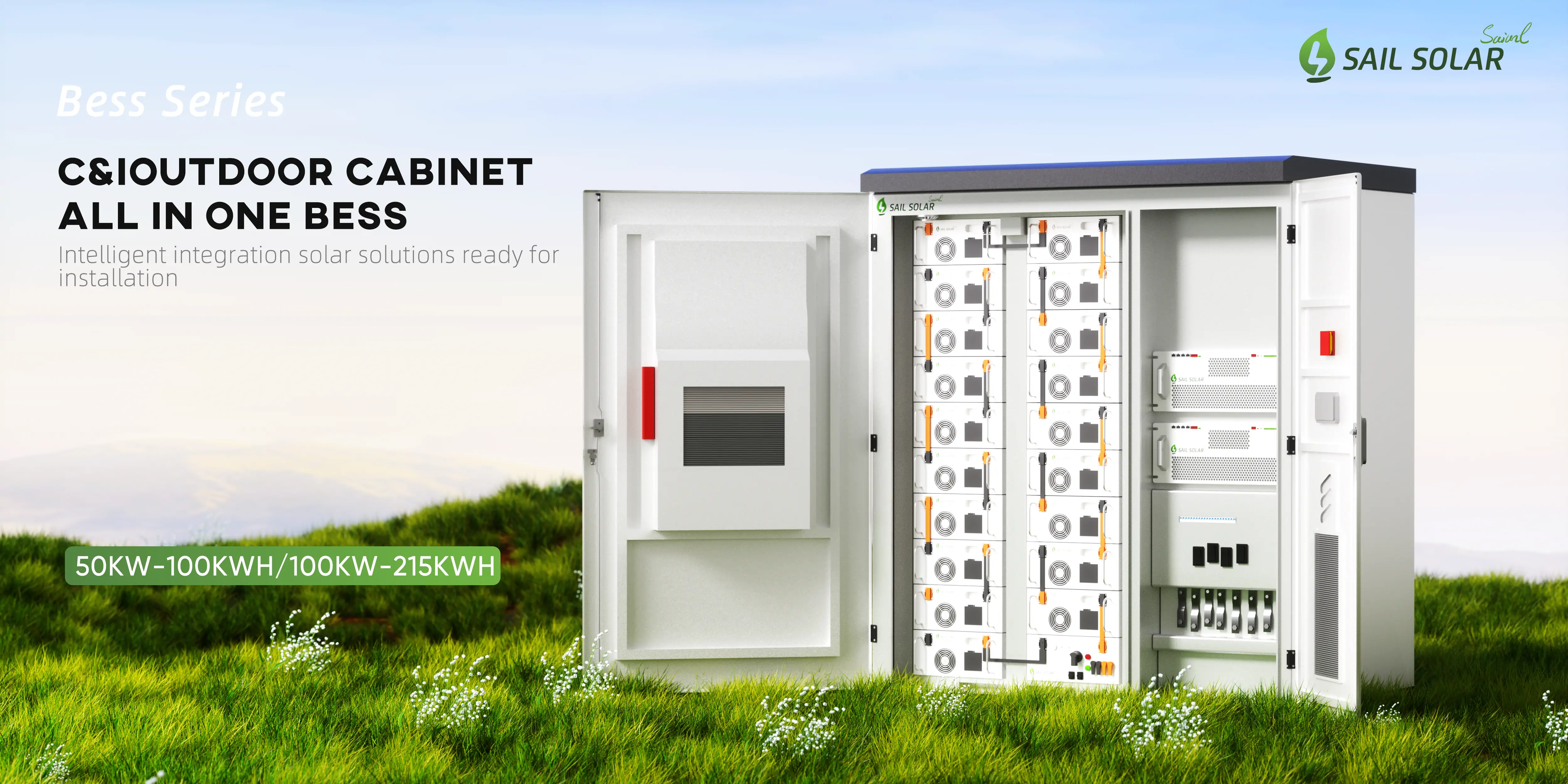

It is a one-stop integration system that comprises 100kWh LiFePO4 battery storage system with two-layer battery management system and a fully digital LCD display, a 50kW storage solar inverter with wide voltage input range and systems for grid voltage adjustment, three-phase unbalanced solution. The IP54 protection degree outdoor cabinet is equipped with air-cooling equipment, lighting, power distribution, fire control, and other accessories, and an energy management system.
NEW PRODUCTS
Commercial Industrial All In One Outdoor Cabinet Battery Energy Storage System 100Kwh 215Kwh
Category:
Item No.:SAS-50kW 100kWh / SAS-100kW 215kWh
Type: All-in-one
Output Voltage: 380V / 400V, Other Voltages Customized
Rated Output Power: 50kW / 100kW
Capacity: 100kWh / 215kWh
Grid Connection: Hybrid Grid
Battery Type: LiFePO4
Communication Port: CAN, RS485
Cooling: Air Colling / Liquid Cooling
Protection Class: IP65
Shipping Port: Shanghai
Payment: T/T, L/C, Western Union
Certificate: CE
Warranty: 10 Years
Still deciding? Get samples first, Contact US !
Product details
Specification
MODEL | SAS-50kW 100kWh | SAS-100kW 215kWh |
Battery Specification | ||
| Battery Type | Lithium-ion | |
| Configuration | 7 modules + 1 BPU | 15 modules + 1 BPU |
| Rated Capacity/Voltage/Energy | 280Ah/358.4V/100.352kWh | 280Ah/768V/215.04kWh |
| Voltage Range | 313.6-403.2V | 672-864V |
| Rated Charge/Discharge | 0.5C | |
| Solar Inverter Specification | ||
PV String Input Data | ||
Max. DC Input Power (W) | 65000 | 130000 |
Max. DC Input Voltage (V) | 1000 | |
Start-up Voltage (V) | 180 | |
MPPT Range (V) | 150-850 | |
Full Load DC Voltage Range (V) | 450-850 | |
Rated DC Input Voltage (V) | 600 | |
PV Input Current (A) | 36+36+36+36 | |
Max. PV I (A) | 55+55+55+55 | |
No.of MPP Trackers | 4 | |
No.of Strings per MPP Tracker | 2 | |
AC Output Data | ||
Rated AC Output and UPS Power (W) | 50000 | 100000 |
Max. AC Output Power (W) | 55000 | 110000 |
| AC Output Rated Current (A) | 75.8/72.5 | |
| Max. AC Output Current (A) | 83.4/79.7 | |
Max. Three-phase Unbalanced Output Current (A) | 83.3 | |
| Max. Continuous AC Passthrough (A) | 150 | |
Peak Power (Off Grid) | 1.5 time of rated power, 10 S | |
Generator Input/Smart Load/AC Couple Current (A) | 75.8 / 150 / 75.8 | |
Power Factor Adjustment Range | 0.8 leading to 0.8 lagging | |
| Output Frequency and Voltage | 50/60Hz; 3L/N/PE 220/380, 230/400Vac | |
| Grid Type | Three Phase | |
Total Harmonics Current Distortion (THDi) | <3% (of nominal power) | |
| DC Current Injection | <0.5% In | |
| Battery Input Data | ||
| Max. Charging Current (A) | 50+50 | |
| Max. Discharging Current (A) | 50+50 | |
| Number of Battery Input | 2 | |
| Charging Strategy for Li-Ion Battery | Self-adaption to BMS | |
Product Description
 |
The All In One energy storage container offers a battery capacity of 100Kwh and 215kWh, making it an ideal solution for large-scale commercial energy storage needs. The system integrates energy storage inverter, battery, fire protection, refrigeration, friendly grid adaptability, accepts grid dispatching, carries out active and reactive power compensation, supports peak shaving and valley filling, demand-side response, assists new energy grid integration and other applications. The lP55 protection level fits in harsh outdoor environments. The cabinet fully considers the impact of harsh outdoor environment on the equipment, and adopts high-strength anti-corrosion materials to resist the erosion of wind, rain and snow; the internal battery module adopts special sealing technology to ensure normal operation under extreme temperatures. |
The mainstream 280Ah battery cell is selected. The battery management system has the functions of voltage and temperature collection and balanced control of each battery cell. It adopts a dedicated chip design for battery management, receives control commands through daisy chain communication, and reports the collected data to ensure the cycle life and safety of the battery. |  |
After-Sales Service
● " 7/24 " After-Sales Support
● 7 days a week, 24 hours a day: Ready to respond and solve problems immediately—Sail Solar's commitment to worry-free after-sales service.
● Service Email: info@sailsolaress.com
Service Process
01 |
Submit Service Requests Submit your service requests at any time via email, online customer service, or mobile app. |
02 |
Rapid Response Our service team will immediately respond to your requests and communicate the details of the issue with you. |
03 |
On-Site Service or Remote Support Depending on the nature of the problem, provide on-site service or remote technical support. |
04 |
Problem Resolution Our goal is to completely resolve your issue within 24 hours. |
05 |
Follow-Up After the problem is resolved, our team will continue to follow up to ensure your satisfaction with the service results. |
