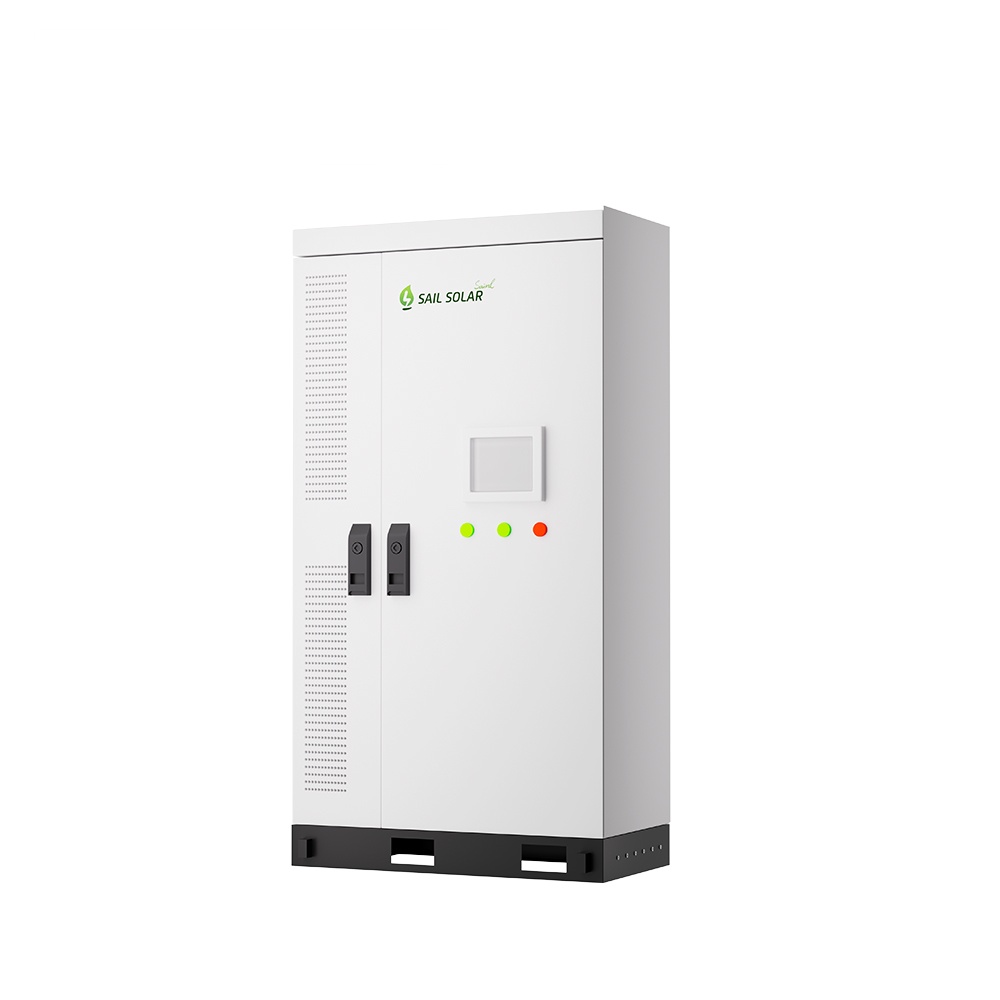

Sail Solar 100 Kw 200 Kwh Energy Storage System PV Battery Storage Solar Power Bess
Category:
Still deciding? Get samples first, Contact US !
Product details
Product Introduction:
Elevate your energy storage capabilities with the Sail Solar 100 Kw 200 Kwh Energy Storage System PV Battery Storage Solar Power Bess, a testament to the quality bess solar battery energy storage system from China. This state-of-the-art system is designed to harness and store renewable energy efficiently, powered by high-performance Lithium Ion and LiFePO4 batteries. With a robust IP55 protection class and comprehensive safety certifications including CE/IEC/UL/UN38.3/MSDS, this system ensures reliable and safe operation.
The quality bess solar battery energy storage system from China boasts an impressive 6000 cycle life and an 80% depth of discharge, making it a durable and efficient choice for long-term energy solutions. Its versatile communication protocols such as RS232/RS485/CAN/BLUETOOTH/WIFI allow for seamless integration with various systems, while the advanced cooling system maintains optimal performance across a wide operating temperature range from -35℃ to +55℃.
The Sail Solar 100 Kw 200 Kwh Energy Storage System PV Battery Storage Solar Power Bess is designed for scalability, with a compact size of 120023501100mm and a weight of 2500Kg, fitting seamlessly into various environments. The quality bess solar battery energy storage system prices are competitive, offering an affordable investment in the future of renewable energy.
This commercial-scale energy solution combines a 100kW solar power generation system with a 200kWh battery energy storage system (BESS), designed to deliver reliable, sustainable, and cost-effective energy for businesses and industrial facilities. The system is particularly suited for large-scale commercial operations, where energy efficiency, cost savings, and grid stability are of utmost importance.

Specification
MODEL
|
BESS-100KW/200KWH |
Battery Type
|
LiFePo4
|
Battery Pack Configuration |
14.336KWH/1P16S |
Battery System Configuration |
200KWH/1P224S |
Battery Voltage Range |
627~806V |
Number of Temperature Measurements |
84 |
AC rated power |
100KW |
AC maximum power |
110KW |
AC current distortion rate |
<3% |
DC component |
<0.5%lpn |
Grid voltage range |
380/400(-15%~15%)Vac |
Power factor |
-1~+1
|
Rated grid frequency |
50Hz/60Hz
|
Maximum system efficiency
|
91% |
Charge/discharge ratio |
≤0.5C |
The depth of discharge |
80%DOD
|
Cycles |
6000
|
Protocol(optional) |
RS232/RS485/CAN/BLUETOOTH/WIFI
|
Protection Grade |
IP55
|
Type of cooling |
Air conditioning air cooling |
Operating temperature |
-35℃~+55℃
|
Relative humidity |
5~95%RH, No condensation |
Noise |
<70dB |
Altitude |
<2000m |
Size |
1200*2350*1100mm |
Fire protection system |
Aerosol+Pack-level immersion+Active warning |
Weight |
2500Kg |
Safety and Certification |
CE/IEC/UL/UN38.3/MSDS |
Product Description
![]() |
Our innovative solution is specifically designed to address the challenges of electricity-deprived remote areas, such as isolated islands, sparsely populated grazing lands, and other off-grid locations where traditional power infrastructure is difficult or impractical to establish. By providing a consistent and dependable power supply, we ensure that even the most underserved regions can access the energy they need to thrive.
Whether you aim to electrify rural communities, support agricultural operations, or power remote facilities, our solution delivers sustainable, cost-effective, and resilient electricity tailored to the unique demands of these challenging environments. Embrace this transformative technology to light up remote locations, empower local development, and pave the way for a cleaner, brighter, and more connected future. |
Sail Solar BESS adeptly reduces peak energy consumption, effectively mitigating demand charges and optimizing cost management for commercial establishments.
|
![]() |
