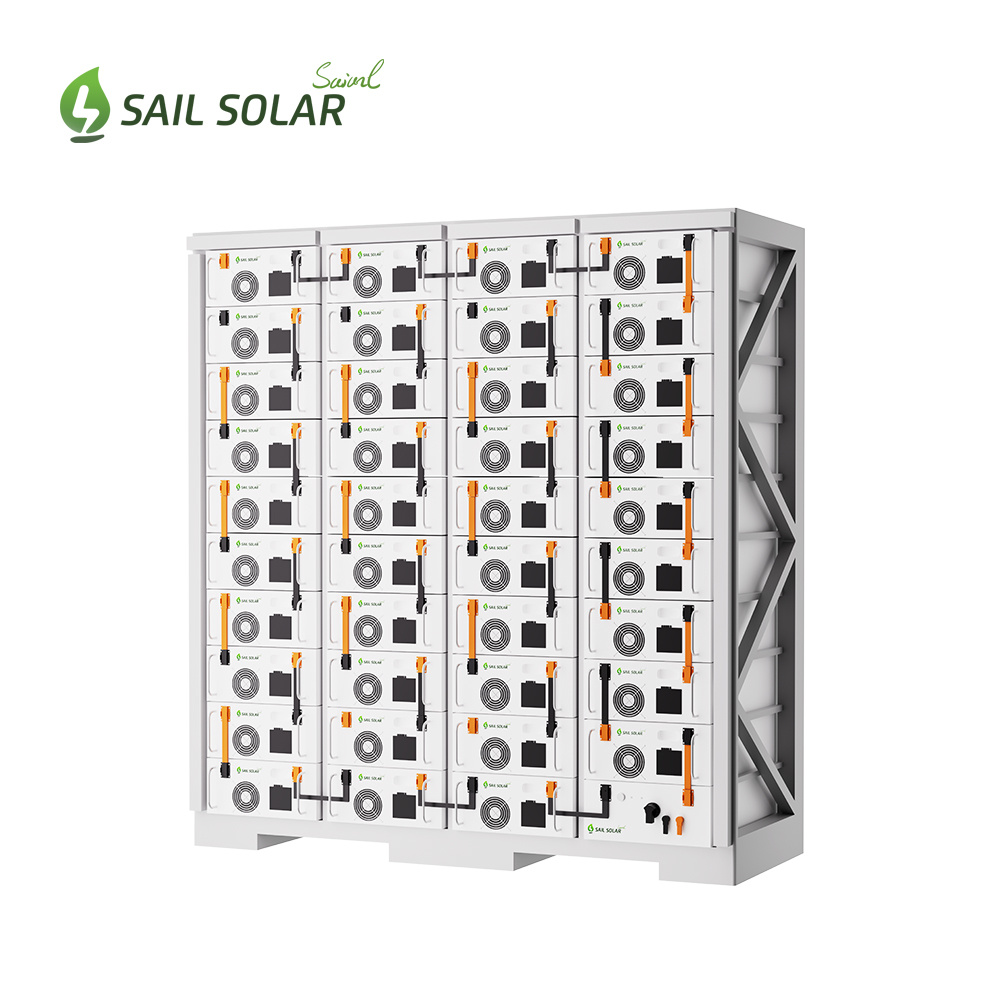

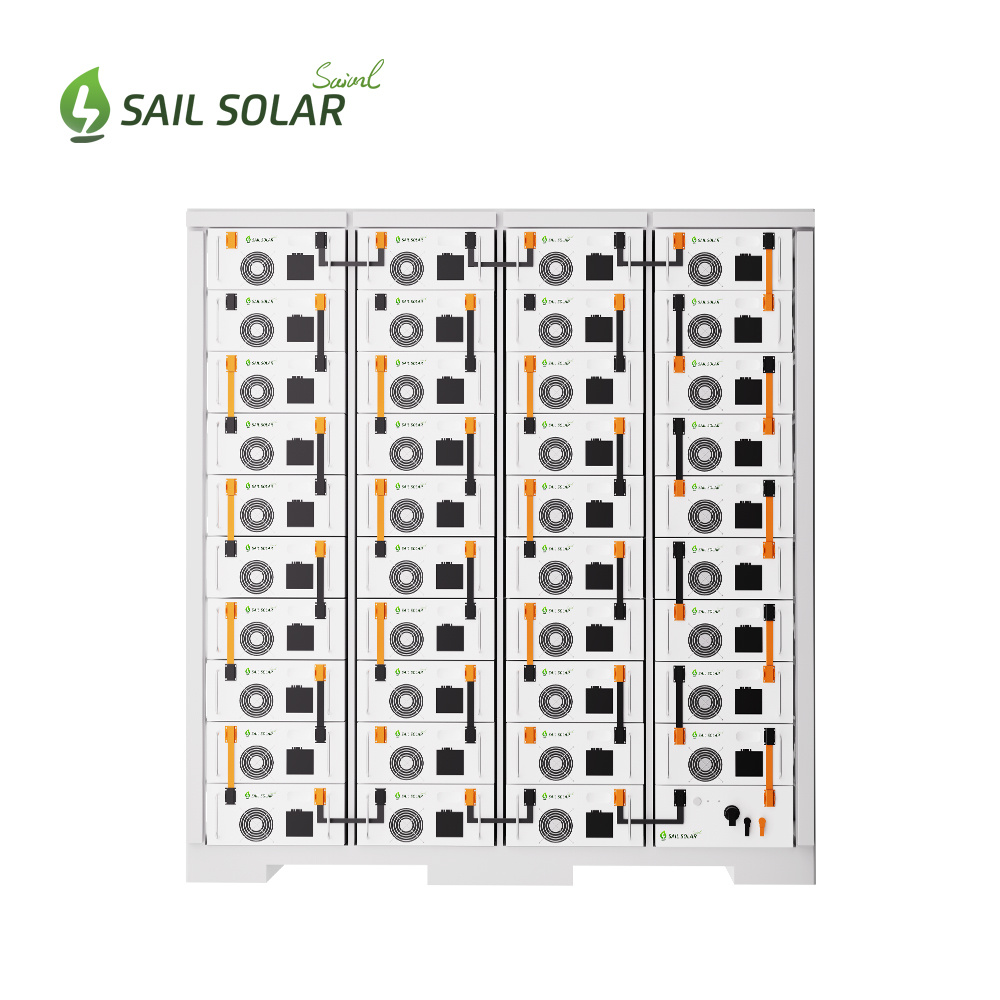

Sail Solar 150kwh 280ah 51.2v LiFePO4 Lithium Battery Pack High Voltage Energy Power System Lithium Battery All One System
Product Introduction:
The 150kwh 280ah 51.2v LiFePO4 Lithium Battery Pack is a state-of-the-art energy storage solution designed for solar power systems, offering a combination of high capacity, reliable performance, and durability. With a recommended charge/discharge current of 100A and a cycle life of 6000 cycles, this 150kwh 280ah 51.2v LiFePO4 Lithium Battery Pack made in China is built to withstand the rigors of daily use in both residential and commercial settings.
Featuring a nominal voltage of 51.2V and a normal capacity of 580Ah, this battery pack provides a stable and efficient power source for solar applications. The IP54 protection class ensures that the 150kwh 280ah 51.2v LiFePO4 Lithium Battery Pack is safeguarded against dust and water, making it suitable for a wide range of environmental conditions. The integration of MPPT protocols such as RS232/RS485/CAN/BLUETOOTH/WIFI allows for seamless system communication and management.
In order to better meet the diversified needs of the market, relying on its own technology, resources, talents and other advantages, it has successfully created 150kwh High Voltage Lithium Lifepo4 LFP Battery. We have been constantly developing new technologies to manufacture value-added Sail Solar 150kwh High Voltage Lithium Lifepo4 LFP Battery. It can be widely found in the application field of Energy Storage Battery. Sail Solar is a solution for all your buying needs. We can offer you the prices that you need and quality that is good for you.
Specification
|
MODEL
|
SAS-50KWH-R/SAS-50KWH-C |
SAS-100KWH-R/SAS-100KWH-C |
SAS-150KWH-R/SAS-150KWH-C |
SAS-200KWH-R/SAS-200KWH-C |
|
Battery Type
|
LiFePO4 battery
|
|||
| Nominal Voltage |
51.2V |
|||
| Normal Capacity |
280Ah |
|||
| Energy |
14.336Kw/h |
|||
| Efficiency of Charge |
99.5%@0.2C |
|||
| Efficiency of Discharge |
96-99%@1C |
|||
| Charge Voltage |
58.4±0.5V |
|||
|
Module Size(mm)
|
792*483*245(D*W*H) |
|||
| Net weight(kg) |
108 |
|||
| Cell&Method |
EVE302V280Ah-16S1P
|
|||
| Interal Resistance |
≤50mΩ
|
|||
|
Battery rack specification
|
||||
|
Configuration
|
4 battery modules+1 BPU(204.8V 280Ah)
|
7 battery modules+1 BPU(358.4V 280Ah) |
11 battery modules+1 BPU(563.2V 280Ah) |
14 battery modules+1 BPU(716.8V 280Ah) |
|
Energy
|
57.34Kw/h
|
100.35Kw/h |
157.7Kw/h |
200Kw/h |
| Discharge Cut-Off Voltage(V) |
176 |
308 |
484 |
616 |
| Charge Cut-Off Voltage(V) |
227.2
|
397.6 |
624.8 |
795.2 |
| Recommend Charge/Discharge Current(A) |
100
|
|||
|
Max.Charge/Discharge working Current(A)
|
200 |
|||
| Protocol(optional) |
RS232/RS485/CAN/BLUETOOTH/WIFI |
|||
| Working Temperature |
0℃~50℃ Charge-10℃~50℃ Discharge
|
|||
| Certification |
CE/IEC/UL/UN38.3/MSDS
|
|||
| Cycle Life |
6000 cycles @ 0.5C 80% D.O.D
|
|||
| Series |
Max Support 16 Units in Parallel
|
|||
| Rack Size(mm) |
1080*800*650
|
1080*800*1250 |
1080*800*1800 |
1655*800*1530 |
| Net Weight(kg) |
530
|
930 |
1460 |
1860 |
| Protection |
Build in smart BMS, Breaker
|
|||
| Protection Grade |
IP20(IP54 is optional)
|
|||
|
Humidity
|
5%~95% |
|||
| Altitude |
≤2000m
|
|||
Product Description
 |
The 150kWh High-Voltage Energy Storage System from Sail Solar offers a seamless all-in-one solution, engineered for performance, safety, and longevity. Built with advanced lithium-ion battery packs, this system delivers exceptional stability, high energy density, and reliability. It is designed to be charged effortlessly using grid power or solar panel systems, making it an ideal energy storage solution for businesses and factories seeking dependable electricity supply. This system consists of 11 14.3kWh battery modules, interconnected to provide scalable and robust energy storage. The lithium-ion batteries boast an impressive lifespan of over 10 years, maintaining high efficiency throughout their lifecycle. Their durable design ensures a stable energy output, protecting your investment while maximizing returns. Whether powering critical operations or enhancing energy independence, this system represents a smart, sustainable choice for long-term energy solutions. |
|
Sail Solar high voltage battery is designed to deliver higher system efficiency while ensuring optimal performance in various applications. The system features excellent safety performance, adhering to the highest industry standards to provide peace of mind for users. With a shorter response time, it guarantees a swift and reliable power supply, making it ideal for dynamic and critical operations. To maximize battery performance, the system includes automatic equalization of battery status, ensuring uniform energy distribution and prolonging the life of the system. It also comes with a reserved dry contact for function expansion, allowing for seamless integration with other devices or systems to meet diverse application requirements. Whether for industrial, commercial, or residential use, this energy storage solution offers a comprehensive, cutting-edge approach to meet today's energy challenges. |
 |
Certificate
Our lithium battery products have been exported to more than 100 countries, including but not limited to the United States, Canada, Puerto Rico, Germany, Poland, Belgium, Philippines, Saudi Arabia, South Africa, Nigeria. Products comply with mainstream market certifications, including UL, CE, ISO, MSDS, UN38.3, etc.
