Sail Solar Helios Hybrid Solar Power Inverter Good Price IP65 25kw With MPPT 208V
Category:
Still deciding? Get samples first, Contact US !
Product details

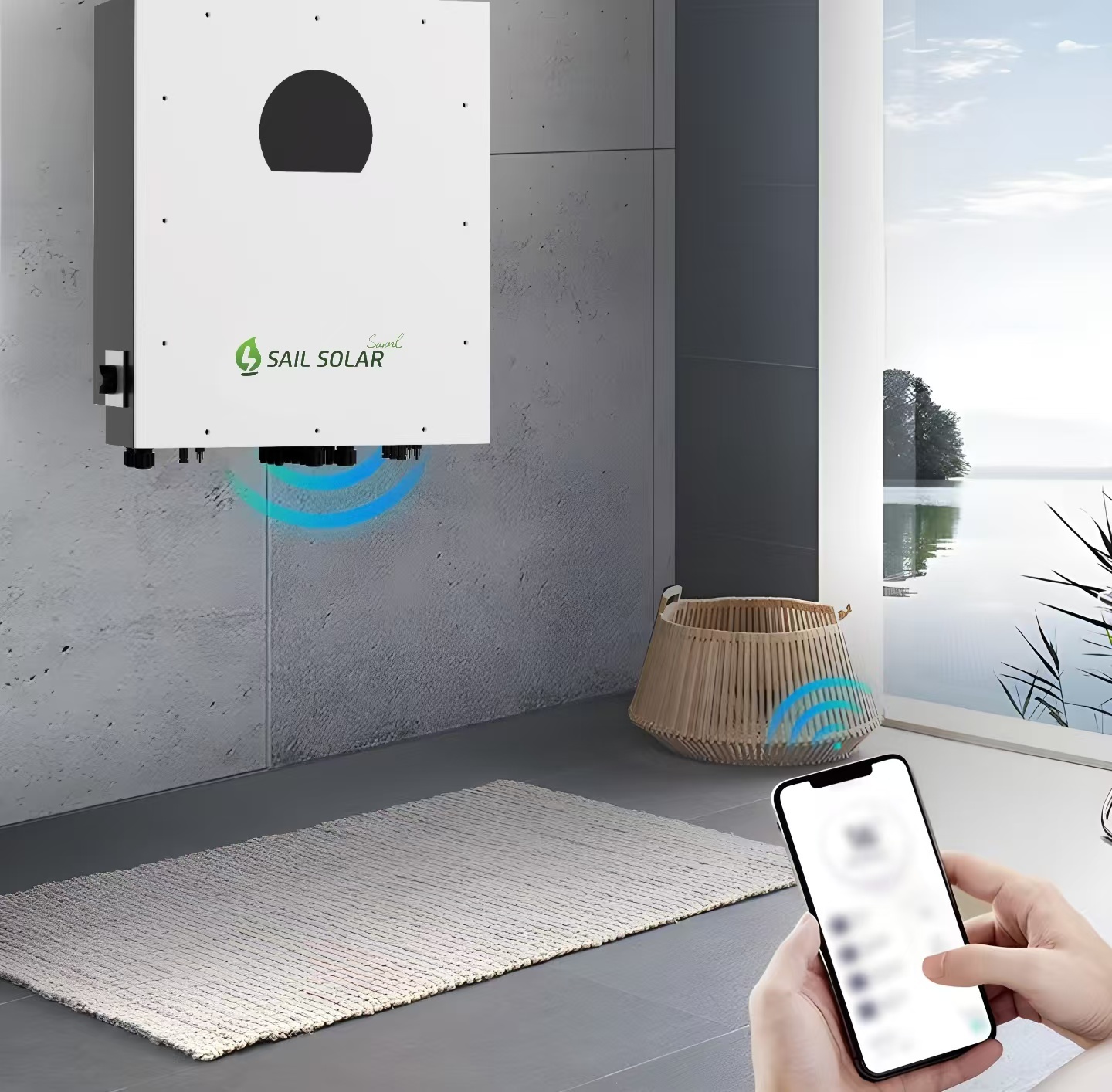

Helios 25kW (25kVA) 208V three phase hybrid inverters are designed for rooftop and carport applications. These units are high performance, advanced and reliable inverters. High efficiency 97.0% peak, wide operating voltages, broad temperature ranges and IP65 waterproof and dustproof enable this inverter to operate at high performance across many applications.
Specification
| MODEL | WP LV 7.5KW | WP LV 15KW | WP LV 25KW | WP 25KW | WP 40KW |
Maximum PV Input Power | 10,000W | 20,000W | 40,000W | 40,000W | 40,000W |
Rated Output Power | 7,500W | 15,000W | 25,000W | 25,000W | 40,000W |
Maximum Charging Power | 10,000W | 10,000W | 18,000W | 18,000W | 18,000W |
| GRID-TIE OPERATION | |||||
PV INPUT (DC) |
| ||||
Minimum DC Voltage/ Maximum DC Voltage | 720 VDC/ 1000 VDC | ||||
Start-up Voltage / Initial Feeding Voltage | 320 VDC / 350 VDC | ||||
MPP Voltage Range | 350 VDC ~ 900 VDC | ||||
Number of MPP Trackers / Maximum Input Current | 2/ A:10A, B:10A | 2/ A:20A, B:20A | 3/A:26A, B:26A, C:26A | ||
GRID OUTPUT (AC) |
| ||||
Nominal Output Voltage | 120VAC(P-N)/208VAC(P-P) | 277VAC(P-N)/480VAC(P-P) | |||
Output Voltage Range | 105.5-132 VAC*per phase | 222-318 VAC*per phase | |||
Nominal Output Current | 20.8 A per phase | 41.7 A per phae | 69.4 A per phase | 30 A per phase | 48 A per phase |
| Power Factor | 0.9 lag to 0.9 lead | ||||
| OFF-GRID, HYBRID OPERATION | |||||
AC INPUT |
| ||||
AC Start-up Voltage / Auto Restart Voltage | 85 VAC per phase / 90 VAC per phase | 180 VAC per phase / 180 VAC per phase | |||
Acceptable Input Voltage Range | 85 - 140 VAC per phase | 170-280 VAC per phase | |||
Maximum AC Input Current(Phase/N) | 25A | 50A | 75A | 50A | 50A |
BATTERY MODE OUTPUT (AC) |
| ||||
Nominal Output Voltage | 120VAC(P-N)/280VAC(P-P) | 277VAC(P-N)/480VAC(P-P) | |||
| Output Frequency | 50Hz / 60Hz (auto sensing) | ||||
| Output Waveform | Pure sine wave | ||||
Efficiency (DC to AC) | 93% | 97% | |||
BATTERY & CHARGER |
| ||||
| Battery Voltage Range | 360~460VDC | 537~692VDC | 537~692VDC | 537~692VDC | 537~692VDC |
Maximum Solar Charging Current | 18 A | 25A | 40A | 40A | 50A |
| GENERAL | |||||
PHYSICAL |
| ||||
Size, D x W x H (mm) | 255 x 660 x 750 | 255 x 660 x 750 | 268 x 700 x 750 | 255 x 660 x 750 | 255 x 660 x 750 |
Net Weight (kgs) | 65 | 65 | 110 | 73 | 73 |
INTERFACE |
| ||||
| Intelligent Slot | Optional SNMP and MODBUS and GPRS | ||||
Communication Port | RS-232, USB, RS-485, Dry Contact, Wi-Fi | ||||
ENVIRONMENT |
| ||||
Humidity | 0 ~ 100% RH | ||||
Operating Temperature | -25°C to 60°C(>45℃ De-rating) | ||||
Protection Grade | IP65 | ||||
Application
 | The Helios 25kW (25kVA) 208V three-phase hybrid inverters are specifically designed to meet the demands of modern rooftop and carport solar applications. These advanced units deliver exceptional performance, reliability, and efficiency, making them ideal for both commercial and industrial energy solutions. With an impressive 97.0% peak efficiency, the Helios inverter ensures maximum energy conversion, minimizing losses and delivering more power to the grid or storage systems. Its wide operating voltage range and broad temperature adaptability make it versatile for varying environmental conditions, ensuring consistent performance even in harsh climates. The IP65-rated waterproof and dustproof enclosure adds an extra layer of durability, allowing the inverter to operate seamlessly in outdoor and challenging installations without compromising efficiency. Engineered with cutting-edge hybrid technology, these inverters are capable of integrating solar power, battery storage, and the utility grid, providing a flexible and robust energy solution for diverse applications. |
The Helios 25kW (25kVA) 208V three-phase hybrid inverter is an exceptional solution for businesses and industries striving to enhance energy efficiency and sustainability while significantly reducing operational costs. Built to integrate seamlessly with three-phase electrical systems, the Helios inverter ensures a balanced and stable distribution of power across your property. This is especially beneficial for environments with high energy consumption. In addition to its reliable performance, the hybrid technology allows for seamless integration with solar energy, grid power, and energy storage systems, enabling users to optimize their energy use, reduce reliance on the grid, and minimize energy bills. With its durable design and cutting-edge technology, the inverter is not only a smart investment for the present but also a sustainable choice for a greener, more cost-efficient future. |  |
