48VDC Split-phase Intelligent Hybrid Solar Inverters 12Kw PV System Energy Storage Inverter For Home
Category:
Still deciding? Get samples first, Contact US !
Product details
Helios-12KLV-US split phase hybrid inverter power management system supports multiple input & output options, including split-phase 120V/240V and 120V/208V, features a door-type cable compartment, is equipped with built-in 300A DC breaker and 60A AC breaker, includes built-in AC coupling function and WiFi for mobile monitoring via an app, accepts a second input power source compatible with generators, has built-in arc fault detection (AFD) and rapid shutdown (RSD), offers an external CT sensor to guarantee 100% self-consumption, includes a built-in communication port for BMS (RS485), allows user-adjustable charging current and voltage, and supports parallel operation up to 6 units.
Specification
MODEL | Helios-12KLV-US |
Maximum Pv Input Power | 12000W |
Rated Output Power | 10000VA/10000W |
Maximum Charging Power | 10000W |
PV INPUT (DC) |
|
Maximum DC Voltage | 600 VDC |
Start-up Voltage / Initial Feeding Voltage | 125 VDC / 160 VDC |
MPP Voltage Range | 120 VDC ~ 550 VDC |
Number of MPP Trackers / Maximum Input Current | 2 / 18A (MAX 30A) |
GRID OUTPUT (AC) | |
Nominal Output Voltage | 120 VAC (P-N), 208 VAC (P-P), 240 VAC (P-P) |
Output Voltage Range | 105.5 VAC - 132 VAC (per phase) |
Nominal Output Current | 41.7 A per phase |
| Power Factor | 0.9 lag to 0.9 lead |
AC INPUT |
|
AC Start-up Voltage / Auto Restart Voltage | 85 VAC (per phase) / 90 VAC (per phase) |
Acceptable Input Voltage Range | 90 - 140 VAC (per phase) |
Maximum AC Input Current | 60 A per phase |
BATTERY MODE OUTPUT (AC) |
|
Nominal Output Voltage | 120 VAC (P-N), 208 VAC (P-P), 240 VAC (P-P) |
| Output Waveform | Pure sine wave |
Efficiency (DC to AC) | 91% |
BATTERY & CHARGER | |
Nominal DC Voltage | 40-62 VDC / 48 VDC |
Maximum Solar Charging Current | 200 A |
| Maximum AC Charging Current | 200 A |
| Maximum Charging Current | 200 A |
PHYSICAL |
|
Size, D x W x H (mm) | 215.5 x 515 x 798 |
Net Weight (kgs) | 49 |
ENVIRONMENT |
|
Operating Temperature | 25°C to 60°C (>45°C derating) |
| PROTECTION & CERTIFICATE | |
| Safety | UL1741SA, UL1741SB, CSA 22.2.107.1, CEC |
| Grid Connection Standard | IEEE 1547.1:2020; IEEE 1547:2018, California Rule 21, HECO Rule 14H |
| EMC | FCC Part 15 Class B |
| PV DC Switch - NEC 250.15 | Yes |
| Ground Fault Detection — NEC 690.5 | Yes |
| PV Rapid Shutdown Protection - NEC 690.12 | Yes |
| PV Arc Fault Detection — NEC 690.11 | Yes |
| PV Input Lightning Protection | Yes |
| 3 x 60A AC Input and Output Breaker | Built-in |
| 200A x 2 Battery DC Breaker | Built-in |
Application

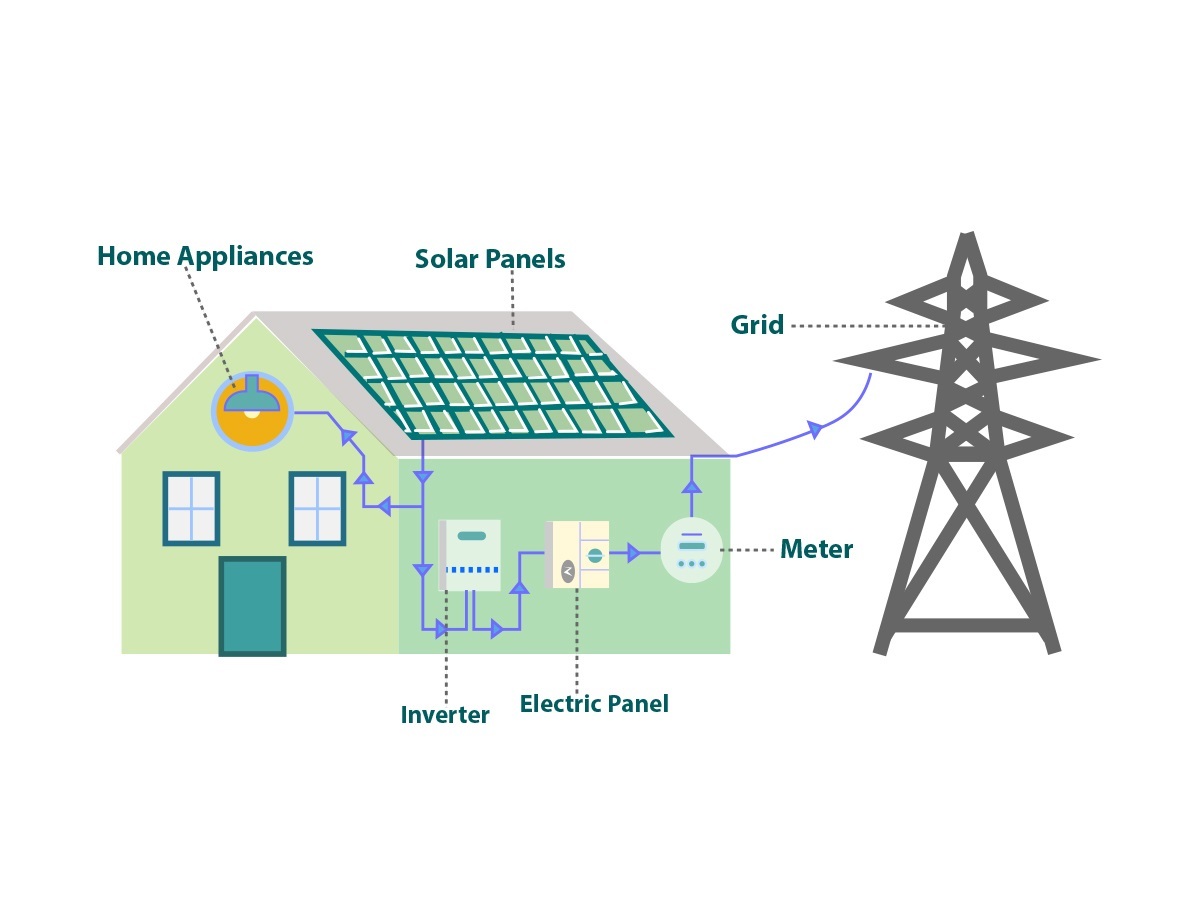

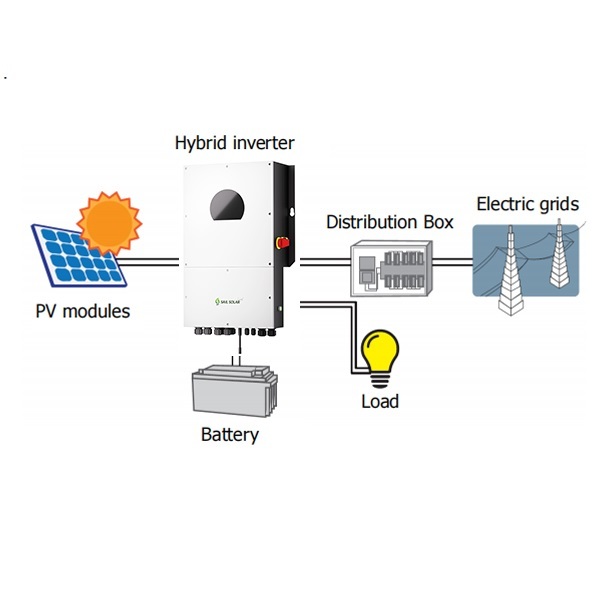

 | There are three operation modes for this solar inverter. Grid-tie with backup PV power can feed-in back to grid, provide power to the load and charge the battery. PV power can feed-in back to grid, provide power to the load and charge the battery. There are four options available in this mode: Grid-tie with backup I, II, III and IV. In this mode, users can configure PV power supply priority, charging source priority and load supply source priority. However, when Grid-tie with backup IV option is selected in PV energy supply priority, the inverter is only operated between two working logics based on defined peak time and off-peak time of electricity. Only peak time and off-peak time of electricity are able to set up for optimized electricity usage. Grid-Tie Only PV power can feed-in back to grid. Off-Grid: PV power only provides power to the load and charge battery. No feed-in back to grid is allowed. |
Inverter also integrates MPPT battery charger. With the parallel function that is now standard on this version, it is possible to expand the system to up to 72kw. In addition, This unit is equipped with a Wi-Fi transmitter. Wi-Fi transmitter can enable wireless communication between off-grid inverters and monitoring platform. Users can access and control the monitored inverter with downloaded APP. This inverter is equipped with several communication ports and it is also equipped with a slot for alternative communication interfaces in order to communicate with a PC with corresponding software.Whether you're looking to power your home during outages, run heavy machinery on a farm, or ensure uninterrupted operation in commercial settings, our 12kw inverter stands ready to meet your energy requirements with ease.
|
|
