Sail Solar delivers end-to-end solar storage solutions for residential, commercial, and industrial applications. Our 100kW hybrid solar system, paired with 100kWh or 200kWh battery storage, offers a high-performance, scalable energy solution with advanced features. All-in-One Hybrid Inverter – Simplified integration, high efficiency, Seamless On/Off-Grid Transition – Zero interruption during grid failures, Programmable Operation Modes – Optimize for self-consumption, backup, or peak shaving. The perfect choice for industry and commerce.
NEW PRODUCTS
100Kw C&I Hybrid Energy Storage Solar System with 100Kwh 200Kwh Backup Battery
Category:
Item No.:SAS100KW-HY
Output Voltage: 380V / 400V, Other Voltages Customized
Rated Output Power: 100kW
Capacity: 100kWh / 200kWh
Grid Connection: Hybrid
Battery Type: LiFePO4
Communication Port: CAN, RS485
Protection Class: IP65
Shipping Port: Shanghai
Payment: T/T, L/C, Western Union
Certificate: CE
Still deciding? Get samples first, Contact US !
Product details
Specification
MODEL | SAS-100kW-HY |
Model | |
| 720W Solar Panel | 139 pieces |
| Hybrid Inverter | 100KW |
| Lithium Battery | Customized Lithium (Lifepo4) Battery Storage System with BMS Monitoring |
| DC Cable 4mm2 | 800 Meters |
| MC4 Connector | 80 Pairs |
| Mounting System | Customized for Rooftop or Ground |
Optional Accessories | Lightning protection/grounding device AC/DC Combiner box AC Cable Smart Meter |
Product Description

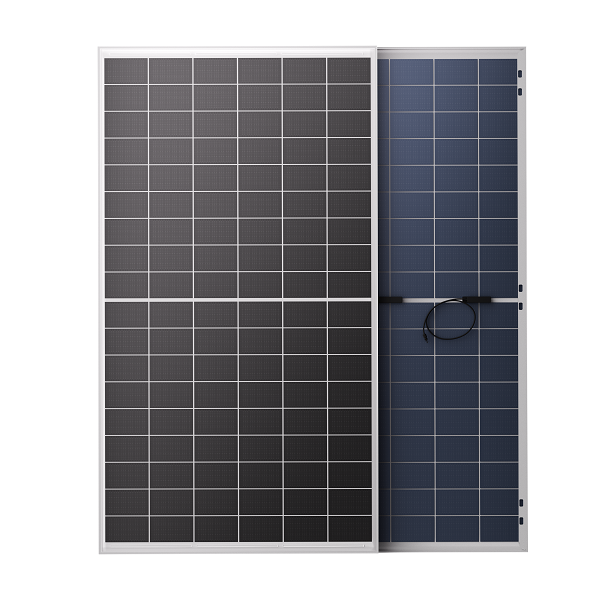

 | Mono N-type High Efficiency Half Cell/Bifacial Solar Modules
N-type bifacial double-glass solar modules offer significant advantages in PV systems, delivering higher energy yields compared to traditional modules. Their N-type cells provide superior efficiency, lower degradation rates, and better performance in low-light conditions. The bifacial design captures sunlight on both sides, increasing power generation by up to 30% when combined with reflective surfaces. Additionally, the dual-glass construction enhances durability, weather resistance, and long-term reliability, making them ideal for harsh environments. With a longer lifespan and improved temperature coefficient, these modules ensure higher ROI and lower LCOE over the system's lifetime |

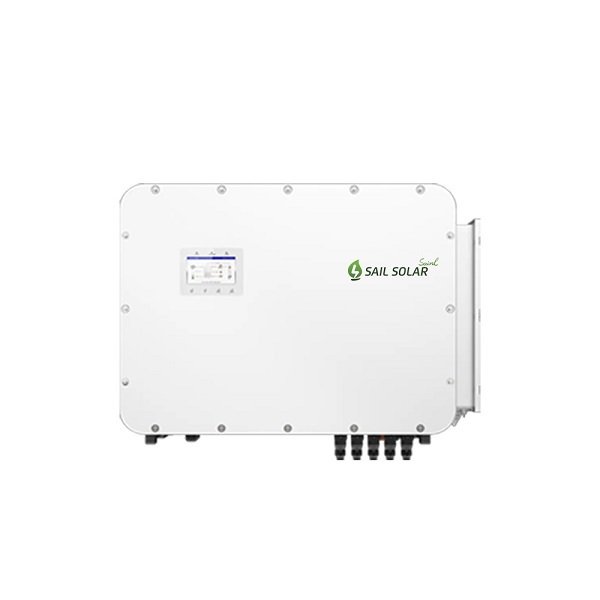

Hybrid Inverter
This is a hybrid solar inverter with high voltage, three-phase energy storage for commercial applications. The inverter series, which boasts a maximum charge/discharge current of 100A+100A across two independently controlled battery ports, has 10 integrated MPPTs with a string current capacity of up to 20A – ensuring unmatched power delivery. port capable of supporting 2.0 times overload for short durations. This latest range compatible with an array of batteries, thanks to its wide voltage range, and offers peak shaving control in both self-use and generator modes. |  |

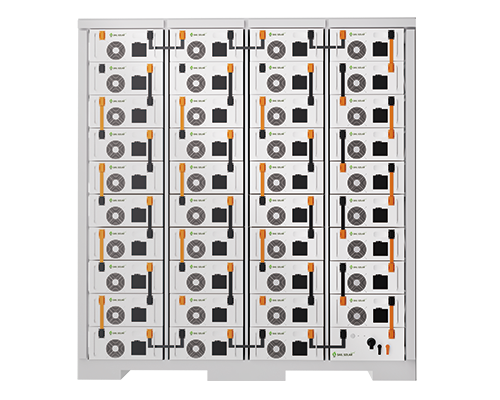

 | Lithium Battery and a capacity of 280Ah, delivering a total energy of approximately 200 kWh. esigned for large-scale energy storage systems, it offers high energy density, long cycle life, such as solar-plus-storage systems, peak shaving, and backup power. |
Accessories
Solar accessories include PV DC cables (4mm², 6mm², 10mm², etc.), AC cables, MC4 solar-compatible connectors, and a |  |

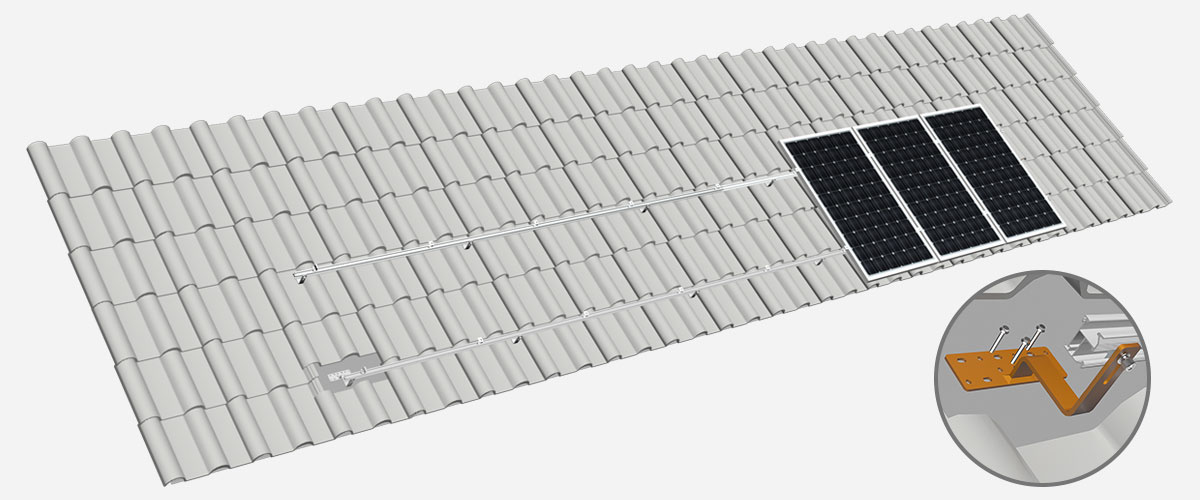

 | Mounting Rackets The solar mounting structure is custom-designed to suit various roof materials, ensuring optimal compatibility and secure installation. Each system is tailored to the specific roof type—whether tile, metal, concrete, or asphalt—providing durability, weather resistance, and maximum energy efficiency for your PV array |
This advanced energy storage solution features a high-efficiency 100kW hybrid inverter paired with a scalable 100-200kWh high-voltage lithium battery (LiFePO4), delivering robust performance for commercial applications. The system seamlessly integrates solar power, battery storage, and grid electricity, enabling intelligent energy management and uninterrupted power supply. With CAN/RS485 communication ports, users gain real-time monitoring and control to optimize self-consumption and reduce reliance on the grid. Engineered for durability and adaptability, the system supports flexible capacity expansion (100kWh, 150kWh, or 200kWh) to meet growing energy demands. Its high-voltage architecture ensures higher efficiency, longer lifespan, and reduced energy loss compared to low-voltage alternatives. Whether for peak shaving, backup power, or off-grid use, this solution offers a future-proof, cost-effective pathway to energy independence. |
After-Sales Service
● " 7/24 " After-Sales Support
● 7 days a week, 24 hours a day: Ready to respond and solve problems immediately—Sail Solar's commitment to worry-free after-sales service.
● Service Email: info@sailsolaress.com
Service Process
01 |
Submit Service Requests Submit your service requests at any time via email, online customer service, or mobile app. |
02 |
Rapid Response Our service team will immediately respond to your requests and communicate the details of the issue with you. |
03 |
On-Site Service or Remote Support Depending on the nature of the problem, provide on-site service or remote technical support. |
04 |
Problem Resolution Our goal is to completely resolve your issue within 24 hours. |
05 |
Follow-Up After the problem is resolved, our team will continue to follow up to ensure your satisfaction with the service results. |
key word:
100Kw C&I Hybrid Solar System
100Kw Energy Storage Solar System
100Kwh 200Kwh Battery Solar System
100Kw 100Kwh Hybrid Solar System
200Kwh Hybrid Energy System
